On-Board Precision Charger MK-212 PCL 2 Bank x 6 AMP LI Optimized ChargerLonger run times. Shorter charge times. That's the precision difference that keeps anglers on the water longer and puts more fish in the boat. Now, the next generation of this legendary line of chargers has been optimized for 12-volt lithium (LiFePO4) batteries. Precision chargers feature battery-type selection by the bank, which now includes charge curves specially formulated for the high demands of lithium batteries, and can even wake these battery types from standby. Features:
Battery Type Selection: Each charging bank can be selected to your specific battery type (Lithium (LiFePO4) AGM or flooded lead acid) to guarantee a safe, protected charge
Automatic Temperature Compensation: Precision chargers sense and adjust to ambient temperature fluctuations to ensure a fast, accurate charge
Low-Line Voltage Compensation: When outlets don't put out the 120 volts they are supposed to, Precision Chargers compensate to deliver a fast, consistent charge no matter what
Battery Equalization: Cleans and protects your battery (flooded lead-acid only) every time you plugin. Also activates a more rigorous, complete cleaning at the push of a button
Digital Control: Microprocessor-based design delivers a faster, more precise charge every time. Precision chargers can even wake dead 12-volt lithium (LiFePO4) batteries from standby automatically.
LED Indicator Lights: Inform of charge stage, maintenance mode status, error notifications, and full charge
Automatic Multi-Stage Charging: Controls the voltage and current your battery gets throughout the charging cycle, ensuring a fast, safe and precise charge
Waterproof Construction: All on-board chargers are built to be waterproof, shock-resistant and vibration-resistant
3-Year Warranty: All battery chargers come with a full 3-year replacement warranty
Specifications:
Product Dimensions: 9.88 in x 5.88 in x 3.5 in
Product Weight: 6.4 lb
Charger Style: On-Board
Output per Bank: 6 amps
Wattage: 180W
Charge Time: 10-12 hours
Power Source: On-Shore AC
Battery Type: 12v Lithium LiFePO4, 12v AGM, 12v Flooded Lead Acid
12v Lithium-Ion (LiFePO4) Optimized: Yes
Waterproof: Yes
Digital Control: Yes
Automatic Temperature Compensation: Yes
Battery Equalization: Yes
Battery Type Selection: Yes
LED Display: Yes
Saltwater Compatible: Yes
Battery Connection: Ring Terminal
Warranty: Three-Year Warranty
Specifications:
Charger Input - Voltage: 120v
Charger Output - Amps: 6a
Charger Output Voltage: 12/24v
Charging Banks: 2
Portable: No
Box Dimensions: 4"H x 10"W x 18"L WT: 2 lbs
UPC: 029402049967

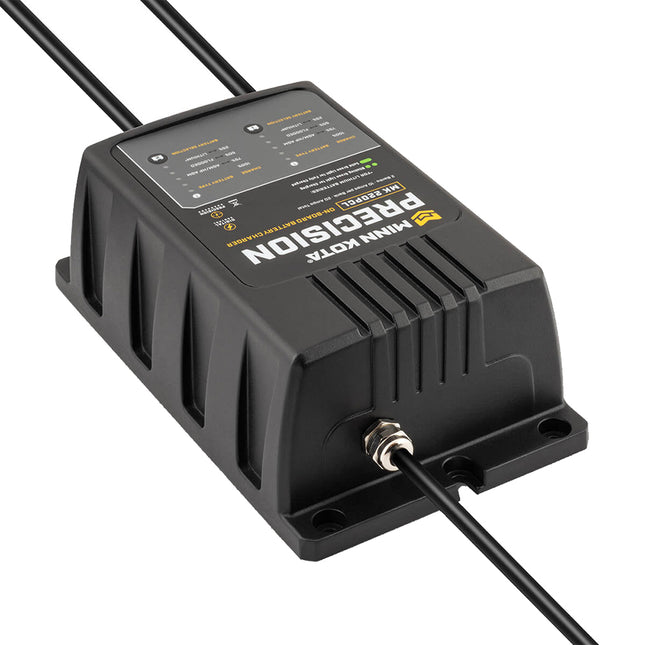

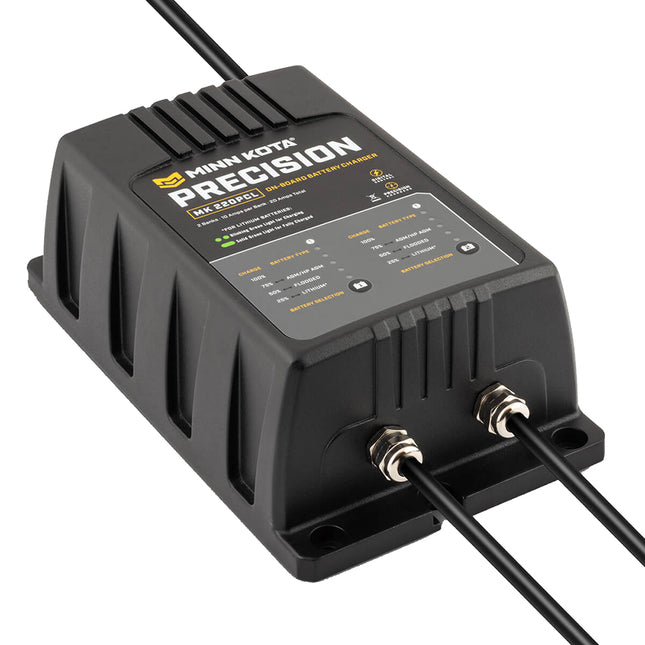

On-Board Precision Charger MK-220 PCL 2 Bank x 10 AMP LI Optimized ChargerLonger run times. Shorter charge times. That's the precision difference that keeps anglers on the water longer and puts more fish in the boat. Now, the next generation of this legendary line of chargers has been optimized for 12-volt lithium (LiFePO4) batteries. Precision chargers feature battery-type selection by the bank, which now includes charge curves specially formulated for the high demands of lithium batteries, and can even wake these battery types from standby. Features:
Battery Type Selection: Each charging bank can be selected to your specific battery type (Lithium (LiFePO4) AGM or flooded lead acid) to guarantee a safe, protected charge
Automatic Temperature Compensation: Precision chargers sense and adjust to ambient temperature fluctuations to ensure a fast, accurate charge
Low-Line Voltage Compensation: When outlets don't put out the 120 volts they are supposed to, Precision Chargers compensate to deliver a fast, consistent charge no matter what
Battery Equalization: Cleans and protect your battery (flooded lead acid only) every time you plugin. Also activates a more rigorous, complete cleaning at the push of a button
Digital Control: Microprocessor-based design delivers a faster, more precise charge every time. Precision chargers can even wake dead 12 volt lithium (LiFePO4) batteries from standby automatically.
LED Indicator Lights: Inform of charge stage, maintenance mode status, error notifications and full charge
Automatic Multi-Stage Charging: Controls the voltage and current your battery gets throughout the charging cycle, ensuring a fast, safe and precise charge
Waterproof Construction: All on-board chargers are built to be waterproof, shock-resistant and vibration-resistant
3-Year Warranty: All battery chargers come with a full 3-year replacement warranty
Specifications:
Product Dimensions: 9.88 in x 5.88 in x 3.5 in
Product Weight: 6.4 lb
Charger Style: On-Board
Output per Bank: 10 amps
Wattage: 300W
Charge Time: 4-6 hours
Power Source: On-Shore AC
Battery Type: 12v Lithium LiFePO4, 12v AGM, 12v Flooded Lead Acid
12v Lithium-Ion (LiFePO4) Optimized: Yes
Waterproof: Yes
Digital Control: Yes
Automatic Temperature Compensation: Yes
Battery Equalization: Yes
Battery Type Selection: Yes
LED Display: Yes
Saltwater Compatible: Yes
Battery Connection: Ring Terminal
Warranty: Three-Year Warranty
Specifications:
Charger Input - Voltage: 120v
Charger Output - Amps: 10a
Charger Output Voltage: 12/24v
Charging Banks: 2
Portable: No
Box Dimensions: 5"H x 10"W x 18"L WT: 8.7 lbs
UPC: 029402049974
On-Board Precision Charger MK-318 PCL 3 Bank x 6 AMP LI Optimized ChargerLonger run times. Shorter charge times. That's the precision difference that keeps anglers on the water longer and puts more fish in the boat. Now, the next generation of this legendary line of chargers has been optimized for 12-volt lithium (LiFePO4) batteries. Precision chargers feature battery-type selection by the bank, which now includes charge curves specially formulated for the high demands of lithium batteries, and can even wake these battery types from standby.Features:
Battery Type Selection: Each charging bank can be selected to your specific battery type (Lithium (LiFePO4) AGM or flooded lead acid) to guarantee a safe, protected charge
Automatic Temperature Compensation: Precision chargers sense and adjust to ambient temperature fluctuations to ensure a fast, accurate charge
Low-Line Voltage Compensation: When outlets don't put out the 120 volts they are supposed to, Precision Chargers compensate to deliver a fast, consistent charge no matter what
Battery Equalization: Cleans and protects your battery (flooded lead-acid only) every time you plugin. Also activates a more rigorous, complete cleaning at the push of a button
Digital Control: Microprocessor-based design delivers a faster, more precise charge every time. Precision chargers can even wake dead 12-volt lithium (LiFePO4) batteries from standby automatically.
LED Indicator Lights: Inform of charge stage, maintenance mode status, error notifications, and full charge
Automatic Multi-Stage Charging: Controls the voltage and current your battery gets throughout the charging cycle, ensuring a fast, safe and precise charge
Waterproof Construction: All on-board chargers are built to be waterproof, shock-resistant and vibration-resistant
3-Year Warranty: All battery chargers come with a full 3-year replacement warranty
Specifications:
Product Dimensions: 9.88 in x 7.75 in x 3.5 in
Product Weight: 8.4 lb
Charger Style: On-Board
Output per Bank: 6 amps
Wattage: 270W
Charge Time: 10-12 hours
Power Source: On-Shore AC
Battery Type: 12v Lithium LiFePO4, 12v AGM, 12v Flooded Lead Acid
12v Lithium-Ion (LiFePO4) Optimized: Yes
Waterproof: Yes
Digital Control: Yes
Automatic Temperature Compensation: Yes
Battery Equalization: Yes
Battery Type Selection: Yes
LED Display: Yes
Saltwater Compatible: Yes
Battery Connection: Ring Terminal
Warranty: Three-Year Warranty
Specifications:
Charger Input - Voltage: 120v
Charger Output - Amps: 6a
Charger Output Voltage: 12/24/36v
Charging Banks: 3
Portable: No
Box Dimensions: 3"H x 12"W x 17"L WT: 5 lbs
UPC: 029402049981
On-Board Precision Charger MK-330 PCL 3 Bank x 10 AMP LI Optimized ChargerLonger run times. Shorter charge times. That's the precision difference that keeps anglers on the water longer and puts more fish in the boat. Now, the next generation of this legendary line of chargers has been optimized for 12-volt lithium (LiFePO4) batteries. Precision chargers feature battery-type selection by the bank, which now includes charge curves specially formulated for the high demands of lithium batteries, and can even wake these battery types from standby.Features:
Battery Type Selection: Each charging bank can be selected to your specific battery type (Lithium (LiFePO4) AGM or flooded lead acid) to guarantee a safe, protected charge
Automatic Temperature Compensation: Precision chargers sense and adjust to ambient temperature fluctuations to ensure a fast, accurate charge
Low-Line Voltage Compensation: When outlets don't put out the 120 volts they are supposed to, Precision Chargers compensate to deliver a fast, consistent charge no matter what
Battery Equalization: Cleans and protects your battery (flooded lead-acid only) every time you plugin. Also activates a more rigorous, complete cleaning at the push of a button
Digital Control: Microprocessor-based design delivers a faster, more precise charge every time. Precision chargers can even wake dead 12-volt lithium (LiFePO4) batteries from standby automatically.
LED Indicator Lights: Inform of charge stage, maintenance mode status, error notifications, and full charge
Automatic Multi-Stage Charging: Controls the voltage and current your battery gets throughout the charging cycle, ensuring a fast, safe and precise charge
Waterproof Construction: All on-board chargers are built to be waterproof, shock-resistant and vibration-resistant
3-Year Warranty: All battery chargers come with a full 3-year replacement warranty
Specifications:
Product Dimensions: 9.88 in x 7.75 in x 3.5 in
Product Weight: 8.4 lb
Charger Style: On-Board
Output per Bank: 10 amps
Wattage: 450W
Charge Time: 4-6 hours
Power Source: On-Shore AC
Battery Type: 12v Lithium LiFePO4, 12v AGM, 12v Flooded Lead Acid
12v Lithium-Ion (LiFePO4) Optimized: Yes
Waterproof: Yes
Digital Control: Yes
Automatic Temperature Compensation: Yes
Battery Equalization: Yes
Battery Type Selection: Yes
LED Display: Yes
Saltwater Compatible: Yes
Battery Connection: Ring Terminal
Warranty: Three-Year Warranty
Specifications:
Charger Input - Voltage: 120v
Charger Output - Amps: 10a
Charger Output Voltage: 12/24/36v
Charging Banks: 3
Portable: No
Box Dimensions: 5"H x 12"W x 18"L WT: 10.85 lbs
UPC: 029402049998
On-Board Precision Charger MK-345 PCL 3 Bank x 15 AMP LI Optimized ChargerLonger run times. Shorter charge times. The precision difference keeps anglers on the water longer and puts more fish in the boat. Now, the next generation of this legendary line of chargers has been optimized for 12-volt lithium (LiFePO4) batteries. Precision chargers feature battery-type selection by the bank, which now includes charge curves specially formulated for the high demands of lithium batteries, and can even wake these battery types from standby.Features:
Battery Type Selection: Each charging bank can be selected to your specific battery type (Lithium (LiFePO4) AGM or flooded lead acid) to guarantee a safe, protected charge
Automatic Temperature Compensation: Precision chargers sense and adjust to ambient temperature fluctuations to ensure a fast, accurate charge
Low-Line Voltage Compensation: When outlets don't put out the 120 volts they are supposed to, Precision Chargers compensate to deliver a fast, consistent charge no matter what
Battery Equalization: Cleans and protects your battery (flooded lead-acid only) every time you plugin. Also activates a more rigorous, complete cleaning at the push of a button
Digital Control: Microprocessor-based design delivers a faster, more precise charge every time. Precision chargers can even wake dead 12-volt lithium (LiFePO4) batteries from standby automatically.
LED Indicator Lights: Inform of charge stage, maintenance mode status, error notifications, and full charge
Automatic Multi-Stage Charging: Controls the voltage and current your battery gets throughout the charging cycle, ensuring a fast, safe, and precise charge
Waterproof Construction: All on-board chargers are built to be waterproof, shock-resistant and vibration-resistant
Power Cord Length: 8.5ft and Battery Leads Length: 6ft
3-Year Warranty: All battery chargers come with a full 3-year replacement warranty
Specifications:
Product Dimensions: 3.25 in x 8.5 in x 9.5 in
Product Weight: 15.6 lb
Charger Style: On-Board
Output per Bank: 15 amps
Wattage: 470W
Charge Time: 3-5 hours
Power Source: On-Shore AC
Battery Type: 12v Lithium LiFePO4, 12v AGM, 12v Flooded Lead Acid
12v Lithium-Ion (LiFePO4) Optimized: Yes
Waterproof: Yes
Digital Control: Yes
Automatic Temperature Compensation: Yes
Battery Equalization: Yes
Battery Type Selection: Yes
LED Display: Yes
Saltwater Compatible: Yes
Battery Connection: Ring Terminal
Warranty: Three-Year Warranty
Specifications:
Charger Input - Voltage: 120v
Charger Output - Amps: 15a
Charger Output Voltage: 12/24/36v
Charging Banks: 3
Portable: No
Box Dimensions: 6"H x 14"W x 20"L WT: 19.5 lbs
UPC: 029402052691
On-Board Precision Charger MK-440 PCL 4 Bank x 10 AMP LI Optimized ChargerLonger run times. Shorter charge times. That's the precision difference that keeps anglers on the water longer and puts more fish in the boat. Now, the next generation of this legendary line of chargers has been optimized for 12-volt lithium (LiFePO4) batteries. Precision chargers feature battery-type selection by the bank, which now includes charge curves specially formulated for the high demands of lithium batteries, and can even wake these battery types from standby.Features:
Battery Type Selection: Each charging bank can be selected to your specific battery type (Lithium (LiFePO4) AGM or flooded lead acid) to guarantee a safe, protected charge
Automatic Temperature Compensation: Precision chargers sense and adjust to ambient temperature fluctuations to ensure a fast, accurate charge
Low-Line Voltage Compensation: When outlets don't put out the 120 volts they are supposed to, Precision Chargers compensate to deliver a fast, consistent charge no matter what
Battery Equalization: Cleans and protects your battery (flooded lead-acid only) every time you plugin. Also activates a more rigorous, complete cleaning at the push of a button
Digital Control: Microprocessor-based design delivers a faster, more precise charge every time. Precision chargers can even wake dead 12-volt lithium (LiFePO4) batteries from standby automatically.
LED Indicator Lights: Inform of charge stage, maintenance mode status, error notifications, and full charge
Automatic Multi-Stage Charging: Controls the voltage and current your battery gets throughout the charging cycle, ensuring a fast, safe and precise charge
Waterproof Construction: All on-board chargers are built to be waterproof, shock-resistant and vibration-resistant
3-Year Warranty: All battery chargers come with a full 3-year replacement warranty
Specifications:
Product Dimensions: 9.88 in x 9.88 in x 3.5 in
Product Weight: 10.5 lb
Charger Style: On-Board
Output per Bank: 10 amps
Wattage: 600W
Charge Time: 4-6 hours
Power Source: On-Shore AC
Battery Type: 12v Lithium LiFePO4, 12v AGM, 12v Flooded Lead Acid
12v Lithium-Ion (LiFePO4) Optimized: Yes
Waterproof: Yes
Digital Control: Yes
Automatic Temperature Compensation: Yes
Battery Equalization: Yes
Battery Type Selection: Yes
LED Display: Yes
Saltwater Compatible: Yes
Battery Connection: Ring Terminal
Warranty: Three-Year Warranty
Specifications:
Charger Input - Voltage: 120v
Charger Output - Amps: 10a
Charger Output Voltage: 12/24/36/48v
Charging Banks: 4
Portable: No
Box Dimensions: 5"H x 14"W x 18"L WT: 13.4 lbs
UPC: 029402050000
On-Board Precision Charger MK-460 PCL 4 Bank x 15 AMP LI Optimized ChargerLonger run times. Shorter charge times. The precision difference keeps anglers on the water longer and puts more fish in the boat. Now, the next generation of this legendary line of chargers has been optimized for 12-volt lithium (LiFePO4) batteries. Precision chargers feature battery-type selection by the bank, which now includes charge curves specially formulated for the high demands of lithium batteries, and can even wake these battery types from standby.Features:
Battery Type Selection: Each charging bank can be selected to your specific battery type (Lithium (LiFePO4) AGM or flooded lead acid) to guarantee a safe, protected charge
Automatic Temperature Compensation: Precision chargers sense and adjust to ambient temperature fluctuations to ensure a fast, accurate charge
Low-Line Voltage Compensation: When outlets don't put out the 120 volts they are supposed to, Precision Chargers compensate to deliver a fast, consistent charge no matter what
Battery Equalization: Cleans and protects your battery (flooded lead-acid only) every time you plugin. Also activates a more rigorous, complete cleaning at the push of a button
Digital Control: Microprocessor-based design delivers a faster, more precise charge every time. Precision chargers can even wake dead 12-volt lithium (LiFePO4) batteries from standby automatically.
LED Indicator Lights: Inform of charge stage, maintenance mode status, error notifications, and full charge
Automatic Multi-Stage Charging: Controls the voltage and current your battery gets throughout the charging cycle, ensuring a fast, safe, and precise charge
Waterproof Construction: All on-board chargers are built to be waterproof, shock-resistant and vibration-resistant
3-Year Warranty: All battery chargers come with a full 3-year replacement warranty
Specifications:
Product Dimensions: 3.25 in x 9.5 in x 10.5 in
Product Weight: 19.6 lb
AC Power Cord: 8.5'
Battery Leads: 6'
Charger Style: On-Board
Output per Bank: 15 amps
Wattage: 900W
Charge Time: 3-5 hours
Power Source: On-Shore AC
Battery Type: 12v Lithium LiFePO4, 12v AGM, 12v Flooded Lead Acid
12v Lithium-Ion (LiFePO4) Optimized: Yes
Waterproof: Yes
Digital Control: Yes
Automatic Temperature Compensation: Yes
Battery Equalization: Yes
Battery Type Selection: Yes
LED Display: Yes
Saltwater Compatible: Yes
Battery Connection: Ring Terminal
Warranty: Three-Year Warranty
Specifications:
Charger Input - Voltage: 120v
Charger Output - Amps: 15a
Charger Output Voltage: 12/24/36/48v
Charging Banks: 4
Portable: No
Box Dimensions: 5"H x 15"W x 20"L WT: 24.2 lbs
UPC: 029402052707
On-Board Precision Charger MK-550 PCL 5 Bank x 10 AMP LI Optimized ChargerLonger run times. Shorter charge times. That's the precision difference that keeps anglers on the water longer and puts more fish in the boat. Now, the next generation of this legendary line of chargers has been optimized for 12-volt lithium (LiFePO4) batteries. Precision chargers feature battery-type selection by the bank, which now includes charge curves specially formulated for the high demands of lithium batteries, and can even wake these battery types from standby.Features:
Battery Type Selection: Each charging bank can be selected to your specific battery type (Lithium (LiFePO4) AGM or flooded lead acid) to guarantee a safe, protected charge
Automatic Temperature Compensation: Precision chargers sense and adjust to ambient temperature fluctuations to ensure a fast, accurate charge
Low-Line Voltage Compensation: When outlets don't put out the 120 volts they are supposed to, Precision Chargers compensate to deliver a fast, consistent charge no matter what
Battery Equalization: Cleans and protects your battery (flooded lead-acid only) every time you plugin. Also activates a more rigorous, complete cleaning at the push of a button
Digital Control: Microprocessor-based design delivers a faster, more precise charge every time. Precision chargers can even wake dead 12-volt lithium (LiFePO4) batteries from standby automatically.
LED Indicator Lights: Inform of charge stage, maintenance mode status, error notifications, and full charge
Automatic Multi-Stage Charging: Controls the voltage and current your battery gets throughout the charging cycle, ensuring a fast, safe and precise charge
Waterproof Construction: All on-board chargers are built to be waterproof, shock-resistant and vibration-resistant
3-Year Warranty: All battery chargers come with a full 3-year replacement warranty
Specifications:
Product Dimensions: 9.88 in x 11.75 in x 3.5 in
Product Weight: 12.5 lb
Charger Style: On-Board
Output per Bank: 10 amps
Wattage: 750W
Charge Time: 4-6 hours
Power Source: On-Shore AC
Battery Type: 12v Lithium LiFePO4, 12v AGM, 12v Flooded Lead Acid
12v Lithium-Ion (LiFePO4) Optimized: Yes
Waterproof: Yes
Digital Control: Yes
Automatic Temperature Compensation: Yes
Battery Equalization: Yes
Battery Type Selection: Yes
LED Display: Yes
Saltwater Compatible: Yes
Battery Connection: Ring Terminal
Warranty: Three-Year Warranty
Specifications:
Charger Input - Voltage: 120v
Charger Output - Amps: 10a
Charger Output Voltage: 12/24/36/48v
Charging Banks: 5
Portable: No
Box Dimensions: 3"H x 16"W x 18"L WT: 15 lbs
UPC: 029402049295
Pontoon 55 - Hand Control - 12V-55lb-52"Put Minn Kota power to work on your pontoon. You get quiet, steady, all-day performance that's right for you. And with quick and easy mounting, you get a motor that's built to let you sit back and appreciate a perfect day on the lake.Features:
Latch & Door Bracket: This bracket gives you a rock-solid hold while stowing your trolling motor and makes for easy removal at the end of the day.
Tilt Twist Tiller™: Get hands-on control of your motor with our Tilt Twist Tiller. Its ergonomic grip provides easy, responsive control of speed and steering.
5 Fwd/3 Rev Speed Settings: Five speed settings for forward and three speed settings for reverse.
Power Prop: For 3-1/4" motor diameters, this prop delivers extra power to push throw heavy vegetation. Includes prop pin, nut and washer.
Indestructible Composite Shaft — Guaranteed for Life: At the core of your Minn Kota trolling motor is an indestructable composite shaft. It's a Minn Kota exclusive, and we guarantee it for life.
Cool, Quiet Power: Every Minn Kota lower unit runs cool to extend trolling motor life, and stays quiet.
Specifications:
Autopilot: No
Control Type: Tilt Twist Tiller
Included Propeller: MKP-32
Mounting Style: Bow
Salt Water/Fresh Water: Fresh
Series: Pontoon
Shaft Length (Inches): 52"
Thrust (Pounds): 55 lbs
Built-In Transducer: No
Voltage - Input Range (Volts): 12v
Box Dimensions: 9"H x 20"W x 66"L WT: 36 lbs
UPC: 029402047819
Pontoon 70 - Hand Control - 24V-70lb-52"Put Minn Kota power to work on your pontoon. You get quiet, steady, all-day performance that's right for you. And with quick and easy mounting, you get a motor that's built to let you sit back and appreciate a perfect day on the lake. Features:
Latch & Door Bracket: This bracket gives you a rock-solid hold while stowing your trolling motor and makes for easy removal at the end of the day.
Tilt Twist Tiller™: Get hands-on control of your motor with our Tilt Twist Tiller. Its ergonomic grip provides easy, responsive control of speed and steering.
5 Fwd/3 Rev Speed Settings: Five speed settings for forward and three speed settings for reverse.
Power Prop: For 3-1/4" motor diameters, this prop delivers extra power to push throw heavy vegetation. Includes prop pin, nut and washer.
Indestructible Composite Shaft — Guaranteed for Life: At the core of your Minn Kota trolling motor is an indestructable composite shaft. It's a Minn Kota exclusive, and we guarantee it for life.
Cool, Quiet Power: Every Minn Kota lower unit runs cool to extend trolling motor life, and stays quiet.
Specifications:
Autopilot: No
Control Type: Tilt Twist Tiller
Included Propeller: MKP-32
Mounting Style: Bow
Salt Water/Fresh Water: Fresh
Series: Pontoon
Shaft Length (Inches): 52"
Thrust (Pounds): 70 lbs
Built-In Transducer: No
Voltage - Input Range (Volts): 24v
Box Dimensions: 10"H x 20"W x 68"L WT: 37.6 lbs
UPC: 029402047826
Pontoon PowerDrive™ 55 Trolling Motor with Foot Pedal - 12V - 55LB - 48"Put Minn Kota power to work on your pontoon. You get a quiet, steady, all-day performance that's right for you. And with quick and easy mounting, you get a motor that's built to let you sit back and appreciate a perfect day on the lake.Deploy-Assist LeverGet in and out of the water easily. Just depress the lever to deploy your trolling motor and when it's time to move, it stows easily and securely.Aluminum Quick Release BracketQuickly, easily remove your motor with this aluminum bracket. It comes standard on PowerDrive Pontoon models and features a quiet, secure locking system.PowerDrive Foot PedalControl speed, steering, and momentary and constant on/off with the PowerDrive foot pedal, which is waterproof and features an 18' cord. Not included on GPS-enabled models.Push-to-Test Battery MeterPress a button to get an instant "stage of charge" reading.Digital Maximizer™Provides up to 5 times longer run time on a single battery charge. These variable-speed trolling motors let you dial in your exact speed, and they deliver only as much power as you need, helping to conserve your battery for a full day of fishing.Power PropDelivers extra power to push through any fishing scenario and excels in open water.Indestructible Composite Shaft — Guaranteed for LifeAt the core of your Minn Kota trolling motor is an indestructible composite shaft. It's a Minn Kota exclusive, and they guarantee it for life.Cool, Quiet PowerEvery Minn Kota lower unit runs cool to extend trolling motor life and stays quiet.What's IncludedPontoon PowerDrive 55 lb. 48" Foot-Control Motor, Corded Foot Pedal, MKP-37 Prop, MKA-16-03 Quick Release bracket, and Mounting hardwareSpecifications:
For Use In: Freshwater
Shaft Length (inch): 48"
Max Thrust (pounds): 55 lbs.
Voltage: 12
One-Boat Network Compatible: No
QUEST Series: No
Spot-Lock: No
Built-In Sonar: None
Foot Pedal Style: Side-to-Side / Electric
Control: Foot Pedal
Auto/Stow Deploy: No
Power Trim: No
Power Steering: Yes
Lift-Assist: No
Bowguard: No
Wireless Remote: No
i-Pilot Link (GPS): No
i-Pilot (GPS): No
AutoPilot: Yes
CoPilot: No
Speeds: Variable
Digital Maximizer: Yes
Battery Meter: Yes
Max Amp Draw: 50
Mount Style: Bolt-on
Mounting Location: Bow-mount
Motor Style: Electric-steer
Prop: Power Prop (MKP-37)
Warranty: Two-Year Warranty
Specifications:
Autopilot: Yes
Built-In Transducer: No
Control Type: Foot Control
Included Propeller: MKP-37
Mounting Style: Bow
Salt Water/Fresh Water: Fresh
Series: PowerDrive
Shaft Length (Inches): 48"
Thrust (Pounds): 55 lbs
Voltage - Input Range (Volts): 12v
Box Dimensions: 10"H x 17"W x 62"L WT: 46.5 lbs
UPC: 029402051014
Owner's Manual (pdf)
Pontoon PowerDrive™ 70 Trolling Motor with Foot Pedal - 24V - 70LB - 48"Put Minn Kota power to work on your pontoon. You get a quiet, steady, all-day performance that's right for you. And with quick and easy mounting, you get a motor that's built to let you sit back and appreciate a perfect day on the lake.Deploy-Assist LeverGet in and out of the water easily. Just depress the lever to deploy your trolling motor and when it's time to move, it stows easily and securely.Aluminum Quick Release BracketQuickly, easily remove your motor with this aluminum bracket. It comes standard on PowerDrive Pontoon models and features a quiet, secure locking system.PowerDrive Foot PedalControl speed, steering, and momentary and constant on/off with the PowerDrive foot pedal, which is waterproof and features an 18' cord. Not included on GPS-enabled models.Push-to-Test Battery MeterPress a button to get an instant "stage of charge" reading.Digital Maximizer™Provides up to 5 times longer run time on a single battery charge. These variable-speed trolling motors let you dial in your exact speed, and they deliver only as much power as you need, helping to conserve your battery for a full day of fishing.Power PropDelivers extra power to push through any fishing scenario and excels in open water.Indestructible Composite Shaft — Guaranteed for LifeAt the core of your Minn Kota trolling motor is an indestructible composite shaft. It's a Minn Kota exclusive, and they guarantee it for life.Cool, Quiet PowerEvery Minn Kota lower unit runs cool to extend trolling motor life and stays quiet.What's IncludedPontoon PowerDrive 70 lb. 48" Foot-Control Motor, Corded Foot Pedal, MKP-37 Prop, MKA-16-03 Quick Release Bracket and Mounting HardwareSpecifications:
For Use In: Freshwater
Shaft Length (inch): 48"
Max Thrust (pounds): 70 lbs.
Voltage: 24
One-Boat Network Compatible: No
QUEST Series: No
Spot-Lock: No
Built-In Sonar: None
Foot Pedal Style: Side-to-Side / Electric
Control: Foot Pedal
Auto/Stow Deploy: No
Power Trim: No
Power Steering: Yes
Lift-Assist: No
Bowguard: No
Wireless Remote: No
i-Pilot Link (GPS): No
i-Pilot (GPS): No
AutoPilot: Yes
CoPilot: No
Speeds: Variable
Digital Maximizer: Yes
Battery Meter: Yes
Max Amp Draw: 42
Mount Style: Bolt-on
Mounting Location: Bow-mount
Motor Style: Electric-steer
Prop: Power Prop (MKP-37)
Warranty: Two-Year Warranty
Specifications:
Autopilot: Yes
Built-In Transducer: No
Control Type: Foot Control
Included Propeller: MKP-37
Mounting Style: Bow
Salt Water/Fresh Water: Fresh
Series: PowerDrive
Shaft Length (Inches): 48"
Thrust (Pounds): 70 lbs
Voltage - Input Range (Volts): 24v
Box Dimensions: 10"H x 17"W x 62"L WT: 48.7 lbs
UPC: 029402051021
Owner's Manual (pdf)
PowerDrive™ 45 Trolling Motor with Foot Pedal - 12V - 45LB - 48"Reliable. Capable. And fully able to handle anything a day of fishing brings. PowerDrive™ shows up at the launch ramp every day with big-time technology, trusted power, and easy operation. Also, comes with a mount that's tough, sleek, and built to take a beating, it's going to keep showing up day after day.Deploy-Assist LeverGet in and out of the water easily. Just depress the lever to deploy your trolling motor and when it's time to move, it stows easily and securely.Side-To-Side/Electric Foot PedalControl speed, steering, and momentary and constant on/off with the PowerDrive foot pedal, which is waterproof and features an 18' cord. Note: the foot pedal is not included with GPS-enabled models.Push-to-Test Battery MeterPress a button to get an instant "stage of charge" reading.Digital Maximizer™Provides up to 5 times longer run time on a single battery charge. These variable-speed trolling motors let you dial in your exact speed, and they deliver only as much power as you need, helping to conserve your battery for a full day of fishing.Power PropDelivers extra power to push through any fishing scenario and excels in open water.Indestructible Composite Shaft — Guaranteed for LifeAt the core of your Minn Kota trolling motor is an indestructible composite shaft. It's a Minn Kota exclusive, and they guarantee it for life.Cool, Quiet PowerEvery Minn Kota lower unit runs cool to extend trolling motor life and stays quiet.What's IncludedPowerDrive 45 lb. 48" Motor, Corded Foot Pedal, MKP-2 Prop, and Mounting HardwareSpecifications:
For Use In: Freshwater
Shaft Length (inch): 48"
Max Thrust (pounds): 45 lbs.
Voltage: 12
One-Boat Network Compatible: No
QUEST Series: No
Spot-Lock: No
Built-In Sonar: None
Foot Pedal Style: Side-to-Side / Electric
Control: Foot Pedal
Auto/Stow Deploy: No
Power Trim: No
Power Steering: Yes
Lift-Assist: No
Bowguard: No
Wireless Remote: No
i-Pilot Link (GPS): No
i-Pilot (GPS): No
AutoPilot: No
CoPilot: No
Speeds: Variable
Digital Maximizer: Yes
Battery Meter: Yes
Max Amp Draw: 42
Mount Style: Bolt-on
Mounting Location: Bow-mount
Motor Style: Electric-steer
Prop: Power Prop (MKP-2)
Warranty: Two-Year Warranty
Specifications:
Autopilot: Yes
Built-In Transducer: No
Control Type: Foot Control
Included Propeller: MKP-2
Mounting Style: Bow
Salt Water/Fresh Water: Fresh
Series: PowerDrive
Shaft Length (Inches): 48"
Thrust (Pounds): 45 lbs
Voltage - Input Range (Volts): 12v
Box Dimensions: 10"H x 17"W x 63"L WT: 39.6 lbs
UPC: 029402051281
Owner's Manual (pdf)
PowerDrive™ 55 Trolling Motor with Foot Pedal - 12V - 55LB - 54"Reliable. Capable. And fully able to handle anything a day of fishing brings. PowerDrive™ shows up at the launch ramp every day with big-time technology, trusted power, and easy operation. Also, comes with a mount that's tough, sleek, and built to take a beating, it's going to keep showing up day after day.Deploy-Assist LeverGet in and out of the water easily. Just depress the lever to deploy your trolling motor and when it's time to move, it stows easily and securely.Side-To-Side/Electric Foot PedalControl speed, steering, and momentary and constant on/off with the PowerDrive foot pedal, which is waterproof and features an 18' cord. Note: the foot pedal is not included with GPS-enabled models.Push-to-Test Battery MeterPress a button to get an instant "stage of charge" reading.Digital Maximizer™Provides up to 5 times longer run time on a single battery charge. These variable-speed trolling motors let you dial in your exact speed, and they deliver only as much power as you need, helping to conserve your battery for a full day of fishing.Power PropDelivers extra power to push through any fishing scenario and excels in open water.Indestructible Composite Shaft — Guaranteed for LifeAt the core of your Minn Kota trolling motor is an indestructible composite shaft. It's a Minn Kota exclusive, and they guarantee it for life.Cool, Quiet PowerEvery Minn Kota lower unit runs cool to extend trolling motor life and stays quiet.What's IncludedPowerDrive 55 lb. 54" Motor, Corded Foot Pedal, MKP-37 Prop and Mounting HardwareSpecifications:
For Use In: Freshwater
Shaft Length (inch): 54"
Max Thrust (pounds): 55 lbs.
Voltage: 12
One-Boat Network Compatible: No
QUEST Series: No
Spot-Lock: No
Built-In Sonar: None
Foot Pedal Style: Side-to-Side / Electric
Control: Foot Pedal
Auto/Stow Deploy: No
Power Trim: No
Power Steering: Yes
Lift-Assist: No
Bowguard: No
Wireless Remote: No
i-Pilot Link (GPS): No
i-Pilot (GPS): No
AutoPilot: Yes
CoPilot: No
Speeds: Variable
Digital Maximizer: Yes
Battery Meter: Yes
Max Amp Draw: 50
Mount Style: Bolt-on
Mounting Location: Bow-mount
Motor Style: Electric-steer
Prop: Power Prop (MKP-37)
Warranty: Two-Year Warranty
Specifications:
Autopilot: No
Built-In Transducer: No
Control Type: Foot Control
Included Propeller: MKP-37
Mounting Style: Bow
Salt Water/Fresh Water: Fresh
Series: PowerDrive
Shaft Length (Inches): 54"
Thrust (Pounds): 55 lbs
Voltage - Input Range (Volts): 12v
Box Dimensions: 10"H x 17"W x 68"L WT: 44 lbs
UPC: 029402051298
Owner's Manual (pdf)
PowerDrive™ 55 Trolling Motor with Foot Pedal - Dual Spectrum CHIRP - 12V - 55LB - 54Reliable. Capable. And fully able to handle anything a day of fishing brings. PowerDrive™ shows up at the launch ramp every day with big-time technology, trusted power, and easy operation. Also, comes with a mount that's tough, sleek, and built to take a beating, it's going to keep showing up day after day.Deploy-Assist LeverGet in and out of the water easily. Just depress the lever to deploy your trolling motor and when it's time to move, it stows easily and securely.Built-In Dual Spectrum Chirp Sonar: Keeps your transducer and wiring completely concealed and protected running everything through the trolling motor's shaft. By covering a wide range of frequencies, Humminbird®'s CHIRP produces more accurate, more detailed returns of fish, structure, and the bottom than traditional sonar.Side-To-Side/Electric Foot PedalControl speed, steering, and momentary and constant on/off with the PowerDrive foot pedal, which is waterproof and features an 18' cord. Note: the foot pedal is not included with GPS-enabled models.Push-to-Test Battery MeterPress a button to get an instant "stage of charge" reading.Digital Maximizer™Provides up to 5 times longer run time on a single battery charge. These variable-speed trolling motors let you dial in your exact speed, and they deliver only as much power as you need, helping to conserve your battery for a full day of fishing.Power PropDelivers extra power to push through any fishing scenario and excels in open water.Indestructible Composite Shaft — Guaranteed for LifeAt the core of your Minn Kota trolling motor is an indestructible composite shaft. It's a Minn Kota exclusive, and they guarantee it for life.Cool, Quiet PowerEvery Minn Kota lower unit runs cool to extend trolling motor life and stays quiet.What's IncludedPowerDrive 55 lb. 54" Motor with Built-In Dual Spectrum Chirp, Corded Foot Pedal, MKP-37 Prop, and Mounting HardwareSpecifications:
For Use In: Freshwater
Shaft Length (inch): 54"
Max Thrust (pounds): 55 lbs.
Voltage: 12
One-Boat Network Compatible: No
QUEST Series: No
Spot-Lock: No
Built-In Sonar: Dual Spectrum CHIRP
Foot Pedal Style: Side-to-Side / Electric
Control: Foot Pedal
Auto/Stow Deploy: No
Power Trim: No
Power Steering: Yes
Lift-Assist: No
Bowguard: No
Wireless Remote: No
i-Pilot Link (GPS): No
i-Pilot (GPS): No
AutoPilot: Yes
CoPilot: No
Speeds: Variable
Digital Maximizer: Yes
Battery Meter: Yes
Max Amp Draw: 50
Mount Style: Bolt-on
Mounting Location: Bow-mount
Motor Style: Electric-steer
Prop: Power Prop (MKP-37)
Warranty: Two-Year Warranty
Specifications:
Autopilot: Yes
Built-In Transducer: Yes
Control Type: Foot Control
Included Propeller: MKP-37
Mounting Style: Bow
Salt Water/Fresh Water: Fresh
Series: PowerDrive
Shaft Length (Inches): 54"
Thrust (Pounds): 55 lbs
Voltage - Input Range (Volts): 12v
Box Dimensions: 11"H x 17"W x 69"L WT: 45.15 lbs
UPC: 029402050949
Owner's Manual (pdf)
PowerDrive™ 55 Trolling Motor with Micro Remote - 12V - 55LB - 54"Reliable. Capable. And fully able to handle anything a day of fishing brings. PowerDrive™ shows up at the launch ramp every day with big-time technology, trusted power, and easy operation. Also, comes with a mount that's tough, sleek, and built to take a beating, it's going to keep showing up day after day.Deploy-Assist LeverGet in and out of the water easily. Just depress the lever to deploy your trolling motor and when it's time to move, it stows easily and securely.Advanced GPS Trolling SystemThe most-trusted navigation system in fishing. Powerdrive uses GPS to control your trolling motor with unrivaled features that keep you on the fish. Set Spot-Locks, control speed and steering, and more. Minn Kota makes boat positioning and control automatic, and you can take command from Powerdrive's simple and straightforward micro remote.Push-to-Test Battery MeterPress a button to get an instant "stage of charge" reading.Digital Maximizer™Provides up to 5 times longer run time on a single battery charge. These variable-speed trolling motors let you dial in your exact speed, and they deliver only as much power as you need, helping to conserve your battery for a full day of fishing.Power PropDelivers extra power to push through any fishing scenario and excels in open water.Indestructible Composite Shaft — Guaranteed for LifeAt the core of your Minn Kota trolling motor is an indestructible composite shaft. It's a Minn Kota exclusive, and they guarantee it for life.Cool, Quiet PowerEvery Minn Kota lower unit runs cool to extend trolling motor life and stays quiet.What's IncludedOne-Boat Network Enabled PowerDrive 55 lb. 54" Motor, Micro Remote, MKP-37 Prop and Mounting HardwareSpecifications:
For Use In: Freshwater
Shaft Length (inch): 54"
Max Thrust (pounds): 55 lbs.
Voltage: 12
One-Boat Network Compatible: Yes
QUEST Series: No
Spot-Lock: Yes
Built-In Sonar: None
Foot Pedal Style: Not included
Control: Wireless remote
Auto/Stow Deploy: No
Power Trim: No
Power Steering: Yes
Lift-Assist: No
Bowguard: No
Wireless Remote: Yes
i-Pilot Link (GPS): No
i-Pilot (GPS): No
AutoPilot: Yes
CoPilot: No
Speeds: Variable
Digital Maximizer: Yes
Battery Meter: Yes
Max Amp Draw: 50
Mount Style: Bolt-on
Mounting Location: Bow-mount
Motor Style: Electric-steer
Prop: Power Prop (MKP-37)
Warranty: Two-Year Warranty
Specifications:
Autopilot: Yes
Built-In Transducer: No
Control Type: Micro Remote
Included Propeller: MKP-37
Mounting Style: Bow
Salt Water/Fresh Water: Fresh
Series: PowerDrive
Shaft Length (Inches): 54"
Thrust (Pounds): 55 lbs
Voltage - Input Range (Volts): 12v
Box Dimensions: 10"H x 17"W x 69"L WT: 44 lbs
UPC: 029402050970
Owner's Manual (pdf)
PowerDrive™ 55 Trolling Motor with Micro Remote - Dual Spectrum CHIRP - 12V - 55LB - 54"Reliable. Capable. And fully able to handle anything a day of fishing brings. PowerDrive™ shows up at the launch ramp every day with big-time technology, trusted power, and easy operation. Also, comes with a mount that's tough, sleek, and built to take a beating, it's going to keep showing up day after day.Deploy-Assist LeverGet in and out of the water easily. Just depress the lever to deploy your trolling motor and when it's time to move, it stows easily and securely.Advanced GPS Trolling SystemThe most-trusted navigation system in fishing. Powerdrive uses GPS to control your trolling motor with unrivaled features that keep you on the fish. Set Spot-Locks, control speed and steering, and more. Minn Kota makes boat positioning and controls automatic, and you can take command from Powerdrive's simple and straightforward micro remote.Built-In Dual Spectrum Chirp SonarKeeps your transducer and wiring completely concealed and protected running everything through the trolling motor's shaft. By covering a wide range of frequencies, Humminbird®'s CHIRP produces more accurate, more detailed returns of fish, structure, and the bottom than traditional sonar.Push-to-Test Battery MeterPress a button to get an instant "stage of charge" reading.Digital Maximizer™Provides up to 5 times longer run time on a single battery charge. These variable-speed trolling motors let you dial in your exact speed, and they deliver only as much power as you need, helping to conserve your battery for a full day of fishing.Power PropDelivers extra power to push through any fishing scenario and excels in open water.Indestructible Composite Shaft — Guaranteed for LifeAt the core of your Minn Kota trolling motor is an indestructible composite shaft. It's a Minn Kota exclusive, and they guarantee it for life.Cool, Quiet PowerEvery Minn Kota lower unit runs cool to extend trolling motor life and stays quiet.What's IncludedOne-Boat Network Enabled PowerDrive 55 lb. 54" Motor, Micro Remote, MKP-37 Prop and Mounting HardwareSpecifications:
For Use In: Freshwater
Shaft Length (inch): 54"
Max Thrust (pounds): 55 lbs.
Voltage: 12
One-Boat Network Compatible: Yes
QUEST Series: No
Spot-Lock: Yes
Built-In Sonar: Dual Spectrum CHIRP
Foot Pedal Style: Not included
Control: Wireless remote
Auto/Stow Deploy: No
Power Trim: No
Power Steering: Yes
Lift-Assist: No
Bowguard: No
Wireless Remote: Yes
i-Pilot Link (GPS): No
i-Pilot (GPS): No
AutoPilot: Yes
CoPilot: No
Speeds: Variable
Digital Maximizer: Yes
Battery Meter: Yes
Max Amp Draw: 50
Mount Style: Bolt-on
Mounting Location: Bow-mount
Motor Style: Electric-steer
Prop: Power Prop (MKP-37)
Warranty: Two-Year Warranty
Specifications:
Autopilot: Yes
Built-In Transducer: Yes
Control Type: Micro Remote
Included Propeller: MKP-37
Mounting Style: Bow
Salt Water/Fresh Water: Fresh
Series: PowerDrive
Shaft Length (Inches): 54"
Thrust (Pounds): 55 lbs
Voltage - Input Range (Volts): 12v
Box Dimensions: 10"H x 17"W x 68"L WT: 44 lbs
UPC: 029402050994
Owner's Manual (pdf)
PowerDrive™ 70 Trolling Motor with Foot Pedal - 24V - 70LB - 60"Reliable. Capable. And fully able to handle anything a day of fishing brings. PowerDrive™ shows up at the launch ramp every day with big-time technology, trusted power, and easy operation. Also, comes with a mount that's tough, sleek, and built to take a beating, it's going to keep showing up day after day.Deploy-Assist LeverGet in and out of the water easily. Just depress the lever to deploy your trolling motor and when it's time to move, it stows easily and securely.Side-To-Side/Electric Foot PedalControl speed, steering, and momentary and constant on/off with the PowerDrive foot pedal, which is waterproof and features an 18' cord. Note: the foot pedal is not included with GPS-enabled models.Push-to-Test Battery MeterPress a button to get an instant "stage of charge" reading.Digital Maximizer™Provides up to 5 times longer run time on a single battery charge. These variable-speed trolling motors let you dial in your exact speed, and they deliver only as much power as you need, helping to conserve your battery for a full day of fishing.Power PropDelivers extra power to push through any fishing scenario and excels in open water.Indestructible Composite Shaft — Guaranteed for LifeAt the core of your Minn Kota trolling motor is an indestructible composite shaft. It's a Minn Kota exclusive, and they guarantee it for life.Cool, Quiet PowerEvery Minn Kota lower unit runs cool to extend trolling motor life and stays quiet.What's IncludedPowerDrive 70 lb. 60" Motor, Corded Foot Pedal, MKP-37 Prop and Mounting HardwareSpecifications:
For Use In: Freshwater
Shaft Length (inch): 60"
Max Thrust (pounds): 24 lbs.
Voltage: 24
One-Boat Network Compatible: No
QUEST Series: No
Spot-Lock: No
Built-In Sonar: None
Foot Pedal Style: Side-to-Side / Electric
Control: Foot Pedal
Auto/Stow Deploy: No
Power Trim: No
Power Steering: Yes
Lift-Assist: No
Bowguard: No
Wireless Remote: No
i-Pilot Link (GPS): No
i-Pilot (GPS): No
AutoPilot: Yes
CoPilot: No
Speeds: Variable
Digital Maximizer: Yes
Battery Meter: Yes
Max Amp Draw: 42
Mount Style: Bolt-on
Mounting Location: Bow-mount
Motor Style: Electric-steer
Prop: Power Prop (MKP-37)
Warranty: Two-Year Warranty
Specifications:
Autopilot: Yes
Built-In Transducer: No
Control Type: Foot Control
Included Propeller: MKP-37
Mounting Style: Bow
Salt Water/Fresh Water: Fresh
Series: PowerDrive
Shaft Length (Inches): 60"
Thrust (Pounds): 70 lbs
Voltage - Input Range (Volts): 24v
Box Dimensions: 10"H x 17"W x 75"L WT: 46.3 lbs
UPC: 029402051304
Owner's Manual (pdf)
PowerDrive™ 70 Trolling Motor with Micro Remote - 24V - 70LB - 54"Reliable. Capable. And fully able to handle anything a day of fishing brings. PowerDrive™ shows up at the launch ramp every day with big-time technology, trusted power, and easy operation. Also, comes with a mount that's tough, sleek, and built to take a beating, it's going to keep showing up day after day.Deploy-Assist LeverGet in and out of the water easily. Just depress the lever to deploy your trolling motor and when it's time to move, it stows easily and securely.Advanced GPS Trolling System The most-trusted navigation system in fishing. PowerDrive uses GPS to control your trolling motor with unrivaled features that keep you on the fish. Set Spot-Locks, control speed and steering, and more. Minn Kota makes boat positioning and controls automatic, and you can take command from PowerDrive's simple and straightforward micro remote.Push-to-Test Battery MeterPress a button to get an instant "stage of charge" reading.Digital Maximizer™Provides up to 5 times longer run time on a single battery charge. These variable-speed trolling motors let you dial in your exact speed, and they deliver only as much power as you need, helping to conserve your battery for a full day of fishing.Power PropDelivers extra power to push through any fishing scenario and excels in open water.Indestructible Composite Shaft — Guaranteed for LifeAt the core of your Minn Kota trolling motor is an indestructible composite shaft. It's a Minn Kota exclusive, and they guarantee it for life.Cool, Quiet PowerEvery Minn Kota lower unit runs cool to extend trolling motor life and stays quiet.What's IncludedOne-Boat Network Enabled PowerDrive 70 lb. 54" Motor, Micro Remote, MKP-37 Prop, and Mounting HardwareSpecifications:
For Use In: Freshwater
Shaft Length (inch): 54"
Max Thrust (pounds): 70 lbs.
Voltage: 24
One-Boat Network Compatible: Yes
QUEST Series: No
Spot-Lock: Yes
Built-In Sonar: None
Foot Pedal Style: Not Included
Control: Wireless Remote
Auto/Stow Deploy: No
Power Trim: No
Power Steering: Yes
Lift-Assist: No
Bowguard: No
Wireless Remote: Yes
i-Pilot Link (GPS): No
i-Pilot (GPS): No
AutoPilot: Yes
CoPilot: No
Speeds: Variable
Digital Maximizer: Yes
Battery Meter: Yes
Max Amp Draw: 42
Mount Style: Bolt-on
Mounting Location: Bow-mount
Motor Style: Electric-steer
Prop: Power Prop (MKP-37)
Warranty: Two-Year Warranty
Specifications:
Autopilot: Yes
Built-In Transducer: No
Control Type: Micro Remote
Included Propeller: MKP-37
Mounting Style: Bow
Salt Water/Fresh Water: Fresh
Series: PowerDrive
Shaft Length (Inches): 54"
Thrust (Pounds): 70 lbs
Voltage - Input Range (Volts): 24v
Box Dimensions: 10"H x 17"W x 68"L WT: 45.3 lbs
UPC: 029402050987
Owner's Manual (pdf)
PowerDrive™ 70 Trolling Motor with Micro Remote - Dual Spectrum CHIRP - 24V - 70LB - 60"Reliable. Capable. And fully able to handle anything a day of fishing brings. PowerDrive™ shows up at the launch ramp every day with big-time technology, trusted power, and easy operation. Also, comes with a mount that's tough, sleek, and built to take a beating, it's going to keep showing up day after day.Deploy-Assist LeverGet in and out of the water easily. Just depress the lever to deploy your trolling motor and when it's time to move, it stows easily and securely.Advanced GPS Trolling SystemThe most-trusted navigation system in fishing. PowerDrive uses GPS to control your trolling motor with unrivaled features that keep you on the fish. Set Spot-Locks, control speed and steering, and more. Minn Kota makes boat positioning and controls automatic, and you can take command from PowerDrive's simple and straightforward micro remote.Built-In Dual Spectrum Chirp SonarKeeps your transducer and wiring completely concealed and protected running everything through the trolling motor's shaft. By covering a wide range of frequencies, Humminbird®'s CHIRP produces more accurate, more detailed returns of fish, structure, and the bottom than traditional sonar.Push-to-Test Battery MeterPress a button to get an instant "stage of charge" reading.Digital Maximizer™Provides up to 5 times longer run time on a single battery charge. These variable-speed trolling motors let you dial in your exact speed, and they deliver only as much power as you need, helping to conserve your battery for a full day of fishing.Power PropDelivers extra power to push through any fishing scenario and excels in open water.Indestructible Composite Shaft — Guaranteed for LifeAt the core of your Minn Kota trolling motor is an indestructible composite shaft. It's a Minn Kota exclusive, and they guarantee it for life.Cool, Quiet PowerEvery Minn Kota lower unit runs cool to extend trolling motor life and stays quiet.What's IncludedOne-Boat Network Enabled PowerDrive 70 lb. 60" Motor, Micro Remote, MKP-37 Prop, and Mounting HardwareSpecifications:
For Use In: Freshwater
Shaft Length (inch): 60"
Max Thrust (pounds): 70 lbs.
Voltage: 24
One-Boat Network Compatible: Yes
QUEST Series: No
Spot-Lock: Yes
Built-In Sonar: Dual Spectrum CHIRP
Foot Pedal Style: Not Included
Control: Wireless Remote
Auto/Stow Deploy: No
Power Trim: No
Power Steering: Yes
Lift-Assist: No
Bowguard: No
Wireless Remote: Yes
i-Pilot Link (GPS): No
i-Pilot (GPS): No
AutoPilot: Yes
CoPilot: No
Speeds: Variable
Digital Maximizer: Yes
Battery Meter: Yes
Max Amp Draw: 42
Mount Style: Bolt-on
Mounting Location: Bow-mount
Motor Style: Electric-steer
Prop: Power Prop (MKP-37)
Warranty: Two-Year Warranty
Specifications:
Autopilot: Yes
Built-In Transducer: Yes
Control Type: Micro Remote
Included Propeller: MKP-37
Mounting Style: Bow
Salt Water/Fresh Water: Fresh
Series: PowerDrive
Shaft Length (Inches): 60"
Thrust (Pounds): 70 lbs
Voltage - Input Range (Volts): 24v
Box Dimensions: 10"H x 17"W x 74"L WT: 47.7 lbs
UPC: 029402051007
Owner's Manual (pdf)
Powerdrive/Riptide PowerdriveWith an 18' cable and waterproof connector plug, this pedal delivers side-to-side steering control, and includes a momentary/constant ON switch and a speed control knob for precise adjustments. Plug-n-play with PowerDrive V2, new PowerDrive and new Riptide PowerDrive trolling motors. Compatible with new CoPilot. Compatible with PowerDrive, PowerDrive V2, Riptide PowerDrive and Riptide SP trolling motors manufactured in 2007 and after.*Foot pedal is NOT compatible if motor is equipped with an i-Pilot system.Features:
Side-to-side steering control
Momentary/constant ON switch
Speed control knob for precise adjustments
Includes 18' cord with waterproof connector
Compatible with CoPilot remote system
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)
Raptor 10' Shallow Water Anchor with Active Anchoring - BlackRaptor keeps working to hold you more reliably than any other anchor, especially in rough conditions. It knows where you’re anchoring, what’s happening to your boat, and what to do next. It reads the bottom, senses the anchoring force and reacts automatically to keep you locked down until the moment you’re ready to change spots. Legendary Minn Kota durability and innovative anchoring technology make Raptor the only hydraulic anchor that can call itself relentless. Features:
Active Anchoring: This revolutionary anchoring technology continuously monitors anchoring force and adjusts to keep you pinned to the bottom
Auto Bottom Mode: On Active Anchoring enabled models, this anchoring mode automatically senses bottom composition and hardness to deliver the right amount of anchoring force every time
Durable Design: A wider profile, heavy duty reinforced pivot points and extruded aluminum design will keep Raptor on the water in the harshest conditions
Retraction Force: We designed Raptor with increased retraction force to ensure spike removal in all bottom types.
Multiple Control Options: Control Raptor from anywhere on the boat using your choice of options: Wireless Remote, Foot Switch, i-Pilot or i-Pilot Link Remote, Mobile App or right from the Humminbird fish finder.
User-Selectable Anchoring Modes: Separate anchoring modes for Rough Water (heavy wind and chop), Soft Bottom (muddy or silted bottom), standard (normal anchoring), and Auto-Bottom Mode on Active Anchoring equipped models which automatically delivers the ideal anchoring force by sensing bottom hardness
Indestructible Anchoring Spike: Strong and flexible composite anchor spike backed with a lifetime guarantee
Auto Up/Down: Automatically deploy or retract your Raptor with the push of a button; no need to hold the button down
Saltwater-Tough Engineering: Keeps Raptor safe from the corrosive effects of saltwater
Specifications:
Product Weight 44 lb
Anchoring Depth 10 ft
Product Dimensions 15.5 in x 4.75 in x 70 in
Operation Hydraulic
Active Anchoring
Deployment Four-Bar Articulating Arm
Auto Up/Down
Wireless Remote
15' Hydraulic hoses
Owner's Manual (pdf)
Raptor 10' Shallow Water Anchor with Active Anchoring - RedRaptor keeps working to hold you more reliably than any other anchor, especially in rough conditions. It knows where you’re anchoring, what’s happening to your boat, and what to do next. It reads the bottom, senses the anchoring force and reacts automatically to keep you locked down until the moment you’re ready to change spots. Legendary Minn Kota durability and innovative anchoring technology make Raptor the only hydraulic anchor that can call itself relentless. Features:
Active Anchoring: This revolutionary anchoring technology continuously monitors anchoring force and adjusts to keep you pinned to the bottom
Auto Bottom Mode: On Active Anchoring enabled models, this anchoring mode automatically senses bottom composition and hardness to deliver the right amount of anchoring force every time
Durable Design: A wider profile, heavy duty reinforced pivot points and extruded aluminum design will keep Raptor on the water in the harshest conditions
Retraction Force: We designed Raptor with increased retraction force to ensure spike removal in all bottom types.
Multiple Control Options: Control Raptor from anywhere on the boat using your choice of options: Wireless Remote, Foot Switch, i-Pilot or i-Pilot Link Remote, Mobile App or right from the Humminbird fish finder.
User-Selectable Anchoring Modes: Separate anchoring modes for Rough Water (heavy wind and chop), Soft Bottom (muddy or silted bottom), standard (normal anchoring), and Auto-Bottom Mode on Active Anchoring equipped models which automatically delivers the ideal anchoring force by sensing bottom hardness
Indestructible Anchoring Spike: Strong and flexible composite anchor spike backed with a lifetime guarantee
Auto Up/Down: Automatically deploy or retract your Raptor with the push of a button; no need to hold the button down
Saltwater-Tough Engineering: Keeps Raptor safe from the corrosive effects of saltwater
Specifications:
Product Weight 44 lb
Anchoring Depth 10 ft
Product Dimensions 15.5 in x 4.75 in x 70 in
Operation Hydraulic
Active Anchoring
Deployment Four-Bar Articulating Arm
Auto Up/Down
Wireless Remote
15' Hydraulic hoses
Specifications:
Color: Red
Box Dimensions: 8"H x 18"W x 73"L WT: 54.95 lbs
UPC: 029402048588
Owner's Manual (pdf)
Raptor 10' Shallow Water Anchor with Active Anchoring - SilverRaptor keeps working to hold you more reliably than any other anchor, especially in rough conditions. It knows where you’re anchoring, what’s happening to your boat, and what to do next. It reads the bottom, senses the anchoring force and reacts automatically to keep you locked down until the moment you’re ready to change spots. Legendary Minn Kota durability and innovative anchoring technology make Raptor the only hydraulic anchor that can call itself relentless. Features:
Active Anchoring: This revolutionary anchoring technology continuously monitors anchoring force and adjusts to keep you pinned to the bottom
Auto Bottom Mode: On Active Anchoring enabled models, this anchoring mode automatically senses bottom composition and hardness to deliver the right amount of anchoring force every time
Durable Design: A wider profile, heavy duty reinforced pivot points and extruded aluminum design will keep Raptor on the water in the harshest conditions
Retraction Force: We designed Raptor with increased retraction force to ensure spike removal in all bottom types.
Multiple Control Options: Control Raptor from anywhere on the boat using your choice of options: Wireless Remote, Foot Switch, i-Pilot or i-Pilot Link Remote, Mobile App or right from the Humminbird fish finder.
User-Selectable Anchoring Modes: Separate anchoring modes for Rough Water (heavy wind and chop), Soft Bottom (muddy or silted bottom), standard (normal anchoring), and Auto-Bottom Mode on Active Anchoring equipped models which automatically delivers the ideal anchoring force by sensing bottom hardness
Indestructible Anchoring Spike: Strong and flexible composite anchor spike backed with a lifetime guarantee
Auto Up/Down: Automatically deploy or retract your Raptor with the push of a button; no need to hold the button down
Saltwater-Tough Engineering: Keeps Raptor safe from the corrosive effects of saltwater
Specifications:
Product Weight 44 lb
Anchoring Depth 10 ft
Product Dimensions 15.5 in x 4.75 in x 70 in
Operation Hydraulic
Active Anchoring
Deployment Four-Bar Articulating Arm
Auto Up/Down
Wireless Remote
15' Hydraulic hoses
Owner's Manual (pdf)
