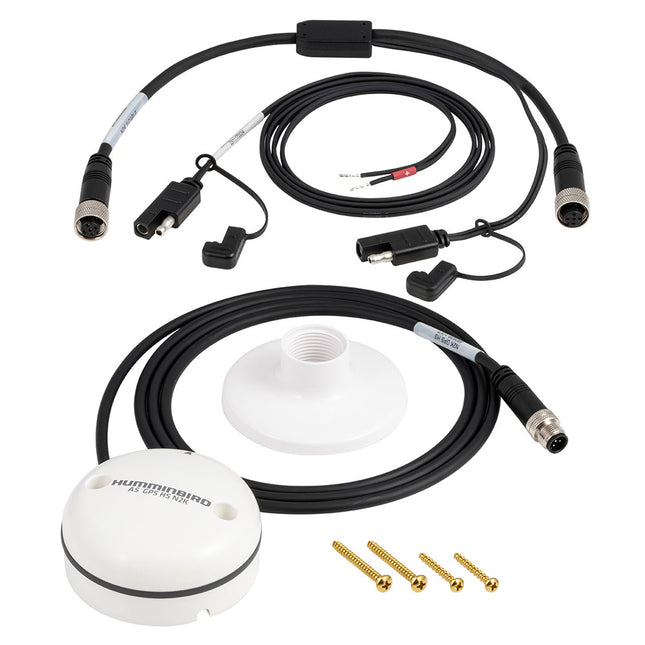

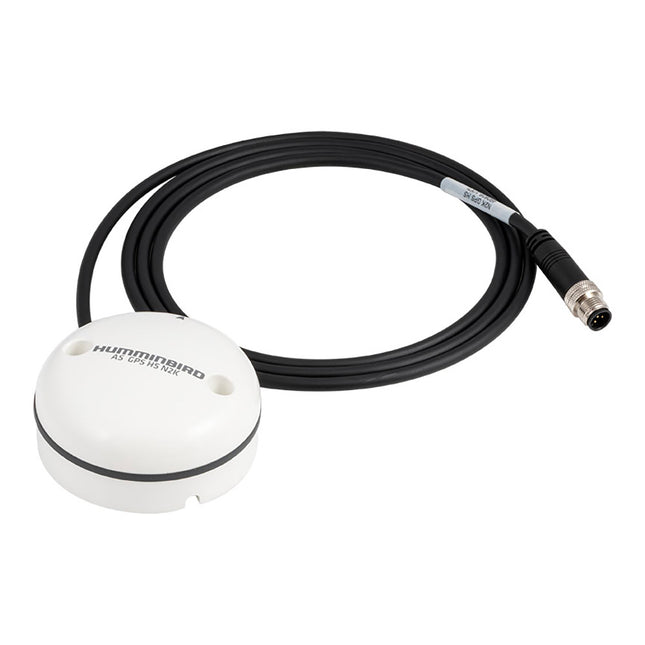

AS GPS HS N2K GPS AntennaThis Humminbird NMEA 2000 GPS Heading Sensor can be connected to a conventional NMEA 2000 network or connected directly to a compatible NMEA 2000 capable fish finder with the Direct NMEA 2000 included cable to provide GPS location and heading while still or moving. This NMEA 2000 accessory is compatible with the APEX Series, XPLORE Series, SOLIX Series, and HELIX G4N fish finders.Features:
Advanced GPS compass and heading sensor reads true direction while sitting still or moving
Allows true accuracy of waypoints to be created while using advanced sonar like MEGA 360 Imaging™
This Humminbird NMEA 2000 device can be connected to a conventional NMEA 2000 network or connected directly to a compatible NMEA 2000 capable fish finder with the Direct NMEA 2000 cable (Included)
Dual-band GPS receiver with WAAS/EGNOS capability
View your track & speed, mark waypoints, navigate and more
Mount on any flat surface or 1” x 14 thread
Plug and play installation
This NMEA 2000 accessory is compatible with the following Humminbird® fish finders, APEX Series, XPLORE Series, SOLIX Series, and HELIX G4N Models.
Cable length - 6 ft (1.83 m)

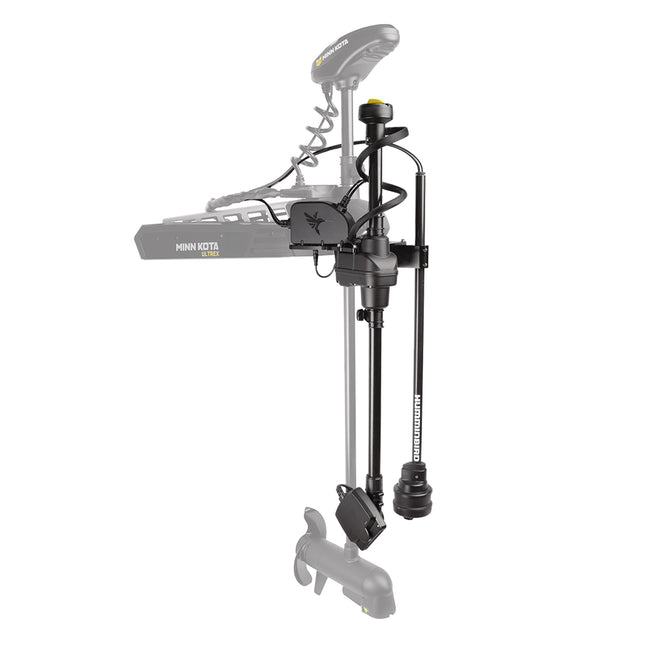

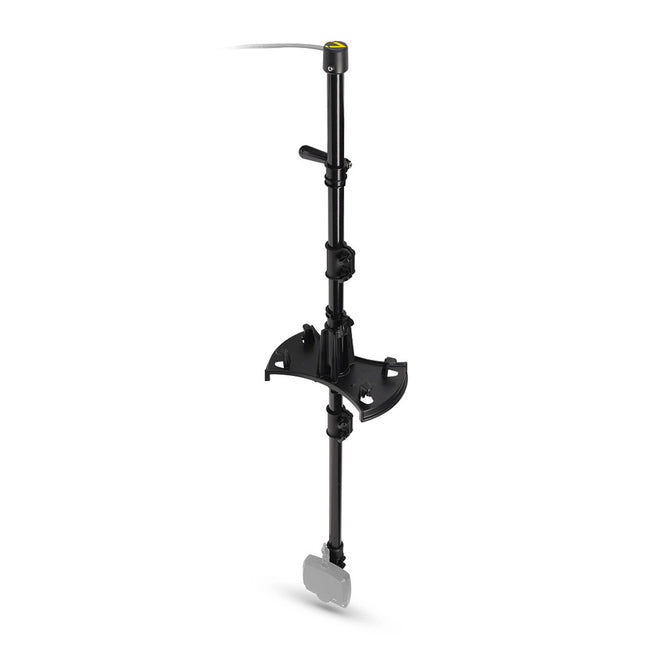

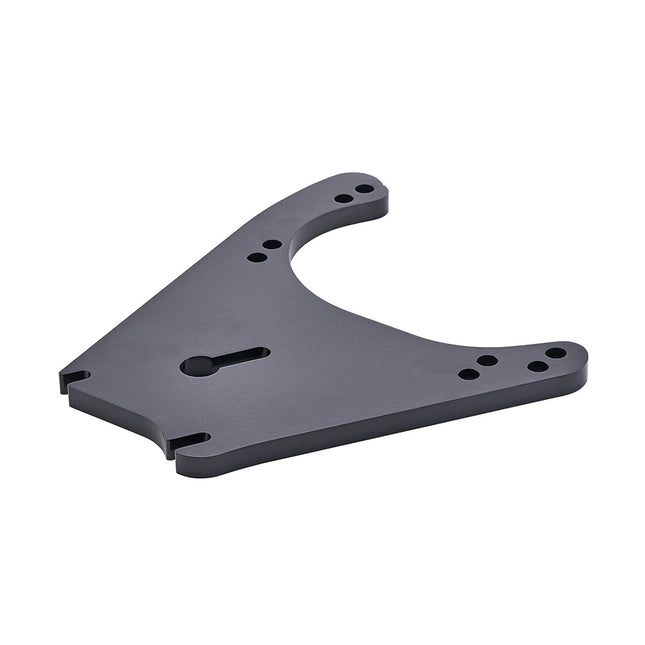

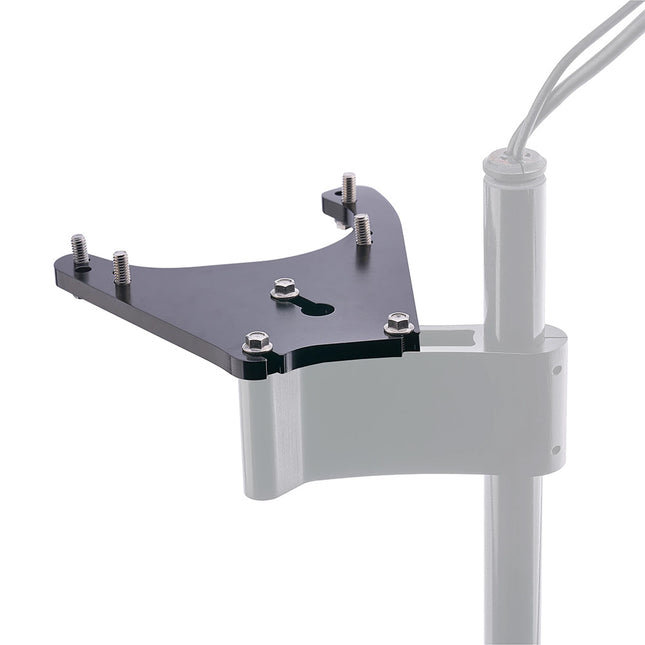

MEGA 360 Hardware Kit for Ultrex QuestThis is a MEGA 360 Imaging transducer mount for Minn Kota Ultrex and Ultrex Quest trolling motors. This mount does not include the MEGA 360 Imaging transducer pod or shaft.Features:
Mounting plate for installing a MEGA 360 Imaging transducer on a Minn Kota Ultrex QUEST or Minn Kota Ultrex trolling motor
This redesigned mounting plate was made to adapt older MEGA 360 transducers to Minn Kota Ultrex QUEST Models
Compatible with the following MEGA 360 Imaging shaft/pod assemblies: MEGA 360 Imaging - No Mount, MEGA 360 Imaging - Universal and MEGA 360 Imaging – Ultrex
Specifications:
Type: Transducer (trolling motor)
Warranty: 1-year limited warranty
Specifications:
Type: Mounting Brackets
Box Dimensions: 7"H x 8"W x 10"L WT: 2.1 lbs
UPC: 082324059360

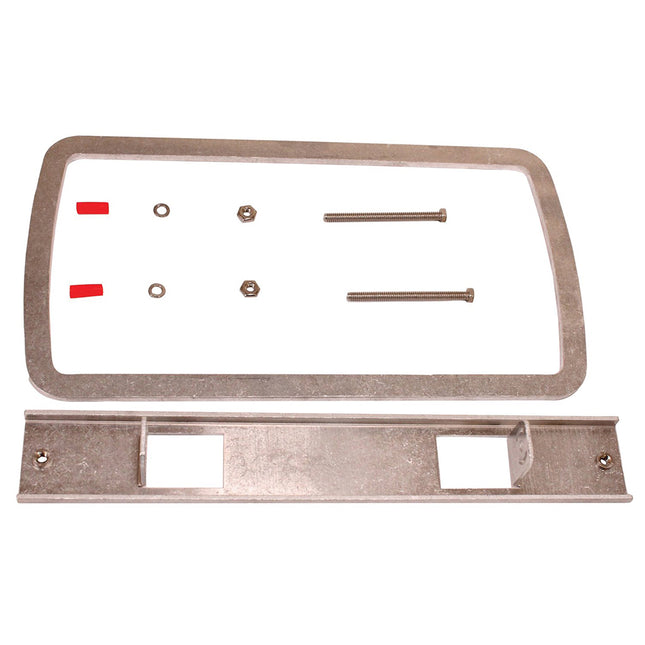

IDMK X12 XPLORE 12 In-Dash Mounting BracketIn-dash mounting kit for the Humminbird XPLORE Series fish finder is made with rugged, high-strength aluminum for a quick and easy install. This kit includes mounting hardware.Features:
Allows for quick and easy in-dash installation
Rugged, high-strength aluminum design
Contains all necessary mounting hardware
1-Year Limited Warranty

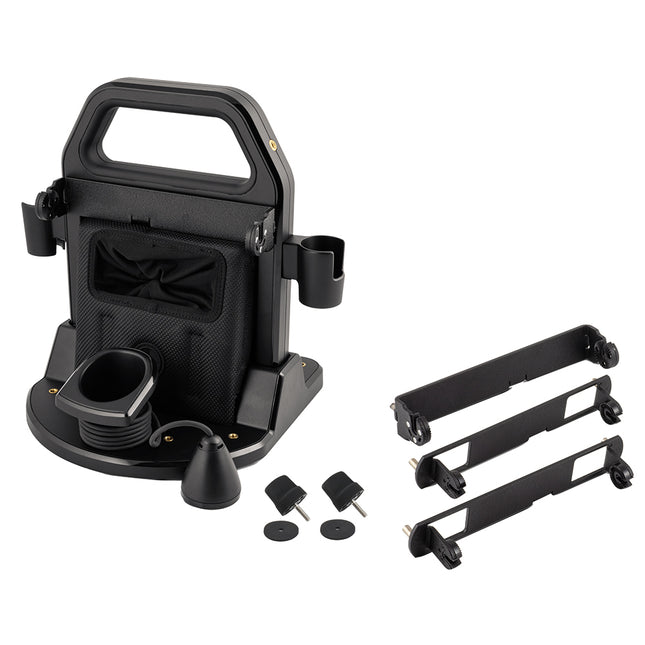

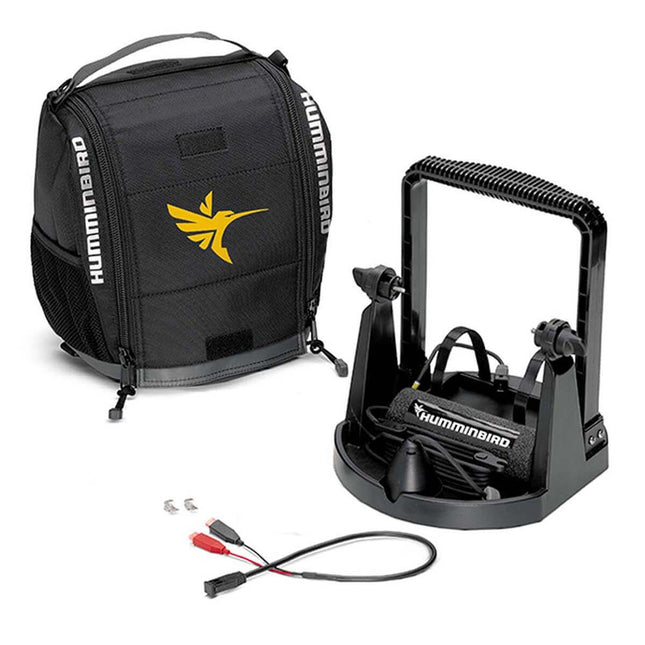

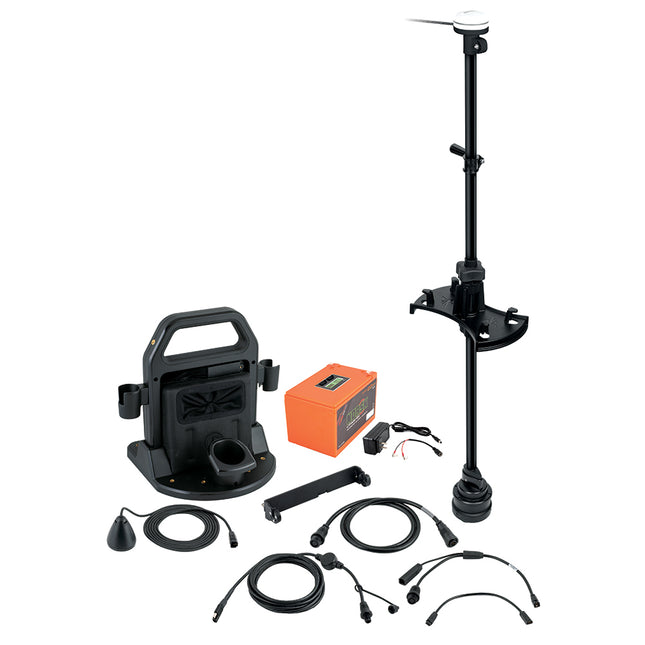

ICE PTC CHIRP H5 FB - Portable Ice Kit with CHIRP Ice Transducer for HELIX 5The ICE PTC CHIRP H5 FB is a portable ice fishing kit for Humminbird HELIX 5 models with CHIRP sonar technology. Convert your HELIX 5 model for ice fishing with the included accessories: portable shuttle with carrying handle, premium Humminbird bag, Dual Spectrum CHIRP ice transducer with float, gimbal mounting brackets, HELIX power cable, and installation hardware. This kit will require a battery and charger to operate the HELIX fish finder (sold separately).Features:
Compatible with: HELIX 5 G2/G3
Kit includes: Portable shuttle with carrying handle, bag, Dual Spectrum CHIRP ice transducer with float, HELIX power cable, and installation hardware.
1-Year Limited Warranty
Quick Guide (pdf)

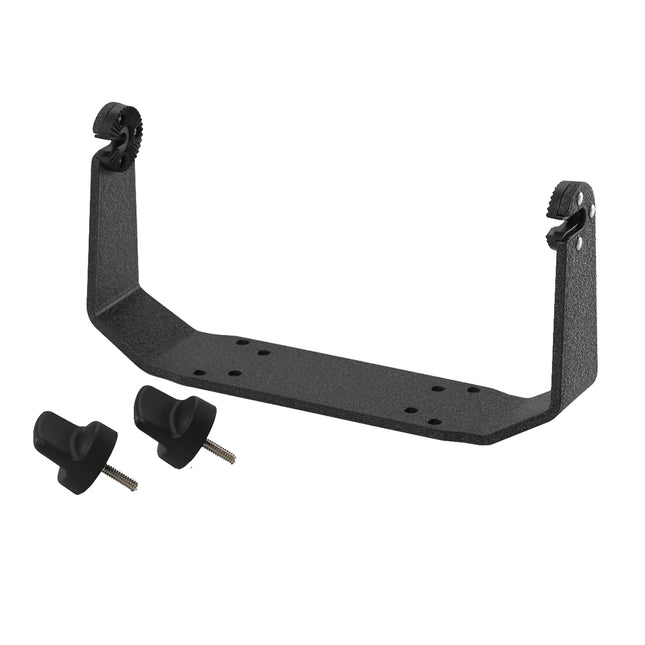

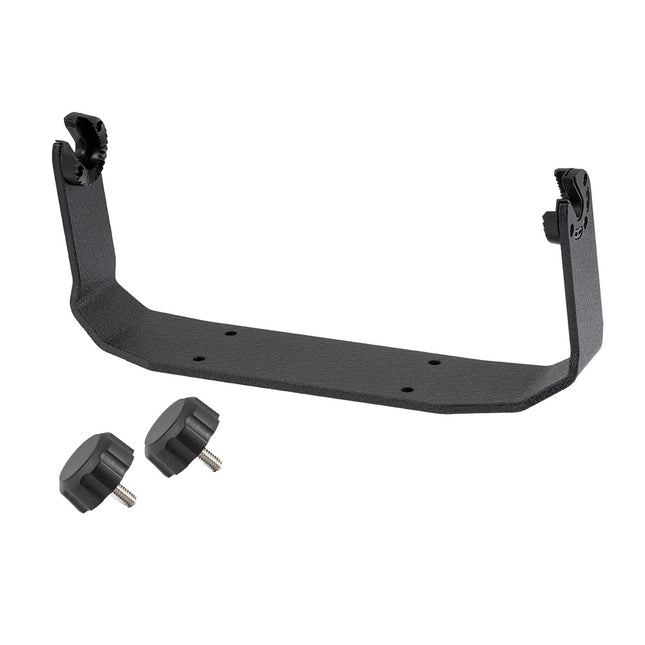

GM H7R2 Gimbal Mount for HELIX 7 G4N ModelsThe GM H7 is a gimbal mount for HELIX 7 G4N products. This includes the gimbal mount, knobs, and mounting hardware. Features:
Compatible with: HELIX 7 G4N models
Includes gimbal mount, knobs, and mounting hardware
1-Year Limited Warranty
Specifications:
Type: Mounting Brackets
Box Dimensions: 3"H x 7"W x 12"L WT: 0.8 lbs
UPC: 082324056451
9-M360-2-DDI-Y - MEGA 360 & 2D/MDI 7-Pin Y-CableThis Y cable allows for the connection a MEGA 360 Imaging transducer and an external 7-pin HW / MDI+ transducer to the same compatible HELIX fish finder.
Combines MEGA 360 Imaging transducer and 7-pin Dual Spectrum/MEGA Imaging+ transducers into one 7-pin transducer plug for connection to the same, compatible HELIX fish finder.
For use when connecting a MEGA 360 Imaging transducer to a HELIX fish finder, in conjunction with an external 7-pin HW / MDI+ transducer.
This cable should not be use to connect a HELIX fish finder with both MEGA 360 Imaging and Built-In MEGA Imaging on Minn Kota trolling motors. Please refer to #720108-1 14 M360 2DDI Y for this specific rigging need.
Is not compatible with Built-in MEGA Imaging transducers on select Minn Kota trolling motors
30" (76 cm) cable on Dual Sprectrum CHIRP side of cable
10' (3 m) cable on the MEGA 360 side
1-Year Limited Warranty
Specifications:
Type: Adapters
Box Dimensions: 3"H x 7"W x 9"L WT: 0.8 lbs
UPC: 082324054853
AS ECX 30E Ethernet Cable Extender - 8-Pin - 30'The Ethernet Extension Cable is a 30' cable that allows you to extend the length of your ethernet cables.WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

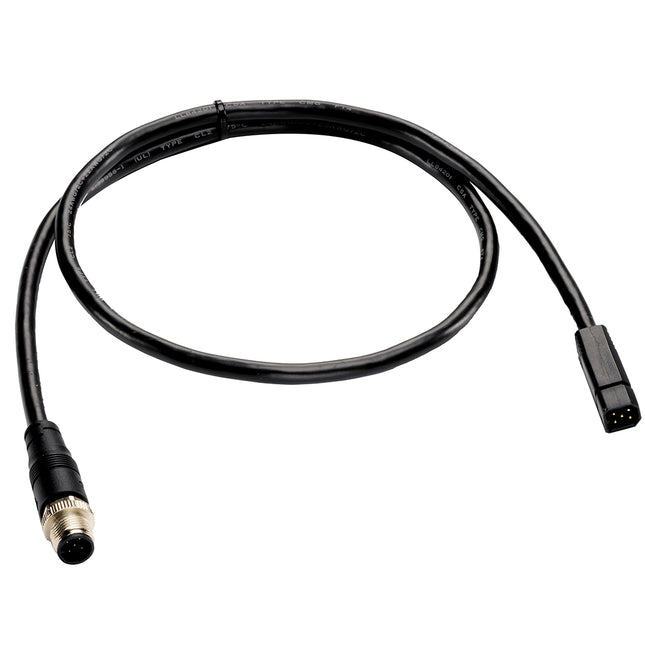

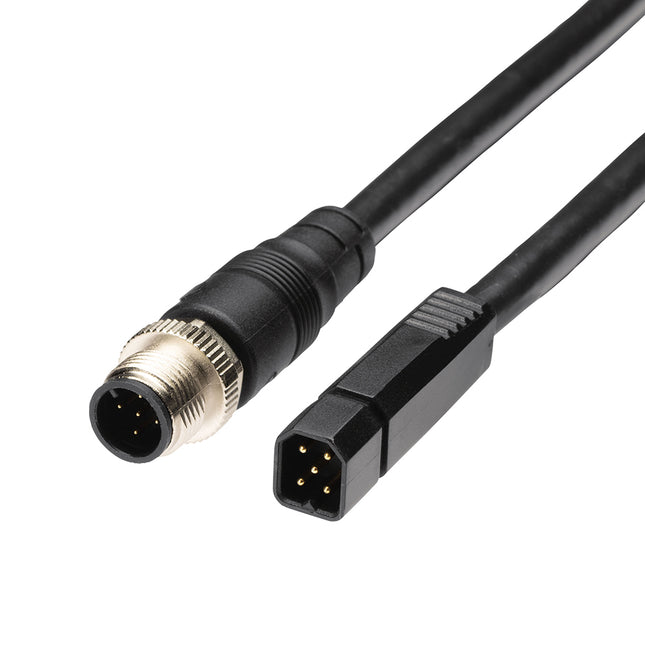

AS QD NMEA 2000 - Helix NMEA Adapter This NMEA 2000 adapter cable will allow you to connect a HELIX G4N fish finder to drop cable from an existing NMEA 2000 backbone (sold separately).
Compatible with: All HELIX 8/9/10/12/15 G4N Models
1-Year Limited Warranty
14 M ID SIDB Y - SOLIX®/APEX® Side Imaging & 2D Splitter Cable The 14 M ID SIDB Y cable allows for the installation of a separate 2D transducer paired with a Humminbird MEGA Imaging or non-MEGA Imaging transducer and connect both transducers to a single Humminbird control head. This y-cable provides the ability to install a separate high-speed Humminbird 2D transducer for high-speed depth reading and sonar performance. Alternatively, this cable can also be used to add an accessory Airmar® 2D transducer to a Humminbird control head that also has a Side or Down Imaging transducer connected at the same time. This cable supports Transducer ID for automatic recognition and easy setup of Airmar® accessory transducers.Features:
Compatible with: All SOLIX and APEX models
Combines a MEGA Side Imaging transducer (or non-MEGA Imaging) and accessory 2D transducer and allows them to be connected to a single Humminbird control head.
Automatically provides Side Imaging, Down Imaging and temperature from the standard all-in-one transducer and sources 2D sonar and digital depth from the 2D accessory transducer, without the need to switch data sources manually
Includes Transducer ID for Airmar® accessory transducers, which automatically recognizes transducer type for easy installation and setup.
Cable length: 30" (76 cm)
1-Year Limited Warranty

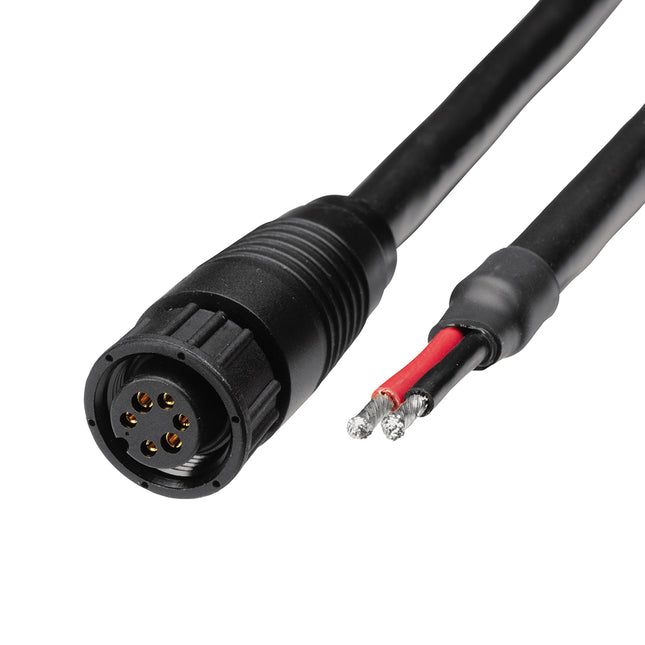

PC13 APEX® Power Cable - 6'The PC 13 is a marine-rated power cable for APEX chartplotters. Measuring 6' in length, this cable provides consistent power to the MFD and connects via a waterproof, twist-lock connector. Features:
Compatible with: All APEX models
Cable length: 6 ft (1.82 m)
1-Year Limited Warranty

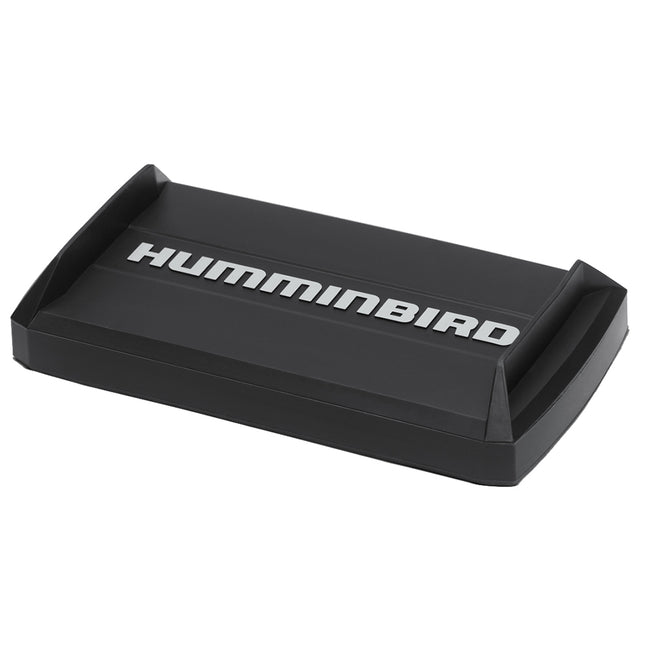

UC H5 HELIX 5 CoverFeatures:
Protects lens during storage
Durable, Easy-On Neoprene Design
Easily rolled or folded for storage in small compartments
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Type: Covers
Box Dimensions: 2"H x 7"W x 9"L WT: 0.3 lbs
UPC: 082324045943

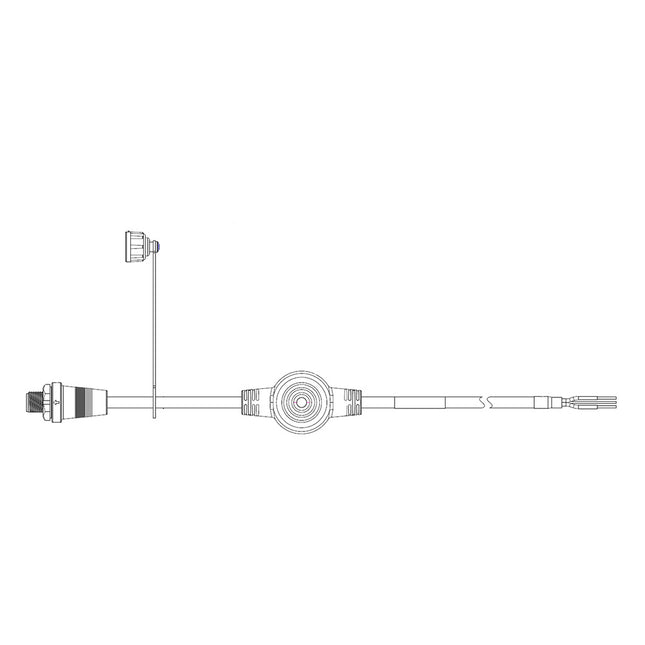

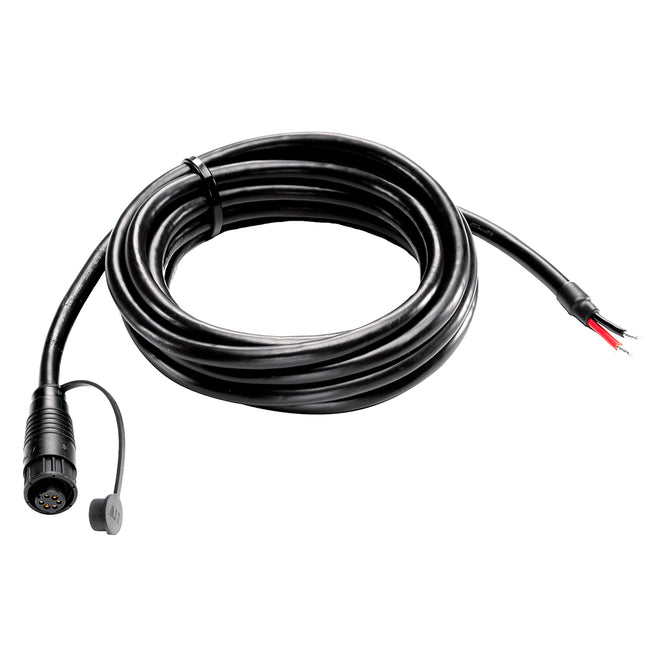

MEGA 360 PC - MEGA 360 Power CableThe MEGA 360 PC is a 10' marine-grade power cable for a MEGA 360 Imaging transducer. One end provides a quick-disconnect plug for easy connection to an existing MEGA 360 transducer, while the other end features two tinned wires ready for installation to a 12V power source.Features:
Replacement power cable for MEGA 360 Imaging Transducers
The high-frequency beam of MEGA Imaging CHIRPs across the megahertz range reveals the world below in picture-like detail around your boat.
Use MEGA 360 Imaging without sacrificing boat control. Whether trolling or using Spot-Lock, MEGA 360 Imaging is independently mounted, so your sonar picture remains unchanged as the trolling motor turns.
Compatible with: All MEGA 360 Imaging transducers
Cable length: 10' (3M)
1-Year Limited Warranty
14 M SILR Y - SOLIX®/APEX® Side Imaging Left-Right Splitter Cable The 14 M ID SILR Y cable allows for two Side Imaging transducers to be connected to into a single sonar input on a Humminbird chartplotter. This y-cable utilizes the two Side Imaging transducer to act as independent port and starboard Side Imaging sonar sources when boat hulls and transducer obstructions require separate transducers for a clear picture on each side of the vessel. This rigging cable provides the ability to install a separate high-speed Humminbird 2D transducer for high-speed depth reading and sonar performance. Alternatively, this cable can also be used to add an accessory Airmar® 2D transducer to a Humminbird control head that also has a Side or Down Imaging transducer connected at the same time. This cable supports Transducer ID for automatic recognition and easy setup of Airmar® accessory transducers.Features:
Compatible with: All SOLIX and APEX models
Combines two Side Imaging transducers together, acting as independent port and starboard Side Imaging sonar sources and can then be connected to a single Humminbird control head.
Includes transducer ID for Airmar® accessory transducers when used in combination with 14 M ID SIDB Y (#720111-1)
Cable length: 30" (76 cm)
1-Year Limited Warranty
ICE Fishing Flasher Soft-Sided Carrying Case Soft-sided carrying case. (No shuttle, battery, or charger)WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

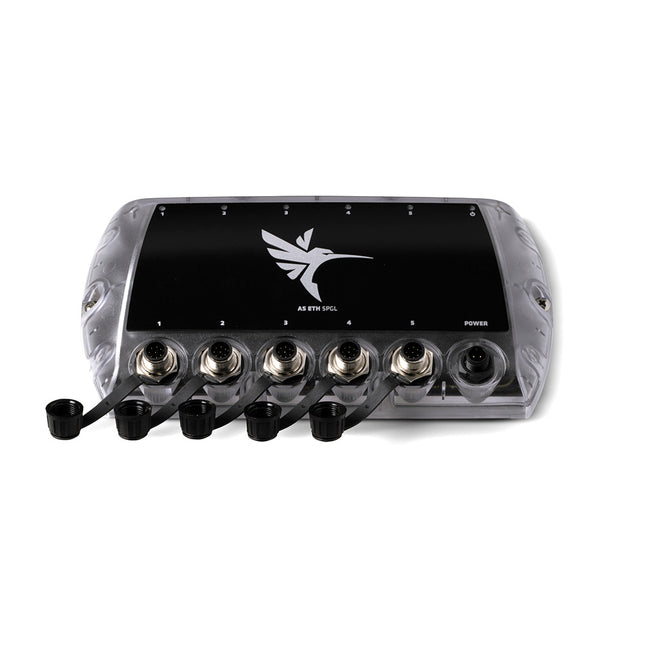

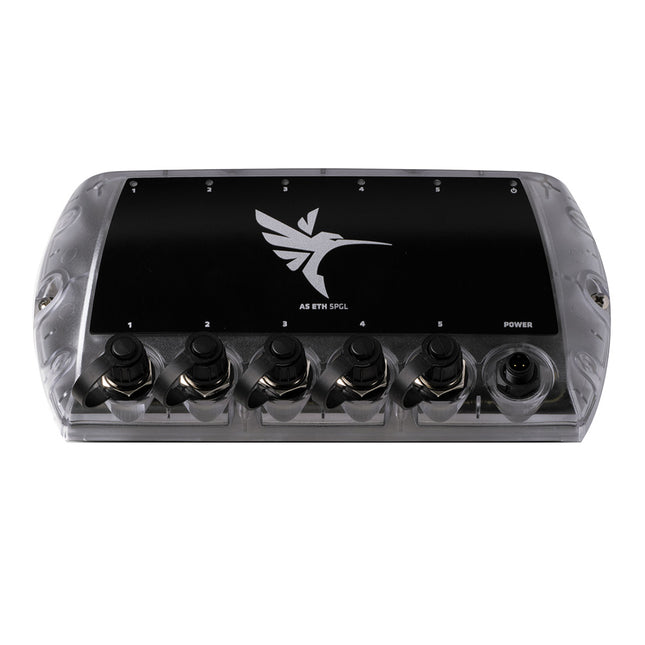

AS-ETH-5PGL 5 Port Ethernet SwitchThis Ethernet switch allows you to connect to up to five compatible Humminbird fish finders and Ethernet-compatible devices to create an integrated network capable of sharing information across all connected devices. The amber power light lets you know you are connected to power, while the amber and green connection lights give you a quick status of what’s connected. Features:
Connect up to five Humminbird fish finders and other compatible Ethernet devices for data sharing across the network.
Expand your network's capacity up to 20 devices by linking additional switches together (sold separately).
Compatible with all XPLORE, APEX, SOLIX, HELIX G4N and HELIX G3N fish finder models.
Connection Light: Solid = Connected; Flashing = Data Transfer in Progress; No Light = No Connection
Amber Connection Light: XPLORE, HELIX G4N & G3N, AS ETH NMEA2K, Minn Kota Trolling Motor, Radar
Green Connection Light: APEX, SOLIX, MEGA Live, TargetLock, AS ETH 5PXG, AS ETH 5PGL
Amber Power Light: Connected to power
Additional Ethernet cables are required to connect devices to this switch. AS EC QDE connectors will also be required to connect compatible HELIX models to the Ethernet switch.
Includes: Ethernet switch, power cable, mounting hardware
1-Year Limited Warranty
AS-EC-QDE Ethernet Adapter CableThis Ethernet adapter cable will allow you to use a Humminbird Ethernet cable (sold separately) to network an ethernet-equipped Humminbird fish finder with other compatible fish finders, Ethernet accessories and Minn Kota i-Pilot Link trolling motors.
Compatible with: HELIX 7 G2N & G3N models, all HELIX 8, HELIX 9, HELIX 10, HELIX 12 and HELIX 15 models, 859 models, 899 models, 959 models, 999 models, 1159 models, and 1199 models.
Cable Length: 1 foot
If you are networking two fish finders from the above list together, it will require two (2) AS EC QDE cables plus one (1) Ethernet cable of the appropriate length for your boat’s needs.
1-Year Limited Warranty
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)
IDMK X10 XPLORE 10 In-Dash Mounting BracketIn-dash mounting kit for the Humminbird XPLORE Series fish finder is made with rugged, high-strength aluminum for a quick and easy install. This kit includes mounting hardware.Features:
Allows for quick and easy in-dash installation
Rugged, high-strength aluminum design
Contains all necessary mounting hardware
1-Year Limited Warranty
PC12 Power Cord - 6'6' Power CableCompatible Devices:
ION Series
ONIX Series
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Type: Power Cords
Box Dimensions: 2"H x 8"W x 9"L WT: 0.5 lbs
UPC: 082324039003

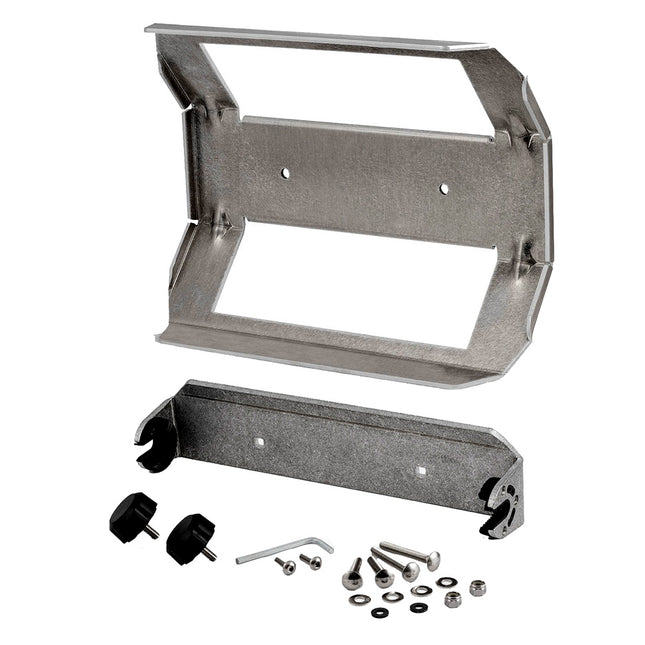

IDMK RM A16 In-Dash Mounting Kit for APEX® 16The IDMK RM A16 is an in-dash mounting solution for APEX 16 models where a rear-mounted bracket solution is desired for installation. This product provides a secure fit of the APEX control head to the mounting surface and provides a clean and finished look at the helm.Features:
Compatible with: All APEX 16 models
Includes a reinforced, aluminum mounting bracket with stainless steel mounting hardware.
1-Year Limited Warranty
Specifications:
Type: Mounting Brackets
Box Dimensions: 5"H x 12"W x 16"L WT: 3.7 lbs
UPC: 082324055447
14-M360-2DDI-Y - MEGA 360 & 2D/MDI 14-Pin Y-CableThis Y cable allows for the connection of a MEGA 360 Imaging transducer and a 14-pin HW / MDI+ transducer (including Built-in MEGA Imaging) to the same compatible Humminbird fish finder.
Combines MEGA 360 Imaging transducer and 14-pin Dual Spectrum / MEGA Imaging+ transducers (including Built-in MEGA Imaging) into one 14-pin plug for connection to the same, compatible SOLIX fish finder, or HELIX fish finder with additional AD HELIX M360 adapter.
For use when connecting a MEGA 360 Imaging transducer to a compatible SOLIX or HELIX fish finder, in conjunction with a Built-in MEGA Imaging transducer or external 14-pin HW /MDI+ transducer.
If this cable is being used with a HELIX fish finder, then the #720106-1 AD HELIX M360 adapter must be attached between this y-cable and the HELIX unit, to the single plug end of the Y cable.
Compatible with Built-in MEGA Imaging transducers on select Minn Kota trolling motors
30" (76 cm) cable on Dual Sprectrum CHIRP side of cable
10' (3 m) cable on the MEGA 360 side
Waterproof, screw-on, 14-pin connectors
1-Year Limited Warranty
Specifications:
Type: Adapters
Box Dimensions: 4"H x 8"W x 9"L WT: 0.95 lbs
UPC: 082324054860
IDMK X9 XPLORE 9 In-Dash Mounting BracketIn-dash mounting kit for the Humminbird XPLORE Series fish finder is made with rugged, high-strength aluminum for a quick and easy install. This kit includes mounting hardware.Features:
Allows for quick and easy in-dash installation
Rugged, high-strength aluminum design
Contains all necessary mounting hardware
1-Year Limited Warranty

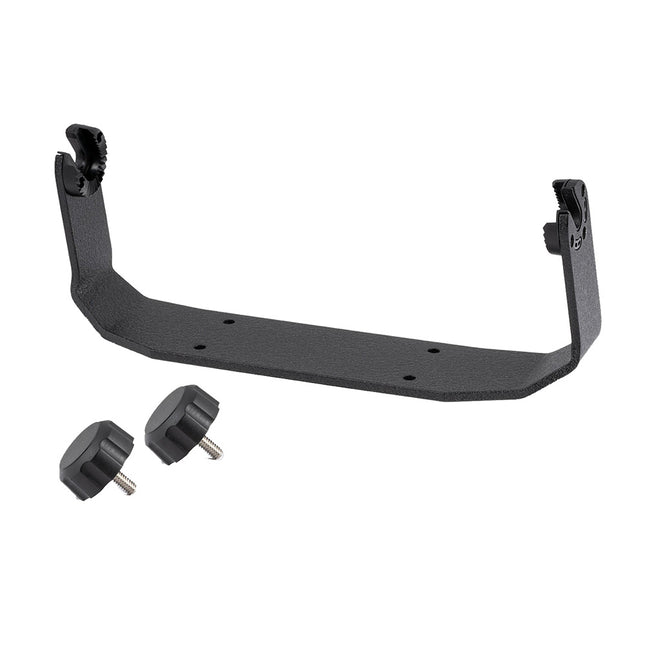

GM X10 XPLORE 10 Gimbal Mounting BracketThis metal gimbal mount is for all XPLORE 9 models. This includes the gimbal mount, gimbal mounting knobs, and hardware.Features:1-Year Limited Warranty

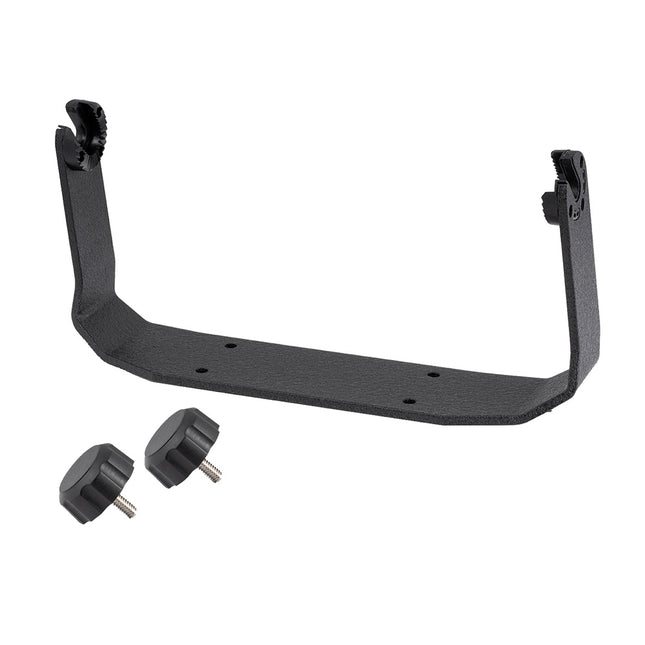

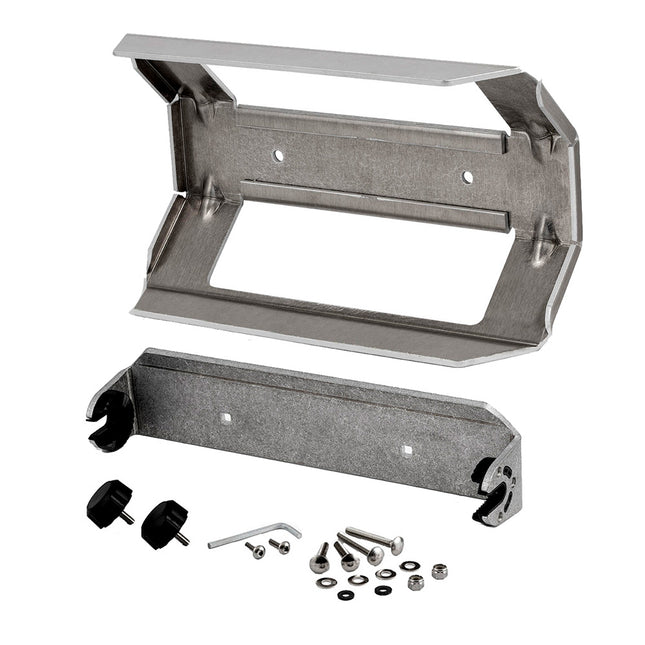

GM X12 XPLORE 12 Gimbal Mounting BracketThis metal gimbal mount is for all XPLORE 12 models. This includes the gimbal mount, gimbal mounting knobs, and hardware.Features:1-Year Limited Warranty
GM X9 XPLORE 9 Gimbal Mounting BracketThis metal gimbal mount is for all XPLORE 9 models. This includes the gimbal mount, gimbal mounting knobs, and hardware.Features:1-Year Limited Warranty
