AS GPS NMEA ONIX Splitter CableONIX Splitter Cable to connect with optional external GPS receiver AS GRP or AS GPS HS for 1 additional NMEA 0183 communicationWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Data Interface: NMEA 0183
Box Dimensions: 2"H x 8"W x 9"L WT: 0.4 lbs
UPC: 082324038938
AS GPSThe AS GPS is an adapter cable that allows APEX chartplotters to connect with a Humminbird external GPS receiver. Combined with an external GPS receiver, users will get extremely accurate position readings with AS GRP receiver (sold separately), or choose to get both accurate GPS readings and a constant compass heading with AS GPS HS (sold separately). AS GPS cable measures 30" in length and connects to the MFD via a waterproof, twist-lock connector.
Compatible with: All APEX models
Cable length: 30" (76 cm)
1-Year Limited Warranty
Specifications:
Type: Antennas
Box Dimensions: 2"H x 8"W x 9"L WT: 0.3 lbs
UPC: 082324055508
AS QD NMEA 2000 - Helix NMEA Adapter This NMEA 2000 adapter cable will allow you to connect a HELIX G4N fish finder to drop cable from an existing NMEA 2000 backbone (sold separately).
Compatible with: All HELIX 8/9/10/12/15 G4N Models
1-Year Limited Warranty
AS-EC-15E Ethernet Cable - 15'Features:
15' Ethernet cable
Female connectors on both ends
Use AS ECX 30E for cable extension
For use with Humminbird Ethernet Systems only
Compatibility:
1100 Series: All models
900 Series: 958c, 998c SI
800 Series: 858c, 898c SI
700 Series: Ethernet Models - 778c HD, 788ci HD, 798ci HD
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Cable Length (Feet): 15'
Box Dimensions: 2"H x 8"W x 9"L WT: 0.8 lbs
UPC: 082324054259
Owner's Manual (pdf)
AS-ETH-5PGL 5 Port Ethernet SwitchThis Ethernet switch allows you to connect to up to five compatible Humminbird fish finders and Ethernet-compatible devices to create an integrated network capable of sharing information across all connected devices. The amber power light lets you know you are connected to power, while the amber and green connection lights give you a quick status of what’s connected. Features:
Connect up to five Humminbird fish finders and other compatible Ethernet devices for data sharing across the network.
Expand your network's capacity up to 20 devices by linking additional switches together (sold separately).
Compatible with all XPLORE, APEX, SOLIX, HELIX G4N and HELIX G3N fish finder models.
Connection Light: Solid = Connected; Flashing = Data Transfer in Progress; No Light = No Connection
Amber Connection Light: XPLORE, HELIX G4N & G3N, AS ETH NMEA2K, Minn Kota Trolling Motor, Radar
Green Connection Light: APEX, SOLIX, MEGA Live, TargetLock, AS ETH 5PXG, AS ETH 5PGL
Amber Power Light: Connected to power
Additional Ethernet cables are required to connect devices to this switch. AS EC QDE connectors will also be required to connect compatible HELIX models to the Ethernet switch.
Includes: Ethernet switch, power cable, mounting hardware
1-Year Limited Warranty
AutoChart DVD PC Mapping Software with Zero Lines Map CardAutoChart: Map coverage where you make it.Humminbird AutoChart for North America uses proprietary software that takes your Humminbird's sonar recordings and GPS to build custom lake charts. Create your own contour map on any lake in 3 simple steps:
1.Record sonar data after inserting a blank SD card into your Humminbird Combo.
2.Import your recordings into the AutoChart PC program and convert your survey into a lake map.
3.Export your map onto the Zero Lines Map Card (included) to display on any compatible* Humminbird.
*AutoChart is optional for select ONIX, ION, 1100, 900, 800, and 600 Series models. Compatibility subject to change without notice.Zero Lines Map Card: The starting point to your mapping adventure. The Zero Line is the place where the water meets the shore and the starting point for building your own maps. Included with the AutoChart PC software is a 32 GB map card loaded with Zero Lines for millions of water bodies in North America. With these all-important Zero Lines as your foundation, you can begin creating your own, accurate and detailed maps of any fishing spot, even where contour coverage doesn't exist. Once your AutoChart map is created, the only way to view the contours on a compatible Humminbird fish finder is by loading them onto a Zero Lines Map Card. Now use i-Pilot Link on any lake when you create contours with Humminbird AutoChart. Get on the fast track to finding fish more effectively. Humminbird AutoChart enables you to use Minn Kotar i-Pilotr LinkT on previously unmapped bodies of water after you create contours with the revolutionary AutoChart PC Software. The i-Pilot Link's innovative Follow the Contour feature will direct the trolling motor to follow a specific depth contour. The chosen contour line can be automatically followed in either direction, or stay a set distance from that contour or shoreline with Contour Offset.More Features:Additionally, with AutoChart's generated contours, you'll have access to all the detail and features of Humminbird LakeMaster charts including:
Depth Highlight (Depth Highlight Range)
Water Level Offset
Shallow Water Highlight
Mark, Import, and Export waypoints
i-Pilot Link functionality
Minimum PC Requirements:
512 MB Ram*
10 GB Free hard drive
Windows XP (sp3 or greater)
DVD-ROM Drive
*(1024 MB RAM Recommended)WARNING: This product can expose you to chemicals including Naphthalene which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)
AutoChart PRO™ DVD PC Mapping Software with Zero Lines Map CardAutoChart PRO™: Add another layer of detail to your cartography.Humminbird AutoChart PRO™ for North America offers all the leading features of AutoChart-but with two key enhancements designed to give tournament anglers a competitive edge.Bottom Hardness Indication delivers a crucial tip-off to where fish are hiding by identifying areas likely to hold fish based on the hardness of the bottom.Side Imaging Mosaic allows you to overlay your Side Imaging returns onto your AutoChart map for a 3D visualization of fish-holding habitat. This feature gives anglers the ultimate understanding of the underwater world and what the structure looks like on their favorite fishing spots. With AutoChart PRO, you'll have all the tools you need to bring your next trophy into sight. *Both Bottom Hardness Indication and Side Imaging Mosaic are exclusive to AutoChart PRO.Map coverage where you make it.AutoChart PRO operates the same way as AutoChart by using proprietary software that takes your Humminbird's sonar returns and GPS to build custom lake charts. Create your own contour map on any lake in 3 simple steps:
1. Record sonar data after inserting a blank SD card into your Humminbird Combo.
2. Import your recordings into the AutoChart PRO PC program and convert your survey into a lake map.
3. Export your map onto the Zero Lines Map Card (included) to display on any compatible* Humminbird.
*AutoChart PRO is optional for select ONIX, ION, 1100, 900, 800, and 600 Series models. Compatibility is subject to change without notice.
Zero Lines Map Card: The starting point to your mapping adventure.The Zero Line is the place where the water meets the shore and the starting point for building your own maps. Included with the AutoChart PRO PC software is a 32 GB map card loaded with Zero Lines for millions of water bodies in North America. With these all-important Zero Lines as your foundation, you can begin creating your own, accurate and detailed maps of any fishing spot, even where contour coverage doesn't exist. Once your AutoChart map is created, the only way to view the contours on a compatible Humminbird fish finder is by loading them onto a Zero Lines Map Card.Now use i-Pilot Link on any lake when you create contours with Humminbird AutoChart PRO.Humminbird AutoChart PRO enables you to use Minn Kota i-Pilot® Link™ on previously unmapped bodies of water after you create contours with the revolutionary AutoChart PRO PC Software. The i-Pilot Link's innovative Follow the Contour feature will direct the trolling motor to follow a specific depth contour. The chosen contour line can be automatically followed in either direction or stay a set distance from that contour or shoreline with Contour Offset.More Features:Additionally, with AutoChart PRO generated contours, you'll have access to all the detail and features of Humminbird LakeMaster charts including:
Depth Highlight (Depth Highlight Range)
Water Level Offset
Shallow Water Highlight
Mark, Import, and Export waypoints
i-Pilot Link functionality
Specifications:
United States - Over 140,000 named water bodies and over 1.75 million unnamed water bodies
Canada - Over 96,000 named water bodies and over 3.85 million unnamed water bodies
Detailed Coastal shoreline for United States
Create your own detailed shoreline using aerial imagery within AutoChart PRO PC
32 GB SD card with over 16 GB of free space to maintain your custom maps
Card must be present to get the detailed zero line base map to display in AutoChart PRO PC
All Humminbird units will require software update
Can purchase additional zero lines cards as needed
AutoChart PRO maps will overlay LakeMaster maps on HB unit that have two card slots
Minimum PC Requirements:
512 MB Ram*
10 GB Free hard drive
Windows XP (sp3) or greater
DVD-ROM Drive
*(1024 MB RAM Recommended)WARNING: This product can expose you to chemicals including Naphthalene which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)
AutoChart Zero Lines Map CardThe Zero Lines map card is the starting point for building your maps with AutoChart or AutoChart Live. With these all-important Zero Lines as your foundation, you can begin creating your own, accurate, and detailed maps of any fishing spot, even where contour coverage doesn’t exist. Anglers can purchase Zero Line Map Cards to view the AutoChart-created maps on multiple Humminbird units. For those with the AutoChart PC program, simply export the map from the program to the extra Zero Line Map Card and you’ll have multiple charts of your favorite fishing spots ready to view on a range of compatible Humminbird fish finders. For GPS-equipped HELIX G2/G2N Series models and newer, and any APEX or SOLIX models, the Zero Lines card can record depth contours, bottom hardness, and vegetation directly onto the card.Features:
The North American Zero Line SD card is 32 GB and contains zero lines for over 140,000 named water bodies and over 1.75 million unnamed water bodies in the United States, and over 96,000 named water bodies and over 3.85 million unnamed water bodies in Canada. Plus, there is 16 GB of free space to maintain your custom maps. A card must be present to get the detailed Zero Line base map to display in AutoChart PC.
Don’t want to wait for the retail package? Purchase the digital-only version and receive it today! Remember, you must have a 32GB SD card.
Please note this card is included with the purchase of AutoChart or AutoChart PRO
Note: Opened packages will not be eligible for credit return.
Zero Lines Card is optional for select XPLORE, APEX, SOLIX, ONIX, ION, HELIX, 1100, 900, 800, and 600 Series models. Compatibility subject to change without notice.
30-Day Cartography Warranty
WARNING: This product can expose you to chemicals including Naphthalene which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)
Coastmaster™ ChartPlan Your AttackFind the path to your next big catch with the incredible accuracy and detail of Humminbird® CoastMaster™. With easy-to-read contours and chart customization, you'll have the tools you need to identify the spots you know will hold fish and navigate there safely. Building on the latest data available, CoastMaster™ delivers unrivaled nearshore and offshore fishing performance.Complete Coastal CoverageWe’ve got you covered from sea to shining sea. Always know where you are and what’s ahead with full chart detail for the East Coast, West Coast, and the Gulf of Mexico, complete with 3, 9, 12, 24, and 200-mile markers.VX TechnologyDon’t delay. VX technology provides five customizable color palettes and fast map load times, so you can seize every moment on the water.Chart ViewsSee the world your way with three chart view presets. Individually customize Fishing, Navigation and User presets to quickly cycle between your favorite settings for specific fishing scenarios. Spend less time with settings, and more time setting the hook.Tides and CurrentsWhichever way the tide rolls, make sure it’s in your favor. CoastMaster’s predictive software allows you to plan your fishing day with tidal direction and height, as well as the speed and direction of currents and more, so you’ll never be caught guessing.Better TogetherUnlock more from your CoastMaster™ chart with the power of One-Boat Network™. Pair your Humminbird chartplotter and a Minn Kota® trolling motor with i-Pilot® Link™ to control your trolling motor right from your unit. For hands-free fishing, your trolling motor can automatically follow a depth contour on your CoastMaster™ chart.Features:
VX Technology provides five customizable color palettes and faster map load times, so you can seize every moment on the water.
See the world your way with three preset views. It’s quick and easy to switch from fishing charts to nautical charts, or to create your own custom view settings.
Using predictive software, CoastMaster™ allows you to plan your fishing day with tidal direction and height, as well as the speed and direction of currents and more, so you’ll never be caught guessing.
Create up to four user-defined depth highlight ranges, so you can easily target productive water and stay in the bite zone.
Navigate safely and quickly identify spots where fish are hiding with red shading highlights for shallow water areas on an adjustable range from zero to 30 feet.
Synchronize the depth contours and shorelines of your CoastMaster™ charts with the actual water levels, so that your chart will reflect the current water level of your fishing spots.
Access a wealth of navigational data to make your next trip safe and successful. Access navigation aids, artificial reefs and points of interest.
When paired with a Minn Kota i-Pilot Link, you can “follow” a selected depth contour line, delivering precise, automatic boat control
Compatible with Humminbird HELIX® G3/G3N and all SOLIX® units.
1-Year Cartography Warranty. Opened packages are not eligible for return.
Brochure (pdf)
CoastMaster™ Premium Edition - Florida - Version 1CoastMaster Premium, Florida arms saltwater anglers with even more information to identify the most productive areas in all Florida coastal waters.Premium Features:
2D Shaded Relief makes bottom detail and depth changes easy to spot
Navigate confidently and find new fishing spots with the help of Enhanced Aerial Imagery.
The Auxiliary Contours layer provides additional contours in shallow water areas.
The Bottom Hardness layer helps anglers identify bottom composition and key fish-holding areas.
Additional Features:
Highest quality information possible based on government-sourced data
Industry-standard navigation aids provide a familiar look and feel that captains and anglers are accustomed to
VX Technology: Vector-accelerated maps provide improved map loading and the ability to pan and zoom with incredible speed.
Choose from a wide array of color palettes.
Multiple chart viewing options; fishing chart view, nautical chart view, and custom viewing modes. Simple and easy to change from fishing charts to nautical charts, or create your own custom view settings.
View depth contours, spot soundings, artificial reefs, navigational aids, and points of interest
Dynamic tide & currents information- Provides information for speed and direction of currents, as well as tide height and direction.
The most-detailed traditional charts and High Definition (HD) charts with contours as accurate as 1-foot increments
Powerful, patented features give you a better ability to precisely target fish-holding areas
Depth Highlight clearly highlights your most productive depth range, using customizable contour shading, to help find similar fish-holding spots on the map
Shallow Water Highlight helps to identify hazardous, shallow water areas with customizable contour shading.
Optional Minn Kota i-Pilot Link Follow will automatically follow a set CoastMaster depth contour, allowing you to move along at precisely the right depth. A technology available for the first time in any coastal chart.
Compatibility:
All HELIX G3/G3N and Newer
All SOLIX
All APEX
CoastMaster™ Premium Edition - Florida - Version 2Humminbird® CoastMaster® Premium Florida V2 with Bahamas provides highly accurate chart coverage for all Florida waters. It also includes boat lanes for Florida and contours for the Bahamas. From easy-to-read contours to highlighted depth ranges, you'll have the tools you need to identify the spots you know will hold fish, and navigate there safely.Features:
Find the path to your next big catch with the incredible accuracy and detail of Humminbird® CoastMaster® Premium, Florida V2 providing highly accurate chart coverage for all Florida waters and Bahamas. From easy-to-read contours to highlighted depth ranges, you'll have the tools you need to identify the spots you know hold fish.
Includes Florida Boat Lanes with tracks labeled with actual depth to plan your route to elusive fishing holes. With a safety depth feature that customizes tracks to your boat’s draft, highlighting shallow areas in red to avoid hazards.
Includes Bahamas with exclusive shallow water contours and shaded relief.
High-definition shade relief for the Keys and other highly fished areas.
Compatible with Humminbird all APEX, all XPLORE, and SOLIX G3N models.
2D Shaded Relief layer helps make bottom detail and depth changes easy to spot.
Enhanced Aerial Imagery provides crystal-clear water visibility, perfect for scouting new fishing holes.
The Bottom Hardness layer helps anglers identify bottom composition and key fish-holding areas.
Using predictive software, CoastMaster allows you to plan your fishing day with tidal direction and height, as well as the speed and direction of currents and more, so you’ll never be caught guessing.
Identify shallow water areas in an adjustable range from zero to 30 feet.
Synchronize the depth contours and shorelines of your CoastMaster charts with the actual water levels, so that your chart will reflect the current water level of your fishing spots.
Quick Guide (pdf)Owner's Manual (pdf)
CoastMaster® Premium Northeast Coastal V1Find the path to your next big catch with the incredible accuracy and detail of Humminbird® CoastMaster® Premium Northeast Coastal, providing highly accurate chart coverage. From easy-to-read contours to highlighted depth ranges, you'll have the tools you need to identify the spots you know will hold fish and navigate there safely.Features:
Compatible with Humminbird HELIX® G3/G3N units, all SOLIX® units, all APEX™ units, and all XPLORE™ units.
2D Shaded Relief: Make bottom detail and depth changes easy to spot so you can quickly identify fish holding areas.
Aerial Imagery: Navigate more confidently and find new fishing spots with the help of aerial imagery.
VX Technology: Provides exceptional map performance and customizable color palettes.
SmartStrike: Highlights areas of the lake map where fish are most likely biting. *Select HD Lakes Only
Chart Presets: Simple and easy to change between your custom view settings.
Depth Highlight: Highlight a selected depth range so you can target productive water and stay where the fish are.
Shallow Water Highlight: Easy-to-see red shading highlights shallow water areas on an adjustable range from 0 to 60 feet.
Water Level Offset: Synchronize the depth contours and shorelines of your LakeMaster charts with the actual water levels of lakes, reservoirs, and rivers.
One-Boat Network®: Connect your Humminbird CoastMaster® chart and Minn Kota® trolling motor, allowing your boat to automatically follow a depth contour line.
1-Year Cartography Warranty. Opened packages are not eligible for return.
Specifications:
Current Models: SOLIX 10 G3, SOLIX 12 G3, APEX 16, APEX 13, SOLIX 15 G3, APEX 19, XPLORE 12, XPLORE 9, XPLORE 10, SOLIX 10 G1/G2, SOLIX 12 G1/G2, SOLIX 15 G1/G2
Delivery: SD Card
Product Type: CoastMaster
Region: Northeast
Warranty: One-Year Warranty
Owner's Manual (pdf)

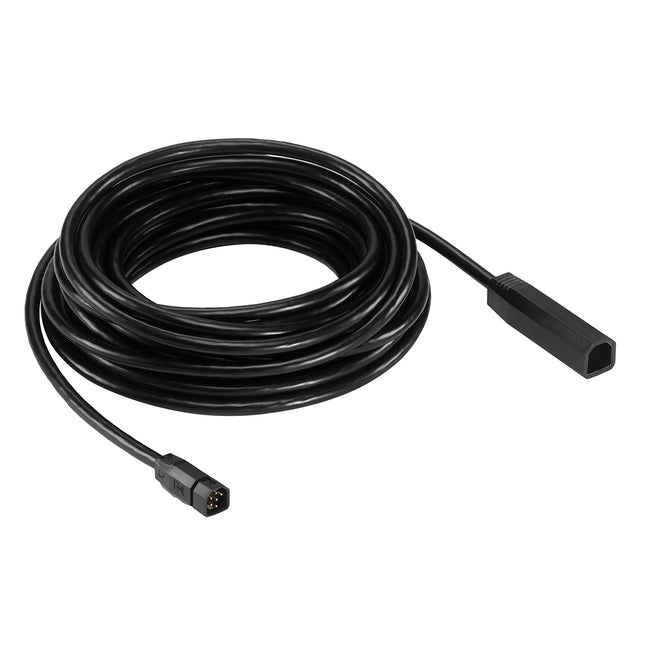

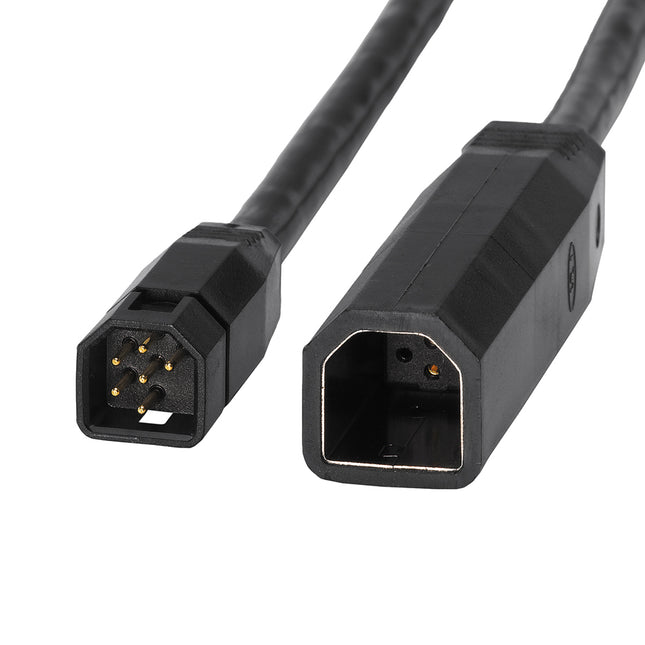

EC M10 Transducer Extension Cable - 10'10' extension cable for transducers. Current Models: ICE HELIX, ICE Flashers, PiranhaMAX, HELIX 5, HELIX 7, HELIX 9, HELIX 10, HELIX 12Discontinued Series: 500 Series, 600 Series, 700 Series, 800 Series, 900 Series, 1100 SeriesLength: 10'WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Type: Extension
Box Dimensions: 2"H x 8"W x 9"L WT: 0.8 lbs
UPC: 082324050350
EC M30 Transducer Extension Cable - 30'30' extension cable for transducers. Current Models: ICE HELIX, ICE Flashers, PiranhaMAX, HELIX 5, HELIX 7, HELIX 9, HELIX 10, HELIX 12Discontinued Series: 500 Series, 600 Series, 700 Series, 800 Series, 900 Series, 1100 SeriesLength: 30'WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Type: Extension
Box Dimensions: 4"H x 8"W x 9"L WT: 1.4 lbs
UPC: 082324050367
GM H5 Gimbal Mount for HELIX 5HELIX 5 Series gimbal mounting bracketWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Type: Mounting Brackets
Box Dimensions: 2"H x 8"W x 9"L WT: 0.4 lbs
UPC: 082324045936
GM H7 Gimbal Mount for Select HELIX 7 SeriesThe GM H7 is a plastic gimbal mount for all HELIX 7 models products except HELIX 7 G4N models . This includes the gimbal mount, knobs and mounting hardware.Compatible Devices:All HELIX 7 models, except HELIX 7 G4N modelsWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Type: Mounting Brackets
Box Dimensions: 4"H x 8"W x 9"L WT: 0.7 lbs
UPC: 082324047190
GM H7R2 Gimbal Mount for HELIX 7 G4N ModelsThe GM H7 is a gimbal mount for HELIX 7 G4N products. This includes the gimbal mount, knobs, and mounting hardware. Features:
Compatible with: HELIX 7 G4N models
Includes gimbal mount, knobs, and mounting hardware
1-Year Limited Warranty
Specifications:
Type: Mounting Brackets
Box Dimensions: 3"H x 7"W x 12"L WT: 0.8 lbs
UPC: 082324056451
GM H910 Gimbal Mount BracketGimbal mount for HELIX 9 and HELIX 10 SeriesWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Type: Mounting Brackets
Box Dimensions: 3"H x 6"W x 12"L WT: 0.95 lbs
UPC: 082324048418
GM X10 XPLORE 10 Gimbal Mounting BracketThis metal gimbal mount is for all XPLORE 9 models. This includes the gimbal mount, gimbal mounting knobs, and hardware.Features:1-Year Limited Warranty
GM X12 XPLORE 12 Gimbal Mounting BracketThis metal gimbal mount is for all XPLORE 12 models. This includes the gimbal mount, gimbal mounting knobs, and hardware.Features:1-Year Limited Warranty
GM X9 XPLORE 9 Gimbal Mounting BracketThis metal gimbal mount is for all XPLORE 9 models. This includes the gimbal mount, gimbal mounting knobs, and hardware.Features:1-Year Limited Warranty
HB2124 CHIRP RadarCompatible with select networking HELIX models and ONIX, Humminbird CHIRP Radar features CHIRP pulse compression, setting a new standard for compact solid state radar. It delivers superior RADAR imaging on both long and extremely short ranges. This translates to better situational awareness in low-visibility conditions and helps identify birds and floating obstacles for clues to where gamefish are located. You can also track weather and vessels with amazing definiton. Features:
Antenna Dimension - 21" Enclosed Dome
Antenna Type - Patch Array
Peak Power Output - 20W
Transmit Frequency - 9354 to 9446 MHz
Beam width (nominal) - 4.9° Horizontal and 20° Vertical
Input Voltage - 12 or 24 VDC (Miniumum - 10.8 Volts, Maximum - 31.2 Volts)
Networking - Ethernet
Maximum Range Scale - from 1/16 to 24 nautical miles
Power Consumption - Transmit mode - 17W; Standby Mode - 7W; Sleep Mode - 2W
Duplexer - Circulator
Pulse Widths @ 3 dB - 40 ns to 14.7µs
CHIRP Lengths - 400 ns to 20µs
CHIRP Bandwidth - Up to 32 MHz
IF Bandwidth - 26 MHz
Noise - Less than 4 dB
Polarization - Horizontal
Waterproofing - IPX6
Weight - 12.3 lbs (5.6 kg)
Compatibility Networking HELIX models and all ONIX models
Specifications:
Array Size (Inches): 21"
Box Dimensions: 12"H x 24"W x 24"L WT: 21.2 lbs
UPC: 082324050169
Owner's Manual (pdf)
