Mega 360 Imaging for Ultrex Quest The MEGA 360 Imaging - Ultrex transducer provides a 360-degree, detail-rich view around your boat. Designed to mount to the Minn Kota® Ultrex™, this transducer provides uninterrupted use of your Ultrex and Ultrex QUEST motor while using MEGA 360 Imaging, even while in Spot-Lock™. So keep fishing in wind, waves, and nasty weather, and we'll still deliver the MEGA Imaging all around you for versatility in your fishing. Features:
Compatible with the following HELIX models: HELIX 15 MEGA SI+ GPS G4N, HELIX 15 MEGA DI+ GPS G4N, HELIX 12 MEGA SI+ GPS G4N, HELIX 12 MEGA SI+ GPS G3N, HELIX 12 MEGA DI+ GPS G4N, HELIX 12 MEGA DI+ GPS G3N, HELIX 10 MEGA SI+ GPS G4N, HELIX 10 MEGA SI+ GPS G3N, HELIX 10 MEGA DI+ GPS G4N, HELIX 10 MEGA DI+ GPS G3N, HELIX 9 MEGA SI+ GPS G4N, HELIX 9 MEGA SI+ GPS G3N, HELIX 9 MEGA DI+ GPS G4N, HELIX 9 MEGA DI+ GPS G3N, HELIX 8 CHIRP MEGA SI+ GPS G4N, HELIX 8 MEGA SI+ GPS G3N.
Compatible with all APEX models and all SOLIX G2 and G3 models.
Compatible with all Minn Kota Ultrex and Ultrex QUEST trolling motor models
What's Included: Ultrex bow-mount MEGA 360 Imaging transducer with attached power cable and transducer cable, with 10' SOLIX transducer cable, 10' HELIX transducer adapter cable, 10' MEGA 360 power cable and an easy-to-mount MEGA 360 Imaging - Ultrex mounting bracket. (Minn Kota Ultrex trolling motor sold separately)
The high-frequency beam of MEGA Imaging CHIRPs across the megahertz range reveals the world below in picture-like detail all the way around your boat.
Use MEGA 360 Imaging without sacrificing boat control. Whether trolling or using Spot-Lock, MEGA 360 Imaging is independently mounted, so your sonar picture remains unchanged as the trolling motor turns.
Pick from two operation modes for this transducer; MEGA 360 Imaging or Side Imaging. This allows you to view a MEGA 360 Imaging view or use this transducer as a MEGA Side Imaging sonar source by selecting the Side Imaging operation mode.
Mark waypoints directly on your MEGA 360 Imaging screen and watch them update as your boat position changes, making it easy to find and then cast to fish and structure.
Utilize optional range rings to show you the distance of targets from your boat, for a better understanding of exactly where the fish are.
View MEGA 360 Imaging alongside your choice of multiple sonar and map technologies for a complete understanding of your surroundings.
MEGA 360 Imaging allows you to customize sweep speed, viewing area, display information, sonar zoom, and color palette to your specific fishing situation and preferences.
Once connected to a compatible HELIX G3N unit with MEGA Imaging+ or SOLIX G2 unit, the MEGA 360 Imaging view can be shared with All SOLIX models, and all HELIX G2N and G3N models when connected via an Ethernet network.
Transducer shaft length: 39 inches
Weight: 12 Lbs
Mounting Bracket Material: Anodized Aluminum
2-Year Limited Warranty
MEGA 360 Imaging Foretrex™Surround yourself with more detail than ever before. MEGA 360 Imaging™ sweeps up to 125’ in every direction around your boat to deliver the clearest images you’ve ever seen of structure, the bottom and fish, even while you’re sitting still. That means more accurate casts, more unforgettable moments and more incredible MEGA Imaging®—all around.Once you’ve found your honey hole, get there and stay there. The MEGA 360 Imaging transducer is designed to mount to the Minn Kota® Foretrex™ for uninterrupted use, even while in Spot-Lock™.Every Detail in Every DirectionWith MEGA 360 Imaging, we didn’t reinvent the wheel. We redefined it, bringing the unmatched coverage of our 360 Imaging technology into the megahertz range for next-level detail. Like underwater radar, the MEGA 360 Imaging beam rotates giving you a 360-degree view of the water that’s constantly updating—with your boat at the center. Fish won’t ever see you coming–allowing you to cast and hook fish before they even know you’re there. Let Us Show You AroundWhether you’re new to these parts, or know your surroundings like the back of your hand, Humminbird® can help you see fish you won’t find alone. MEGA 360 Imaging is compatible with SOLIX® Series and HELIX® Series fish finders equipped with MEGA Imaging+. In addition to unmatched detail and coverage, Humminbird provides built-in mapping, impressive screen resolution, intuitive control and many other features that lead anglers to choose Humminbird. Customize Your ViewMEGA 360 Imaging will change your perspective on fishing. How you see it is up to you. Custom viewing options let you choose how your returns appear, so you can dial them in based on your fishing style, conditions and what you’re after. Because more control means more confidence on the water. Find Fish Like ClockworkSee a fish at 1 o’clock? You’ll be right on time with MEGA 360 Imaging. Just mark a waypoint directly on your Humminbird screen, and let range rings show you the distance from your boat to the target. Then, line up and cast to where the fish are. Dial In Your Sweep AreaNothing beats the coverage and detail of MEGA 360 Imaging. You can customize your sweep area from 360 degrees down to 10 degrees. Use preset view options, like 45° in front of your boat, to find and cast to productive spots without spooking fish.
MEGA 360 Imaging with Universal BracketEvery detail, in every direction, now for every boat.The MEGA 360 Imaging - Universal transducer shows you a 360-degree, detail rich view around your boat. Now bring this technology to virtually any boat, thanks to an adjustable GeigerTec mount, made from billet aluminum. And since MEGA 360 is mounted independent of your trolling motor's steering, you'll have an uninterrupted picture of what's below, even while fishing in wind, waves or using Spot-Lock™.Features:
The high-frequency beam of MEGA Imaging CHIRPs across the megahertz range to reveal the world below in picture-like detail all the way around your boat.
Use MEGA 360 Imaging without sacrificing boat control. Whether trolling or using Spot-Lock, MEGA 360 Imaging is independently mounted, so your sonar picture remains unchanged as the trolling motor turns.
Mark waypoints directly on your MEGA 360 Imaging screen and watch them update as your boat position changes, making it easy to find and then cast to fish and structure.
Utilize optional range rings to show you the distance of targets from your boat, for a better understanding of exactly where the fish are.
View MEGA 360 Imaging alongside your choice of multiple sonar and map technologies for a complete understanding of your surroundings.
MEGA 360 Imaging allows you to customize sweep speed, viewing area, display information, sonar zoom and color palette to your specific fishing situation and preferences.
MEGA 360 Imaging - Universal has a 50" shaft length and can mount to almost any boat with the included GiegerTec aluminum bracket.
Compatible with HELIX G3N and SOLIX G2 models with MEGA Side Imaging+ or MEGA Down Imaging+.
Once connected to a compatible HELIX G3N or SOLIX G2 unit with MEGA Imaging+, the MEGA 360 Imaging view can be shared to any SOLIX model and all HELIX G2N and G3N models via an Ethernet network.
What's Included: MEGA360 Imaging transducer with attached power cable and transducer cable, 10 foot SOLIX transducer extension cable, 10 foot HELIX transducer adapter cable, 10 foot MEGA 360 Power Cable and adjustable, aluminum MEGA 360 Imaging mounting bracket with depth ring for shaft.
1-Year Limited Warranty
MEGA 360 PC - MEGA 360 Power CableThe MEGA 360 PC is a 10' marine-grade power cable for a MEGA 360 Imaging transducer. One end provides a quick-disconnect plug for easy connection to an existing MEGA 360 transducer, while the other end features two tinned wires ready for installation to a 12V power source.Features:
Replacement power cable for MEGA 360 Imaging Transducers
The high-frequency beam of MEGA Imaging CHIRPs across the megahertz range reveals the world below in picture-like detail around your boat.
Use MEGA 360 Imaging without sacrificing boat control. Whether trolling or using Spot-Lock, MEGA 360 Imaging is independently mounted, so your sonar picture remains unchanged as the trolling motor turns.
Compatible with: All MEGA 360 Imaging transducers
Cable length: 10' (3M)
1-Year Limited Warranty
Mega Live 2 Forward-Facing SonarMEGA Live 2 is a live sonar transducer that features, enhanced and vivid clarity of fish and structures. It mounts to a trolling motor shaft and delivers three viewing modes: forward, down, and landscape. It is compatible with all Humminbird APEX, SOLIX G3, and XPLORE models and Minn Kota trolling motors.See fish and structure in real-time. With no gaps in sonar coverage, powered by the unmatched detail and clarity of MEGA Imaging® throughout the entire sonar view.To view everything down, out, and around your boat with live sonar. Choose from multiple viewing modes: Forward, Down, and Landscape.Dynamic bait and lure tracking with MEGA Imaging® detail and an optimized sonar cone angle, providing ample sonar coverage without sacrificing the precision ability to target individual fish.Customizable color palettes designed to enhance the detail and clarity of live sonar returns.Mounts on either side of the trolling motor shaft.Mark and view waypoints on the MEGA Live Imaging sonar screen to remember productive fishing spots for next time, when paired with an optional GPS receiver with a heading sensor (AS GPS HS).Connect MEGA Live Imaging to compatible Humminbird models via the included Ethernet cable. There is no external sonar box required for installation, connects to optional sonar sources like MEGA 360 Imaging® or Built-in MEGA Imaging® to the same control head.Compatible Humminbird control heads: All APEX, SOLIX G3, and XPLORE models (Must be MEGA Side Imaging or MEGA Down Imaging model).For optimal sonar performance, it is recommended that MEGA Live Imaging be used with any Minn Kota® Ultrex™ trolling motor, a Minn Kota® Fortrex® trolling motor, or any QUEST trolling motor equipped with Built-in MEGA Imaging®.The trolling motor and MEGA 360 Imaging accessories are not included.Includes:
MEGA Live Imaging transducer with adjustable mounting bracket
10' power cable
20' Ethernet cable
Mounting hardware
2-Year Limited Warranty
Brochure (pdf)
MEGA Live TargetLock & MEGA 360 Dual Mount for UltrexThe MEGA Live TargetLock and MEGA 360 Dual Mount for Ultrex provide the components needed to mount a MEGA Live TargetLock and MEGA 360 Imaging accessory transducer on a Minn Kota Ultrex™ bow-mount trolling motor.Features:
Dual Mount and mounting hardware for installing a MEGA Live TargetLock and MEGA 360 Imaging transducer on a Minn Kota® Ultrex trolling motors.
Compatible with MEGA Live TargetLock – Ultrex 45 -52”, MEGA Live TargetLock Adapter Kit – Ultrex 45”-52”, and MEGA 360 Imaging – Ultrex.
This kit does not include MEGA Live TargetLock, MEGA Live Imaging Transducer, or MEGA 360 Imaging Transducer.
1-Year Limited Warranty
What's Included?
Dual Mounting Bracket for MEGA Live TargetLock and MEGA 360 Imaging-Ultrex
Mounting Hardware
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)

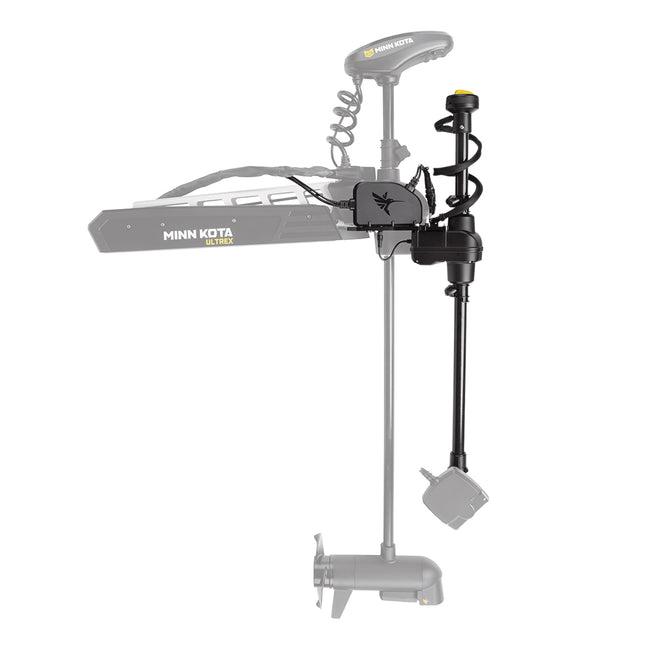

MEGA Live TargetLock Adapter Kit - Ultrex 45"- 52" - MEGA Live Transducer Not IncludedThis adapter kit is for users who have a MEGA Live Imaging Transducer and Minn Kota® Ultrex™ trolling motor and are looking to add the advantages of MEGA Live TargetLock. MEGA Live TargetLock™ is independently mounted from the trolling motor shaft and provides full use of the trolling motor, including Spot-Lock®, without sacrificing the sonar view. The TargetLock feature allows anglers to lock the MEGA Live beam in the direction of the structure, so even when the boat moves, the MEGA Live view stays fixed in that direction. MEGA Live Imaging™ provides the most impressive live sonar on the water, allowing the angler to watch fish and structure in real-time, in their choice of views; Down, Forward, and Landscape Modes. Engineered specifically for Minn Kota® Ultrex™ Trolling Motors to unlock exclusive features of the One-Boat Network® like TargetLock, MEGA Live Sweep (requires a source for Heading), and Minn Kota Steer (requires motor with i-Pilot Link).Features:
MEGA Live TargetLock is mounted independently of the trolling motor steering, which allows anglers full use of their trolling motor, including Spot-Lock while having dedicated control of MEGA Live Imaging.
The TargetLock feature allows anglers to set a directional lock of the live sonar and it will keep itself oriented, so anglers never lose sight of the structure, even while the boat moves in the water.
MEGA Live TargetLock can be controlled, from the included MEGA LIVE foot pedal, the trolling motor foot pedal using the Minn Kota Steer feature (requires motor with i-Pilot Link), the Humminbird fish finder, or from an optional accessory hand remote.
The MEGA Live Sweep provides a constant 120-degree sweep out in front of the boat to help identify structure and fish while maintaining control of the trolling motor. (Requires AS GPS HS or Minn Kota Heading Sensor with Ultrex trolling Motor with the i-Pilot link)
MEGA Live Imaging allows fish and structure to be seen in real-time, with no gaps in sonar coverage, powered by the unmatched detail and clarity of MEGA Imaging® throughout the entire sonar view.
Choose from multiple viewing modes; Forward Mode for partial coverage below the boat and out away from the boat, Down Mode for a full view below, and Landscape Mode for a wide, top-down view looking out and around the boat.
Connect MEGA Live Imaging to compatible Humminbird models via the included Ethernet cable. There is no external sonar box required for installation, allowing for the connection of optional sonar sources like MEGA 360 Imaging® or Built-in MEGA Imaging® to the same control head.
Compatible Humminbird control heads: All APEX™ models, All SOLIX® models, and HELIX® 8-12 G3N & HELIX 7-15 G4N models (Must be MEGA Side Imaging or MEGA Down Imaging model).
MEGA Live TargetLock is exclusively compatible with Minn Kota® Ultrex™ 45”& 52” trolling motors.
Includes: Includes MEGA Live Steering Assembly, Wireless Foot Pedal, Ultrex Mounting Kit and Hardware, 20' Ethernet Cable, and 10' Power Cable.
2-Year Limited Warranty
*MEGA Live Imaging Transducer and Trolling motor not included.What's Included?
MEGA Live Steering Assembly
Wireless Foot Pedal
Ultrex Mounting Kit and Hardware
20' Ethernet Cable
10' Power Cable
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)

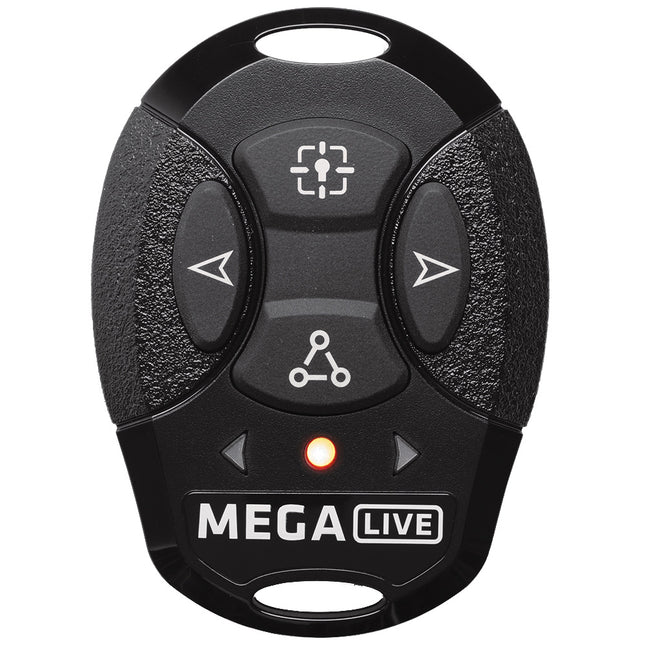

MEGA Live TargetLock RemoteThe MEGA Live TargetLock Remote provides intuitive handheld operation of the MEGA Live TargetLock Transducer. The handheld remote is the perfect accessory for making slight adjustments or full control of your MEGA Live TargetLock Transducer.Features:
Handheld remote for MEGA Live TargetLock
Compatible with all MEGA Live TargetLock products
1-Year Limited Warranty
What's Included?
Remote
Mounting Clip
Lanyard
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)
MHX MXNT Transom Mount Hardware f/MEGA TransducerStainless Steel mounting hardware for the XNT transom mount transducers.WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Type: Mounting Brackets
Box Dimensions: 4"H x 8"W x 9"L WT: 0.3 lbs
UPC: 082324050435
MHX XNPT Portable Hardware KitMounting hardware and suction cup for portable XNT transducers. WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Type: Mounting Brackets
Box Dimensions: 4"H x 8"W x 8"L WT: 0.55 lbs
UPC: 082324507694

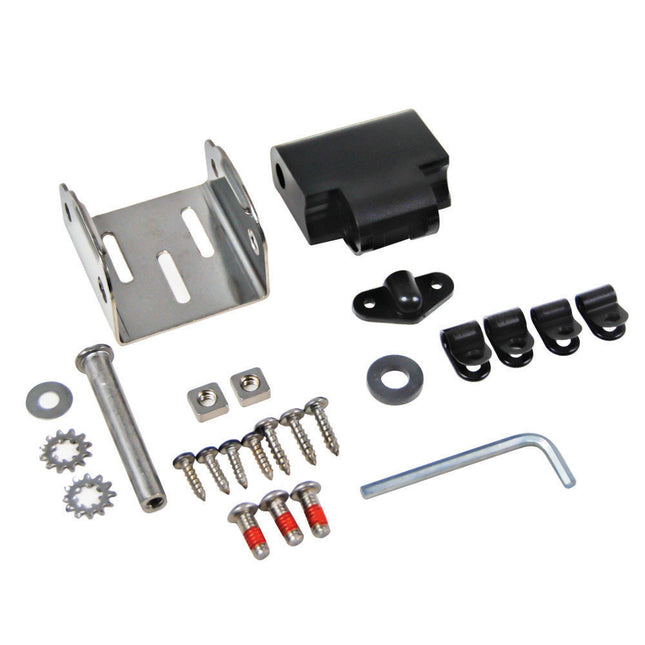

MHX-HS Transom Transducer Hardware740011-1Features:
Durable Construction for Lasting Use
Impact Release Mounting Bracket
Lets you repair or replace your existing trolling motor transom mounting bracket
Includes high-speed mounting hardware and product manual
WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Type: Mounting Brackets
Box Dimensions: 4"H x 8"W x 9"L WT: 0.6 lbs
UPC: 082324501616
Quick Guide (pdf)Owner's Manual (pdf)
MHX-ICE Ice Flasher Transducer Mounting Hardware The MHX ICE is a kit that provides the float and stopper for XI 9 19 and XI 9 20 ICE transducers. WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Type: Mounting Brackets
Box Dimensions: 4"H x 7"W x 9"L WT: 0.35 lbs
UPC: 082324508196
Mounting hardware for the XNT transom mount transducers. Includes a kick up bracket.WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Type: Mounting Brackets
Box Dimensions: 2"H x 8"W x 9"L WT: 0.45 lbs
UPC: 082324507779
Owner's Manual (pdf)

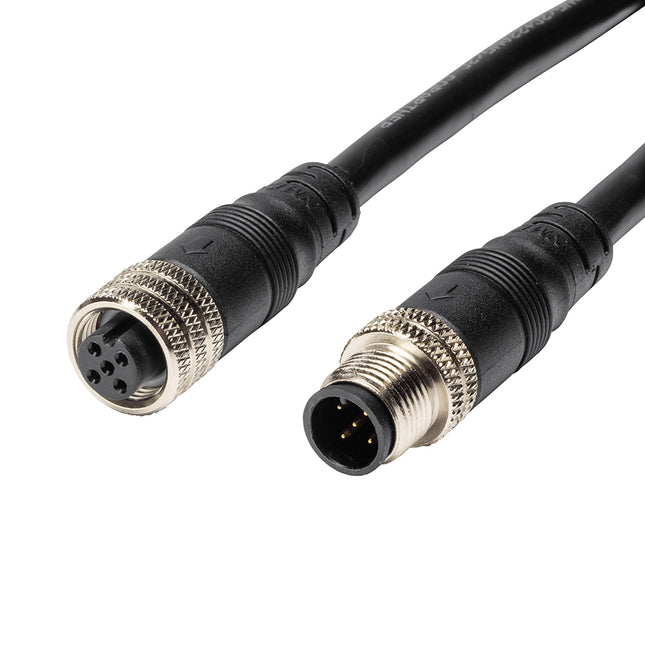

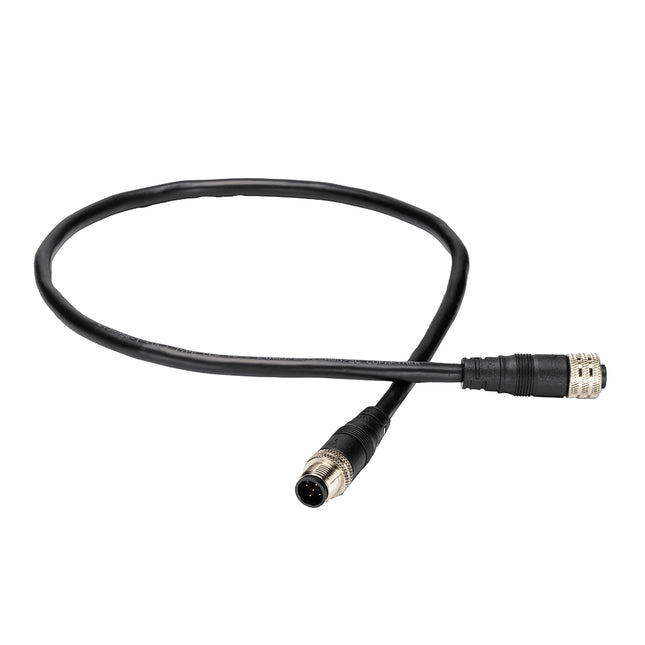

NMEA 2000 Drop Cable - 0.5MThis 0.5 meter NMEA 2000 drop cable offers connection between a NMEA 2000 device and T-connector. The couplers connect to the corresponding T-connectors, creating a simplified installation.Features:
Includes (1) NMEA 2000 drop cable
Cable length: 0.5 meter (1.64 ft)
1-Year Limited Warranty
NMEA 2000 Drop Cable - 10MThis 10 meter NMEA 2000 drop cable offers connection between a NMEA 2000 device and T-connector. The couplers connect to the corresponding T-connectors, creating a simplified installation.Features:
Includes (1) NMEA 2000 drop cable
Cable length: 10 meter (32.8 ft)
1-Year Limited Warranty
NMEA 2000 Drop Cable - 2MThis 2 meter NMEA 2000 drop cable offers connection between a NMEA 2000 device and T-connector. The couplers connect to the corresponding T-connectors, creating a simplified installation.Features:
Includes (1) NMEA 2000 drop cable
Cable length: 2 meter (3.25 ft)
1-Year Limited Warranty

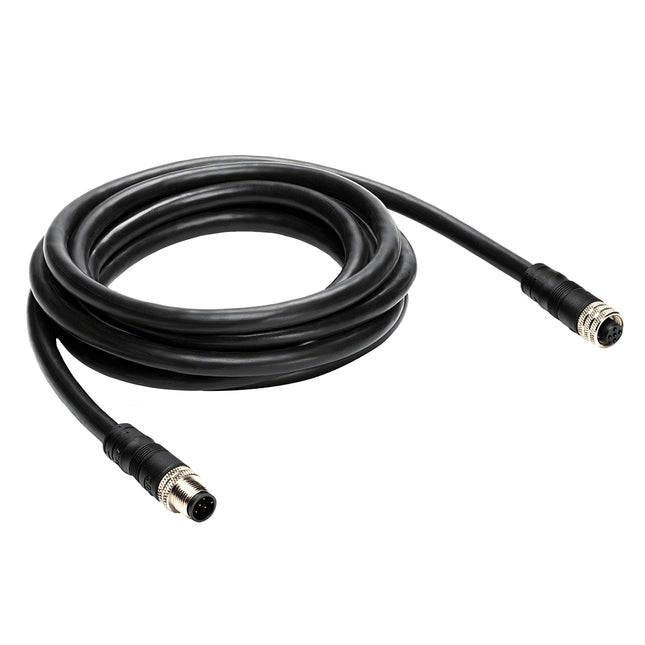

NMEA 2000 Drop Cable - 5MThis 5 meter NMEA 2000 drop cable offers connection between a NMEA 2000 device and T-connector. The couplers connect to the corresponding T-connectors, creating a simplified installation.Features:
Includes (1) NMEA 2000 drop cable
Cable length: 5 meter (16.4 ft)
1-Year Limited Warranty

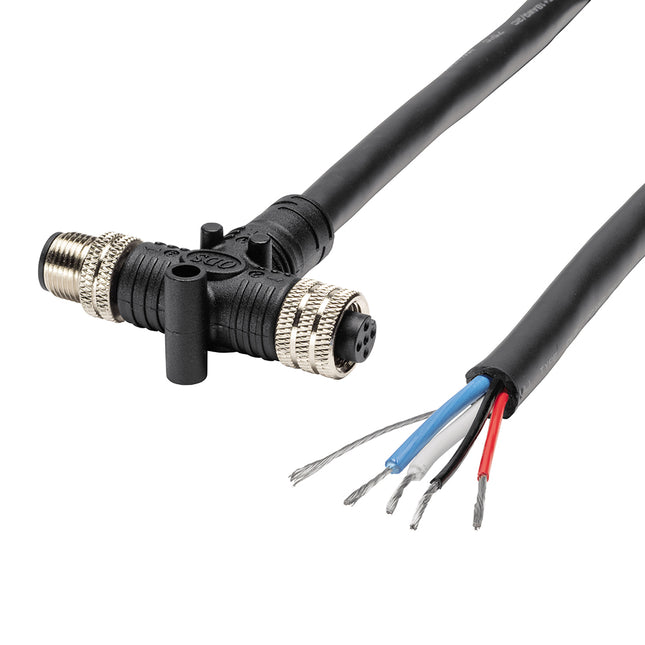

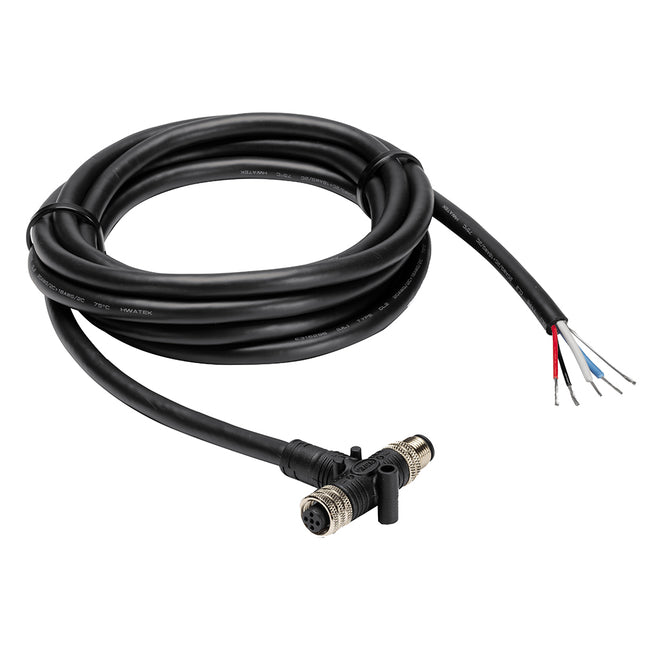

NMEA 2000 Power Tee ConnectorThis NMEA 2000 power cable with T-connector allows for power connection to an NMEA 2000 network quickly and easily.Features:
Includes (1) NMEA 2000 power cable with T-connector
Cable length: 1 meter (3.25 ft)
1-Year Limited Warranty
NMEA 2000 Starter Kit - Dual UnitFrom boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking on your Humminbird control head. The NMEA 2000 Starter Kit - Dual provides the essential components to build a dual device NMEA 2000 network.Features:
Compatible with: HELIX G4N models and all SOLIX models
Compatible Humminbird Legacy models (must also use (1) AS ETH NMEA2K and (1) AS EC QDE) : HELIX 7 G2N/G3N, all HELIX 8, all HELIX 9, all HELIX 10, all HELIX 12
Kit includes: (1) 1 meter power cable and T-connector, (1) male terminator, (1) female terminator, (1) T-connector, (2) 2 meter (6.5ft) drop cables
1-Year Limited Warranty
NMEA 2000 Starter Kit - Single UnitFrom boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking on your Humminbird control head. The NMEA 2000 Starter Kit - Single provides the essential components to build a single device NMEA 2000 network. Features:
Compatible with: HELIX G4N models and all SOLIX models.
Compatible Humminbird Legacy models (must also use (1) AS ETH NMEA2K and (1) AS EC QDE) : HELIX 7 G2N/G3N, all HELIX 8, all HELIX 9, all HELIX 10, all HELIX 12
Update bullet #3 : Kit includes: (1) 1 meter power cable and T -connector, (1) male terminator, (1) female terminator, (1) T-connector, (1) 2 meter (6.5ft) drop cable
1-Year Limited Warranty
NMEA 2000 T-Connector - MaleThis NMEA 2000 T-connector offers connection between NMEA 2000 drop cables and backbone cables. The couplers connect to the corresponding T-connectors and backbone cables, creating a simplified installation. Features:
Includes (1) NMEA 2000 T-connector
1-Year Limited Warranty

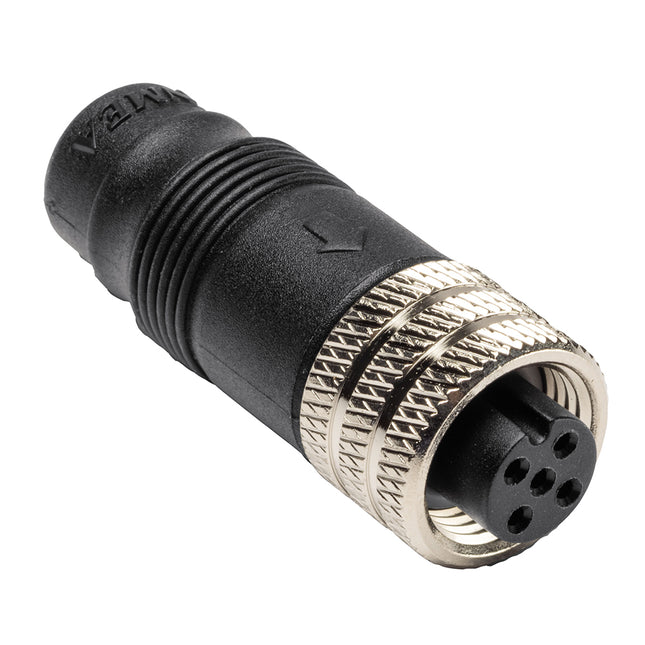

NMEA 2000 Terminator - FemaleThis NMEA 2000 terminator allows for proper termination of an NMEA 2000 network. The couplers connect to the corresponding T-connectors for a simple installation. Features:
Includes (1) female NMEA 2000 terminator
Please note that installation of a NMEA 2000 network requires (1) male and (1) female terminator.
1-Year Limited Warranty

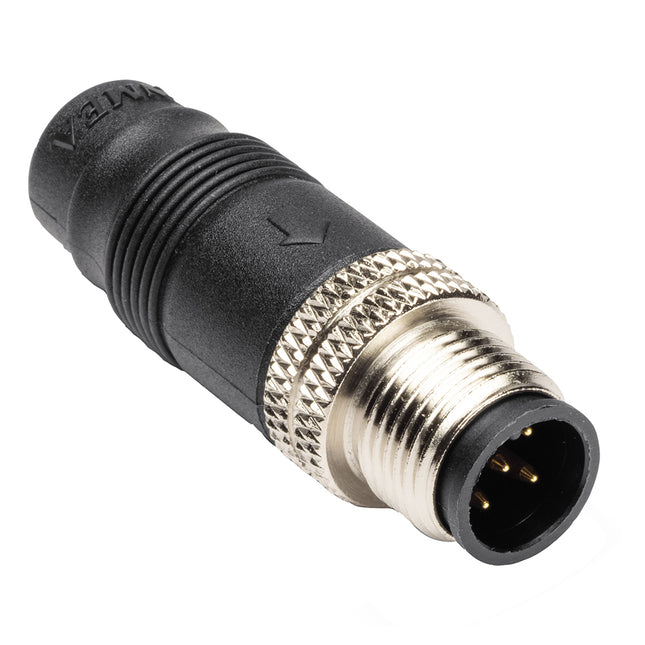

NMEA 2000 Terminator - MaleThis NMEA 2000 terminator allows for proper termination of an NMEA 2000 network. The couplers connect to the corresponding T-connectors for a simple installation.Features:
Includes (1) male NMEA 2000 terminator
Please note that installation of a NMEA 2000 network requires (1) male and (1) female terminator
1-Year Limited Warranty
