Portable Fuel Tank - 12 Gallon with GaugeAttwood has engineered the industry’s only comprehensive EPA-certified fuel tank-to-engine solution. Tough materials and innovative design stand up to harsh marine conditions. A 12-gallon tank is ideal for pontoon boats where more fuel capacity is needed. Includes gauge.Features:
12 Gallon fuel capacity
Compatible with 1/4-inch NPT fuel fittingsHigh-Contrast, easy to read gage
Additional oil and ullage/vapor capacity
EPA Cap with automatic, high-flow vacuum valve
UV-grade multi-layer tank material
Automotive-grade, multi-layer construction withstands the pressure build-up associated with closed fuel systems
Cap with built-in vacuum valve means no need for manual venting
Meets EPA and CARB (California Air Resources Board) regulations
Complies with all ABYC/NMMA requirements for portable marine fuel tanks
Dimensions:
Length: (inch) 22.75"
Width: (inch) 14.25"
Height: (inch) 14.47"
*No fuel line included Quick Guide (pdf)
Portable Fuel Tank - 3 Gallon without GaugeAttwood has engineered the industry’s only comprehensive EPA-certified fuel tank-to-engine solution. Tough materials and innovative design stand up to harsh marine conditions. A 3-gallon tank is perfect for small outboards.Features:
3 Gallon fuel capacity
Compatible with 1/4-inch NPT fuel fittings
Additional oil and ullage/vapor capacity
EPA Cap with automatic, high-flow vacuum valve
UV-grade multi-layer tank material
Automotive-grade, multi-layer construction withstands the pressure build-up associated with closed fuel systems
Cap with built-in vacuum valve means no need for manual venting
Meets EPA and CARB (California Air Resources Board) regulations
Complies with all ABYC/NMMA requirements for portable marine fuel tanks
Dimensions:
Length: (inch) 16.6"
Width: (inch) 11.45"
Height: (inch) 7.3"
*No gauge or fuel line included Quick Guide (pdf)
Portable Low Profile Fuel Tank - 12 Gallon with GaugeAttwood has engineered the industry’s only comprehensive EPA-certified fuel tank-to-engine solution. Tough materials and innovative design stand up to harsh marine conditions. A 12-gallon tank is ideal for pontoon boats where more fuel capacity is needed. Includes gauge and low profile save space.Features:
12 Gallon fuel capacity
Compatible with 1/4-inch NPT fuel fittings
High-Contrast, easy to read gage
Save space; the low profile is 3 inches lower than regular 12-gallon tanks
Additional oil and ullage/vapor capacity
EPA Cap with automatic, high-flow vacuum valve
UV-grade multi-layer tank material
Automotive-grade, multi-layer construction withstands the pressure build-up associated with closed fuel systems
Cap with built-in vacuum valve means no need for manual venting
Meets EPA and CARB (California Air Resources Board) regulations
Complies with all ABYC/NMMA requirements for portable marine fuel tanks
Dimensions:
Length: (inch) 24"
Width: (inch) 18"
Height: (inch) 11.61"
*No fuel line included Quick Guide (pdf)
Portable Fuel Tank - 3 Gallon with GaugeAttwood has engineered the industry’s only comprehensive EPA-certified fuel tank-to-engine solution. Tough materials and innovative design stand up to harsh marine conditions. A 3-gallon tank is perfect for small outboards. Includes gauge.Features:
3 Gallon fuel capacity
Compatible with 1/4-inch NPT fuel fittingsHigh-Contrast, easy to read gage
Additional oil and ullage/vapor capacity
EPA Cap with automatic, high-flow vacuum valve
UV-grade multi-layer tank material
Automotive-grade, multi-layer construction withstands the pressure build-up associated with closed fuel systems
Cap with built-in vacuum valve means no need for manual venting
Meets EPA and CARB (California Air Resources Board) regulations
Complies with all ABYC/NMMA requirements for portable marine fuel tanks
Dimensions:
Length: (inch) 16.6"
Width: (inch) 11.45"
Height: (inch) 7.3"
*No fuel line included Quick Guide (pdf)
Portable Fuel Tank - 12 Gallon without GaugeAttwood has engineered the industry’s only comprehensive EPA-certified fuel tank-to-engine solution. Tough materials and innovative design stand up to harsh marine conditions. A 12-gallon tank is ideal for pontoon boats where more fuel capacity is needed.Features:
12 Gallon fuel capacity
Compatible with 1/4-inch NPT fuel fittings
Additional oil and ullage/vapor capacity
EPA Cap with automatic, high-flow vacuum valve
UV-grade multi-layer tank material
Automotive-grade, multi-layer construction withstands the pressure build-up associated with closed fuel systems
Cap with built-in vacuum valve means no need for manual venting
Meets EPA and CARB (California Air Resources Board) regulations
Complies with all ABYC/NMMA requirements for portable marine fuel tanks
Dimensions:
Length: (inch) 22.75"
Width: (inch) 14.25"
Height: (inch) 14.47"
*No gauge or fuel line included Quick Guide (pdf)
Fuel Tank Strap Set - 72 (inches) Long for 12 Gallon TanksThis Attwood Fuel Tank Strap Set contains everything needed to secure a 12-gallon fuel tank in place. This kit includes a 72-inch-long, 1-inch-wide white nylon web strap with a zinc-plated carbon steel snap and quick-release buckle. There are also 2 metal footman securing loops and the screws needed to install them. The strap can be run through the footman openings and then tightened and buckled to hold the tank in place.Features:
Includes 72-inch-long, 1-inch-wide white nylon web strap with a zinc-plated carbon steel snap and quick-release buckle
Run the strap through footman loops, then tighten and buckle to hold the tank in place
Quick Guide (pdf)

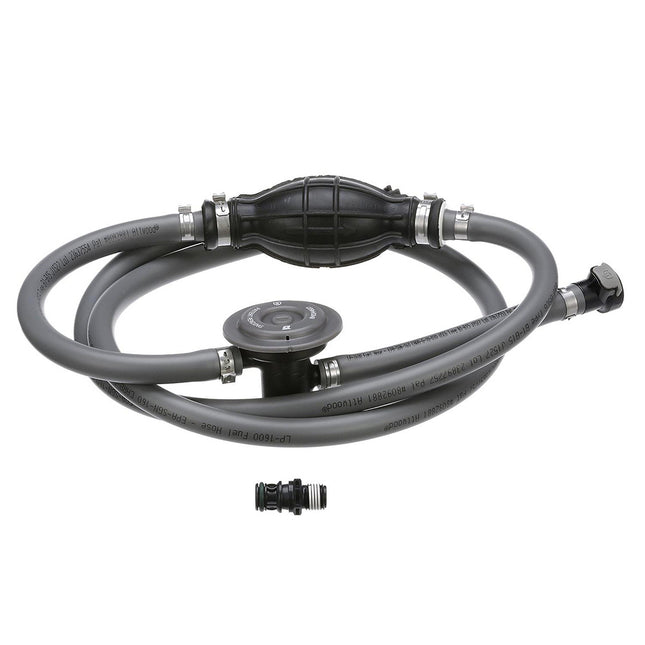

Universal Fuel Line Kit - 3/8" Diameter x 6' Length with Sprayless Connectors & Fuel Demand ValveThis EPA-certified Attwood Universal Fuel Line Kit reliably delivers fuel to your engine and provides the ultimate in performance, safety, and value. The kit includes a 6-foot-long, 3/8-inch diameter low-permeation fuel line that is designed to prevent kinking and hardening, and is rated up to 100 degrees C. Award-winning Universal Sprayless Connector (hose and tank fittings with pre-applied thread sealant) are included as well. Features:
These Attwood Fittings Are Included: Tank fitting 8838TM6 & tank end hose fitting 8838HF6
Also, includes a Fuel Demand Value that eliminates engine flooding and spillage by preventing pressurized fuel from reaching the engineTank Side: Universal Sprayless Quick-Connect
Universal for any Engines and Tanks
This Fuel Line Kit is compatible with Ethanol blended fuels and with all OEM-brand engines
There’s also a multi-layer, low-permeation primer bulb with connections engineered for strength, durability, and leak resistance
*It does not include an engine fitting Specifications:
ID Diameter (inches): 3/8"
Length (Feet): 6'
Box Dimensions: 3"H x 9"W x 13"L WT: 1.3 lbs
UPC: 022697938275
Quick Guide (pdf)
Universal Aluminum Fuel Hose Fitting - 3/8" NPT x 3/8" BarbThis Attwood Fuel Tank Fitting is a dependable replacement for original equipment and provides a sure connection in a fuel line.Features:Fitting is suitable for use with leaded, unleaded, ethanol-blended, and alcohol-blended fuelsSpecifications:
Material Construction: Aluminum
Male thread, hose barb
(inch) Male 3/8" NPT x 3/8" Barb
*Use thread sealant on all threads Quick Guide (pdf)
3/8" Hose Mender In-Line Fuel Splice Kit with Stainless Steel ClampsWhether it’s an emergency situation on the water or routine maintenance at the dock, this in-line fuel splice kit provides everything you need to repair 3/8-inch lines. Machined brass fitting paired with 2 stainless steel hose clamps. Features:
Everything you need to mend a 3/8-inch fuel line including 2 stainless steel hose clamps
Solid machined brass with barbed ends
A centered divider ensures you get the mender evenly and securely placed between both ends of the hose
Very Versatile: Use with leaded, unleaded, ethanol-blended, and alcohol-blended fuels
Quick Guide (pdf)
Universal Brass Fuel Hose Fitting - 1/4" NPT x 3/8" Barb This Attwood Fuel Tank Fitting is a dependable replacement for original equipment and provides a sure connection in a fuel line.Features:
Fitting is suitable for use with leaded, unleaded, ethanol-blended, and alcohol-blended fuels
Material Construction: Brass
Male thread, hose barb
(inch) Male 1/4" NPT x 3/8" Barb
*Use thread sealant on all threads Quick Guide (pdf)
Chrysler Female Hose Fitting - 3/8" BarbThis Attwood Chrysler Engine Fuel Hose Fitting provides for the precise and effective installation of a fuel line to a Chrysler-brand engine. This Fuel Hose Fitting is a female fitting that connects to the engine end of the fuel line. The fitting has a 3/8-inch barb.Features:
Provides precise installation of a fuel line to a Chrysler-brand engine
Connects on the engine end of the fuel line
Material Construction: Chrome-plated Brass
*Specifically mates to Attwood part number: 14509-6 Quick Guide (pdf)
Yamaha Tank Fitting - 1/4" NPT ThreadConnect your tank and fuel lines with confidence. Solid machined brass construction holds up to lead, unleaded, and alcohol-based fuels. Designed for Yamaha Brand engines and tanks and fits select Mercury/Mariner Brand engines.Features:
Quick-connect 1/4-inch male thread makes installation easy
Solid machined brass for dependable performance and peace of mind
Designed for Yamaha and select Mercury/Mariner brand engines that use leaded, unleaded, and alcohol-blended fuel
*Specifically mates to Attwood part numbers: 8896LP6 & 88FHY516-6 Quick Guide (pdf)
Yamaha Female Hose Fitting - Tank Or Engine End - 5/16" BarbThis Attwood hose fitting is suitable for use with leaded, unleaded, ethanol-blended, and alcohol-blended fuels. Barbed fitting fits 5/16" I.D. (Inner Diameter) hose and clamps are not included. Also, use thread sealant on all threads.Features:
Yamaha fitting
Tank or Engine End
Material Construction: Acetal
*Specifically mates to Attwood part number: 8897-6 Quick Guide (pdf)
Suzuki 3/8" Barb Female Hose Fitting - Under 75HPQuick-connect female fitting for use on both ends of fuel lines to connect to tank fitting and engine. Fuel tank fittings and hose fittings are suitable for use with leaded, unleaded, ethanol-blended, and alcohol-blended fuels. The barb fitting fits a 3/8" I.D. hose. Also, clamps are not included, and use thread sealant on all threads.Features:
Suzuki-brand engines and tanks
Fitted for models under 75HP (Small Bore)
Material Construction: Chrome-plated Brass
*Specifically mates to Attwood part number: 14509-6 Quick Guide (pdf)
Chrysler/Suzuki Tank Fitting - 1/4" NPT ThreadThis Attwood Fuel Tank Male Fitting is suitable for use with leaded, unleaded, ethanol-blended, and alcohol-blended fuels. This threaded fitting has a 1/4" male NPT thread. Also, use thread sealant on all threads, and clamps are not included.Features:
Male tank fitting designed for Chrysler & Suzuki engines and fuel tanks
Designed for Under 75HP (Small Bore)
Material Construction: Chrome-plated Brass
*Specifically mates to Attwood part numbers: 8884-6 & 88FTS014-6 Quick Guide (pdf)
Honda 3/8" Barb Female Hose Fitting - 90HP+This Attwood hose fitting is suitable for use with leaded, unleaded, ethanol-blended, and alcohol-blended fuels. The barb fitting fits 3/8" I.D. (Inner Diameter) hose. Clamps are not included and use thread sealant on all threads.Features:
Honda fuel fitting
Designed for 90HP+ (Large Bore)
Material Construction: Chrome-plated Brass
*Specifically mates to Attwood part number: 8901-6 Quick Guide (pdf)
Mercury Female Hose Tank Fitting - 3/8" BarbConnect your tank and fuel lines with confidence; the durable Acetal construction holds up to lead, unleaded, and alcohol-based fuels. Specifically designed for Mercury/Mariner Brand engines and tanks.Features:
Easy installation with barbed fittings for 3/8 inch I.D. (interior diameter) hose (purchase hose clamps separately)
Mercury/Mariner Tank Fitting
Extremely Versatile: Designed for leaded, unleaded, and alcohol-blended fuel
(inch) 3/8" Barb
Hose Female
*Specifically mates to Attwood part number: 8873-6 Quick Guide (pdf)

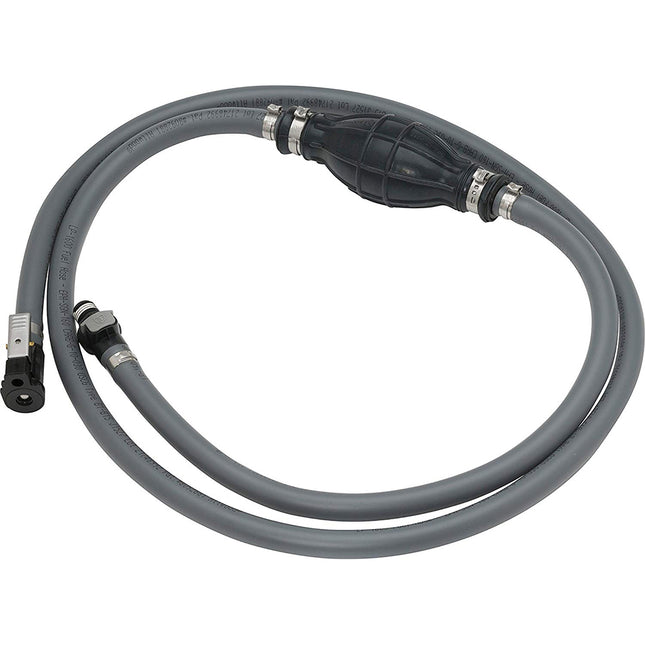

Universal Fuel Line Kit - 3/8" Diameter x 6' LengthThis Attwood Fuel Line Kit is a reliable universal replacement for the original equipment on any brand of engines and tanks. This kit includes a 6-foot-long, 3/8-In. diameter fuel line and a multi-layer, low-permeation primer bulb. Features:
3/8" x 6' Low Permeation Hose
Universal for any engines and tanks
Multi-layer low-permeation primer bulb with 60% more fuel output compared to competitors
Reliably delivers fuel to your engine
*Does not include fittings for the tank end and for the engine end Specifications:
ID Diameter (inches): 3/8"
Length (Feet): 6'
Box Dimensions: 3"H x 8"W x 12"L WT: 0.8 lbs
UPC: 022697938060
Quick Guide (pdf)
Mercury Tank Fitting - 1/4" NPT ThreadConnect your tank and fuel lines with confidence; solid machined brass construction holds up to lead, unleaded, and alcohol-based fuels. Specifically designed for Mercury/Mariner Brand engines and tanks.Features:
Solid machined brass for dependable performance, peace of mind
Quick-connect ¼-inch male thread makes installation easy
Extremely Versatile: Designed for leaded, unleaded, and alcohol-blended fuel
1/4" NPT (National Pipe Thread)
Specifically designed for Mercury/Mariner Brand engines and tanks
*Specifically mates to Attwood part number: 8890LP6 Quick Guide (pdf)

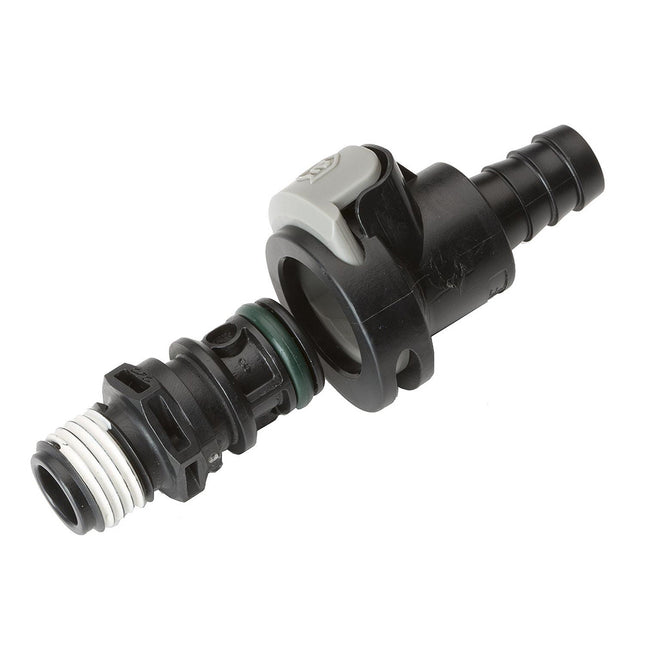

Universal Sprayless Connector - Hose Female (5/16"-3/8")This Attwood Universal Sprayless Connector reliably eliminates fuel spraying when you are connecting and disconnecting fuel hoses during fueling or maintenance. This connector replaces a traditional fitting and its high-strength body is engineered to withstand the rigors of a marine environment. Features:
Female hose fitting compatible with 3/8" and 5/16" fuel lines
Includes check valves that automatically close upon disconnecting
High fuel flow fitting (less than .25kPa restriction at 50 liters/hour)
Reliably eliminates fuel spraying when connecting and disconnecting the fuel hose
*Compatible with Ethanol blended fuels and all OEM-brand engines Quick Guide (pdf)

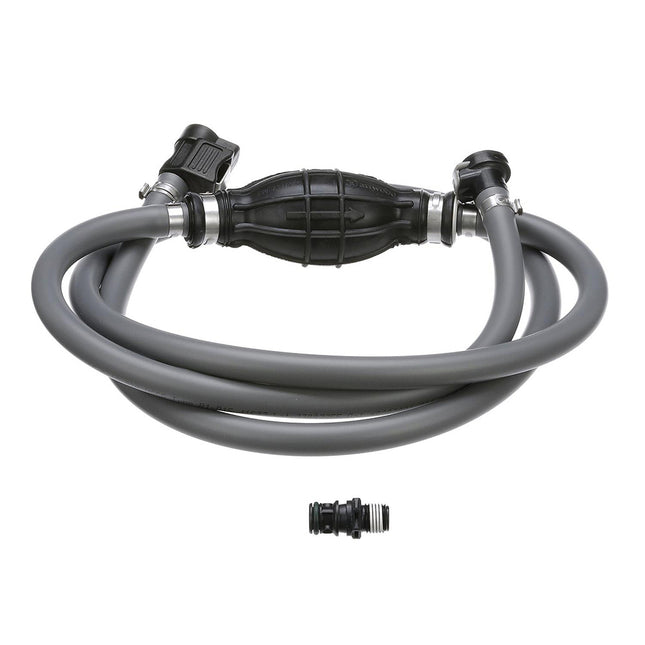

Honda Fuel Line Kit - 3/8" Diameter x 6' LengthThis EPA-certified Attwood Honda Fuel Line Kit reliably delivers fuel to your Honda engine and provides the ultimate in performance, safety, and value. The kit includes a 6-foot-long, 3/8-inch diameter low-permeation fuel line that is designed to prevent kinking and hardening, and is rated up to 100 degrees C.Features:
These Attwood Hose Fittings Are Included: Tank fitting 8838TM6, tank end hose fitting 8838HF6, and engine end hose fitting 8900-6
Hose and tank fittings come with pre-applied thread sealant
There’s also a multi-layer, low-permeation primer bulb with connections engineered for strength, durability, and leak resistance
For Honda engines and tanks
This Fuel Line Kit is compatible with Ethanol blended fuels and with all OEM-brand engines
*No Fuel Demand Valve is included in this kit Specifications:
ID Diameter (inches): 3/8"
Length (Feet): 6'
Box Dimensions: 3"H x 9"W x 13"L WT: 1.3 lbs
UPC: 022697938220
Quick Guide (pdf)

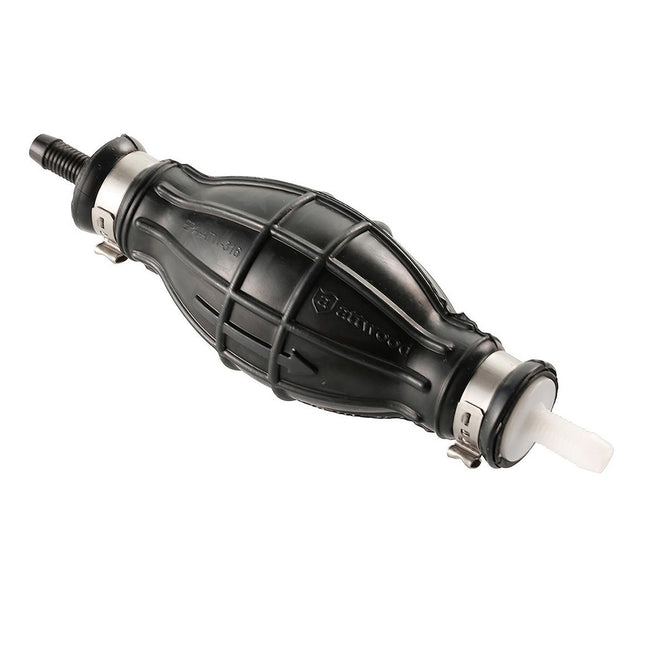

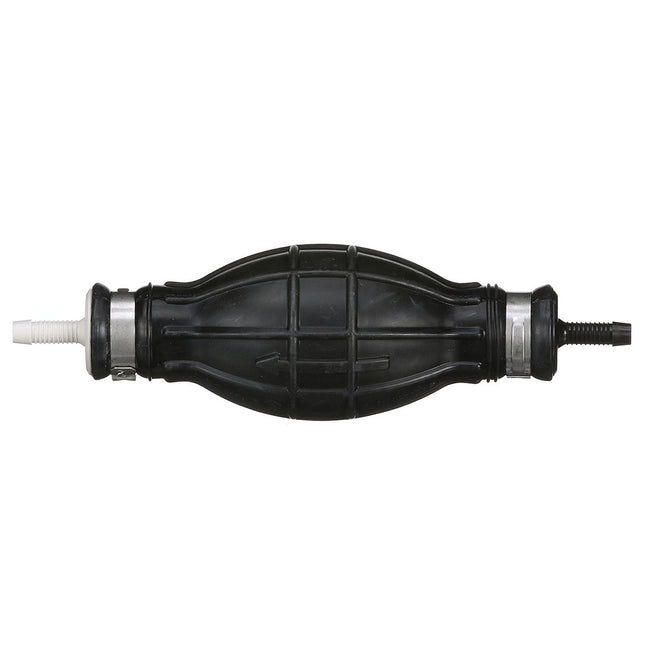

Primer Bulb - 5/16" Inner Diameter HoseThis Atwood Primer Bulb is engineered and constructed to deliver the most reliable priming and long-term leak-free performance. The exclusive three-layer construction prevents collapse under vacuum and prevents ballooning or bursting under pressure. The low-permeation material prevents fuel evaporation, and this bulb delivers 60 percent more output per pump than leading competitors.Features:
It is intended for use with a 5/16-inch interior diameter hose
Exclusive high-efficiency check-valves deliver faster priming and low fuel restriction (less than 1kPa restriction at 50 liters/hour)
Engineered hose barbs and stainless steel stepless clamps ensure leak-free performance
This bulb is compatible with Ethanol blended fuels, and it is EPA and CARB certified
Specifications:
ID Diameter (inches): 5/16"
Box Dimensions: 5"H x 5"W x 5"L WT: 0.55 lbs
UPC: 022697935168
Quick Guide (pdf)

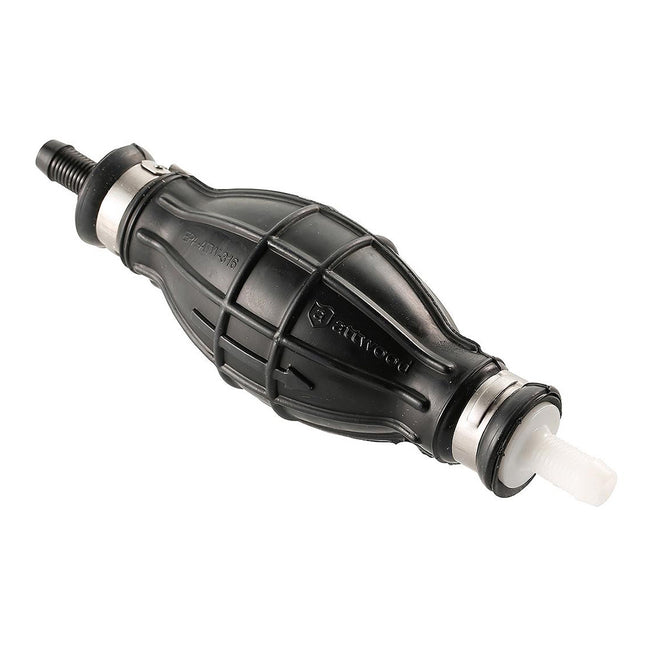

Primer Bulb - 1/4" Inner Diameter HoseThis Atwood Primer Bulb is engineered and constructed to deliver the most reliable priming and long-term leak-free performance. The exclusive three-layer construction prevents collapse under vacuum and prevents ballooning or bursting under pressure. The low-permeation material prevents fuel evaporation, and this bulb delivers 60 percent more output per pump than leading competitors.Features:
It is intended for use with a 1/4-inch interior diameter hose
Exclusive high-efficiency check-valves deliver faster priming and low fuel restriction (less than 1kPa restriction at 50 liters/hour)
Engineered hose barbs and stainless steel stepless clamps ensure leak-free performance
This bulb is compatible with Ethanol blended fuels, and it is EPA and CARB certified
Specifications:
ID Diameter (inches): 1/4"
Box Dimensions: 2"H x 4"W x 5"L WT: 0.3 lbs
UPC: 022697931474
Portable Fuel Tank - 6 Gallon with GaugeAttwood has engineered the industry’s only comprehensive EPA-certified fuel tank-to-engine solution. Rugged materials and innovative design stand up to harsh marine conditions. 6-gallon tank adapts to virtually any outboard engine. Includes gauge.Features:
6 Gallon fuel capacity
Compatible with 1/4" NPT fuel fittings
Additional oil and ullage/vapor capacity
EPA Cap with automatic, high-flow vacuum valve
Cap with built-in vacuum valve means no need for manual venting
High-contrast & easy to read gauge
Automotive-grade, multi-layer construction withstands the pressure build-up associated with closed fuel systems
Meets EPA and CARB (California Air Resources Board) regulations
Complies with all ABYC/NMMA requirements for portable marine fuel tanks
Dimensions:
Length: (inch) 19.82"
Width: (inch) 13.50"
Height: (inch) 9.16"
*Fuel line is not includedWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Quick Guide (pdf)
