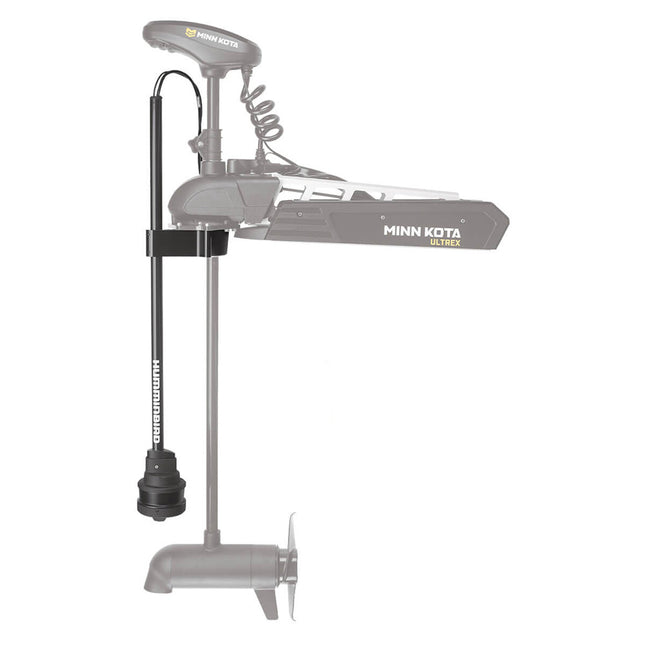

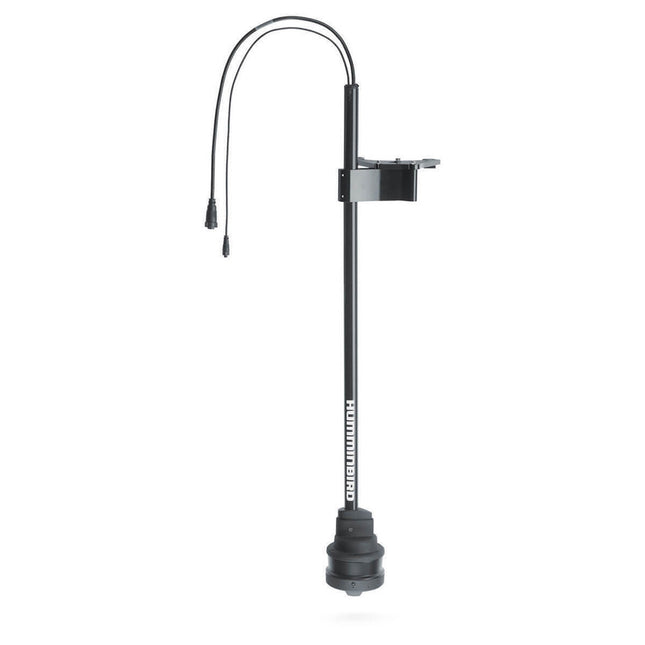

Mega 360 Imaging for Ultrex Quest The MEGA 360 Imaging - Ultrex transducer provides a 360-degree, detail-rich view around your boat. Designed to mount to the Minn Kota® Ultrex™, this transducer provides uninterrupted use of your Ultrex and Ultrex QUEST motor while using MEGA 360 Imaging, even while in Spot-Lock™. So keep fishing in wind, waves, and nasty weather, and we'll still deliver the MEGA Imaging all around you for versatility in your fishing. Features:
Compatible with the following HELIX models: HELIX 15 MEGA SI+ GPS G4N, HELIX 15 MEGA DI+ GPS G4N, HELIX 12 MEGA SI+ GPS G4N, HELIX 12 MEGA SI+ GPS G3N, HELIX 12 MEGA DI+ GPS G4N, HELIX 12 MEGA DI+ GPS G3N, HELIX 10 MEGA SI+ GPS G4N, HELIX 10 MEGA SI+ GPS G3N, HELIX 10 MEGA DI+ GPS G4N, HELIX 10 MEGA DI+ GPS G3N, HELIX 9 MEGA SI+ GPS G4N, HELIX 9 MEGA SI+ GPS G3N, HELIX 9 MEGA DI+ GPS G4N, HELIX 9 MEGA DI+ GPS G3N, HELIX 8 CHIRP MEGA SI+ GPS G4N, HELIX 8 MEGA SI+ GPS G3N.
Compatible with all APEX models and all SOLIX G2 and G3 models.
Compatible with all Minn Kota Ultrex and Ultrex QUEST trolling motor models
What's Included: Ultrex bow-mount MEGA 360 Imaging transducer with attached power cable and transducer cable, with 10' SOLIX transducer cable, 10' HELIX transducer adapter cable, 10' MEGA 360 power cable and an easy-to-mount MEGA 360 Imaging - Ultrex mounting bracket. (Minn Kota Ultrex trolling motor sold separately)
The high-frequency beam of MEGA Imaging CHIRPs across the megahertz range reveals the world below in picture-like detail all the way around your boat.
Use MEGA 360 Imaging without sacrificing boat control. Whether trolling or using Spot-Lock, MEGA 360 Imaging is independently mounted, so your sonar picture remains unchanged as the trolling motor turns.
Pick from two operation modes for this transducer; MEGA 360 Imaging or Side Imaging. This allows you to view a MEGA 360 Imaging view or use this transducer as a MEGA Side Imaging sonar source by selecting the Side Imaging operation mode.
Mark waypoints directly on your MEGA 360 Imaging screen and watch them update as your boat position changes, making it easy to find and then cast to fish and structure.
Utilize optional range rings to show you the distance of targets from your boat, for a better understanding of exactly where the fish are.
View MEGA 360 Imaging alongside your choice of multiple sonar and map technologies for a complete understanding of your surroundings.
MEGA 360 Imaging allows you to customize sweep speed, viewing area, display information, sonar zoom, and color palette to your specific fishing situation and preferences.
Once connected to a compatible HELIX G3N unit with MEGA Imaging+ or SOLIX G2 unit, the MEGA 360 Imaging view can be shared with All SOLIX models, and all HELIX G2N and G3N models when connected via an Ethernet network.
Transducer shaft length: 39 inches
Weight: 12 Lbs
Mounting Bracket Material: Anodized Aluminum
2-Year Limited Warranty

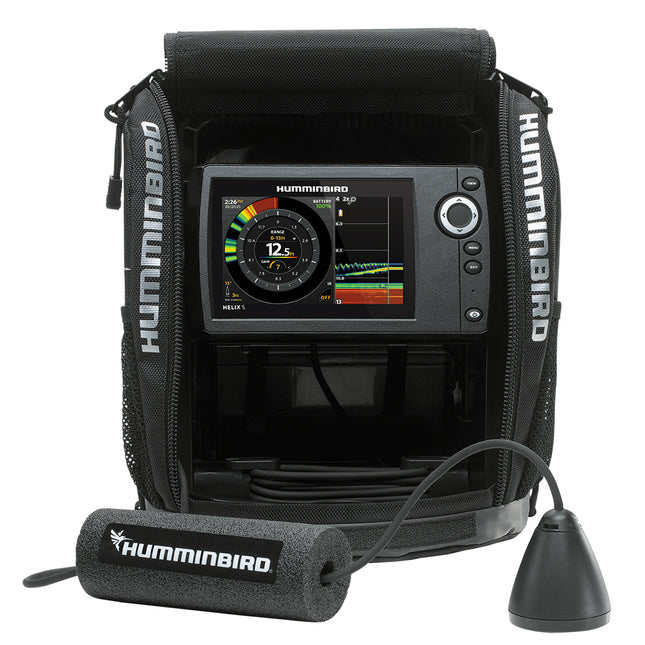

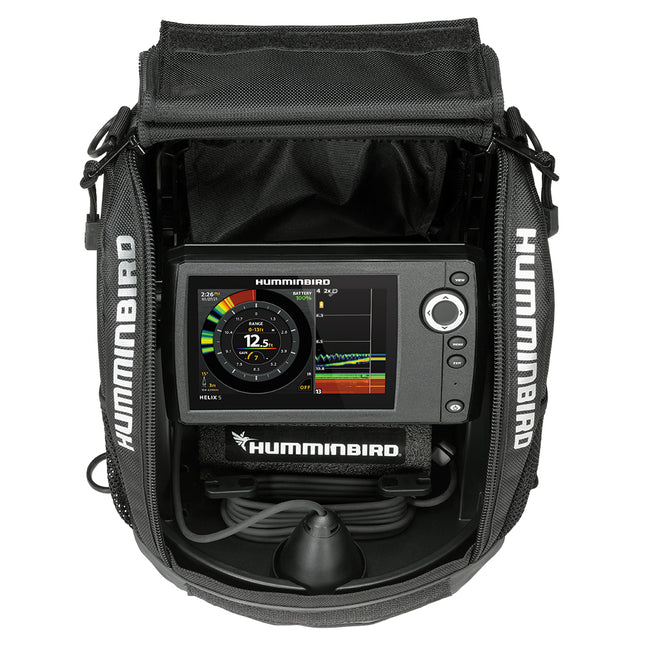

ICE HELIX 5 CHIRP G3 - Sonar OnlyThe ICE HELIX 5 CHIRP G3 gives you a deeper understanding of what's below the ICE, with exclusive features you won't find on any other ICE sonar unit. Utilize crystal-clear Dual Spectrum CHIRP Digital Sonar with 3/4" target separation, CHIRP Interference Rejection, Adjustable Sonar Zoom, Jig Charge Mode, and unprecedented viewing options specifically for the ICE angler. You'll watch it all take shape on a full-color, 5" HD LCD display.Features:
Dual Spectrum CHIRP Sonar: See high-resolution returns of individual fish, bait, and structure on both the flasher and traditional 2D sonar views at greater depths and range, with target separation down to 3/4".
CHIRP Interference Rejection: Six settings keep competing for sonar signals from cluttering your screen, providing a clear view in both sonar and flasher modes.
Adjustable Sonar Zoom: Hone in on fish, whether they are tight to the bottom, or suspended high in the water column. Utilize 2X zoom on the flasher screen or up to 16X zoom on the 2D sonar view.
Ultra Bright and Detailed LCD Display: The ICE HELIX screen provides everything you need to know, on a crystal-clear display with adjustable brightness. Whether in a fish house or on open ICE, you'll easily be able to see digital depth display, sonar returns, and more exclusive features, all shown in real-time.
Jig Charge Mode: Use your ICE HELIX to charge up your glow-painted spoons and jigs and get back down to the hot bite quickly.
Portable Shuttle and Carrying Case: The soft-sided carrying case and shuttle mount protect your Humminbird ICE HELIX for safe transport and include built-in cable and transducer management.
Year-Round Capable: The ICE HELIX 5 CHIRP G3 works with all compatible HELIX 5 CHIRP G3 transducers. Simply install an accessory transducer, power cord, and gimbal mount on your boat and you'll be ready to hit the water even after the ICE melts.
What’s Included: ICE HELIX 5 CHIRP G3 fishfinder, Dual Spectrum CHIRP ICE transducer, 9Ah battery and charger, ICE shuttle, hardware, power cable, and portable bag.
1-Year Limited Warranty
Specifications:
Display Size - Diagonal: 5"
Display Pixel Matrix: 800H x 480V
Sonar-Standard: Dual Spectrum CHIRP
Sonar-Coverage: 15° & 21° @ -3dB
Sonar-Optional: 50 kHz, 50/Low Airmar CHIRP
CHIRP - Frequencies Supported: 50/200 (28-75/130-250 kHz), 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
Sonar-Frequencies Supported: 50/80/200 kHz
Depth-Sonar: 400 ft
Interface: Keypad Control
Features: Dual Spectrum CHIRP, Interference Rejection, Jig Charge Mode, Portable
Memory Card Slot: None
Power Draw: 615 mA
Power Input: 10.8-20 VDC
Power Output Peak-to-Peak: 4000 Watts
Power Output RMS: 500 Watts
Screen Snap Shot: Not Supported
Sonar Recording: Not Supported
Mount-Standard: Portable
Transducer Mount Location: Portable
GPS Chartplotting: Not Supported
GPS Trackplotting: Not Supported
LakeMaster Compatibility: No
Coast Master Compatibility: No
Navionics Gold/HotMaps Compatibility: No
Navionics Platinum + Compatibility: No
Platinum Compatibility: No
Heading Sensor GPS Compatibility: No
Upgradable Software: No
View Preset Keys: No
X-Press Menu System: Yes
Custom Digital Readout: Yes
Custom View Selections: Yes
Display Colors Grayscale: 256 Color
Speed: Not Supported
Temperature: Not Supported
Temperature Alarm: Yes
Temperature Graph: No
Transducer Included: XI 9 1521
HDMI Compatible: No
MEGA Live Compatibility: No
Quick Guide (pdf)

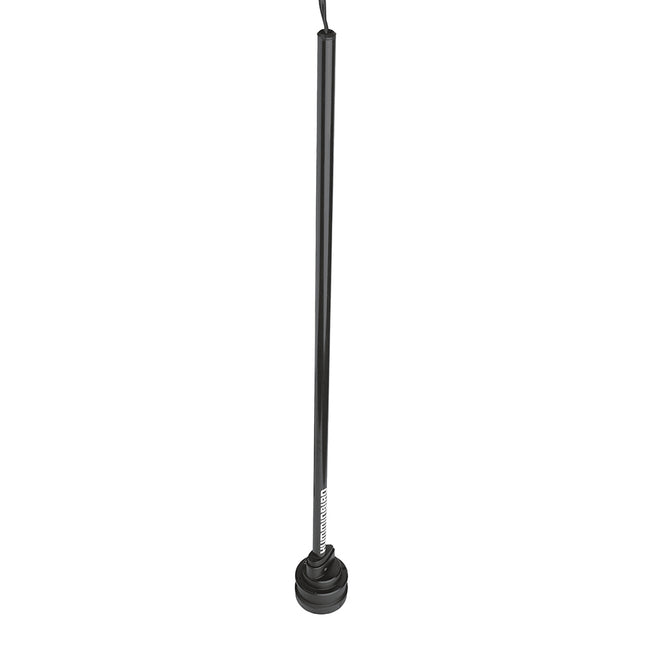

MEGA 360 Imaging 50 NM - No MountLet MEGA 360 Imaging show you every detail, in every direction. The MEGA 360 Imaging - No Mount is a MEGA 360 Imaging transducer with a 50"" shaft that provides a 360 degree, detail-rich view all around you, for a better understanding of where to find fish and structure. This model allows you to choose your own mounting solution, providing endless opportunities for how and where you can use the fish-catching power of MEGA 360 Imaging. Features:
Compatible with: All SOLIX G2 and HELIX G3N models with MEGA Imaging+ (MSI+ or MDI+)
MEGA 360 Imaging - No Mount is compatible with Humminbird accessory mounting options: Ultrex MEGA 360 Hardware Kit and MEGA 360 Ice Adapter
MEGA 360 Imaging provides two sonar source options; 360 Imaging mode and Side Imaging mode. Change from MEGA 360 Imaging sonar to using this transducer as a Side Imaging sonar source. If connected to an Ethernet network, these sonar views can be shared to other compatible Humminbird models on the network.
Includes 50" MEGA 360 Imaging pod and shaft assembly with power and transducer cables, (1) 10' MEGA 360 power cable, (1) 10' HELIX transducer extension cable, (1) 10' SOLIX transducer extension cable
Product will require accessory or 3rd-party mounting solution to achieve intended product performance
1-Year Limited Warranty

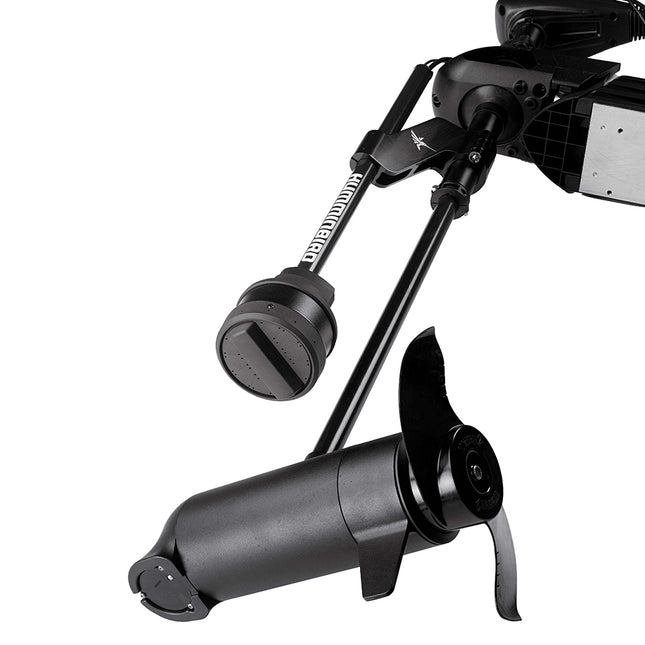

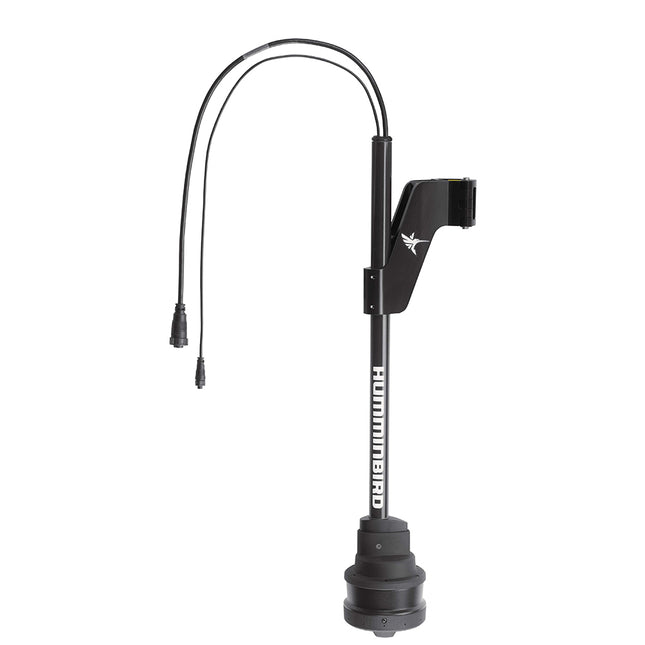

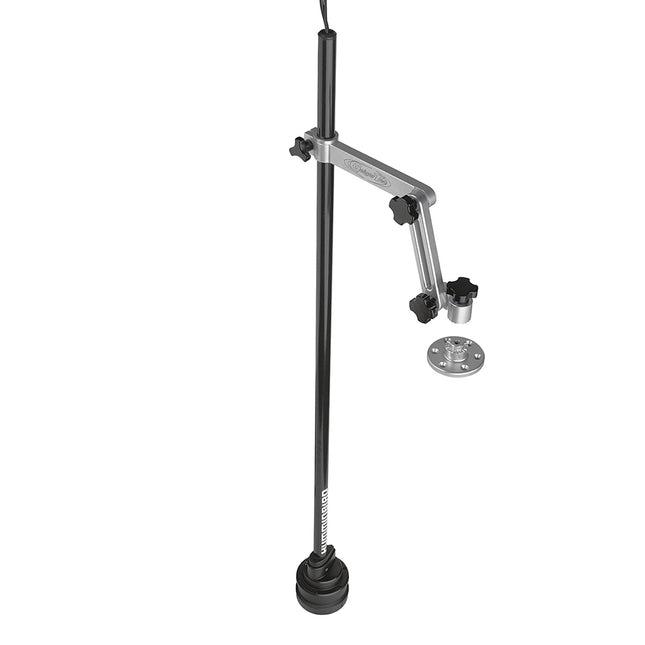

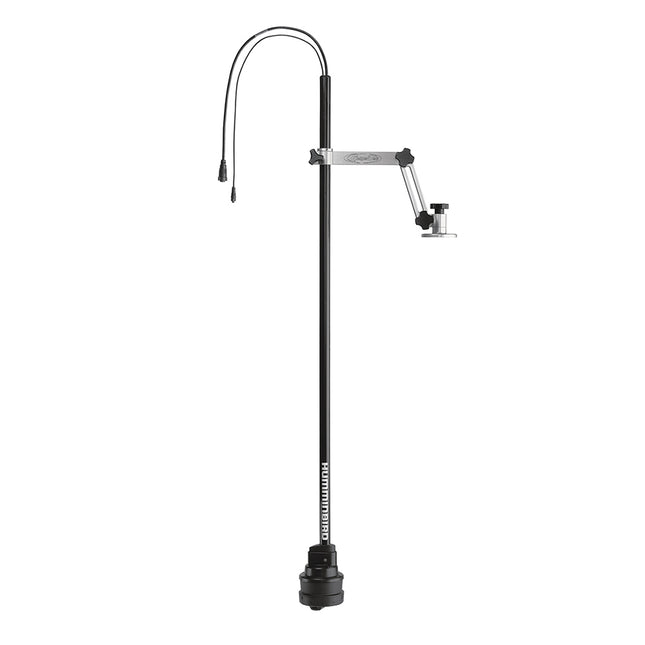

MEGA 360 Imaging with Universal BracketEvery detail, in every direction, now for every boat.The MEGA 360 Imaging - Universal transducer shows you a 360-degree, detail rich view around your boat. Now bring this technology to virtually any boat, thanks to an adjustable GeigerTec mount, made from billet aluminum. And since MEGA 360 is mounted independent of your trolling motor's steering, you'll have an uninterrupted picture of what's below, even while fishing in wind, waves or using Spot-Lock™.Features:
The high-frequency beam of MEGA Imaging CHIRPs across the megahertz range to reveal the world below in picture-like detail all the way around your boat.
Use MEGA 360 Imaging without sacrificing boat control. Whether trolling or using Spot-Lock, MEGA 360 Imaging is independently mounted, so your sonar picture remains unchanged as the trolling motor turns.
Mark waypoints directly on your MEGA 360 Imaging screen and watch them update as your boat position changes, making it easy to find and then cast to fish and structure.
Utilize optional range rings to show you the distance of targets from your boat, for a better understanding of exactly where the fish are.
View MEGA 360 Imaging alongside your choice of multiple sonar and map technologies for a complete understanding of your surroundings.
MEGA 360 Imaging allows you to customize sweep speed, viewing area, display information, sonar zoom and color palette to your specific fishing situation and preferences.
MEGA 360 Imaging - Universal has a 50" shaft length and can mount to almost any boat with the included GiegerTec aluminum bracket.
Compatible with HELIX G3N and SOLIX G2 models with MEGA Side Imaging+ or MEGA Down Imaging+.
Once connected to a compatible HELIX G3N or SOLIX G2 unit with MEGA Imaging+, the MEGA 360 Imaging view can be shared to any SOLIX model and all HELIX G2N and G3N models via an Ethernet network.
What's Included: MEGA360 Imaging transducer with attached power cable and transducer cable, 10 foot SOLIX transducer extension cable, 10 foot HELIX transducer adapter cable, 10 foot MEGA 360 Power Cable and adjustable, aluminum MEGA 360 Imaging mounting bracket with depth ring for shaft.
1-Year Limited Warranty
MEGA 360 Imaging Foretrex™Surround yourself with more detail than ever before. MEGA 360 Imaging™ sweeps up to 125’ in every direction around your boat to deliver the clearest images you’ve ever seen of structure, the bottom and fish, even while you’re sitting still. That means more accurate casts, more unforgettable moments and more incredible MEGA Imaging®—all around.Once you’ve found your honey hole, get there and stay there. The MEGA 360 Imaging transducer is designed to mount to the Minn Kota® Foretrex™ for uninterrupted use, even while in Spot-Lock™.Every Detail in Every DirectionWith MEGA 360 Imaging, we didn’t reinvent the wheel. We redefined it, bringing the unmatched coverage of our 360 Imaging technology into the megahertz range for next-level detail. Like underwater radar, the MEGA 360 Imaging beam rotates giving you a 360-degree view of the water that’s constantly updating—with your boat at the center. Fish won’t ever see you coming–allowing you to cast and hook fish before they even know you’re there. Let Us Show You AroundWhether you’re new to these parts, or know your surroundings like the back of your hand, Humminbird® can help you see fish you won’t find alone. MEGA 360 Imaging is compatible with SOLIX® Series and HELIX® Series fish finders equipped with MEGA Imaging+. In addition to unmatched detail and coverage, Humminbird provides built-in mapping, impressive screen resolution, intuitive control and many other features that lead anglers to choose Humminbird. Customize Your ViewMEGA 360 Imaging will change your perspective on fishing. How you see it is up to you. Custom viewing options let you choose how your returns appear, so you can dial them in based on your fishing style, conditions and what you’re after. Because more control means more confidence on the water. Find Fish Like ClockworkSee a fish at 1 o’clock? You’ll be right on time with MEGA 360 Imaging. Just mark a waypoint directly on your Humminbird screen, and let range rings show you the distance from your boat to the target. Then, line up and cast to where the fish are. Dial In Your Sweep AreaNothing beats the coverage and detail of MEGA 360 Imaging. You can customize your sweep area from 360 degrees down to 10 degrees. Use preset view options, like 45° in front of your boat, to find and cast to productive spots without spooking fish.

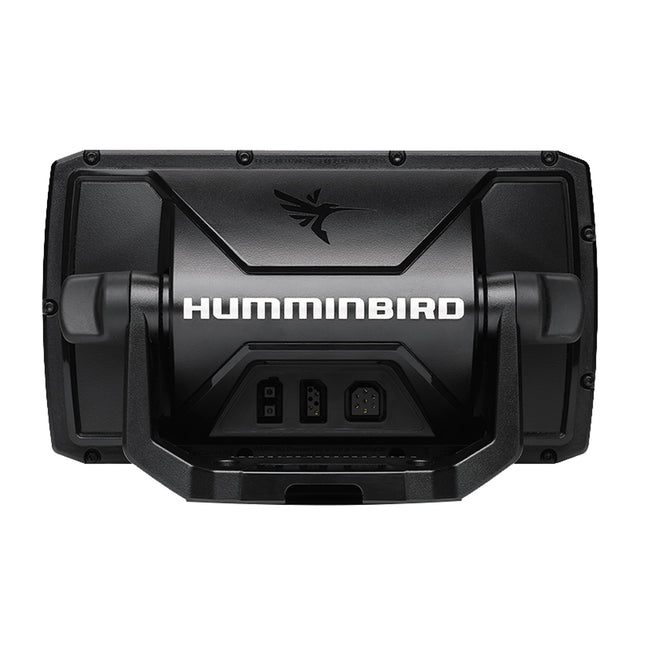

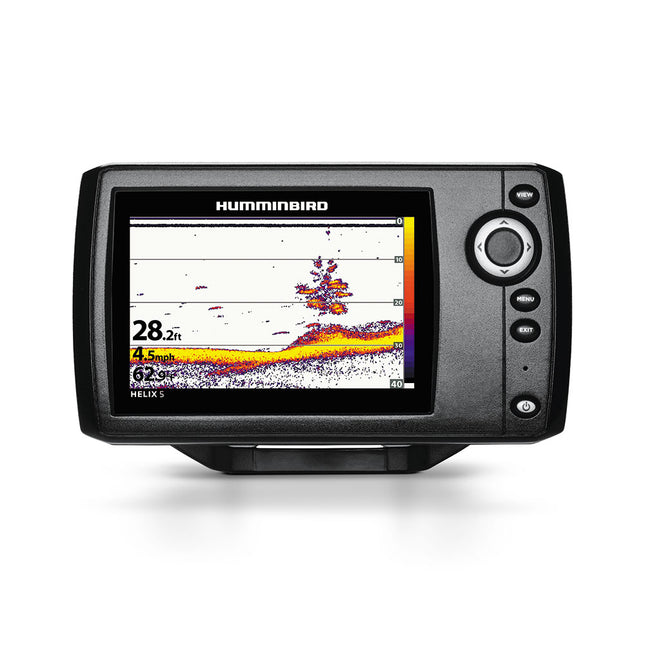

HELIX 5 Sonar G2The HELIX 5 Sonar G2 with an improved user interface and operating system, features a brilliant 800H x 480V, 5" 256 color display with backlight. DualBeam PLUS sonar with 4000 watts PTP power output. Maximize your angling experience with the Humminbird HELIX 5 Sonar G2 fishfinder system.WARNING: This product can expose you to chemicals including 1,3-Butadiene which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Included Transducer: XNT-9-20T
Screen Size: 5"
Transducer Type: Transom Mount
Transducer Included: Yes
Box Dimensions: 5"H x 10"W x 16"L WT: 3.6 lbs
UPC: 082324048999
Quick Guide (pdf)Owner's Manual (pdf)

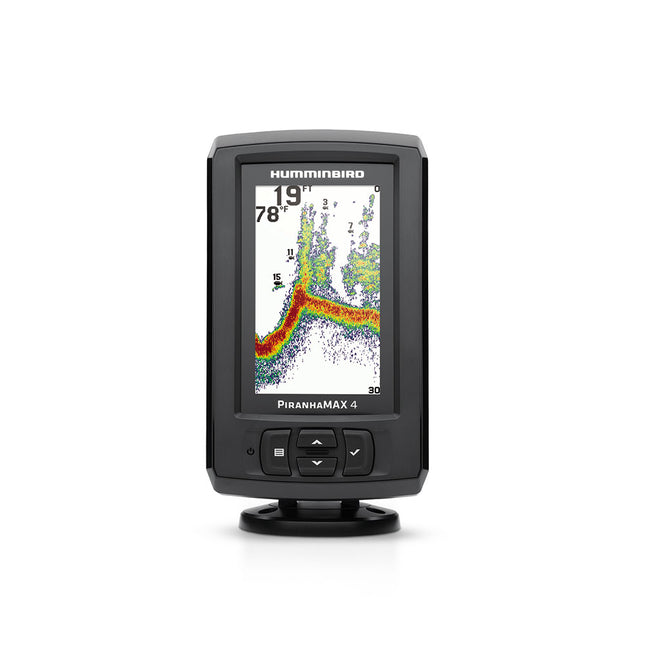

Piranhamax 4With modern styling and a larger 4.3" color LCD, the PiranhaMAX™ 4 will give you a fresh perspective on what's below your boat. Thanks to a redesigned, even easier-to-use interface, Fish ID+™, fish alarms, depth alarms and zoom has never been simpler. Feature for feature, it packs a technological chomp that no fish finder in its class can match.Features:
Dual Beam Sonar: Choose from a narrow and a wide beam for great detail or a generous coverage area, helping you identify fish, structure and contours.
Tilt and Swivel Mount: Quickly adjust your viewing area angle.
1-Year Limited Warranty
WARNING: This product can expose you to chemicals including 1,3-Butadiene which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Included Transducer: XNT-9-28-T
Screen Size: 4.3"
Transducer Type: Transom Mount
Transducer Included: Yes
Box Dimensions: 4"H x 8"W x 12"L WT: 2.2 lbs
UPC: 082324048708
Owner's Manual (pdf)

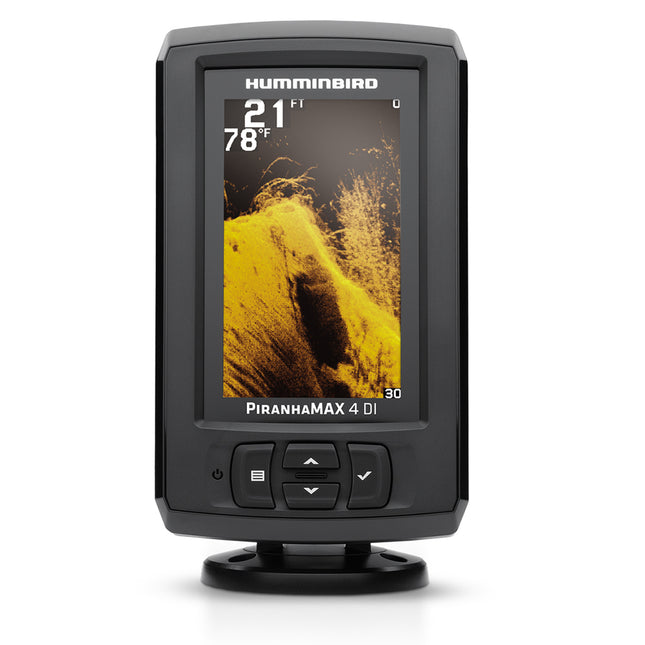

Piranhamax 4 DISharper image. Sharper teeth. With modern styling and a larger 4.3" color LCD, the PiranhaMAX™ 4 DI will give you a fresh perspective on what's below your boat. Thanks to a redesigned, even easier-to-use interface, the power of Down Imaging®, Fish ID+™, fish alarms, depth alarms and zoom has never been simpler. Feature for feature, it packs a technological chomp that no fish finder in its class can match. Features:
Down Imaging: Get a clear view of what's happening below your boat with Down Imaging. As you patrol the water, you'll watch timber, brush, bridge pilings, rocks and any other structure pop with great detail.
Tilt and Swivel Mount: Quickly adjust your viewing area angle.
1-Year Limited Warranty
WARNING: This product can expose you to chemicals including 1,3-Butadiene which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Included Transducer: XNT-9-DI-T
Screen Size: 4.3"
Transducer Type: Transom Mount
Transducer Included: Yes
Box Dimensions: 4"H x 8"W x 12"L WT: 2.6 lbs
UPC: 082324048739
Quick Guide (pdf)Owner's Manual (pdf)

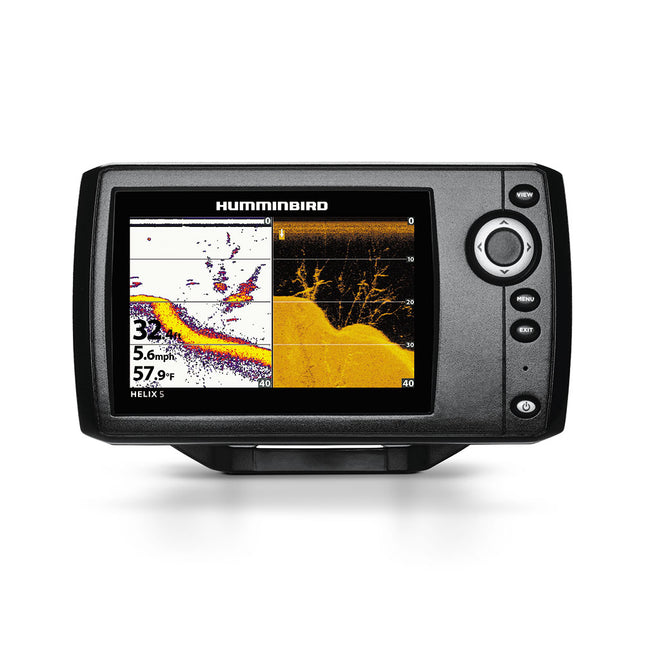

HELIX 5 DI G2 FishfinderThe HELIX 5 DI G2 with an improved user interface and operating system, features a brilliant 800H x 480V, 5" 256 color display with backlight. Down Imaging and DualBeam PLUS sonar with 4000 watts PTP power output. Maximize your angling experience with the Humminbird HELIX 5 DI fishfinder system.CHIRP Frequencies (Out of Box Transducer)455 kHz: 420-520 kHz800 kHz: 790-850 kHzMaximum Depth: 600 feetDOWN IMAGING SONARDown Imaging Sonar -- Get a fish-eye's view of what's happening below your boat. Incredible images are created with High-frequency sound waves.SWITCHFIRESwitchFire Sonar -- Take command of how your sonar returns appear with our Clear and Max Modes.DUALBEAM PLUS SONARTwo beams combine for great detail and a wide coverage area. Use the narrow beam for high-accuracy returns and bottom. Use the wide beam when you want a larger search area.UPGRADEABLE SOFTWAREUp-gradable Software -- Access software updates to enhance the performance of your Humminbird unit through our My Humminbird section of the site.WARNING: This product can expose you to chemicals including 1,3-Butadiene which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Included Transducer: XNT-9-DI-T
Screen Size: 5"
Transducer Type: Transom Mount
Transducer Included: Yes
Box Dimensions: 5"H x 10"W x 16"L WT: 4 lbs
UPC: 082324049019
Quick Guide (pdf)Owner's Manual (pdf)
