Ice Xplore 9" Mega Live 2 BundleTake your ice fishing to the next level with the ICE XPLORE + MEGA Live 2 Bundle, delivering next-gen clarity, helping anglers catch more fish, and enjoying every moment on the ice. Built for hardwater, this bundle delivers unmatched clarity, precision, and control beneath the ice. The XPLORE Series fish finder combines a vivid touchscreen display with intuitive mapping and sonar features, while the MEGA Live 2 provides real-time sonar imaging so you can see fish, structure, and lure action in incredible detail. Outfitted with right-sized, cold-weather-ready cables and accessories tailored for ice fishing, this bundle is ready to hit the ice when you are. Note: third-party ice shuttle and pole required for setup.
Next-Gen Clarity: XPLORE Series and MEGA Live 2 deliver ultra-detailed views in real-time, making it easier to find and stay on fish.
Designed for Ice: Includes ice-specific cable lengths, inline fuses, and connectors for hassle-free setup and reliability in cold conditions.
Ice Mode: Streamlined features and functionality for a custom ice experience. Flip back to Open Water Mode when it’s time to move your XPLORE and MEGA Live 2 to your boat.
Real-Time MEGA Live 2 Sonar: Watch fish move, react, and strike your lure with the next-gen clarity of MEGA Live 2 in Forward or Down Mode, now with real-time zoom.
Lakemaster Mapping Included: Ice Xplore fish finders come with LakeMaster® mapping with features like SmartStrike® to keep you on the fish.
Custom Bundle: Pre-matched components streamline compatibility and installation, ready for your choice of ice shuttle and pole for full on-ice functionality.
Warranty: Ice XPLORE carries a 2-year limited warranty, while MEGA Live 2 is covered by a 1-year Warranty.
Included Components: XPLORE fish finder; 18” Power cable with spade connectors and inline fuse; Premium Silicone cover; Gimbal bracket; XPLORE Map Card, MEGA Live 2 Transducer; Compact Pole-mount; 5' Ethernet Cable, 4' Power cable with spade connectors and inline fuse
Specifications:
Transducer Included: MEGA Live Imaging
Compatible With: Minn Kota US2 Sonar, Minn Kota i-Pilot Link, Radar, One-Boat Network, MEGA Live 2
Memory Card Slot: Dual Micro SD
Sonar-Coverage: 20°, 42°, 60° & (2) 86° @ -10dB
Sonar-Optional: 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low
Live Sonar-Coverage: 20 degrees x 120 degrees
Interface: Touch Screen, Keypad Control
360 Imaging Compatibility: Yes
MEGA Live Compatibility: Yes
Humminbird Basemap: Included
LakeMaster Compatibility: Yes
CoastMaster Compatibility: Yes
Navionics Gold/HotMaps Compatibility: Yes
Navionics Platinum+ Compatibility: Yes
Platinum Compatibility: Yes
Minn Kota Advanced GPS Navigation Compatibility: Yes
Minn Kota i-Pilot Link Compatibility: Yes
Minn Kota Talon Shallow Water Anchor Compatibility: Yes
Radar Compatibility: Yes
5-Port Ethernet Switch Compatibility: Yes
AIS Compatibility: Optional
Autopilot Compatibility: No
Heading Sensor GPS Compatibility: No
Heading Sensor GPS (NMEA 2000) Compatibility: Yes
NMEA2000: Included
Target Separation: 2.5 in
Upgradable Software: Yes
View Preset Keys: Yes
X-Press Menu System: Yes
Custom Digital Readout: Yes
Custom View Selections: Yes
Display Colors Grayscale: 24-Bit
Display Type: Color TFT
Speed: Included
Temperature: Built In
Temperature Alarm: Yes
Temperature Graph: Yes
HDMI Compatible: No
Specifications:
Cartography Brand: Humminbird/Navionics
Included Transducer: XI-14-HW
Screen Size: 9"
Touchscreen: Yes
Transducer Included: Yes
Box Dimensions: 11"H x 11"W x 16"L WT: 13 lbs
UPC: 082324061424
Quick Guide (pdf)Owner's Manual (pdf)
Ice Xplore 10" Mega Live 2 BundleTake your ice fishing to the next level with the ICE XPLORE + MEGA Live 2 Bundle, delivering next-gen clarity, helping anglers catch more fish, and enjoying every moment on the ice. Built for hardwater, this bundle delivers unmatched clarity, precision, and control beneath the ice. The XPLORE Series fish finder combines a vivid touchscreen display with intuitive mapping and sonar features, while the MEGA Live 2 provides real-time sonar imaging so you can see fish, structure, and lure action in incredible detail. Outfitted with right-sized, cold-weather-ready cables and accessories tailored for ice fishing, this bundle is ready to hit the ice when you are. Note: third-party ice shuttle and pole required for setup.
Next-Gen Clarity: XPLORE Series and MEGA Live 2 deliver ultra-detailed views in real-time, making it easier to find and stay on fish.
Designed for Ice: Includes ice-specific cable lengths, inline fuses, and connectors for hassle-free setup and reliability in cold conditions.
Ice Mode: Streamlined features and functionality for a custom ice experience. Flip back to Open Water Mode when it’s time to move your XPLORE and MEGA Live 2 to your boat.
Real-Time MEGA Live 2 Sonar: Watch fish move, react, and strike your lure with the next-gen clarity of MEGA Live 2 in Forward or Down Mode, now with real-time zoom.
Lakemaster Mapping Included: Ice Xplore fish finders come with LakeMaster® mapping with features like SmartStrike® to keep you on the fish.
Custom Bundle: Pre-matched components streamline compatibility and installation, ready for your choice of ice shuttle and pole for full on-ice functionality.
Warranty: Ice XPLORE carries a 2-year limited warranty, while MEGA Live 2 is covered by a 1-year Warranty.
Included Components: XPLORE fish finder; 18” Power cable with spade connectors and inline fuse; Premium Silicone cover; Gimbal bracket; XPLORE Map Card, MEGA Live 2 Transducer; Compact Pole-mount; 5' Ethernet Cable, 4' Power cable with spade connectors and inline fuse
Specifications:
Transducer Included: MEGA Live Imaging
Compatible With: Minn Kota US2 Sonar, Minn Kota i-Pilot Link, Radar, One-Boat Network, MEGA Live 2
Memory Card Slot: Dual Micro SD
Sonar-Coverage: 20°, 42°, 60° & (2) 86° @ -10dB
Sonar-Optional: 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low
Live Sonar-Coverage: 20 degrees x 120 degrees
Interface: Touch Screen, Keypad Control
360 Imaging Compatibility: Yes
MEGA Live Compatibility: Yes
Humminbird Basemap: Included
LakeMaster Compatibility: Yes
CoastMaster Compatibility: Yes
Navionics Gold/HotMaps Compatibility: Yes
Navionics Platinum+ Compatibility: Yes
Platinum Compatibility: Yes
Minn Kota Advanced GPS Navigation Compatibility: Yes
Minn Kota i-Pilot Link Compatibility: Yes
Minn Kota Talon Shallow Water Anchor Compatibility: Yes
Radar Compatibility: Yes
5-Port Ethernet Switch Compatibility: Yes
AIS Compatibility: Optional
Autopilot Compatibility: No
Heading Sensor GPS Compatibility: No
Heading Sensor GPS (NMEA 2000) Compatibility: Yes
NMEA2000: Included
Target Separation: 2.5 in
Upgradable Software: Yes
View Preset Keys: Yes
X-Press Menu System: Yes
Custom Digital Readout: Yes
Custom View Selections: Yes
Display Colors Grayscale: 24-Bit
Display Type: Color TFT
Speed: Included
Temperature: Built In
Temperature Alarm: Yes
Temperature Graph: Yes
HDMI Compatible: No
Specifications:
Cartography Brand: Humminbird/Navionics
Included Transducer: XI-14-HW
Screen Size: 10"
Touchscreen: Yes
Transducer Included: Yes
Box Dimensions: 11"H x 11"W x 16"L WT: 13.5 lbs
UPC: 082324061530
Quick Guide (pdf)Owner's Manual (pdf)
ICE HELIX 5 CHIRP G3 - Sonar OnlyThe ICE HELIX 5 CHIRP G3 gives you a deeper understanding of what's below the ICE, with exclusive features you won't find on any other ICE sonar unit. Utilize crystal-clear Dual Spectrum CHIRP Digital Sonar with 3/4" target separation, CHIRP Interference Rejection, Adjustable Sonar Zoom, Jig Charge Mode, and unprecedented viewing options specifically for the ICE angler. You'll watch it all take shape on a full-color, 5" HD LCD display.Features:
Dual Spectrum CHIRP Sonar: See high-resolution returns of individual fish, bait, and structure on both the flasher and traditional 2D sonar views at greater depths and range, with target separation down to 3/4".
CHIRP Interference Rejection: Six settings keep competing for sonar signals from cluttering your screen, providing a clear view in both sonar and flasher modes.
Adjustable Sonar Zoom: Hone in on fish, whether they are tight to the bottom, or suspended high in the water column. Utilize 2X zoom on the flasher screen or up to 16X zoom on the 2D sonar view.
Ultra Bright and Detailed LCD Display: The ICE HELIX screen provides everything you need to know, on a crystal-clear display with adjustable brightness. Whether in a fish house or on open ICE, you'll easily be able to see digital depth display, sonar returns, and more exclusive features, all shown in real-time.
Jig Charge Mode: Use your ICE HELIX to charge up your glow-painted spoons and jigs and get back down to the hot bite quickly.
Portable Shuttle and Carrying Case: The soft-sided carrying case and shuttle mount protect your Humminbird ICE HELIX for safe transport and include built-in cable and transducer management.
Year-Round Capable: The ICE HELIX 5 CHIRP G3 works with all compatible HELIX 5 CHIRP G3 transducers. Simply install an accessory transducer, power cord, and gimbal mount on your boat and you'll be ready to hit the water even after the ICE melts.
What’s Included: ICE HELIX 5 CHIRP G3 fishfinder, Dual Spectrum CHIRP ICE transducer, 9Ah battery and charger, ICE shuttle, hardware, power cable, and portable bag.
1-Year Limited Warranty
Specifications:
Display Size - Diagonal: 5"
Display Pixel Matrix: 800H x 480V
Sonar-Standard: Dual Spectrum CHIRP
Sonar-Coverage: 15° & 21° @ -3dB
Sonar-Optional: 50 kHz, 50/Low Airmar CHIRP
CHIRP - Frequencies Supported: 50/200 (28-75/130-250 kHz), 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
Sonar-Frequencies Supported: 50/80/200 kHz
Depth-Sonar: 400 ft
Interface: Keypad Control
Features: Dual Spectrum CHIRP, Interference Rejection, Jig Charge Mode, Portable
Memory Card Slot: None
Power Draw: 615 mA
Power Input: 10.8-20 VDC
Power Output Peak-to-Peak: 4000 Watts
Power Output RMS: 500 Watts
Screen Snap Shot: Not Supported
Sonar Recording: Not Supported
Mount-Standard: Portable
Transducer Mount Location: Portable
GPS Chartplotting: Not Supported
GPS Trackplotting: Not Supported
LakeMaster Compatibility: No
Coast Master Compatibility: No
Navionics Gold/HotMaps Compatibility: No
Navionics Platinum + Compatibility: No
Platinum Compatibility: No
Heading Sensor GPS Compatibility: No
Upgradable Software: No
View Preset Keys: No
X-Press Menu System: Yes
Custom Digital Readout: Yes
Custom View Selections: Yes
Display Colors Grayscale: 256 Color
Speed: Not Supported
Temperature: Not Supported
Temperature Alarm: Yes
Temperature Graph: No
Transducer Included: XI 9 1521
HDMI Compatible: No
MEGA Live Compatibility: No
Quick Guide (pdf)
ICE HELIX 7 CHIRP GPS G4 - Combo All-SeasonThe ICE HELIX 7 CHIRP GPS G4 All-Season has more fish-finding power than one season can handle. Take advantage of crystal-clear Dual Spectrum CHIRP Sonar with 3/4" target separation, CHIRP Interference Rejection, built-in GPS with Humminbird Basemap and compatibility with both LakeMaster(r) or Navionics(r) maps. Additional features designed specifically for the ICE angler include AutoChart Live ICE, Jig Charge Mode, split-screen views, premium shuttle and 15Ah lithium battery separate this unit from all others on the ICE. And you'll be set once the ICE thaws, because ICE HELIX 7 CHIRP GPS G4 All-Season includes everything you need to use it on a boat or in portable applications during the summer. Enjoy it all on a full-color, 7" HD LCD display. Features:
Dual Spectrum CHIRP Sonar: See high-resolution returns of individual fish, bait and structure on both the flasher and traditional 2D sonar views at greater depths and range, with target separation down to 3/4".
CHIRP Interference Rejection: Six settings keep competing sonar signals from cluttering your screen, providing a clear view in both sonar and flasher modes.
Adjustable Sonar Zoom: Hone in on fish, whether they are tight to the bottom, or suspended high in the water column. Utilize 2X zoom on the flasher screen, or up to 16X zoom on 2D sonar view.
Internal Precision GPS Built-in: Take the guesswork out of finding your fishing spot. Pinpoint your location by marking waypoints of your most productive areas and navigate out to your spot and back safely with GPS tracks.
Humminbird Basemap Built-in: Our enhanced standard Basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes.
AutoChart Live ICE: Create real-time 1-foot contour maps of your fishing spots to find fish faster. Create maps on ICE to show humps and drop-offs or entire reefs, while utilizing Humminbird® LakeMaster® features, Depth Highlight, Shallow Water Highlight and Water Level Offset.
MicroSD Card Reader: Single card reader slot used for premium mapping, software updates or to save screenshots, sonar recordings and waypoints from your ICE HELIX.
Ultra Bright and Detailed LCD Display: The ICE HELIX screen provides everything you need to know, on a crystal-clear display with adjustable brightness. Whether in a fish house or on open ICE, you'll easily be able to see digital depth display, sonar returns and more exclusive features, all shown in real-time.
Jig Charge Mode: Use your ICE HELIX to charge up your glow-painted spoons and jigs and get back down to the hot bite quickly.
Premium Shuttle: It has it all. Master power switch, quick-connect SAE power cables, large handle, multiple ¼"-20 mounting options for accessories, two rod holders, cable and transducer management, and a battery cover.
all season Ready: This ICE HELIX fish finder comes with everything you need to use on both ICE and on your boat or portable applications in the summer.
What’s Included: ICE HELIX 7 CHIRP GPS G4 fishfinder, Dual Spectrum CHIRP ICE transducer, 15Ah lithium battery with 2 USB ports and battery life indicator, charger, ICE shuttle, hardware, quick-connect SAE power cables, silicone screen cover, and all necessary accessories to use on a boat or in portable applications (transom mount CHIRP transducer with optional suction cup transducer mount, fish finder gimbal mount and power cord).
1-Year Limited Warranty
Specifications:
Display Size - Diagonal: 7"
Display Pixel Matrix: 1024H x 600V
Sonar-Standard: Dual Spectrum CHIRP
Sonar-Coverage: 15° & 21° @ -3dB
Sonar-Optional: 50 kHz, 50/Low Airmar CHIRP
CHIRP - Frequencies Supported: 50/200 (28-75/130-250 kHz), 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
Sonar-Frequencies Supported: 50/80/200 kHz
Depth-Sonar: 400 ft
Interface: Keypad Control
Features: Dual Spectrum CHIRP, Interference Rejection, Jig Charge Mode, Portable, Built In GPS, Built In Mapping, AutoChart Live Ice, MEGA Live Imaging
Memory Card Slot: Single Micro SD
Compatible With: AIS, AutoPilot
Power Draw: 800 mA
Power Input: 10.8-20 VDC
Power Output Peak-to-Peak: 4000 Watts
Power Output RMS: 500 Watts
Screen Snap Shot: Included
Sonar Recording: Included
Mount-Standard: Portable
Transducer Mount Location: Portable
GPS Chartplotting: Included
GPS Trackplotting: Included
LakeMaster Compatibility: Yes
Coast Master Compatibility: Yes
Navionics Gold/HotMaps Compatibility: Yes
Navionics Platinum + Compatibility: Yes
Platinum Compatibility: Yes
Heading Sensor GPS Compatibility: Yes
Upgradable Software: Yes
View Preset Keys: No
X-Press Menu System: Yes
Custom Digital Readout: Yes
Custom View Selections: Yes
Display Colors Grayscale: 16-Bit
Speed: Included
Temperature: Built-In
Temperature Alarm: Yes
Temperature Graph: No
Transducer Included: XI 9 1521
HDMI Compatible: No
MEGA Live Compatibility: No
Specifications:
Cartography Brand: Humminbird/Navionics
Included Transducer: XNT-9-HW-T, XI-9-1521
Screen Size: 7"
Touchscreen: No
Transducer Included: Yes
Box Dimensions: 12"H x 16"W x 20"L WT: 18 lbs
UPC: 082324056758
Quick Guide (pdf)
ICE HELIX 7 CHIRP GPS G4 - Sonar/GPS ComboThe ICE HELIX 7 CHIRP GPS G4 will not only help you catch the fish but will also help you find where to catch them. Take advantage of outstanding features like Dual Spectrum CHIRP Sonar with 3/4" target separation, CHIRP Interference Rejection, built-in GPS with Humminbird Basemap, and compatibility with both LakeMaster(r) or Navionics(r) maps. Additional features designed specifically for the ICE angler include AutoChart Live ICE, Jig Charge Mode, split-screen views, premium shuttle, and 15Ah lithium battery separating this unit from all others on the ICE. Take it all in on an ultra-bright 7" full-color LCD display. Features:
Dual Spectrum CHIRP Sonar: See high-resolution returns of individual fish, bait, and structure on both the flasher and traditional 2D sonar views at greater depths and range, with target separation down to 3/4".
CHIRP Interference Rejection: Six settings keep competing for sonar signals from cluttering your screen, providing a clear view in both sonar and flasher modes.
Adjustable Sonar Zoom: Hone in on fish, whether they are tight to the bottom, or suspended high in the water column. Utilize 2X zoom on the flasher screen or up to 16X zoom on the 2D sonar view.
Internal Precision GPS Built-in: Take the guesswork out of finding your fishing spot. Pinpoint your location by marking waypoints of your most productive areas and navigate out to your spot and back safely with GPS tracks.
Humminbird Basemap Built-in: Our enhanced standard Basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes.
AutoChart Live ICE: Create real-time 1-foot contour maps of your fishing spots to find fish faster. Create maps on ICE to show humps and drop-offs or entire reefs, while utilizing Humminbird® LakeMaster® features, Depth Highlight, Shallow Water Highlight, and Water Level Offset.
MicroSD Card Reader: Single card reader slot used for premium mapping, software updates or to save screenshots, sonar recordings and waypoints from your ICE HELIX.
Ultra Bright and Detailed LCD Display: The ICE HELIX screen provides everything you need to know, on a crystal-clear display with adjustable brightness. Whether in a fish house or on open ICE, you'll easily be able to see digital depth display, sonar returns and more exclusive features, all shown in real-time.
Jig Charge Mode: Use your ICE HELIX to charge up your glow-painted spoons and jigs and get back down to the hot bite quickly.
Premium Shuttle: It has it all. Master power switch, quick-connect SAE power cables, large handle, multiple ¼"-20 mounting options for accessories, two rod holders, cable and transducer management, and a battery cover.
Year-Round Capable: The ICE HELIX 7 CHIRP GPS G4 works with all compatible HELIX 7 CHIRP GPS G4 transducers. Simply install an accessory transducer, power cord and gimbal mount on your boat and you'll be ready to hit the water even after the ICE melts.
What’s Included: ICE HELIX 7 CHIRP GPS G4 fishfinder, Dual Spectrum CHIRP ICE transducer, 15Ah lithium battery with 2 USB ports and battery life indicator, charger, ICE shuttle, hardware, quick-connect SAE power cables, and silicone screen cover.
1-Year Limited Warranty
Specifications:
Display Size - Diagonal: 7"
Display Pixel Matrix: 1024H x 600V
Sonar-Standard: Dual Spectrum CHIRP
Sonar-Coverage: 15° & 21° @ -3dB
Sonar-Optional: 50 kHz, 50/Low Airmar CHIRP
CHIRP - Frequencies Supported: 50/200 (28-75/130-250 kHz), 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
Sonar-Frequencies Supported: 50/80/200 kHz
Depth-Sonar: 400 ft
Interface: Keypad Control
Features: Dual Spectrum CHIRP, Interference Rejection, Jig Charge Mode, Portable, Built-In GPS, Built-In Mapping, AutoChart Live Ice, MEGA Live Imaging
Memory Card Slot: Single Micro SD
Compatible With: AIS, AutoPilot
Power Draw: 800 mA
Power Input: 10.8-20 VDC
Power Output Peak-to-Peak: 4000 Watts
Power Output RMS: 500 Watts
Screen Snap Shot: Included
Sonar Recording: Included
Mount-Standard: Portable
Transducer Mount Location: Portable
GPS Chartplotting: Included
GPS Trackplotting: Included
LakeMaster Compatibility: Yes
Coast Master Compatibility: Yes
Navionics Gold/HotMaps Compatibility: Yes
Navionics Platinum + Compatibility: Yes
Platinum Compatibility: Yes
Heading Sensor GPS Compatibility: Yes
Upgradable Software: Yes
View Preset Keys: No
X-Press Menu System: Yes
Custom Digital Readout: Yes
Custom View Selections: Yes
Display Colors Grayscale: 16-Bit
Speed: Included
Temperature: Built-In
Temperature Alarm: Yes
Temperature Graph: No
Transducer Included: XI 9 1521
HDMI Compatible: No
MEGA Live Compatibility: No
Specifications:
Cartography Brand: Humminbird/Navionics
Included Transducer: XI-9-1521
Screen Size: 7"
Touchscreen: No
Transducer Included: Yes
Box Dimensions: 13"H x 16"W x 20"L WT: 16.5 lbs
UPC: 082324056741
Quick Guide (pdf)
ICE HELIX 5 CHIRP GPS G3 - Sonar/GPS Combo The ICE HELIX 5 CHIRP GPS G3 will not only help you catch the fish but will also help you find where to catch them. Take advantage of outstanding features like Dual Spectrum CHIRP Sonar with 3/4" target separation, CHIRP Interference Rejection, built-in GPS with Humminbird Basemap, and compatibility with both LakeMaster(r) or Navionics(r) maps for precision fishing. Additional features designed specifically for the ICE angler, including AutoChart Live ICE, Jig Charge Mode, and split-screen views separate this unit from all others on the ICE. Take it all in on an ultra-bright 5" full-color HD LCD display. Features:
Dual Spectrum CHIRP Sonar: See high-resolution returns of individual fish, bait, and structure on both the flasher and traditional 2D sonar views at greater depths and range, with target separation down to 3/4".
CHIRP Interference Rejection: Six settings keep competing for sonar signals from cluttering your screen, providing a clear view in both sonar and flasher modes.
Adjustable Sonar Zoom: Hone in on fish, whether they are tight to the bottom, or suspended high in the water column. Utilize 2X zoom on the flasher screen or up to 16X zoom on the 2D sonar view.
Internal Precision GPS Built-in: Take the guesswork out of finding your fishing spot. Pinpoint your location by marking waypoints of your most productive areas and navigate out to your spot and back safely with GPS tracks.
Humminbird Basemap Built-in: Our enhanced standard Basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes.
AutoChart Live ICE: Create real-time 1-foot contour maps of your fishing spots to find fish faster. Create maps on ICE to show humps and drop-offs or entire reefs, while utilizing Humminbird® LakeMaster® features, Depth Highlight, Shallow Water Highlight, and Water Level Offset.
MicroSD Card Reader: Single card reader slot used for premium mapping, software updates or to save screenshots, sonar recordings, and waypoints from your ICE HELIX.
Ultra Bright and Detailed LCD Display: The ICE HELIX screen provides everything you need to know, on a crystal-clear display with adjustable brightness. Whether in a fish house or on open ICE, you'll easily be able to see digital depth display, sonar returns, and more exclusive features, all shown in real-time.
Jig Charge Mode: Use your ICE HELIX to charge up your glow-painted spoons and jigs and get back down to the hot bite quickly.
Portable Shuttle and Carrying Case: The soft-sided carrying case and shuttle mount protect your Humminbird ICE HELIX for safe transport and include built-in cable and transducer management.
Year-Round Capable: The ICE HELIX 5 CHIRP G3 works with all compatible HELIX 5 CHIRP G3 transducers. Simply install an accessory transducer, power cord, and gimbal mount on your boat and you'll be ready to hit the water even after the ICE melts.
What’s Included: ICE HELIX 5 CHIRP GPS G3 fishfinder, Dual Spectrum CHIRP ICE transducer, 9Ah battery and charger, ICE shuttle, hardware, power cable, and portable bag.
1-Year Limited Warranty
Specifications:
Display Size - Diagonal: 5"
Display Pixel Matrix: 800H x 480V
Sonar-Standard: Dual Spectrum CHIRP
Sonar-Coverage: 15° & 21° @ -3dB
Sonar-Optional: 50 kHz, 50/Low Airmar CHIRP
CHIRP - Frequencies Supported: 50/200 (28-75/130-250 kHz), 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
Sonar-Frequencies Supported: 50/80/200 kHz
Depth-Sonar: 400 ft
Interface: Keypad Control
Features: Dual Spectrum CHIRP, Interference Rejection, Jig Charge Mode, Portable, Built-In GPS, Built-In Mapping, AutoChart Live Ice
Memory Card Slot: Single Micro SD
Power Draw: 615 mA
Power Input: 10.8-20 VDC
Power Output Peak-to-Peak: 4000 Watts
Power Output RMS: 500 Watts
Screen Snap Shot: Included
Sonar Recording: Included
Mount-Standard: Portable
Transducer Mount Location: Portable
GPS Chartplotting: Included
GPS Trackplotting: Included
LakeMaster Compatibility: Yes
Coast Master Compatibility: Yes
Navionics Gold/HotMaps Compatibility: Yes
Navionics Platinum + Compatibility: Yes
Platinum Compatibility: Yes
Heading Sensor GPS Compatibility: Yes
Upgradable Software: Yes
View Preset Keys: No
X-Press Menu System: Yes
Custom Digital Readout: Yes
Custom View Selections: Yes
Display Colors Grayscale: 256 Color
Speed: Included
Temperature: Built-In
Temperature Alarm: Yes
Temperature Graph: No
Transducer Included: XI 9 1521
HDMI Compatible: No
MEGA Live Compatibility: No
Specifications:
Cartography Brand: Humminbird/Navionics
Included Transducer: XI-9-1521
Screen Size: 5"
Touchscreen: No
Transducer Included: Yes
Box Dimensions: 8"H x 12"W x 15"L WT: 5 lbs
UPC: 082324056703
Quick Guide (pdf)
ICE HELIX 5 CHIRP GPS G3 - Sonar/GPS All-SeasonThe ICE HELIX 5 CHIRP GPS G3 All-Season brings you the most fish-finding power and technology that can fit in a 5-gallon bucket. Take advantage of crystal-clear Dual Spectrum CHIRP Digital Sonar with 3/4" target separation, CHIRP Interference Rejection, Adjustable Sonar Zoom, Jig Charge Mode, and unprecedented viewing options specifically for the ICE angler. And you'll be set once the ICE thaws, because the ICE HELIX 5 CHIRP GPS G3 All-Season includes everything you need to use it on a boat or in portable applications during the summer. Enjoy it all on a full-color, 5" HD LCD display. Features:
Dual Spectrum CHIRP Sonar: See high-resolution returns of individual fish, bait, and structure on both the flasher and traditional 2D sonar views at greater depths and range, with target separation down to 3/4".
CHIRP Interference Rejection: Six settings keep competing for sonar signals from cluttering your screen, providing a clear view in both sonar and flasher modes.
Adjustable Sonar Zoom: Hone in on fish, whether they are tight to the bottom, or suspended high in the water column. Utilize 2X zoom on the flasher screen or up to 16X zoom on the 2D sonar view.
Internal Precision GPS Built-in: Take the guesswork out of finding your fishing spot. Pinpoint your location by marking waypoints of your most productive areas and navigate out to your spot and back safely with GPS tracks.
Humminbird Basemap Built-in: Our enhanced standard Basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers, and much, much more. Includes charts of more than 10,000 lakes.
AutoChart Live ICE: Create real-time 1-foot contour maps of your fishing spots to find fish faster. Create maps on ICE to show humps and drop-offs or entire reefs, while utilizing Humminbird® LakeMaster® features, Depth Highlight, Shallow Water Highlight, and Water Level Offset.
MicroSD Card Reader: Single card reader slot used for premium mapping, software updates or to save screenshots, sonar recordings and waypoints from your ICE HELIX.
Ultra Bright and Detailed LCD Display: The ICE HELIX screen provides everything you need to know, on a crystal-clear display with adjustable brightness. Whether in a fish house or on open ICE, you'll easily be able to see digital depth display, sonar returns and more exclusive features, all shown in real-time.
Jig Charge Mode: Use your ICE HELIX to charge up your glow-painted spoons and jigs and get back down to the hot bite quickly.
Portable Shuttle and Carrying Case: The soft-sided carrying case and shuttle mount protect your Humminbird ICE HELIX for safe transport and include built-in cable and transducer management.
all season Ready: This ICE HELIX fish finder comes with everything you need to use on both ICE and on your boat or for portable applications in the summer.
What’s Included: ICE HELIX 5 CHIRP GPS G3 fishfinder, Dual Spectrum CHIRP ICE transducer, 9Ah battery and charger, ICE shuttle, hardware, power cable, portable bag, and all necessary accessories to use on a boat or in portable applications (transom mount CHIRP transducer with optional suction cup transducer mount, fish finder gimbal mount, and power cord).
1-Year Limited Warranty
Specifications:
Display Size - Diagonal: 5"
Display Pixel Matrix: 800H x 480V
Sonar-Standard: Dual Spectrum CHIRP
Sonar-Coverage: 15° & 21° @ -3dB
Sonar-Optional: 50 kHz, 50/Low Airmar CHIRP
CHIRP - Frequencies Supported: 50/200 (28-75/130-250 kHz), 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
Sonar-Frequencies Supported: 50/80/200 kHz
Depth-Sonar: 400 ft
Interface: Keypad Control
Features: Dual Spectrum CHIRP, Interference Rejection, Jig Charge Mode, Portable, Built-In GPS, Built-In Mapping, AutoChart Live Ice
Memory Card Slot: Single Micro SD
Power Draw: 615 mA
Power Input: 10.8-20 VDC
Power Output Peak-to-Peak: 4000 Watts
Power Output RMS: 500 Watts
Screen Snap Shot: Included
Sonar Recording: Included
Mount-Standard: Portable
Transducer Mount Location: Portable
GPS Chartplotting: Included
GPS Trackplotting: Included
LakeMaster Compatibility: Yes
Coast Master Compatibility: Yes
Navionics Gold/HotMaps Compatibility: Yes
Navionics Platinum + Compatibility: Yes
Platinum Compatibility: Yes
Heading Sensor GPS Compatibility: Yes
Upgradable Software: Yes
View Preset Keys: No
X-Press Menu System: Yes
Custom Digital Readout: Yes
Custom View Selections: Yes
Display Colors Grayscale: 256 Color
Speed: Included
Temperature: Built-In
Temperature Alarm: Yes
Temperature Graph: No
Transducer Included: XI 9 1521
HDMI Compatible: No
MEGA Live Compatibility: No
Specifications:
Cartography Brand: Humminbird/Navionics
Included Transducer: XNT-9-HW-T, XI-9-1521
Screen Size: 5"
Touchscreen: No
Transducer Included: Yes
Box Dimensions: 9"H x 12"W x 15"L WT: 11.5 lbs
UPC: 082324056734
Quick Guide (pdf)

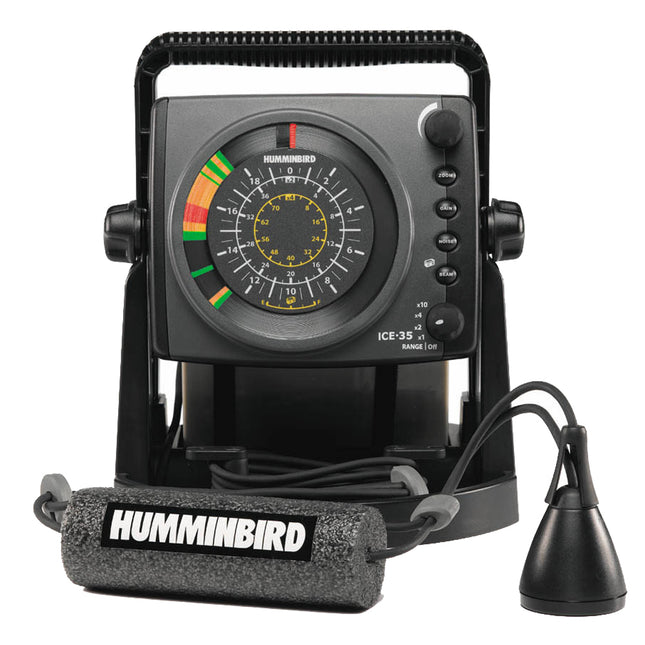

ICE 35 Ice Fishing FlasherHumminbird's ICE 35 Ice Flasher from Humminbird carries revolutionary features built and designed for the diehard ice fisherman. The ICE 35 Ice Flasher features a fiber-optic flasher display for exceptional performance in any level of light, making this flasher easy to use on those blinding, sunny winter days. The 3-color display has an overlay depth scale for easy interpretation.At the heart of the Humminbird ICE 35 Ice Flasher is a Dual Beam 9 Degree (240 kHz) 19 Degree (455 kHz) transducer allowing for a greater overall cone of view. This flasher runs at assorted depths of 20 ft., 40 ft., 80 ft., and 200 ft.The ICE 35 includes a 4 button control pad with zoom, gain, noise, and beam selections for easy fine-tuning. A battery status indicator lets you know the flasher's power condition. This unit includes a rechargeable 7 amp hour 12-volt battery and charger.Features:
3-color fiber-optic flasher display
The overlay depth scale delivers excellent viewing in sunlight
800 watts peak-to-peak power
10-step interference rejection
4 depth scales: 20', 40', 80', 200'
4 button control pad
Dual Beam 9/19° Transducer
Battery status indicator
Shuttle mount with built-in gimbal bracket
WARNING: This product can expose you to chemicals including 1,3-Butadiene which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

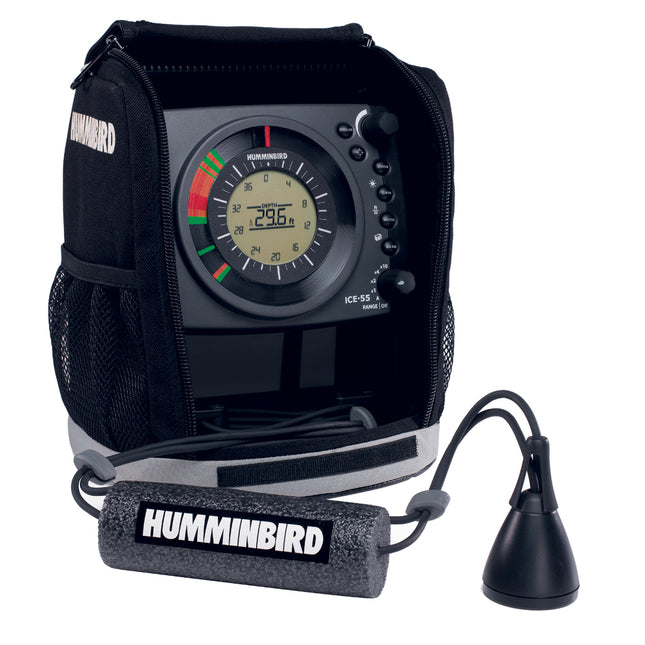

ICE 55 Ice Fishing FlasherHumminbird's ICE 55 Ice Flasher from Humminbird carries revolutionary features built and designed for the diehard ice fisherman. The ICE 55 Ice Flasher features a fiber-optic flasher display and a backlit LCD for exceptional performance in any level of light, making this flasher easy to use on those blinding, sunny winter days. The 6-color display has an overlay depth scale for easy interpretation. The LCD shows a depth scale and a large number of readouts for exact depth marks.At the heart of the Humminbird ICE 55 Ice Flasher is a Dual Beam 9 Degree (240 kHz) 19 Degree (455 kHz) transducer allowing for a greater overall cone of view. This flasher runs at four depth scales in manual mode: 20 ft., 40 ft., 80 ft., and 200 ft., and seven depth scales in automatic mode: 20 ft., 40 ft., 60 ft., 80 ft. 100 ft., 120 ft., and 200 ft.The ICE 55 includes a 6-button control pad with zoom, gain, noise, beam, target cursor, and color selections for easy fine-tuning. An LCD battery voltage indicator lets you know the flasher's power condition. This unit includes a rechargeable 9 amp hour 12-volt battery and charger.Features:
LCD and 6-color fiber-optic flasher display
Overlay depth scale delivers excellent viewing in sunlight
2400 watts peak-to-peak power
10-step interference rejection
4 depth scales (manual mode): 20', 40', 80', 200'
7 depth scales (auto mode): 20', 40', 60', 80', 100', 120', 200'
6 button control pad
Color palatte setting allow unit to display as Vexilar, Marcum and
Humminbird-6 color
Dual Beam 9/19° Transducer
LCD Battery voltage indicator
Shuttle mount with built-in gimbal bracket
7AH battery with charger
Soft Side Carrying Case
2-year manufacturers warranty
WARNING: This product can expose you to chemicals including 1,3-Butadiene which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

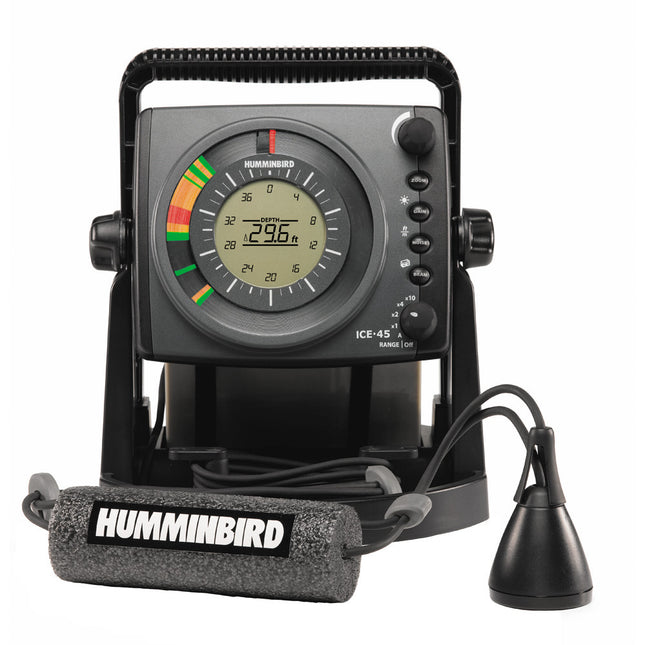

ICE 45 Ice Fishing FlasherHumminbird's ICE 45 ice fishing flasher uses a 3-color fiber-optic flasher with a center dial LCD display engineered for peak performance in temperatures as cold as -20xF. The LCD includes digital depth and allows the flasher to automatically adjust the depth scale, eliminating the guesswork and estimation of depth scale overlays. Rely on Humminbird ice flashers to find your spots and keep your cooler full.At the heart of the Humminbird ICE 45 Ice Flasher is a Dual Beam 9 Degree (240 kHz) 19 Degree (455 kHz) transducer allowing for a greater overall cone of view. This flasher runs at four depth scales in manual mode: 20 ft., 40 ft., 80 ft., and 200 ft., and seven depth scales in automatic mode: 20 ft., 40 ft., 60 ft., 80 ft. 100 ft., 120 ft. and 200 ft.The ICE 45 includes a 4 button control pad with zoom, gain, noise, and beam selections for easy fine-tuning. An LCD battery voltage indicator lets you know the flasher's power condition. This unit includes a rechargeable 7 amp hour 12 volt battery and charger.Features:
LCD and 3-color fiber-optic flasher display
Overlay depth scale delivers excellent viewing in sunlight
1800 watts peak-to-peak power
10-step interference rejection
4 depth scales (manual mode): 20', 40', 80', 200'
7 depth scales (auto mode): 20', 40', 60', 80', 100', 120', 200'
Shuttle mount with built-in gimbal bracket
7AH battery with charger
2-year manufacturers warranty
WARNING: This product can expose you to chemicals including 1,3-Butadiene which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)
