Marine Navigation & Instruments - Transducers

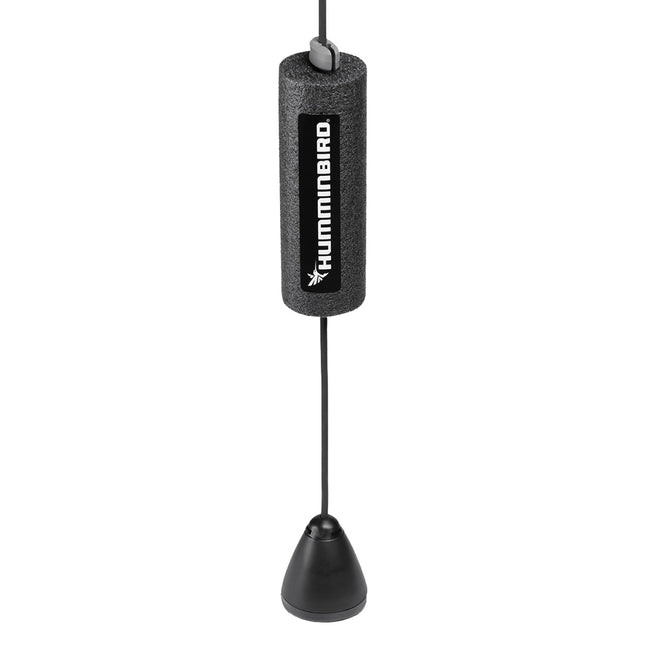

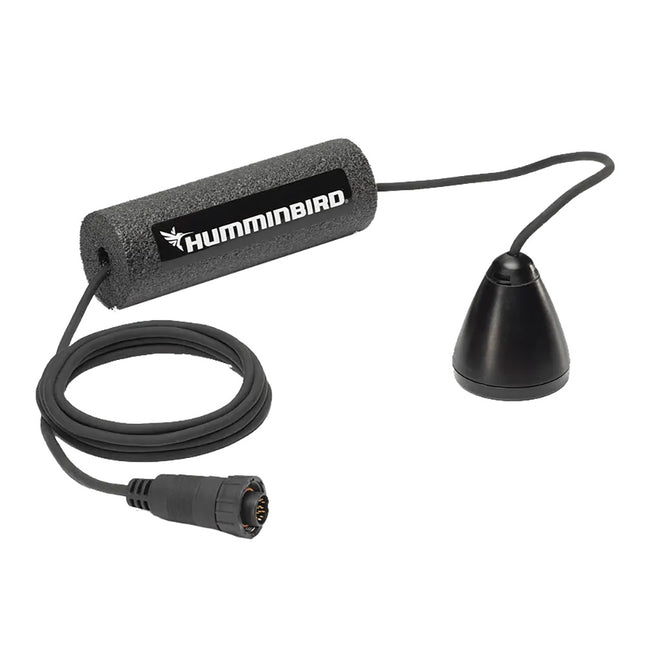

XI-14-HW Dual Spectrum Chirp Xplore Ice TransducerThe Humminbird XI 14 HW XPLORE ICE Transducer features 130-250 kHz Dual Spectrum CHIRP 2D Sonar and 8 ft. of cable length. Optimize your fish finding with 2D New Flasher Views and more.Features: 130-250 kHz Dual Spectrum CHIRP 2D Sonar Adjustable float for varying ice thickness Engineered for extreme weather conditions 8ft (2.4m) transducer cable Includes ice transducer, float, and rubber depth collar Specifications: Cable Length (Feet): 8' Chirp: Medium Imagining: Standard Mounting Style: Ice Pins: 14 Speed Included: No Temperature: No Box Dimensions: 4"H x 8"W x 9"L WT: 0.8 lbs UPC: 082324061431

Read more less

XM-14-HW-CMSI-T Compact MEGA Side Imaging+ TransducerHumminbird Compact MEGA Side Imaging+ transducer is compatible with APEX, XPLORE, and SOLIX G3 models. This transom mount transducer has a built-in temperature sensor, MEGA Side Imaging+, 455kHz and 1.1 MHz; Down Imaging+ frequencies 455kHz and 1.1 MHz, and Dual Spectrum 2D CHIRP with a range of 150- 220kHz.Features: Compatible with APEX, SOLIX G3, and XPLORE fish finder models Cable Length: 20 Feet Compact MEGA Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 405-505 kHz - 800ft (244m), MEGA: 1.100-1.200 MHz - 400ft (122m) Compact MEGA Down Imaging Frequencies - Max Depth: 455 kHz: 420-520 kHz - 400ft (122m) MEGA: 1.125-1.225 MHz - 400ft (122m) Dual Spectrum CHIRP Frequencies - Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz Screw-On Connector Built-in temperature sensor 1-Year Limited Warranty Specifications: Mount Type: Transom Sonar Type: MEGA Imaging +, Down Imaging, Dual Spectrum, Side Imaging Warranty: 1-Year Warranty

Read more less

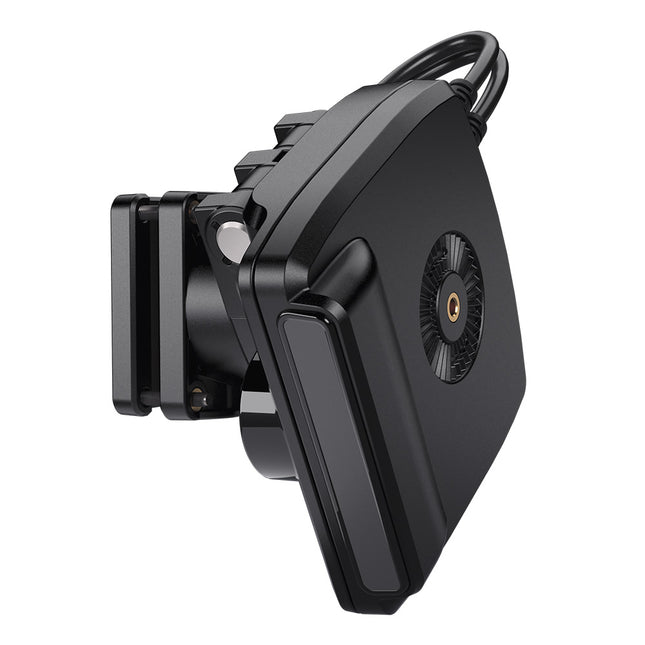

Mega Live 2 Forward-Facing SonarMEGA Live 2 is a live sonar transducer that features, enhanced and vivid clarity of fish and structures. It mounts to a trolling motor shaft and delivers three viewing modes: forward, down, and landscape. It is compatible with all Humminbird APEX, SOLIX G3, and XPLORE models and Minn Kota trolling motors.See fish and structure in real-time. With no gaps in sonar coverage, powered by the unmatched detail and clarity of MEGA Imaging® throughout the entire sonar view.To view everything down, out, and around your boat with live sonar. Choose from multiple viewing modes: Forward, Down, and Landscape.Dynamic bait and lure tracking with MEGA Imaging® detail and an optimized sonar cone angle, providing ample sonar coverage without sacrificing the precision ability to target individual fish.Customizable color palettes designed to enhance the detail and clarity of live sonar returns.Mounts on either side of the trolling motor shaft.Mark and view waypoints on the MEGA Live Imaging sonar screen to remember productive fishing spots for next time, when paired with an optional GPS receiver with a heading sensor (AS GPS HS).Connect MEGA Live Imaging to compatible Humminbird models via the included Ethernet cable. There is no external sonar box required for installation, connects to optional sonar sources like MEGA 360 Imaging® or Built-in MEGA Imaging® to the same control head.Compatible Humminbird control heads: All APEX, SOLIX G3, and XPLORE models (Must be MEGA Side Imaging or MEGA Down Imaging model).For optimal sonar performance, it is recommended that MEGA Live Imaging be used with any Minn Kota® Ultrex™ trolling motor, a Minn Kota® Fortrex® trolling motor, or any QUEST trolling motor equipped with Built-in MEGA Imaging®.The trolling motor and MEGA 360 Imaging accessories are not included.Includes:  MEGA Live Imaging transducer with adjustable mounting bracket 10' power cable 20' Ethernet cable Mounting hardware 2-Year Limited Warranty Brochure (pdf)

Read more less

XPTH 14 HW MSI T Plastic Thru Hull TransducerSOLIX MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP plastic thru hull transducer. This transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design and 30’ cable. Features: This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA SI+ GPS G2, SOLIX 12 CHIRP MEGA SI+ GPS G2, SOLIX 15 CHIRP MEGA SI+ GPS G2 MEGA Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (122m) MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 250ft (76m), MEGA DI+: 1075-1150 kHz - 200ft (61m) Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz Dual Spectrum CHIRP Max Depth: 1200ft (365m) Dimensions: L 8.4" x W 2.3" x D 1.0" - Stem Length 5", Stem Diameter 1" 1-Year Limited Warranty Specifications: Imagining: Standard/Down/Side Chirp: High Wide Cable Length (Feet): 30' Speed Included: No Mounting Style: Thru-Hull Temperature: Yes Pins: 14 Box Dimensions: 4"H x 10"W x 15"L WT: 2.9 lbs UPC: 082324053283

Read more less

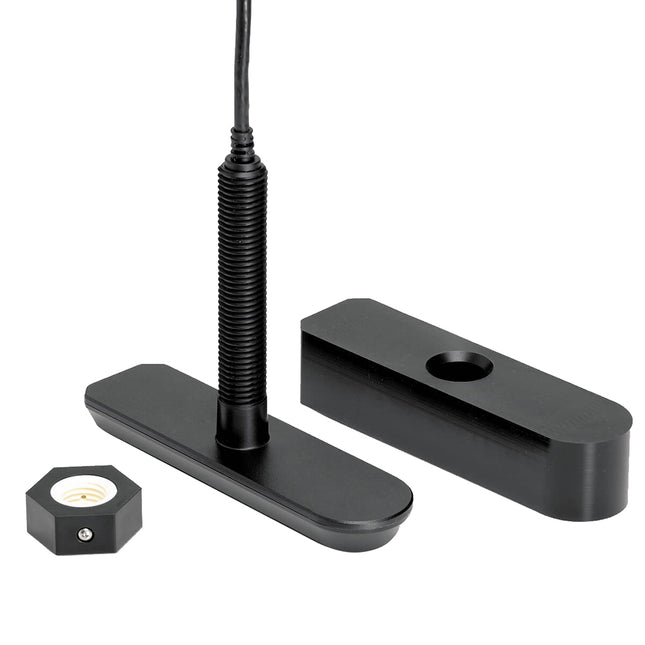

SSTH 14 HW MSI+ Stainless Steel Mega Thru-Hull 14-PinMeasures: Depth/Temperature. Frequency: 83/200/455/800kHz and 1.2 MHz. SOLIX MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP stainless steel thru hull transducer. This transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design and 30’ cable.

Read more less

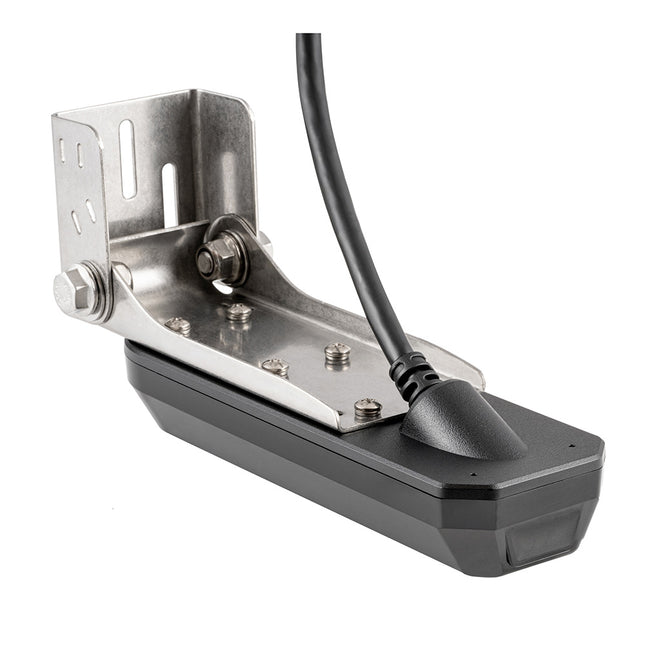

XM-14-HW-MSI-T MEGA SI+/DI+ Dual Spectrum CHIRP TM Transducer with Temp for SOLIX™MEGA Side Imaging+ Transom Mount Transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, all metal bracket and 20’ cable.Features: This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA SI+ GPS G2, SOLIX 12 CHIRP MEGA SI+ GPS G2, SOLIX 15 CHIRP MEGA SI+ GPS G2. Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz Dual Spectrum CHIRP Max Depth: 1200ft (365m) MEGA Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (122m) MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 250ft (76m), MEGA DI+: 1075-1150 kHz - 200ft (61m) Specifications: Cable Length (Feet): 20' Temperature: Yes Speed Included: No Pins: 14 Mounting Style: Transom Imagining: Standard/Down/Side Chirp: High Wide Box Dimensions: 4"H x 9"W x 15"L WT: 2.9 lbs UPC: 082324053252 Owner's Manual (pdf)

Read more less

XM-14-HW-MDI-T MEGA DI+ Dual Spectrum CHIRP Transom Mount Transducer with Temp for SOLIX™ MEGA DIMEGA Down Imaging+ Transom Mount Transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, all metal bracket and 20’ cable. Features: This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA DI+ GPS G2, SOLIX 12 CHIRP MEGA DI+ GPS G2, SOLIX 15 CHIRP MEGA DI+ GPS G2. Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz Dual Spectrum CHIRP Max Depth: 1200ft (365m) MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m) WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Mounting Style: Transom Imagining: Standard/Down Cable Length (Feet): 20' Pins: 14 Chirp: High Wide Box Dimensions: 7"H x 8"W x 10"L WT: 2.45 lbs UPC: 082324053191 Owner's Manual (pdf)

Read more less

XNT-14-HW-T Dual Spectrum CHIRP TM Transducer with Temp for SOLIX™Transom Mount Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. Includes built-in temperature sensor, all metal bracket and 20’ cable. Features: This accessory is compatible with the following Humminbird products: SOLIX 10, 12, 15 – All Models. Side Imaging™ and Down Imaging™ units can support the XNT 14 HW T as a 2D sonar only transducer. This transducer does not support Side Imaging or Down Imaging. Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz Dual Spectrum CHIRP Max Depth: 1200ft (365m) WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Mounting Style: Transom Temperature: Yes Speed Included: No Imagining: Standard Chirp: High Wide Cable Length (Feet): 20' Pins: 14 Box Dimensions: 7"H x 8"W x 10"L WT: 1.35 lbs UPC: 082324053054 Owner's Manual (pdf)

Read more less

XNT-9-HW-MSI-150-T MEGA SI/DI Dual Spectrum CHIRP Transducer with Temp f/HELIX® 7/8 MEGA SI Transom Mount, MEGA Down Imaging, 455 kHz and 1.2 MHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature. Compatible with: HELIX 7 CHIRP MEGA SI GPS G3/G4, HELIX 7 CHIRP MEGA SI GPS G3N/G4N. Features: Compatible with: HELIX 7 CHIRP MSI GPS G3, HELIX 7 CHIRP MSI GPS G3N, HELIX 7 CHIRP MSI GPS G4, HELIX 7 CHIRP MSI GPS G4N Cable Length:  20 Feet Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz Dual Spectrum CHIRP Max Depth: 1200ft (365m) Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (146m), MEGA SI: 1075-1150 kHz - 250ft (76m) Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 125ft (38m), MEGA DI: 1075-1150 kHz - 75ft (23m) WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Pins: 7 Mounting Style: Transom Speed Included: No Imagining: Standard/Down/Side Chirp: High Wide Cable Length (Feet): 20' Box Dimensions: 4"H x 8"W x 9"L WT: 1.45 lbs UPC: 082324053498 Owner's Manual (pdf)

Read more less

XP-14-HW-T Dual Spectrum CHIRP In-Hull Transducer with Temp for SOLIX™In-Hull Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. Intended for glue-in installation inside single layer fiberglass hulls. Includes built-in temperature sensor, epoxy kit and 20’ cable. Features: This accessory is compatible with the following Humminbird products: SOLIX® 10, 12, 15 – All G2 Models. Side Imaging™ and Down Imaging™ units can support the XP 14 HW T as a 2D sonar only transducer. This transducer does not support Side Imaging or Down Imaging. Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz DUAL Spectrum CHIRP Max Depth: 1200ft (365m) WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Pins: 14 Mounting Style: In-Hull Imagining: Standard Chirp: High Wide Speed Included: No Cable Length (Feet): 20' Box Dimensions: 7"H x 8"W x 10"L WT: 1.35 lbs UPC: 082324053092 Owner's Manual (pdf)

Read more less

XM 9 HW MSI T MEGA Side Imaging+™ Transom Mount TransducerMEGA Side Imaging+ Transom Mount Transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, all metal bracket and 20’ cable. Features: This accessory is compatible with the following Humminbird products: HELIX 8 CHIRP MEGA SI+ GPS G3N, HELIX 9 CHIRP MEGA SI+ GPS G3N, HELIX 10 CHIRP MEGA SI+ GPS G3N, HELIX 12 CHIRP MEGA SI+ GPS G3N Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz Dual Spectrum CHIRP Max Depth: 1200ft (365m) MEGA Side Imaging+ Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (122m) MEGA Down Imaging+ Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m) 1-Year Limited Warranty WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Imagining: Standard/Down/Side Pins: 7 Mounting Style: Transom Chirp: High Wide Cable Length (Feet): 20' Speed Included: No Box Dimensions: 4"H x 9"W x 15"L WT: 2.75 lbs UPC: 082324053269 Owner's Manual (pdf)

Read more less

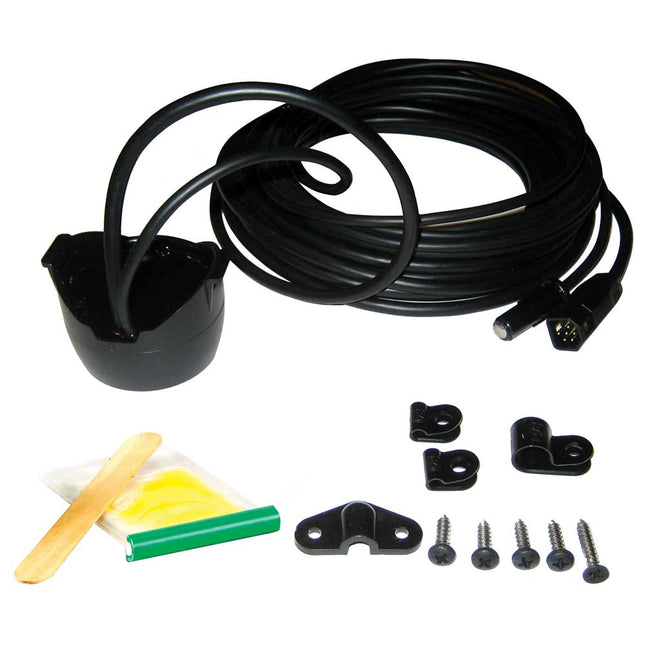

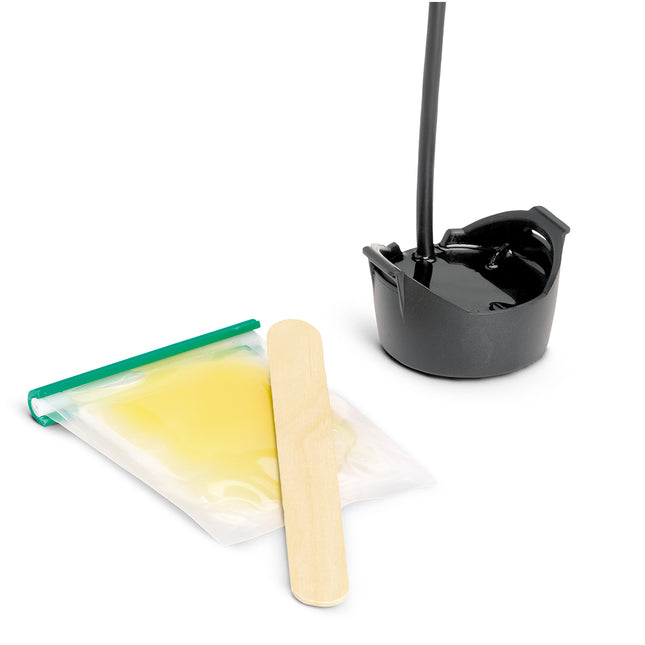

XP 9 HW In-Hull TransducerIn-Hull Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. Intended for glue-in installation inside single layer fiberglass hulls. Includes epoxy kit and 20’ cable. Features: This accessory is compatible with the following Humminbird products: HELIX 5 CHIRP G2 – GPS-equipped models only, HELIX 7 CHIRP G2/G3 – GPS-equipped and CHIRP DI G2 models, HELIX 7 CHIRP G2N/G3N – All models, HELIX 8 CHIRP G3N – All models, HELIX 9 CHIRP G2N/G3N – All models, HELIX 10 CHIRP G2N/G3N – All models, HELIX 12 CHIRP G2N/G3N – All models, ICE HELIX CHIRP G2 – All models (In Open Water Mode). Side Imaging™ and Down Imaging™ units can support the XP 9 HW as a 2D sonar only transducer. This transducer does not support Side Imaging or Down Imaging. Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz Dual Spectrum CHRIP Max Depth: 1200ft (365m) WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Mounting Style: In-Hull Imagining: Standard Temperature: No Speed Included: No Pins: 7 Chirp: High Wide Cable Length (Feet): 20' Box Dimensions: 4"H x 8"W x 9"L WT: 0.8 lbs UPC: 082324053108 Owner's Manual (pdf)

Read more less

XM 9 HW MDI T Transom Mount TransducerMEGA Down Imaging+ Transom Mount Transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, impact-release mounting bracket and 20' cable. Features: This accessory is compatible with the following Humminbird products: HELIX 8 G3N Series MEGA DI+ and MEGA SI+, HELIX 9 G3N Series MEGA DI+ and MEGA SI+, HELIX 10 G3N Series MEGA DI+ and MEGA SI+, HELIX 12 G3N Series MEGA DI+ and MEGA SI+. Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz Dual Spectrum CHIRP Max Depth: 1200ft (365m) Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 125ft (38m), MEGA DI+: 1075-1150 kHz - 200ft (61m) 1-Year Limited Warranty WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 7 Mounting Style: Transom Imagining: Standard/Down Chirp: High Wide Cable Length (Feet): 20' Box Dimensions: 7"H x 8"W x 10"L WT: 2.25 lbs UPC: 082324053207 Owner's Manual (pdf)

Read more less

XI-9-19 Dual Beam Ice Transducer 455-240kHzFeatures: Operating Frequency: 240 kHz to 455 kHz Beamwidth: 9°, 19° Compatibility: ICE 35 ICE 45 ICE 55 WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Read more less

XNT-9-HW-T HELIX® Dual Spectrum CHIRP Transom Mount Transducer with TempTransom Mount Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. Includes built-in temperature sensor, rugged composite design, impact-release mounting bracket and 20' cable. Features: This accessory is compatible with the following Humminbird products: HELIX 5 CHIRP G2 – GPS-equipped models only, HELIX 7 CHIRP G2/G3 – GPS-equipped and CHIRP DI G2 models, HELIX 7 CHIRP G2N/G3N – All models, HELIX 8 CHIRP G3N – All models, HELIX 9 CHIRP G2N/G3N – All models, HELIX 10 CHIRP G2N/G3N – All models, HELIX 12 CHIRP G2N/G3N – All models, ICE HELIX CHIRP G2 – All models (in Open Water Mode) Side Imaging™ and Down Imaging™ units can support the XNT 9 HW T as a 2D sonar only transducer. This transducer does not support Side Imaging™ or Down Imaging™. Dual Spectrum CHIRP: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz Dual Spectrum CHIRP- Max Depth: 1200ft (365m) WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 7 Imagining: Standard Chirp: High Wide Cable Length (Feet): 20' Mounting Style: Transom Box Dimensions: 4"H x 8"W x 9"L WT: 1 lbs UPC: 082324053061 Owner's Manual (pdf)

Read more less

XM 9 20 MSI T MEGA Transom Mount TransducerMEGA SI, MEGA DI, DualBeam PLUS, 20/60/86/55 degrees, 200/83/455/800 kHz and 1.2 MHz, temperature built-in. For HELIX MEGA Side Imaging units only. WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 7 Mounting Style: Transom Imagining: Standard/Down/Side Box Dimensions: 7"H x 8"W x 10"L WT: 2.8 lbs UPC: 082324050275 Owner's Manual (pdf)

Read more less

XTH 9 DB 74 P Dual Beam Plastic Thru-HullFeatures: Dual Beam, 20/74 degrees 200/50kHz, temp included 6.7"L x 3"W x 1.4"D (below boat hull) Shaft: 1" diameter Cable Length: 30' WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Pins: 7 Speed Included: No Mounting Style: Thru-Hull Imagining: Standard Chirp: No Cable Length (Feet): 30' Temperature: Yes Box Dimensions: 7"H x 8"W x 10"L WT: 3.65 lbs UPC: 082324506826 Owner's Manual (pdf)

Read more less

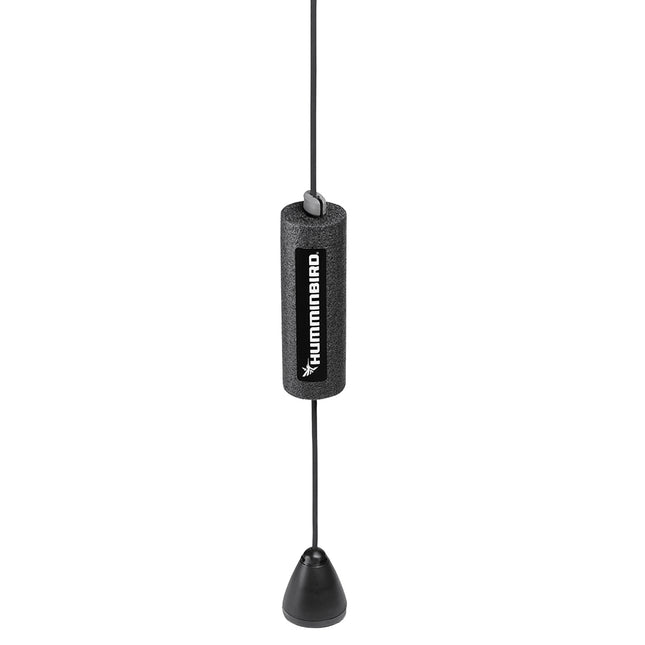

XI 9 20 Dual Beam ICE TransducerFeatures: Single/Dual Beam 20/60 Degree 200/83 kHz 8' cable WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Owner's Manual (pdf)

Read more less

XNT-9-28-TTransom Mount TransducerMount on the transom (back of the boat)Available on many models, the impact release feature pivots transducer out of the way if struck by an object.Single/Dual Beam 28/16°200/455kHzWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Pins: 7 Mounting Style: Transom Imagining: Standard Chirp: No Cable Length (Feet): 20' Temperature: Yes Speed Included: No Box Dimensions: 4"H x 8"W x 9"L WT: 1 lbs UPC: 082324036545 Owner's Manual (pdf)

Read more less

XNT 9 DI T Transom Mount TransducerPart #: 710226-1Features: Down Imaging/DualBeam Plus 75 degrees/ 45 degrees 455/800 kHz (DI) 25 degrees/16 degrees 200/455 kHz with built-in temperature 20' Cable WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 7 Imagining: Standard/Down Cable Length (Feet): 20' Mounting Style: Transom Box Dimensions: 3"H x 7"W x 8"L WT: 1.25 lbs UPC: 082324035227 Quick Guide (pdf)

Read more less

Humminbird XNT 9 SI 180 TNew transom mount transducer design. Compact dual/side imaging. 20/74/84 degree, 200/83/455 kHz with built in temperature. New design is more secure and is not a prone to kick up at high force of waves. It has an improved running angle and a optional lock down screw to override the kick up. Has same hole pattern as some older version transducersFor Use With: 797cWARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Cable Length (Feet): 20' Mounting Style: Transom Pins: 7 Speed Included: No Temperature: Yes Imagining: Standard/Down/Side Chirp: No Box Dimensions: 2"H x 8"W x 9"L WT: 1.6 lbs UPC: 082324507502 Quick Guide (pdf)Owner's Manual (pdf)

Read more less

Puck TransducerDescription: Puck transducer . Single/Dual Beam, 20/60 degree, 200/83 kHz with built in temperatureFor Use With: Legend ID40, Piranha 5, PiranhaMax 10, PiranhaMax 15, PiranhaMax 20, Matrix 15, Matrix 17, Matrix 25, Matrix 27, Matrix 55, Matrix 65, Matrix 67, Matrix 97, FF515, FF535, FF565.WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Pins: 7 Mounting Style: In-Hull Imagining: Standard Chirp: No Cable Length (Feet): 15' Speed Included: No Temperature: Yes Box Dimensions: 3"H x 6"W x 8"L WT: 1.35 lbs UPC: 082324506086 Owner's Manual (pdf)

Read more less

Transom Mount TransducerDual/HD Side Imaging Transom, 20/60/180 cable degree, 200/83/455/800 kHz with built-in temperature. 20' cable.WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Speed Included: No Mounting Style: Transom Chirp: No Cable Length (Feet): 20' Temperature: Yes Box Dimensions: 6"H x 8"W x 8"L WT: 1.95 lbs UPC: 082324507496 Owner's Manual (pdf)

Read more less

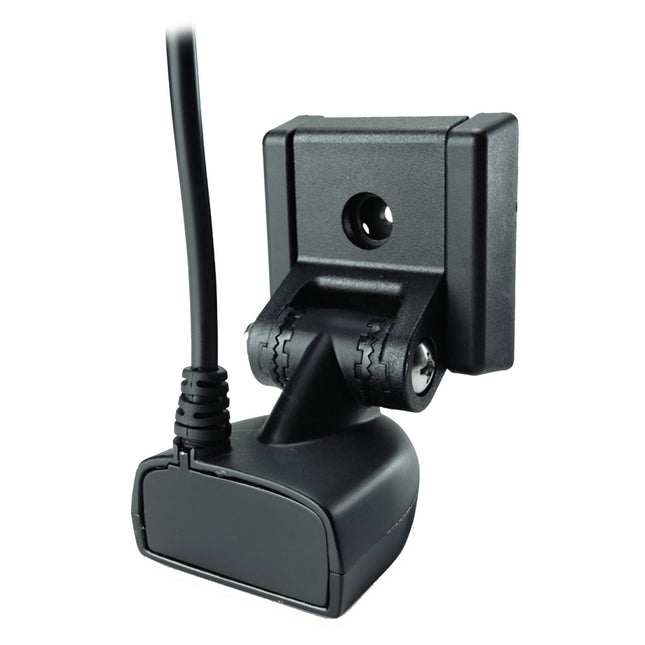

Transom Mount TransducersTransom Transducers mount on the transom (back) of the boat in contact with the surface of the water. To prevent damage to the boat or transducer. Transom mount hardware is included with the transducer.Description: New transom mount transducer design. Single/Dual Beam, 20/60 Degree, 200/83 kHz with built in temperature sensor. New design is more secure and is not a prone to kick up at high force of waves. It has an improved running angle and a optional lock down screw to override the kick up. Has same hole pattern as some older version transducersFor Use With: Matrix 10, 12, 15, 17, 20, 27, 67, 77c, 87c, 97, 717, 727, 737, 767, 777, 787, 323, 343, 363, 383, 141, 161, PMax10, PMax15, PMax20, PMax210, PMax215, PMax220, 917c, 931c, 937c, 957c, 997c, 515, 525, 535, 565,580, 585c, 595c, Piranha 2, Piranha 4, XP2000, XP4000WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Temperature: Yes Speed Included: No Pins: 7 Mounting Style: Transom Imagining: Standard Chirp: No Cable Length (Feet): 20' Box Dimensions: 4"H x 8"W x 9"L WT: 1.1 lbs UPC: 082324507489 Quick Guide (pdf)Owner's Manual (pdf)

Read more less
