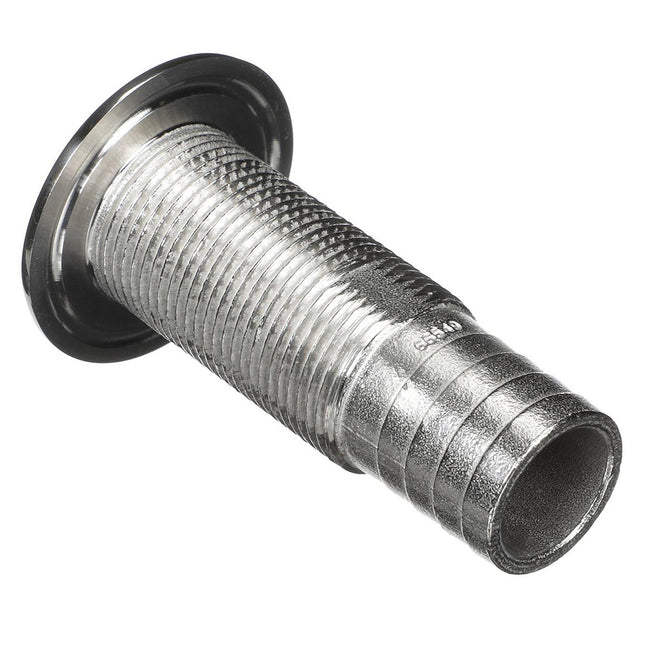

Stainless Steel Thru-Hull Standard Straight Barbed - 1" Inner DiameterPolish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat?Rugged Stainless Construction:
Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistance
All visible areas are polished to a mirror finish, then passivate each part for additional protection
Thick steel sidewalls withstand continual stress and hose flexing
Faster, Simpler Installation:
Each Thru-Hull is available with a new silicone gasket
A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal
All models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hull
The barbed tail ends provide plenty of room to hold multiple clamps
Stainless Steel Straight Thru-Hulls, BarbedStandard Thread model has a full-length thread for thick hulls and easy tighteningSpecifications:
Hose size: (inch) 1" inner diameter
Flange Diameter: (inch) 2-1/4"
Thread O.D. (outside diameter): (inch) 1-3/8"
Thread Length: (inch) 2-1/4"
Barb Length: (inch) 1-1/4"
Total Length: (inch) 3-7/8"
Install Hole Saw Size: (inch) 1-1/2"
Thread NPSM: (inch) 1"
Max Hull Thickness: (inch) 1-3/4"
*Stainless Steel Thru-Hull Connectors are designed for installation above the water line only Specifications:
Hose Size: 1"
Material: Stainless Steel
Box Dimensions: 3"H x 4"W x 7"L WT: 0.8 lbs
UPC: 022697665485
Quick Guide (pdf)

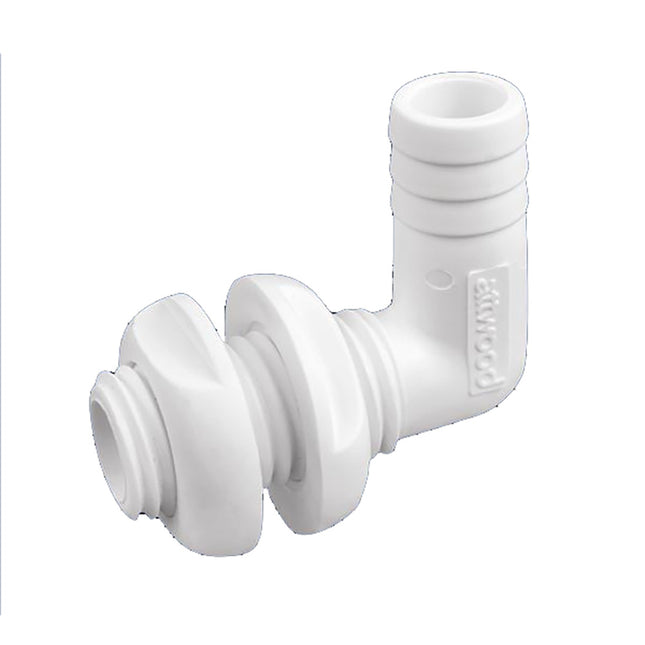

White Plastic 90 Degree Thru-Hull Connector - 3/4" Inner Diameter90° Thru-Hulls are ideal for tight installations, such as livewell overflow drains. The angled design also eliminates hose kinking.Specifications:
Fits Hose Size: (inch) 3/4"inner diameter
Max Hull Thickness: (inch) 1"
Flange Diameter: (inch) 1-1/2"
Installation Hole Size: (inch) 1"
Drain Plug: (inch) 1/2"
Color: White
*Plastic Thru-Hull Connectors are designed for installation above the water line only Specifications:
Hose Size: 3/4"
Material: Plastic
Box Dimensions: 1"H x 2"W x 3"L WT: 0.2 lbs
UPC: 022697387738
Quick Guide (pdf)
Stainless Steel Thru-Hull Standard Straight Barbed - 5/8" Inner DiameterPolish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat?Rugged Stainless Construction:
Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistance
All visible areas are polished to a mirror finish, then passivate each part for additional protection
Thick steel sidewalls withstand continual stress and hose flexing
Faster, Simpler Installation:
Each Thru-Hull is available with a new silicone gasket
A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal
All models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hull
The barbed tail ends provide plenty of room to hold multiple clamps
Stainless Steel Straight Thru-Hulls, BarbedStandard Thread model has a full-length thread for thick hulls and easy tighteningSpecifications:
Hose size: (inch) 5/8" inner diameter
Flange Diameter: (inch) 1-7/8"
Thread O.D. (outside diameter): (inch) 1"
Thread Length: (inch) 2"
Barb Length: (inch) 1-1/4"
Total Length: (inch) 3-3/4"
Install Hole Saw Size: (inch) 1-1/8"
Thread NPSM: (inch) 3/4"
Max Hull Thickness: (inch) 1-1/16"
*Stainless Steel Thru-Hull Connectors are designed for installation above the water line only Specifications:
Hose Size: 5/8"
Material: Stainless Steel
Box Dimensions: 2"H x 3"W x 6"L WT: 0.5 lbs
UPC: 022697665461
Quick Guide (pdf)

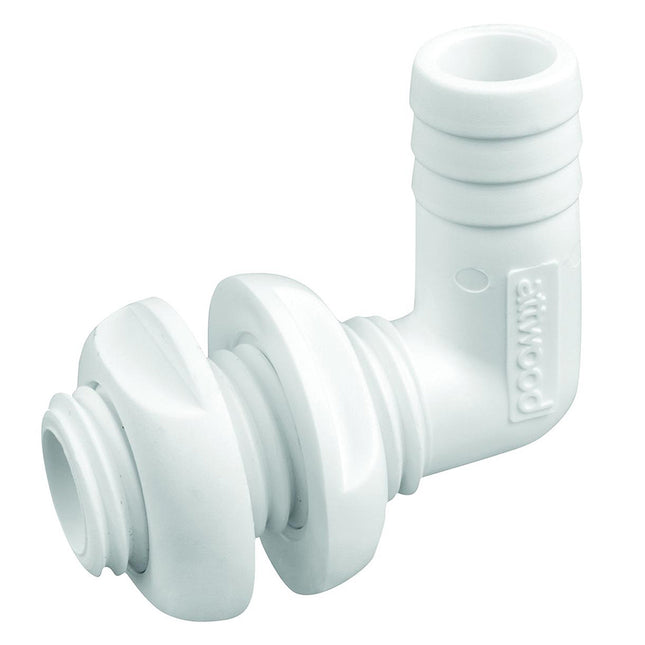

White Plastic 90 Degree Thru-Hull Connector - 1-1/8" Inner Diameter90° Thru-Hulls are ideal for tight installations, such as livewell overflow drains. The angled design also eliminates hose kinking.Specifications:
Fits Hose Size: (inch) 1-1/8"inner diameter
Max Hull Thickness: (inch) 1-7/8"
Flange Diameter: (inch) 2-7/16"
Installation Hole Size: (inch) 1-5/16"
Drain Plug: (inch) 7/8"
Color: White
*Plastic Thru-Hull Connectors are designed for installation above the water line only Specifications:
Hose Size: 1-1/8"
Material: Plastic
Box Dimensions: 2"H x 4"W x 7"L WT: 0.25 lbs
UPC: 022697387936
Quick Guide (pdf)
Stainless Steel Thru-Hull Standard Straight Barbed - 3/4" Inner DiameterPolish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat?Rugged Stainless Construction:
Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistance
All visible areas are polished to a mirror finish, then passivate each part for additional protection
Thick steel sidewalls withstand continual stress and hose flexing
Faster, Simpler Installation:
Each Thru-Hull is available with a new silicone gasket
A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal
All models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hull
The barbed tail ends provide plenty of room to hold multiple clamps
Stainless Steel Straight Thru-Hulls, BarbedStandard Thread model has a full-length thread for thick hulls and easy tighteningSpecifications:
Hose size: (inch) 3/4" inner diameter
Flange Diameter: (inch) 1-7/8"
Thread O.D. (outside diameter): (inch) 1"
Thread Length: (inch) 2"
Barb Length: (inch) 1-1/4"
Total Length: (inch) 3-3/4"
Install Hole Saw Size: (inch) 1-1/8"
Thread NPSM: (inch) 3/4"
Max Hull Thickness: (inch) 1-5/8"
*Stainless Steel Thru-Hull Connectors are designed for installation above the water line only Specifications:
Hose Size: 3/4"
Material: Stainless Steel
Box Dimensions: 2"H x 3"W x 6"L WT: 0.6 lbs
UPC: 022697665478
Quick Guide (pdf)
Stainless Steel Scupper Valve Barbed - 1-1/2" Hose SizePolish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat?Rugged Stainless Construction:
Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistance
All visible areas are polished to a mirror finish, then passivate each part for additional protection
Thick steel sidewalls withstand continual stress and hose flexing
Faster, Simpler Installation:
Each Scupper Valve is available with a new silicone gasket
A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal
All models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hull
The barbed tail ends provide plenty of room to hold multiple clamps
Stainless Steel Scupper Valves, Barbed:
The Scupper Flap is tough neoprene rubber with a molded V that fits into the grooved body to reduce backwash
Fasteners are concealed and corrosion-proof
Specifications:
Hose size: (inch) 1-1/2" inner diameter
Thread Diameter: (inch) 1-7/8"
Flange O.D. (outside diameter): (inch) 3"
Thread Length: (inch) 3-1/2"
Barb Length: (inch) 1-1/2"
Total Length: (inch) 5-1/2"
Install Hole Saw Size: (inch) 2"
Thread NPSM: (inch) 1-1/2"
Max Hull Thickness: (inch) 3"
*Stainless Steel Thru-Hull Connectors are designed for installation above the water line only Specifications:
Hose Size: 1-1/4"
Material: Stainless Steel
Box Dimensions: 3"H x 3"W x 6"L WT: 3 lbs
UPC: 022697665539
Quick Guide (pdf)
Stainless Steel Thru-Hull Standard Straight Barbed - 1-1/8" Inner DiameterPolish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat?Rugged Stainless Construction:
Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistance
All visible areas are polished to a mirror finish, then passivate each part for additional protection
Thick steel sidewalls withstand continual stress and hose flexing
Faster, Simpler Installation:
Each Thru-Hull is available with a new silicone gasket
A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal
All models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hull
The barbed tail ends provide plenty of room to hold multiple clamps
Stainless Steel Straight Thru-Hulls, BarbedStandard Thread model has a full-length thread for thick hulls and easy tighteningSpecifications:
Hose size: (inch) 1-1/8" inner diameter
Flange Diameter: (inch) 2-1/4"
Thread O.D. (outside diameter): (inch) 1-3/8"
Thread Length: (inch) 2-3/8"
Barb Length: (inch) 1-1/4"
Total Length: (inch) 3-7/8"
Install Hole Saw Size: (inch) 1-1/4"
Thread NPSM: (inch) 1"
Max Hull Thickness: (inch) 1-3/4"
*Stainless Steel Thru-Hull Connectors are designed for installation above the water line only Specifications:
Hose Size: 1-1/8"
Material: Stainless Steel
Box Dimensions: 2"H x 4"W x 7"L WT: 0.85 lbs
UPC: 022697665492
Quick Guide (pdf)
Stainless Steel Thru-Hull Standard Straight Barbed - 1-1/2" Inner DiameterPolish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat?Rugged Stainless Construction:
Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistance
All visible areas are polished to a mirror finish, then passivate each part for additional protection
Thick steel sidewalls withstand continual stress and hose flexing
Faster, Simpler Installation:
Each Thru-Hull is available with a new silicone gasket
A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal
All models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hull
The barbed tail ends provide plenty of room to hold multiple clamps
Stainless Steel Straight Thru-Hulls, BarbedStandard Thread model has a full-length thread for thick hulls and easy tighteningSpecifications:
Hose size: (inch) 1-1/2" inner diameter
Flange Diameter: (inch) 3"
Thread O.D. (outside diameter): (inch) 1-7/8"
Thread Length: (inch) 2-1/2"
Barb Length: (inch) 1-1/4"
Total Length: (inch) 4-1/8"
Install Hole Saw Size: (inch) 2"
Thread NPSM: (inch) 1-1/2"
Max Hull Thickness: (inch) 1-7/8"
*Stainless Steel Thru-Hull Connectors are designed for installation above the water line only Specifications:
Hose Size: 1-1/2"
Material: Stainless Steel
Box Dimensions: 3"H x 5"W x 8"L WT: 1.55 lbs
UPC: 022697665515
Quick Guide (pdf)

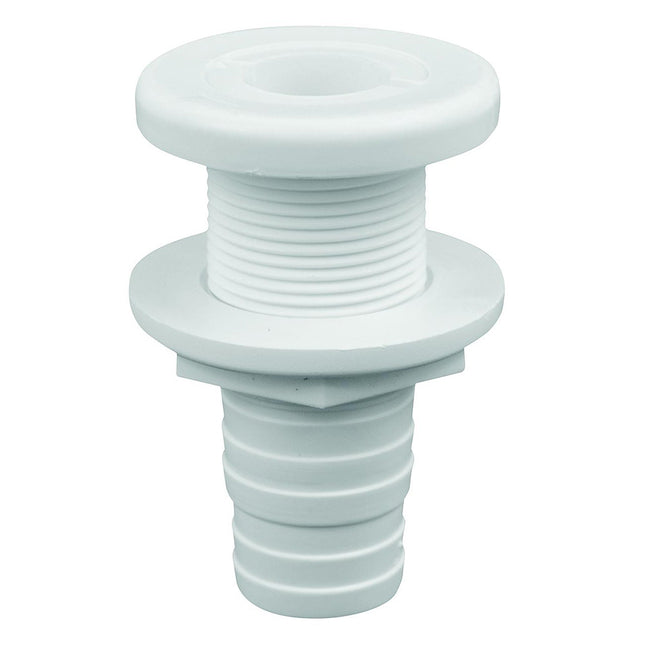

White Plastic Thru-Hull Fitting - 1-1/8" Inner DiameterThis thru-hull fitting is made with a durable, thermoplastic construction, which prevents electrolysis.Specifications:
Hose Size: (inch) 1-1/8" Inner diameter
Stem Length: (inch) 3-1/4"
Max Hull Thickness: (inch) 1-1/4"
Flange Diameter: (inch) 2-1/4"
Installation Hole Size: (inch) 1-3/8"
Drain Plug: (inch) 7/8"
Construction: Polypropylene
Color: White
*Plastic thru-hull connectors are designed for installation above the water line only Specifications:
Hose Size: 1-1/8"
Material: Plastic
Box Dimensions: 3"H x 4"W x 7"L WT: 0.25 lbs
UPC: 022697387431
Quick Guide (pdf)

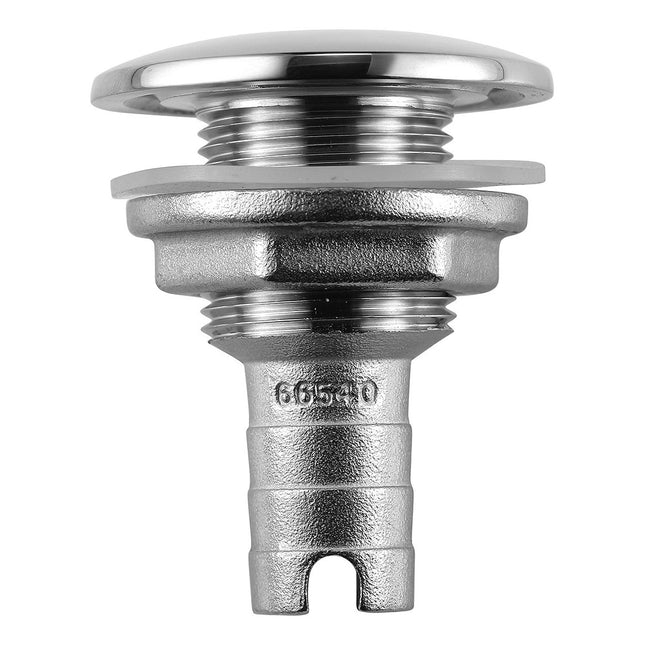

Stainless Steel Thru-Hull Short Straight Barbed - 1" Inner DiameterPolish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat?Rugged Stainless Construction:
Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistance
All visible areas are polished to a mirror finish, then passivate each part for additional protection
Thick steel sidewalls withstand continual stress and hose flexing
Faster, Simpler Installation:
Each Thru-Hull is available with a new silicone gasket
A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal
All models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hull
The barbed tail ends provide plenty of room to hold multiple clamps
Stainless Steel Straight Thru-Hulls, BarbedShort Thread is a more compact size, which allows installation near corners and in confined areasSpecifications:
Hose size: (inch) 1" inner diameter
Flange Diameter: (inch) 2-1/4"
Thread O.D. (outside diameter): (inch) 1-3/8"
Thread Length: (inch) 1-1/8"
Barb Length: (inch) 1"
Total Length: (inch) 2-1/2"
Install Hole Saw Size: (inch) 1-1/2"
Thread NPSM: (inch) 1"
Max Hull Thickness: (inch) 5/8"
*Stainless Steel Thru-Hull Connectors are designed for installation above the water line only Specifications:
Hose Size: 1"
Material: Stainless Steel
Box Dimensions: 2"H x 3"W x 3"L WT: 0.6 lbs
UPC: 022697665423
Quick Guide (pdf)
Stainless Steel Thru-Hull Short Straight Barbed - 3/4" Inner DiameterPolish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat?Rugged Stainless Construction:
Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistance
All visible areas are polished to a mirror finish, then passivate each part for additional protection
Thick steel sidewalls withstand continual stress and hose flexing
Faster, Simpler Installation:
Each Thru-Hull is available with a new silicone gasket
A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal
All models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hull
The barbed tail ends provide plenty of room to hold multiple clamps
Stainless Steel Straight Thru-Hulls, BarbedShort Thread is a more compact size, which allows installation near corners and in confined areasSpecifications:
Hose size: (inch) 3/4" inner diameter
Flange Diameter: (inch) 1-7/8"
Thread O.D. (outside diameter): (inch) 1"
Thread Length: (inch) 1"
Barb Length: (inch) 1"
Total Length: (inch) 2-1/2"
Install Hole Saw Size: (inch) 1-1/8"
Thread NPSM: (inch) 3/4"
Max Hull Thickness: (inch) 5/8"
*Stainless Steel Thru-Hull Connectors are designed for installation above the water line only Specifications:
Hose Size: 3/4"
Material: Stainless Steel
Box Dimensions: 2"H x 3"W x 6"L WT: 0.4 lbs
UPC: 022697665416
Quick Guide (pdf)

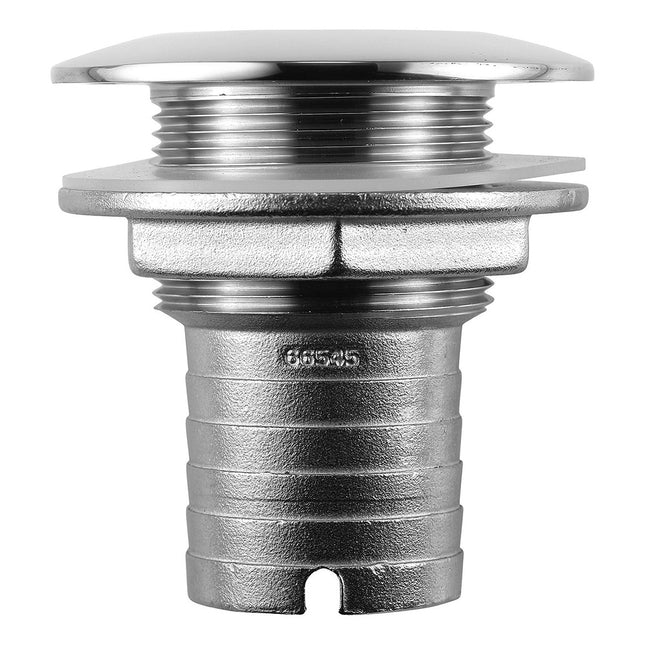

Stainless Steel Thru-Hull Short Straight Barbed - 1-1/2" Inner Diameter Polish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat?Rugged Stainless Construction:
Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistance
All visible areas are polished to a mirror finish, then passivate each part for additional protection
Thick steel sidewalls withstand continual stress and hose flexing
Faster, Simpler Installation:
Each Thru-Hull is available with a new silicone gasket
A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal
All models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hull
The barbed tail ends provide plenty of room to hold multiple clamps
Stainless Steel Straight Thru-Hulls, BarbedShort Thread is a more compact size, which allows installation near corners and in confined areasSpecifications:
Hose size: (inch) 1-1/2" inner diameter
Flange Diameter: (inch) 3"
Thread O.D. (outside diameter): (inch) 1-7/8"
Thread Length: (inch) 1-1/4"
Barb Length: (inch) 1-1/2"
Total Length: (inch) 3-1/8"
Install Hole Saw Size: (inch) 2"
Thread NPSM: (inch) 1-1/2"
Max Hull Thickness: (inch) 5/8"

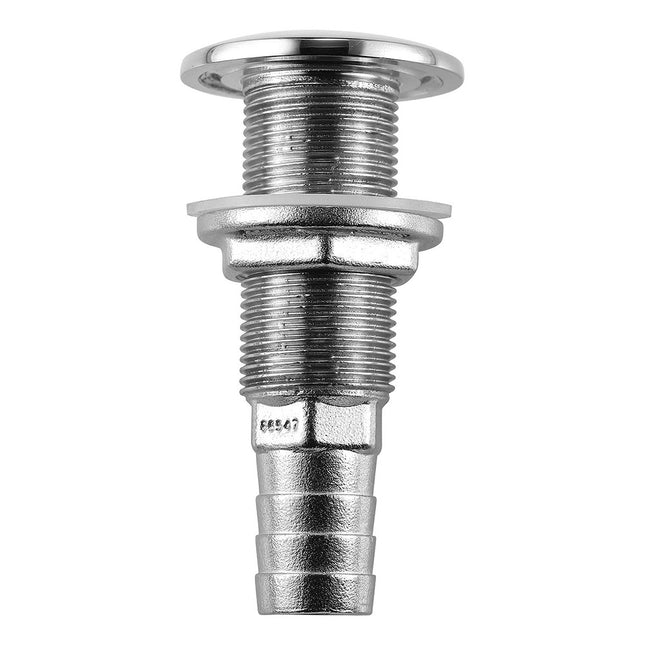

*Stainless Steel Thru-Hull Connectors are designed for installation above the water line only Specifications:
Hose Size: 1-1/2"
Material: Stainless Steel
Box Dimensions: 3"H x 3"W x 3"L WT: 1.2 lbs
UPC: 022697665454
Quick Guide (pdf)

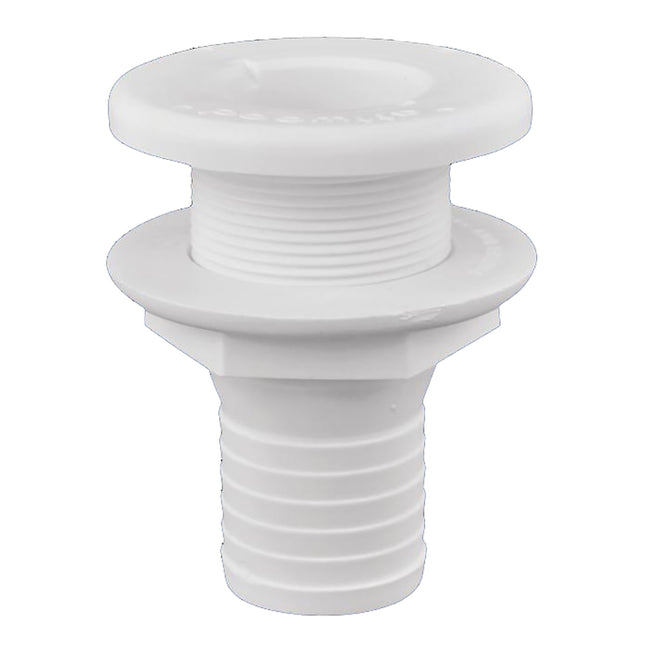

Plastic Thru-Hull Fitting - 1-1/2" - WhiteThese thru-hulls are made with a durable, thermoplastic construction which prevents electrolysis.Caution: Thru-Hull connectors are designed for installation above the water line only.Specifications:
Fits Hose Size: 1-1/2" I.D.
Stem Length: 3-1/2"
Max. Hull Thickness: 1-1/4"
Flange Diameter: 3"
Installation Hose Size: 1-7/8" to 2"
Construction: Polypropylene
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Hose Size: 1-1/2"
Material: Plastic
Box Dimensions: 4"H x 6"W x 9"L WT: 0.2 lbs
UPC: 022697387530
