Humminbird XPTH 14 HW MSI T Plastic Thru Hull Transducer [710294-1]

Description

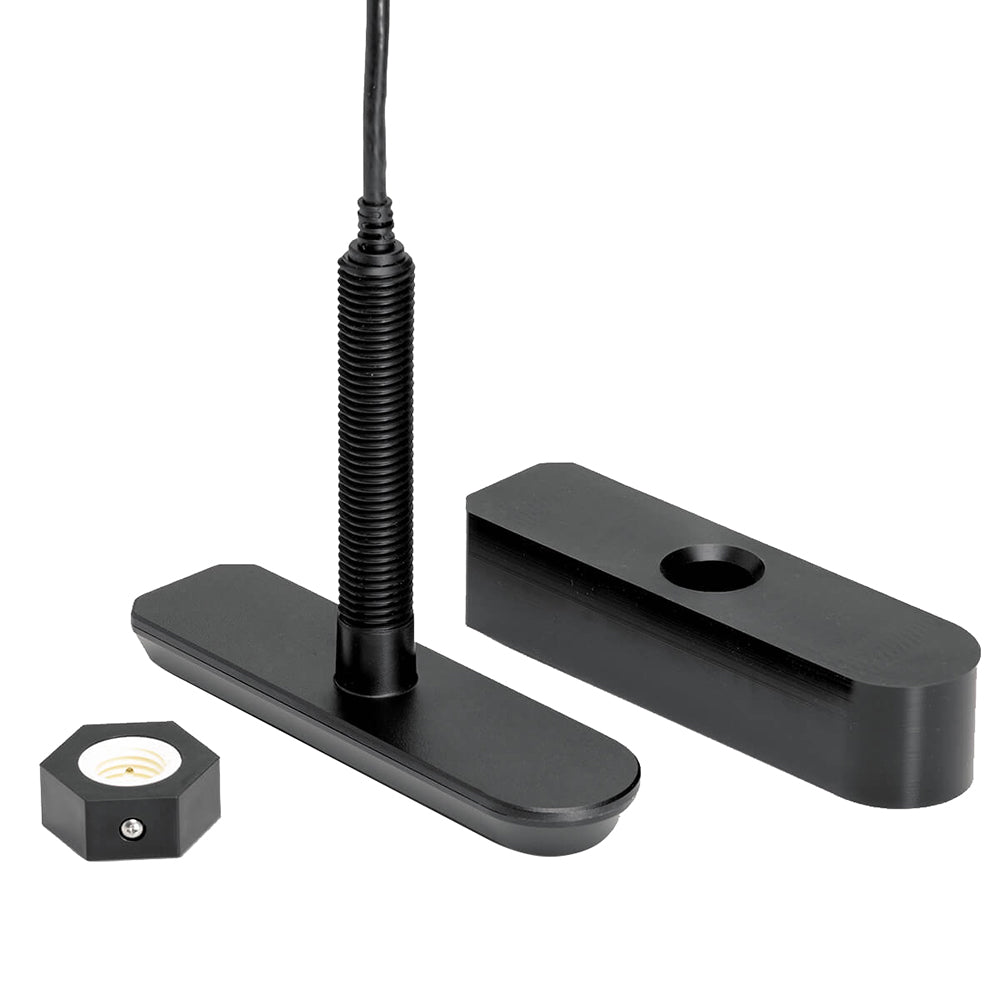

XPTH 14 HW MSI T Plastic Thru Hull Transducer

SOLIX MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP plastic thru hull transducer. This transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design and 30’ cable.

Features:

  • This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA SI+ GPS G2, SOLIX 12 CHIRP MEGA SI+ GPS G2, SOLIX 15 CHIRP MEGA SI+ GPS G2
  • MEGA Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (122m)
  • MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 250ft (76m), MEGA DI+: 1075-1150 kHz - 200ft (61m)
  • Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
  • Dual Spectrum CHIRP Max Depth: 1200ft (365m)
  • Dimensions: L 8.4" x W 2.3" x D 1.0" - Stem Length 5", Stem Diameter 1"
  • 1-Year Limited Warranty

Specifications:

  • Imagining: Standard/Down/Side
  • Chirp: High Wide
  • Cable Length (Feet): 30'
  • Speed Included: No
  • Mounting Style: Thru-Hull
  • Temperature: Yes

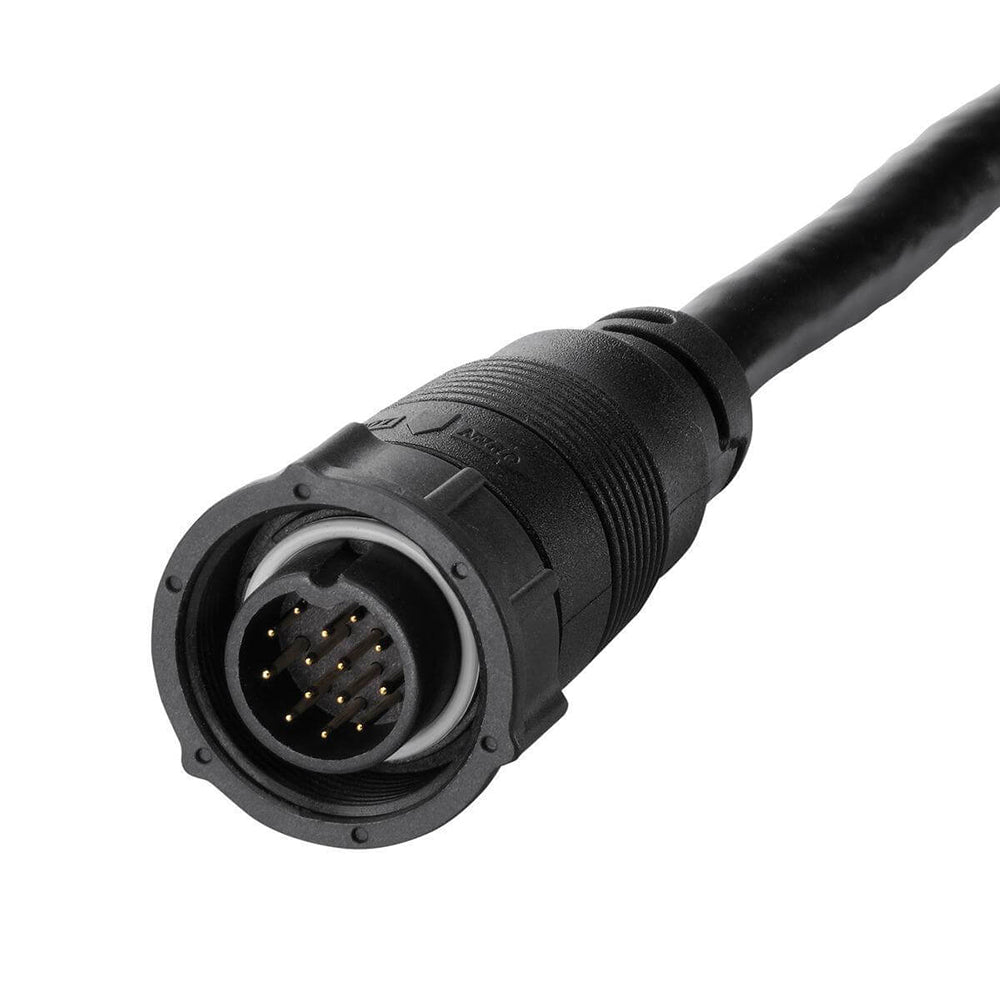

  • Pins: 14
  • Box Dimensions: 4"H x 10"W x 15"L WT: 2.9 lbs
  • UPC: 082324053283

Humminbird XPTH 14 HW MSI T Plastic Thru Hull Transducer [710294-1]

Product form

XPTH 14 HW MSI T Plastic Thru Hull TransducerSOLIX MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP plastic thru... Read more

5 in stock

$499.99

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    XPTH 14 HW MSI T Plastic Thru Hull Transducer

    SOLIX MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP plastic thru hull transducer. This transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design and 30’ cable.

    Features:

    • This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA SI+ GPS G2, SOLIX 12 CHIRP MEGA SI+ GPS G2, SOLIX 15 CHIRP MEGA SI+ GPS G2
    • MEGA Side Imaging Frequencies - Max Range (side-to-side): 455kHz: 440-500 kHz - 800ft (244m), 800kHz: 790-850 kHz - 250ft (76m), MEGA SI+: 1075-1150 kHz - 400ft (122m)
    • MEGA Down Imaging Frequencies - Max Depth: 455kHz: 440-500 kHz - 400ft (122m), 800kHz: 790-850 kHz - 250ft (76m), MEGA DI+: 1075-1150 kHz - 200ft (61m)
    • Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
    • Dual Spectrum CHIRP Max Depth: 1200ft (365m)
    • Dimensions: L 8.4" x W 2.3" x D 1.0" - Stem Length 5", Stem Diameter 1"
    • 1-Year Limited Warranty

    Specifications:

    • Imagining: Standard/Down/Side
    • Chirp: High Wide
    • Cable Length (Feet): 30'
    • Speed Included: No
    • Mounting Style: Thru-Hull
    • Temperature: Yes
    • Pins: 14
    • Box Dimensions: 4"H x 10"W x 15"L WT: 2.9 lbs
    • UPC: 082324053283
