Service Kit for S500 & S800 Bilge PumpsSpecifications:
Outlet Diameter: 3/4" (19mm) & 1" (25mm)
Compatible with Tsunami Bilge Mk2
Kit Includes (1 each):
90-degree outlet
Straight outlet
Washer
Non-return/check valve
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Snap-Handle Brass Drain Plug - 1" DiameterA clockwise turn of the handle tightens the plug in its tube, and the handle flips down to lock.Features:
Handle: Brass
For 1" diameter drains
*Sold as an Individual Specifications:
Construction: Brass
Box Dimensions: 2"H x 3"W x 6"L WT: 0.1 lbs
UPC: 022697752475
Quick Guide (pdf)
Snap-Handle Stainless Steel Drain Plug - 1" DiameterA clockwise turn of the handle tightens the plug in its tube, and the handle flips down to lock.Features:
Handle: Stainless Steel
For 1" diameter drains
*Sold as an Individual Specifications:
Construction: Stainless Steel
Box Dimensions: 1"H x 3"W x 7"L WT: 0.5 lbs
UPC: 022697752079
Quick Guide (pdf)
Soft Grip 13" Steering WheelThis is the ideal steering wheel for bass boats, sport boats, and runabouts. The steering wheel has a patented design that provides a comfortable and firm grip. Also, this steering wheel has contemporary styling with a soft, black PVC outer rim and a high-impact, one-piece plastic inner core. It fits all standard 3/4-inch tapered shafts and conforms to ABYC P-22 and ISO 8848.Features:
Resists UV rays to prevent fading
Soft Grip is non-magnetic, so it will not interfere with compass readings
3-3/8 inch deep dish
8315 NMMA “As Approved”: 090071; CE Certificate WATT004
Specifications:Center Cap: Black plastic Specifications:
Diameter (Inches): 13"
Box Dimensions: 4"H x 14"W x 14"L WT: 2.75 lbs
UPC: 022697831545
Quick Guide (pdf)

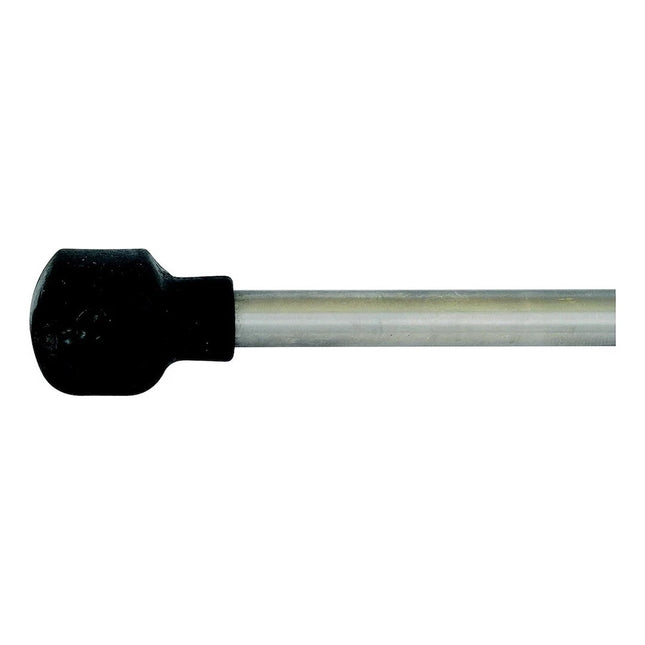

Springlift Black Composite - 10mm Socket - Extended 26.9" - Compressed 15.2"Attwood is partnered with Stabilus®, the world’s leading supplier of gas springs and related products with over 100,000,000 units in the field. All Attwood springs are made with biodegradable, no-hazard water-grade oil (WGK). making them the marine industry’s most environmentally friendly gas springs. All springs pass ASTM B117, Attwood salt spray, and a 30,000-cycle lifecycle test. Attwood springs come with support to ensure the proper spring for a specific application, including marine, industrial, agricultural, pharmaceutical, food processing, and medical. Specifications:
Extended: 26.97 in.
Compressed: 15.20 in.
Stroke: 11.77 in.
End Fitting: 10mm Socket
Available Output Force: 30-180 lbs.
Quick Guide (pdf)
Stainless Gas Spring - 12" - 10mm BladeAll series 34 are 20" long expanded and 12" long closed. They have 3/8" ball socket type ends with a rod diameter of 5/16" and a cylinder diameter of 3/4".Stainless Steel shell and rod ensure corrosion-resistance and up to 30% lower cost than competitive stainless springs. All Stainless Steel Springs come with high-strength, corrosion-proof composite end fittings.Specifications:
Length: 12" long, closed
10mm Blade
Stainless Steel Garboard Drain Plug - 7/8" DiameterThe Garboard Drain Plug is a threaded removable plug, which has a retention system that keeps the plug from getting lost. Features:
High-polished #316 stainless steel reduces corrosion
Large 7/8" (27mm) hole for servicing stern drives
*Gasket not included Specifications:
Construction: Stainless Steel
Box Dimensions: 2"H x 3"W x 5"L WT: 0.3 lbs
UPC: 022697075574
Quick Guide (pdf)
Stainless Steel Scupper Valve Barbed - 1-1/2" Hose SizePolish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat?Rugged Stainless Construction:
Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistance
All visible areas are polished to a mirror finish, then passivate each part for additional protection
Thick steel sidewalls withstand continual stress and hose flexing
Faster, Simpler Installation:
Each Scupper Valve is available with a new silicone gasket
A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal
All models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hull
The barbed tail ends provide plenty of room to hold multiple clamps
Stainless Steel Scupper Valves, Barbed:
The Scupper Flap is tough neoprene rubber with a molded V that fits into the grooved body to reduce backwash
Fasteners are concealed and corrosion-proof
Specifications:
Hose size: (inch) 1-1/2" inner diameter
Thread Diameter: (inch) 1-7/8"
Flange O.D. (outside diameter): (inch) 3"
Thread Length: (inch) 3-1/2"
Barb Length: (inch) 1-1/2"
Total Length: (inch) 5-1/2"
Install Hole Saw Size: (inch) 2"
Thread NPSM: (inch) 1-1/2"
Max Hull Thickness: (inch) 3"
*Stainless Steel Thru-Hull Connectors are designed for installation above the water line only Specifications:
Hose Size: 1-1/4"
Material: Stainless Steel
Box Dimensions: 3"H x 3"W x 6"L WT: 3 lbs
UPC: 022697665539
Quick Guide (pdf)
Stainless Steel Thru-Hull Short Straight Barbed - 1" Inner DiameterPolish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat?Rugged Stainless Construction:
Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistance
All visible areas are polished to a mirror finish, then passivate each part for additional protection
Thick steel sidewalls withstand continual stress and hose flexing
Faster, Simpler Installation:
Each Thru-Hull is available with a new silicone gasket
A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal
All models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hull
The barbed tail ends provide plenty of room to hold multiple clamps
Stainless Steel Straight Thru-Hulls, BarbedShort Thread is a more compact size, which allows installation near corners and in confined areasSpecifications:
Hose size: (inch) 1" inner diameter
Flange Diameter: (inch) 2-1/4"
Thread O.D. (outside diameter): (inch) 1-3/8"
Thread Length: (inch) 1-1/8"
Barb Length: (inch) 1"
Total Length: (inch) 2-1/2"
Install Hole Saw Size: (inch) 1-1/2"
Thread NPSM: (inch) 1"
Max Hull Thickness: (inch) 5/8"
*Stainless Steel Thru-Hull Connectors are designed for installation above the water line only Specifications:
Hose Size: 1"
Material: Stainless Steel
Box Dimensions: 2"H x 3"W x 3"L WT: 0.6 lbs
UPC: 022697665423
Quick Guide (pdf)
Stainless Steel Thru-Hull Short Straight Barbed - 1-1/2" Inner Diameter Polish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat?Rugged Stainless Construction:
Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistance
All visible areas are polished to a mirror finish, then passivate each part for additional protection
Thick steel sidewalls withstand continual stress and hose flexing
Faster, Simpler Installation:
Each Thru-Hull is available with a new silicone gasket
A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal
All models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hull
The barbed tail ends provide plenty of room to hold multiple clamps
Stainless Steel Straight Thru-Hulls, BarbedShort Thread is a more compact size, which allows installation near corners and in confined areasSpecifications:
Hose size: (inch) 1-1/2" inner diameter
Flange Diameter: (inch) 3"
Thread O.D. (outside diameter): (inch) 1-7/8"
Thread Length: (inch) 1-1/4"
Barb Length: (inch) 1-1/2"
Total Length: (inch) 3-1/8"
Install Hole Saw Size: (inch) 2"
Thread NPSM: (inch) 1-1/2"
Max Hull Thickness: (inch) 5/8"
*Stainless Steel Thru-Hull Connectors are designed for installation above the water line only Specifications:
Hose Size: 1-1/2"
Material: Stainless Steel
Box Dimensions: 3"H x 3"W x 3"L WT: 1.2 lbs
UPC: 022697665454
Quick Guide (pdf)
Stainless Steel Thru-Hull Short Straight Barbed - 3/4" Inner DiameterPolish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat?Rugged Stainless Construction:
Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistance
All visible areas are polished to a mirror finish, then passivate each part for additional protection
Thick steel sidewalls withstand continual stress and hose flexing
Faster, Simpler Installation:
Each Thru-Hull is available with a new silicone gasket
A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal
All models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hull
The barbed tail ends provide plenty of room to hold multiple clamps
Stainless Steel Straight Thru-Hulls, BarbedShort Thread is a more compact size, which allows installation near corners and in confined areasSpecifications:
Hose size: (inch) 3/4" inner diameter
Flange Diameter: (inch) 1-7/8"
Thread O.D. (outside diameter): (inch) 1"
Thread Length: (inch) 1"
Barb Length: (inch) 1"
Total Length: (inch) 2-1/2"
Install Hole Saw Size: (inch) 1-1/8"
Thread NPSM: (inch) 3/4"
Max Hull Thickness: (inch) 5/8"
*Stainless Steel Thru-Hull Connectors are designed for installation above the water line only Specifications:
Hose Size: 3/4"
Material: Stainless Steel
Box Dimensions: 2"H x 3"W x 6"L WT: 0.4 lbs
UPC: 022697665416
Quick Guide (pdf)
Stainless Steel Thru-Hull Standard Straight Barbed - 1" Inner DiameterPolish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat?Rugged Stainless Construction:
Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistance
All visible areas are polished to a mirror finish, then passivate each part for additional protection
Thick steel sidewalls withstand continual stress and hose flexing
Faster, Simpler Installation:
Each Thru-Hull is available with a new silicone gasket
A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal
All models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hull
The barbed tail ends provide plenty of room to hold multiple clamps
Stainless Steel Straight Thru-Hulls, BarbedStandard Thread model has a full-length thread for thick hulls and easy tighteningSpecifications:
Hose size: (inch) 1" inner diameter
Flange Diameter: (inch) 2-1/4"
Thread O.D. (outside diameter): (inch) 1-3/8"
Thread Length: (inch) 2-1/4"
Barb Length: (inch) 1-1/4"
Total Length: (inch) 3-7/8"
Install Hole Saw Size: (inch) 1-1/2"
Thread NPSM: (inch) 1"
Max Hull Thickness: (inch) 1-3/4"
*Stainless Steel Thru-Hull Connectors are designed for installation above the water line only Specifications:
Hose Size: 1"
Material: Stainless Steel
Box Dimensions: 3"H x 4"W x 7"L WT: 0.8 lbs
UPC: 022697665485
Quick Guide (pdf)
Stainless Steel Thru-Hull Standard Straight Barbed - 1-1/2" Inner DiameterPolish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat?Rugged Stainless Construction:
Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistance
All visible areas are polished to a mirror finish, then passivate each part for additional protection
Thick steel sidewalls withstand continual stress and hose flexing
Faster, Simpler Installation:
Each Thru-Hull is available with a new silicone gasket
A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal
All models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hull
The barbed tail ends provide plenty of room to hold multiple clamps
Stainless Steel Straight Thru-Hulls, BarbedStandard Thread model has a full-length thread for thick hulls and easy tighteningSpecifications:
Hose size: (inch) 1-1/2" inner diameter
Flange Diameter: (inch) 3"
Thread O.D. (outside diameter): (inch) 1-7/8"
Thread Length: (inch) 2-1/2"
Barb Length: (inch) 1-1/4"
Total Length: (inch) 4-1/8"
Install Hole Saw Size: (inch) 2"
Thread NPSM: (inch) 1-1/2"
Max Hull Thickness: (inch) 1-7/8"
*Stainless Steel Thru-Hull Connectors are designed for installation above the water line only Specifications:
Hose Size: 1-1/2"
Material: Stainless Steel
Box Dimensions: 3"H x 5"W x 8"L WT: 1.55 lbs
UPC: 022697665515
Quick Guide (pdf)
Stainless Steel Thru-Hull Standard Straight Barbed - 1-1/8" Inner DiameterPolish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat?Rugged Stainless Construction:
Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistance
All visible areas are polished to a mirror finish, then passivate each part for additional protection
Thick steel sidewalls withstand continual stress and hose flexing
Faster, Simpler Installation:
Each Thru-Hull is available with a new silicone gasket
A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal
All models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hull
The barbed tail ends provide plenty of room to hold multiple clamps
Stainless Steel Straight Thru-Hulls, BarbedStandard Thread model has a full-length thread for thick hulls and easy tighteningSpecifications:
Hose size: (inch) 1-1/8" inner diameter
Flange Diameter: (inch) 2-1/4"
Thread O.D. (outside diameter): (inch) 1-3/8"
Thread Length: (inch) 2-3/8"
Barb Length: (inch) 1-1/4"
Total Length: (inch) 3-7/8"
Install Hole Saw Size: (inch) 1-1/4"
Thread NPSM: (inch) 1"
Max Hull Thickness: (inch) 1-3/4"
*Stainless Steel Thru-Hull Connectors are designed for installation above the water line only Specifications:
Hose Size: 1-1/8"
Material: Stainless Steel
Box Dimensions: 2"H x 4"W x 7"L WT: 0.85 lbs
UPC: 022697665492
Quick Guide (pdf)
Stainless Steel Thru-Hull Standard Straight Barbed - 3/4" Inner DiameterPolish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat?Rugged Stainless Construction:
Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistance
All visible areas are polished to a mirror finish, then passivate each part for additional protection
Thick steel sidewalls withstand continual stress and hose flexing
Faster, Simpler Installation:
Each Thru-Hull is available with a new silicone gasket
A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal
All models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hull
The barbed tail ends provide plenty of room to hold multiple clamps
Stainless Steel Straight Thru-Hulls, BarbedStandard Thread model has a full-length thread for thick hulls and easy tighteningSpecifications:
Hose size: (inch) 3/4" inner diameter
Flange Diameter: (inch) 1-7/8"
Thread O.D. (outside diameter): (inch) 1"
Thread Length: (inch) 2"
Barb Length: (inch) 1-1/4"
Total Length: (inch) 3-3/4"
Install Hole Saw Size: (inch) 1-1/8"
Thread NPSM: (inch) 3/4"
Max Hull Thickness: (inch) 1-5/8"
*Stainless Steel Thru-Hull Connectors are designed for installation above the water line only Specifications:
Hose Size: 3/4"
Material: Stainless Steel
Box Dimensions: 2"H x 3"W x 6"L WT: 0.6 lbs
UPC: 022697665478
Quick Guide (pdf)
Stainless Steel Thru-Hull Standard Straight Barbed - 5/8" Inner DiameterPolish your image with these beautiful, durable stainless steel fittings. Why specify plastic parts when these fittings will last the life of the boat?Rugged Stainless Construction:
Cast from certified Enhanced 316 Stainless Steel alloy for strength and lifetime corrosion-resistance
All visible areas are polished to a mirror finish, then passivate each part for additional protection
Thick steel sidewalls withstand continual stress and hose flexing
Faster, Simpler Installation:
Each Thru-Hull is available with a new silicone gasket
A channel under the flange holds a bead of sealant, making it easier to apply a trouble-free seal
All models have wrench flats or an end notch to hold as a gripping surface; one installer can tighten all connections from inside the hull
The barbed tail ends provide plenty of room to hold multiple clamps
Stainless Steel Straight Thru-Hulls, BarbedStandard Thread model has a full-length thread for thick hulls and easy tighteningSpecifications:
Hose size: (inch) 5/8" inner diameter
Flange Diameter: (inch) 1-7/8"
Thread O.D. (outside diameter): (inch) 1"
Thread Length: (inch) 2"
Barb Length: (inch) 1-1/4"
Total Length: (inch) 3-3/4"
Install Hole Saw Size: (inch) 1-1/8"
Thread NPSM: (inch) 3/4"
Max Hull Thickness: (inch) 1-1/16"
*Stainless Steel Thru-Hull Connectors are designed for installation above the water line only Specifications:
Hose Size: 5/8"
Material: Stainless Steel
Box Dimensions: 2"H x 3"W x 6"L WT: 0.5 lbs
UPC: 022697665461
Quick Guide (pdf)
Standard Carbon CanisterCarbon canister systems utilize an engineered charcoal canister to reduce hydrocarbons entering the atmosphere. Other components of a carbon canister system are designed to ensure the tank fills to the proper level every time without spit-back or well-back. All Attwood carbon canister systems are designed to ensure liquid fuel or water does not reach the canister and are compatible with Jerry Can and marine nozzle refueling.Features:
Brackets OEM Installed
Low permeation shell reduces overall system emissions
Can be mounted in any orientation using brackets provided
EPA / CARB Certified
Fits a 5/8" vent hose
Specifications:
Trailerable Vessel Capacity (EPA Rating): 220 Gallon
Non-Trailerable Vessel Capacity (EPA Rating): 350 Gallon
Trailerable Vessel Capacity (CARB Rating): 176 Gallon
Non-Trailerable Vessel Capacity (CARB Rating): 350 Gallon
*Compatible with Ethanol blended fuels Quick Guide (pdf)
Stainless Steel Flush Mount Rod Holder, Standard Series2" Diameter7.5" LengthAttwood stainless steel rod holders meet the need for the finest in finish, function and durability.
Polished 316 grade stainless steel tube for corrosion-resistance
Gasket Provides water seal around flange
Optional, U.V. resistant, Cover Cap/Gasket closes tube when not in use
U.V. resistant polymer liner protects finish on rod or reel
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Angle: 0 Degrees
Construction: Stainless Steel
Diameter (Inches): 2"
Length (Inches): 7-1/2"
Box Dimensions: 4"H x 5"W x 12"L WT: 1.5 lbs
UPC: 022697663641
Stainless Steel Flush Mount Rod Holder, Standard Series2" Diameter7.5" LengthAttwood stainless steel rod holders meet the need for the finest in finish, function and durability.
Polished 316 grade stainless steel tube for corrosion-resistance
Gasket Provides water seal around flange
Optional, U.V. resistant, Cover Cap/Gasket closes tube when not in use
U.V. resistant polymer liner protects finish on rod or reel
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Angle: 15 Degrees
Construction: Stainless Steel
Diameter (Inches): 2"
Length (Inches): 7-1/2"
Mounting Style: Flush
Box Dimensions: 4"H x 5"W x 12"L WT: 1.5 lbs
UPC: 022697663634
Stainless Steel Flush Mount Rod Holder, Standard Series2" Diameter7.5" LengthAttwood stainless steel rod holders meet the need for the finest in finish, function and durability.
Polished 316 grade stainless steel tube for corrosion-resistance
Gasket Provides water seal around flange
Optional, U.V. resistant, Cover Cap/Gasket closes tube when not in use
U.V. resistant polymer liner protects finish on rod or reel
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Angle: 30 Degrees
Construction: Stainless Steel
Diameter (Inches): 2"
Length (Inches): 7-1/2"
Mounting Style: Flush
Box Dimensions: 4"H x 5"W x 12"L WT: 1.5 lbs
UPC: 022697663627
Stowaway Light w/2-Pin Plug-In Base -12V - 24"Part #: 7100A7Swivel cover on base protects the base socket when light is stowed away. Base extends just 3" below deck. 4"-long x 1-5/8"-wide x 1-3/8"-dia. Provides 2-mile 360 degree illumination for boats up to 65.6' (20m). Includes 911339 base and 9-watt wedge base lamp. Three countersunk holes for #10 fasteners.Features:
24"
2-Pin Standard Pole
2-Mile
360 Degree
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Lens Color: White
Visible Range (Miles): 2nm
Housing: White
Voltage - Input Range (Volts): 12v
LED: No
Box Dimensions: 3"H x 5"W x 27"L WT: 0.8 lbs
UPC: 022697710031
Quick Guide (pdf)
Stowaway Light w/2-Pin Plug-In Base - 12V - 30"Part #: 7100B7Swivel cover on base protects the base socket when light is stowed away. Base extends just 3" below deck. 4"-long x 1-5/8"-wide x 1-3/8"-dia. Provides 2-mile 360 degree illumination for boats up to 65.6' (20m). Includes 911339 base and 9-watt wedge base lamp. Three countersunk holes for #10 fasteners.Features:
30"
2-Pin Standard Pole
2-Mile
360 Degree
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Lens Color: White
Visible Range (Miles): 2nm
Housing: White
Voltage - Input Range (Volts): 12v
LED: No
Box Dimensions: 3"H x 5"W x 36"L WT: 0.9 lbs
UPC: 022697710086
Quick Guide (pdf)
Stowaway Light w/2-Pin Plug-In Base - 12V - 36"Part #: 7100C7Swivel cover on base protects the base socket when light is stowed away. Base extends just 3" below deck. 4"-long x 1-5/8"-wide x 1-3/8"-dia. Provides 2-mile 360 degree illumination for boats up to 65.6' (20m). Includes 911339 base and 9-watt wedge base lamp. Three countersunk holes for #10 fasteners.Features:
36"
2-Pin Standard Pole
2-Mile
360 Degree
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:
Lens Color: White
Visible Range (Miles): 2nm
Housing: White
Voltage - Input Range (Volts): 12v
LED: No
Box Dimensions: 3"H x 5"W x 43"L WT: 1 lbs
UPC: 022697710062
Quick Guide (pdf)
