Bolt Kit for Jack PlatesFeatures:
For Mounting Outboard to Plate
Kit Contains: 4 each 1/2” x 3” stainless steel long bolts, 4 each 1/2” lock nuts – brass with nylon insert, 8 each 1/2” flat washers - stainless steel
316 Stainless Steel Alloy Flush Mount Fuel Vent - 90° VentOn the exterior, they have a smooth edge over the competition. Unlike some others, there is no protruding cap to cause damage or be damaged by hull bumps and scrapes. Cap unscrews with a hex head wrench for easy cleaning of the filter and pressure testing of the entire fuel system. These vents now include two silicone gaskets.Features:90-degree ventSpecifications:
Hose Size (inch): 5/8" inner diameter
Maximum Hull Thickness (inch): 7/8"
Installation Hole Size (inch): 1-3/8"
*Includes two silicone gaskets Quick Guide (pdf)
6" Fold-Down Dock CleatLow-profile cleats simply fold-down when not in use and flip back up when it comes time to tie off.Features:
Ideal for small boats and watercraft
Low-profile, fold-down design keeps cleat clear of dock traffic
Marine-grade aluminum protected with corrosion resistant finish
Easy to install on all dock types
Requires two standard 3/8" carriage bolts (not included)
Specifications:
Finish: White
Size: 6"
Construction: Aluminum
Box Dimensions: 1"H x 5"W x 6"L WT: 0.75 lbs
UPC: 022697120489
TWIST STEP™ Emergency Jack Plate Ladder - Universal FitTWIST STEP™ permits easy and convenient re-entry into the boat in emergencies. The Twist Step Emergency Jack Plate Ladder by T-H Marine is a must-have for boaters. This ladder is designed to easily attach to the jack plate of your boat, providing a safe and convenient way to get in and out of the water. Made from high-quality aluminum, this ladder is both strong and durable. The ladder features anti-slip treads for added safety and security, and the steps can be easily twisted up and out of the way when not in use. Whether you're swimming, fishing, or just enjoying a day on the water, this ladder is an essential accessory for your boat.Features:
Fits All Outboards
Permanently attaches to the engine or jack plate
Easily rotates and drops into position when needed
Non-corrosive all-aluminum design
Meets ABYC regulations for reboarding device
Mounts to any engine with bracket or directly to pre-drilled atlas jack plates
Non-slip material on both steps
Snaps securely into the slot when not in use
Specifications:
Material: Aluminum
Mount Compatibility: Any engine with bracket or directly to atlas jack plates
Configurations: Port side
90° P-Trap Fuel Tank Vent - Black with Stainless Steel Trim CoverComposite 90-degree P-trap fuel tank vent 66419-3. These vents help prevent water from entering the fuel tank, yet allow air to vent freely, during normal sea conditions and washdowns. This eliminates the need for an anti-siphon loop in the vent hose. Features:
For 5/8" I.D. hose
(inch) 3/4" install. hole size
(inch) 9/16" max. hull thickness
Vents air from your boat's fuel tank as you fill the fuel tank
Splash-resistant, corrosion resistant
Meets ABYC standard
*Compatible with Ethanol blended fuels Quick Guide (pdf)
316 Stainless Steel Alloy Flush Mount Fuel Vent - Straight Vent On the exterior, they have a smooth edge over the competition. Unlike some others, there is no protruding cap to cause damage or be damaged by hull bumps and scrapes. Cap unscrews with a hex head wrench for easy cleaning of the filter and pressure testing of the entire fuel system. These vents now include two silicone gaskets.Features:Straight VentSpecifications:
Hose Size (inch): 5/8" inner diameter
Maximum Hull Thickness (inch): 7/8"
Installation Hole Size (inch): 1-3/8"
*Includes two silicone gaskets Quick Guide (pdf)
Straight Fuel Vent - Black PolypropyleneA fuel vent, vents air from a fuel tank as it's being filled. This straight fuel vent is patented splash-resistant and corrosion-resistant polypropylene. Meets ABYC ventilation specifications.Features:
Straight Vent
Color: Black
Material: Polypropylene
Specifications:
Hose Size: (inch) 5/8" inner diameter
Maximum Hull Thickness: (inch) 7/8"
Installation Hole Size (inch) 3/4"
*Attwood fuel tank vents meet or exceed U.S. Coast Guard regulations Quick Guide (pdf)

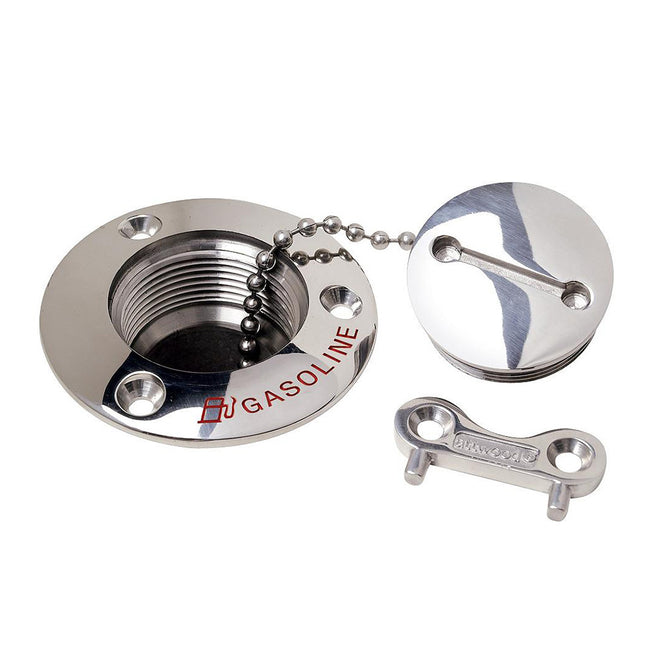

Gasoline Deck Fill - 1-1/2 inch Stainless Steel AlloyFor 1-1/2 (inch) inner diameter hose. This deck fill is imprinted and color-coded to specify GASOLINE. The flush cap is slotted for a separate key and features an O-ring that seals the cap watertight. Cap is attached by a stainless steel, beaded chain. Long neck accommodates thick deck laminations. Key sold separately.Features:
Highly-polished finish
“Gasoline” imprint with Red Color Code (Not for use with EPA Certified systems)
Specifications:
3-1/4 (inch) Fill Neck Length
1-7/8 (inch) installation hole size
3-inch flange size
Fits 1-1/2 (inch) I.D. Hose
*Requires a bonding wire to prevent sparking when the nozzle is inserted on gasoline and diesel models per USCG and ABYC H-24 requirements Quick Guide (pdf)
90° P-Trap Fuel Tank Vent - Black with Black Vent HeadThis Attwood 90-Degree P-Trap Fuel Tank Vent reliably helps prevent water from entering the fuel tank while still allowing air to vent freely during normal sea conditions and washdowns. This vent’s effectiveness eliminates the need for an anti-siphon loop in the vent hose. It requires a ¾-inch installation hole and can be used with a maximum hull thickness of 9/16 inches. Features:
Standard Mount - (inch) 5/8" I.D Hose
Reliably helps prevent water from entering the fuel tank
Still allows air to vent freely during normal sea conditions and washdowns
This black vent with a black vent head meets ABYC standards
*Compatible with Ethanol blended fuels. Quick Guide (pdf)
Deck Fill for Carbon Canister System - Straight Body & Scalloped Chrome CapPressure relief systems are designed with automatic diurnal emission control and overpressure relief safety valves built into the cap of the fill. The overpressure relief safety valves are engineered to release pressure above 1 psi. The high-flow vacuum valves allow fresh air to enter the fuel tank to replace the fuel being consumed by the engine. Other components of a pressure relief system are designed to ensure the tank fills to the proper level every time without spit-back or well-back. Features:
All Attwood pressure relief systems are designed to ensure water does not enter the fuel tank and are compatible with Jerry Can and marine nozzle refueling
Fits 1-1/2 (inch) fill hose
Designed and tested to prevent water from entering the fuel system
Compatible with Ethanol blended fuels
Chrome finish
Automatic nozzle shutoff 4-18 gpm
Dual 1 psi overpressure relief safety valves built into the deck fill caps
EPA / CARB Certified
Quick Guide (pdf)
Deck Fill for Pressure Relief Systems - Angled Body & Scalloped Black Plastic CapPressure relief systems are designed with automatic diurnal emission control and overpressure relief safety valves built into the cap of the fill. The overpressure relief safety valves are engineered to release pressure above 1 psi. The high-flow vacuum valves allow fresh air to enter the fuel tank to replace the fuel being consumed by the engine. Other components of a pressure relief system are designed to ensure the tank fills to the proper level every time without spit-back or well-back. All Attwood pressure relief systems are designed to ensure water does not enter the fuel tank and are compatible with Jerry Can and marine nozzle refueling.Features:
Fits 1-1/2 (inch) fill hose and 5/8 (inch) vent hose
Triple high-flow vacuum valves ensure maximum make-up airflow (compatible with high HP applications)
Dual 1 psi diurnal emission control and overpressure relief safety valves built into the cap
Automatic nozzle shutoff 4-18 gpm
Black Composite finish
An essential component of VaporTec and SecureStop
Designed and tested to prevent water from entering the fuel system
EPA / CARB Certified
Hinged audible click cap meets EPA requirements
Meets CARB 13 CCR 2235 and ISO 13331 nozzle mating and retention standards
*Compatible with Ethanol blended fuels Quick Guide (pdf)
Deck Fills for Pressure Relief Systems - Straight Body - Scalloped Black Plastic CapAttwood's Pressure Relief Systems are designed with automatic diurnal emission control and overpressure relief safety valves built into the cap of the fill. The overpressure relief safety valves are engineered to release pressure above 1 psi. The high-flow vacuum valves allow fresh air to enter the fuel tank to replace the fuel being consumed by the engine. Other components of a pressure relief system are designed to ensure the tank fills to the proper level every time without spit-back or well-back. All Attwood pressure relief systems are designed to ensure water does not enter the fuel tank and are compatible with Jerry Can and marine nozzle refueling.Features:
Sold as a single unit
Fits 1-1/2 (inch) fill hose and 5/8 (inch) vent hose
Triple high-flow vacuum valves ensure maximum make-up airflow (compatible with high HP applications)
Dual 1 psi diurnal emission control and overpressure relief safety valves built into the cap
Automatic nozzle shutoff 4-18 gpm
Black Composite finish
An essential component of VaporTec and SecureStop
Designed and tested to prevent water from entering the fuel system
EPA / CARB Certified
Hinged audible click cap meets EPA requirements
Meets CARB 13 CCR 2235 and ISO 13331 nozzle mating and retention standards
*Compatible with Ethanol blended fuels Quick Guide (pdf)
Flush Hatch PullThe new low profile flush hatch pull is an easy access handle for installation in lids, doors, compartments, and hatches. Handle is easy to grip, even with gloved hands. Durable ABS construction with black textured finish.
Deck Fill for Pressure Relief Systems - Straight Body & Scalloped Stainless Steel CapPressure relief systems are designed with automatic diurnal emission control and overpressure relief safety valves built into the cap of the fill. The overpressure relief safety valves are engineered to release pressure above 1 psi. The high-flow vacuum valves allow fresh air to enter the fuel tank to replace the fuel being consumed by the engine. Other components of a pressure relief system are designed to ensure the tank fills to the proper level every time without spit-back or well-back. All Attwood pressure relief systems are designed to ensure water does not enter the fuel tank and are compatible with Jerry Can and marine nozzle refueling.Features:
Fits 1-1/2 (inch) fill hose and 5/8 (inch) vent hose
Triple high-flow vacuum valves ensure maximum make-up airflow (compatible with high HP applications)
Automatic nozzle shutoff 4-18 gpm
Stainless Steel finish
An essential component of VaporTec and SecureStop
Designed and tested to prevent water from entering the fuel system
EPA / CARB Certified
Hinged audible click cap meets EPA requirements
Meets CARB 13 CCR 2235 and ISO 13331 nozzle mating and retention standards
*Compatible with Ethanol blended fuels Quick Guide (pdf)
Soft Grip 13" Steering WheelThis is the ideal steering wheel for bass boats, sport boats, and runabouts. The steering wheel has a patented design that provides a comfortable and firm grip. Also, this steering wheel has contemporary styling with a soft, black PVC outer rim and a high-impact, one-piece plastic inner core. It fits all standard 3/4-inch tapered shafts and conforms to ABYC P-22 and ISO 8848.Features:
Resists UV rays to prevent fading
Soft Grip is non-magnetic, so it will not interfere with compass readings
3-3/8 inch deep dish
8315 NMMA “As Approved”: 090071; CE Certificate WATT004
Specifications:Center Cap: Black plastic Specifications:
Diameter (Inches): 13"
Box Dimensions: 4"H x 13"W x 14"L WT: 2.75 lbs
UPC: 022697831545
Quick Guide (pdf)
Cowl VentilatorAttwood hull-mounted vents are designed to install by fastening as a complete unit from either inside or outside the hull. Ventilation hose (not included) twists into the bottom of the box to form a raised water barrier. Plastic vents are corrosion-resistant, will not discolor. All collector boxes and vents are designed for intake or exhaust and meet ABYC H-2 cross sectional area requirements.For use with 3" I.D. wire-supported ventilation hose. Features flexible hose flange that is screwed onto hose, then vent snaps onto the flange. Vent constructed of chrome-plated die-cast Perma-Plate® ZAMAK. Flange is non-corrosive plastic. Installs with #8 screws.Installation Hole Size: 3-1/4" to 3-1/2"WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
8" Fold-Down Dock CleatLow-profile cleats simply fold-down when not in use and flip back up when it comes time to tie off.Features:
Ideal for small boats and watercraft
Low-profile, fold-down design keeps cleat clear of dock traffic
Marine-grade aluminum protected with corrosion resistant finish
Easy to install on all dock types
Requires two standard 3/8" carriage bolts (not included)
Specifications:
Finish: White
Size: 8"
Construction: Aluminum
Box Dimensions: 1"H x 7"W x 8"L WT: 1.25 lbs
UPC: 022697120496

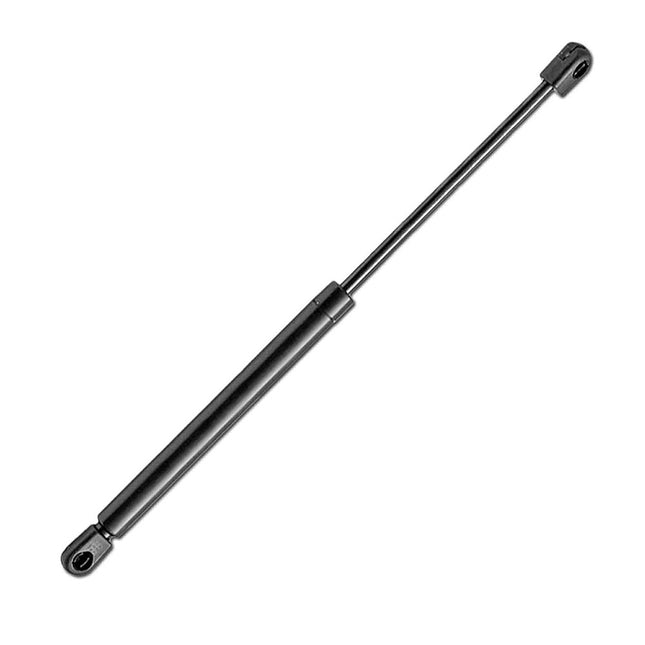

Springlift Black Composite - 10mm Socket - Extended 26.9" - Compressed 15.2"Attwood is partnered with Stabilus®, the world’s leading supplier of gas springs and related products with over 100,000,000 units in the field. All Attwood springs are made with biodegradable, no-hazard water-grade oil (WGK). making them the marine industry’s most environmentally friendly gas springs. All springs pass ASTM B117, Attwood salt spray, and a 30,000-cycle lifecycle test. Attwood springs come with support to ensure the proper spring for a specific application, including marine, industrial, agricultural, pharmaceutical, food processing, and medical. Specifications:
Extended: 26.97 in.
Compressed: 15.20 in.
Stroke: 11.77 in.
End Fitting: 10mm Socket
Output Force: 60 lbs.
Specifications:
Length: 26.97"
Lift Capacity: 50 lbs
Box Dimensions: 1"H x 1"W x 28"L WT: 1.15 lbs
Quick Guide (pdf)

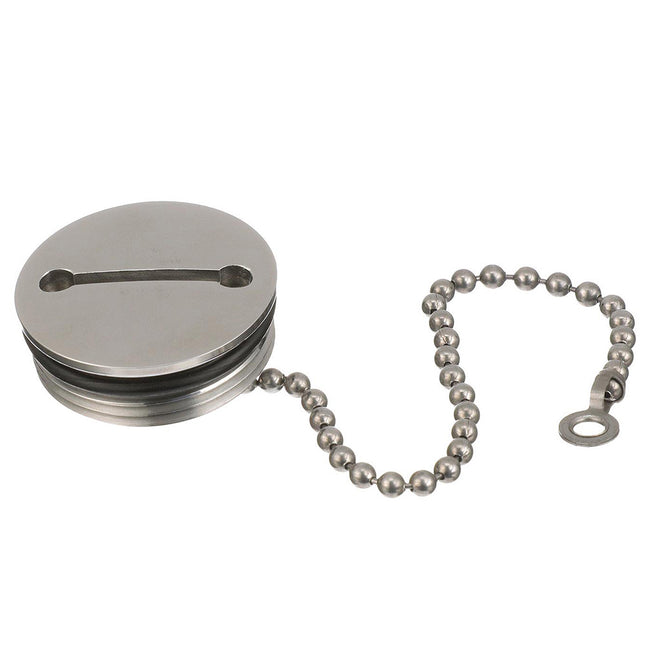

Deck Fill Replacement Cap & ChainThis Attwood Replacement Cap and Chain is made for Attwood deck fills. The flush cap is slotted for a separate key and features an O-ring that seals the cap watertight. Features:Cap is attached by a stainless steel beaded chainSpecifications (Cap and Chain are Fitted for This Deck Fill Size):
3-1/4 (inch) Fill Neck Length
1-7/8 (inch) installation hole size
3-inch flange size
Fits 1-1/2 (inch) I.D. Hose
*Key sold separately Quick Guide (pdf)
Deck Fill for Pressure Relief Systems - Angled Body & Scalloped Stainless Steel CapPressure relief systems are designed with automatic diurnal emission control and overpressure relief safety valves built into the cap of the fill. The overpressure relief safety valves are engineered to release pressure above 1 psi. The high-flow vacuum valves allow fresh air to enter the fuel tank to replace the fuel being consumed by the engine. Other components of a pressure relief system are designed to ensure the tank fills to the proper level every time without spit-back or well-back. All Attwood pressure relief systems are designed to ensure water does not enter the fuel tank and are compatible with Jerry Can and marine nozzle refueling.Features:
Fits 1-1/2 (inch) fill hose and 5/8 (inch) vent hose
Triple high-flow vacuum valves ensure maximum make-up airflow (compatible with high HP applications)
Dual 1 psi diurnal emission control and overpressure relief safety valves built into the cap
Automatic nozzle shutoff 4-18 gpm
Stainless Steel finish
An essential component of VaporTec and SecureStop
Designed and tested to prevent water from entering the fuel system
EPA / CARB Certified
Hinged audible click cap meets EPA requirements
Meets CARB 13 CCR 2235 and ISO 13331 nozzle mating and retention standards
*Compatible with Ethanol blended fuels Quick Guide (pdf)
Deck Fill for Carbon Canister System - Straight Body & Scalloped Stainless Steel CapPressure relief systems are designed with automatic diurnal emission control and overpressure relief safety valves built into the cap of the fill. The overpressure relief safety valves are engineered to release pressure above 1 psi. The high-flow vacuum valves allow fresh air to enter the fuel tank to replace the fuel being consumed by the engine. Other components of a pressure relief system are designed to ensure the tank fills to the proper level every time without spit-back or well-back. Features:
All Attwood pressure relief systems are designed to ensure water does not enter the fuel tank and are compatible with Jerry Can and marine nozzle refueling
Fits 1-1/2 (inch) fill hose
Designed and tested to prevent water from entering the fuel system
Compatible with Ethanol blended fuels
Stainless Steel finish
EPA / CARB Certified
Dual 1 psi overpressure relief safety valves built into the deck fill caps
Automatic nozzle shutoff 4-18 gpm
Quick Guide (pdf)
Deck Fill for Carbon Canister System - Angled Body & Scalloped Stainless Steel CapPressure relief systems are designed with automatic diurnal emission control and overpressure relief safety valves built into the cap of the fill. The overpressure relief safety valves are engineered to release pressure above 1 psi. The high-flow vacuum valves allow fresh air to enter the fuel tank to replace the fuel being consumed by the engine. Other components of a pressure relief system are designed to ensure the tank fills to the proper level every time without spit-back or well-back. Features:
Fits 1-1/2 (inch) fill hose
Compatible with Ethanol blended fuels
Designed and tested to prevent water from entering the fuel system
All Attwood pressure relief systems are designed to ensure water does not enter the fuel tank and are compatible with Jerry Can and marine nozzle refueling
EPA / CARB Certified
Dual 1 psi overpressure relief safety valves built into the deck fill caps
Automatic nozzle shutoff 4-18 gpm
Deck Fill for Carbon Canister System, angled, stainless steel, single pack
Quick Guide (pdf)
Deck Fill for Carbon Canister System - Angled Body & Scalloped Chrome CapPressure relief systems are designed with automatic diurnal emission control and overpressure relief safety valves built into the cap of the fill. The overpressure relief safety valves are engineered to release pressure above 1 psi. The high-flow vacuum valves allow fresh air to enter the fuel tank to replace the fuel being consumed by the engine. Other components of a pressure relief system are designed to ensure the tank fills to the proper level every time without spit-back or well-back. Features:
All Attwood pressure relief systems are designed to ensure water does not enter the fuel tank and are compatible with Jerry Can and marine nozzle refueling
Fits 1-1/2 (inch) fill hose
Compatible with Ethanol blended fuels
Designed and tested to prevent water from entering the fuel system
Automatic nozzle shutoff 4-18 gpm
Dual 1 psi overpressure relief safety valves built into the deck fill caps
EPA / CARB Certified
Deck Fill for Carbon Canister System, angled, chrome finish
Quick Guide (pdf)
Deck Fill for Carbon Canister System - Angled Body & Scalloped Black Plastic CapPressure relief systems are designed with automatic diurnal emission control and overpressure relief safety valves built into the cap of the fill. The overpressure relief safety valves are engineered to release pressure above 1 psi. The high-flow vacuum valves allow fresh air to enter the fuel tank to replace the fuel being consumed by the engine. Other components of a pressure relief system are designed to ensure the tank fills to the proper level every time without spit-back or well-back. Features:
All Attwood pressure relief systems are designed to ensure water does not enter the fuel tank and are compatible with Jerry Can and marine nozzle refueling
Fits 1-1/2 (inch) fill hose
Compatible with Ethanol blended fuels
Designed and tested to prevent water from entering the fuel system
Deck Fill for Carbon Canister System, angled, black composite
EPA / CARB Certified
Dual 1 psi overpressure relief safety valves built into the deck fill caps
Automatic nozzle shutoff 4-18 gpm
Quick Guide (pdf)
