Attwood Automatic Float Switch - 12V & 24V [4202-7]

Description

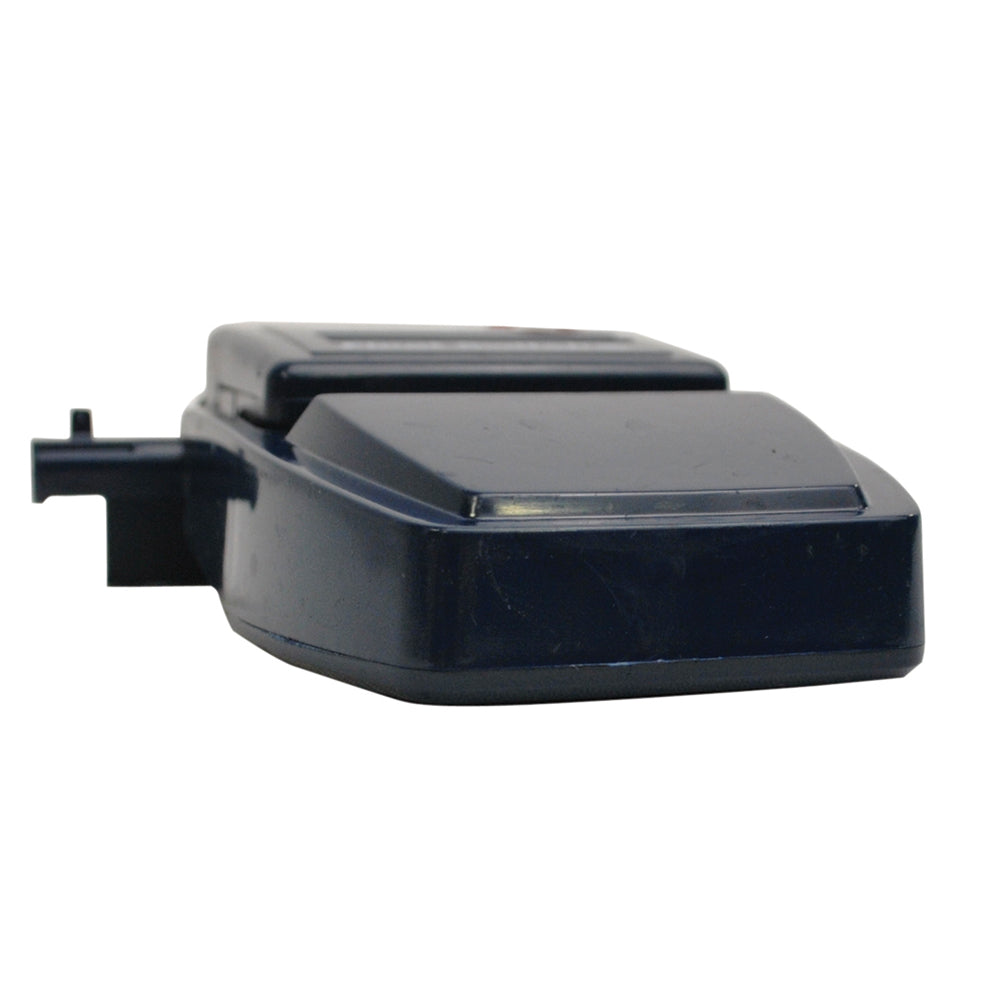

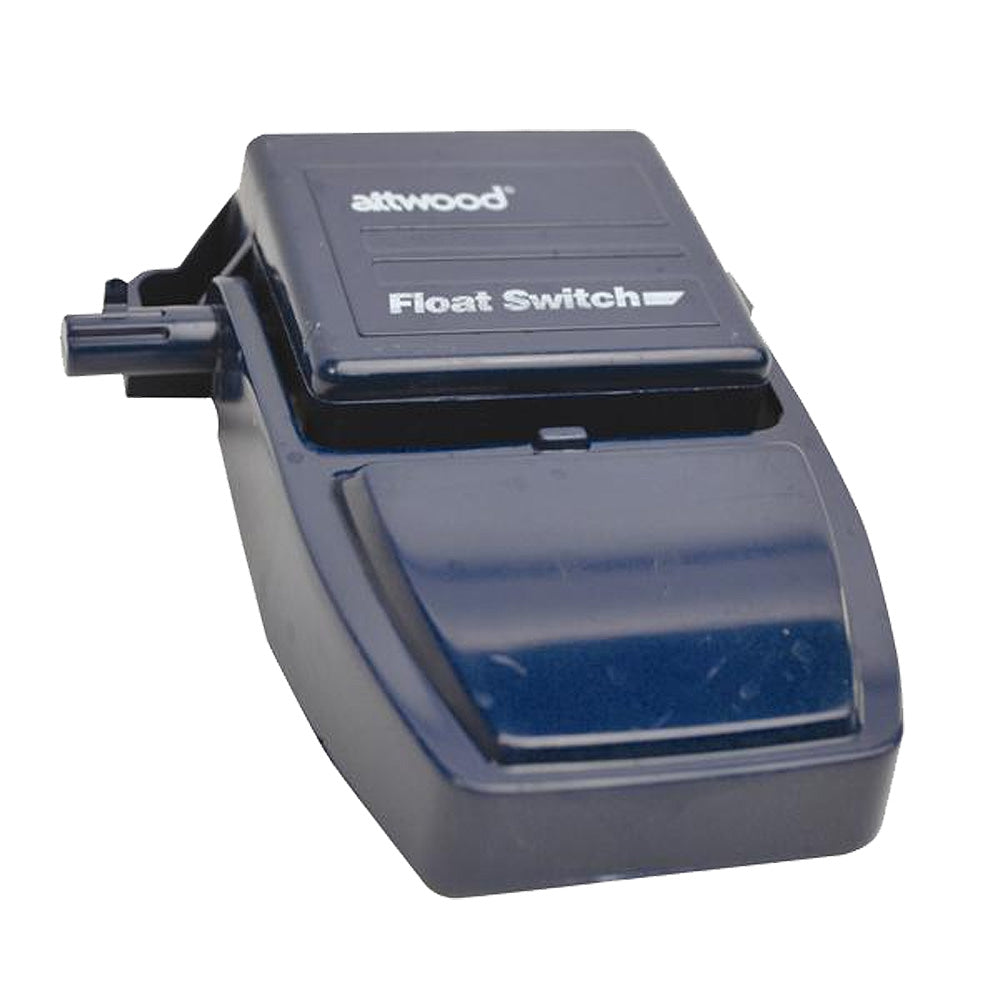

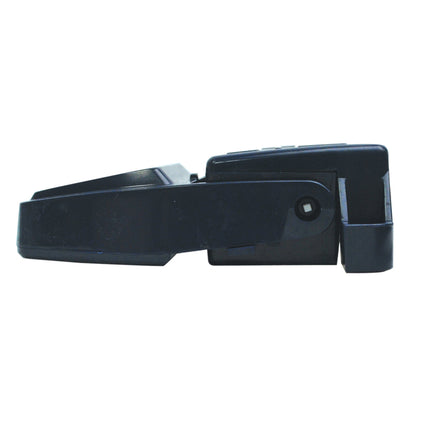

Float Switch
Part #: 4202-7

Converts bilge pumps to fully automatic operation. Maximum amp draw is 12 amps (at 12-volt D.C.) or 6-amps (at 24-Volts D.C.). Features a compact, low profile design that mounts on any surface from a horizontal up to a 24x angle. Incorporates a reliable and affordable mechanical switch that actuates pump motor at 2" water level. Wire leads do not flex or hinge with the float as on some competitive models. Integral cover dampens bilge sloshing to reduce pump cycling, and prevents debris interference. Sealed switch mechanism resists moisture, fume-ignition, and electrical shock. Contains no mercury, which is listed as a health hazard and "Persistent Toxic Substance" in over 26 states.

Float switch installs directly onto the rear slots of the V-Series pump bracket. Features a convenient test knob to test pump operation.

Features:

  • 36" Wire
  • 12V & 24V
  • CE Rated

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Volts: 12/24v
  • Type: Switches
  • Box Dimensions: 3"H x 6"W x 9"L WT: 0.4 lbs
  • UPC: 022697420275

Quick Guide (pdf)

Attwood Automatic Float Switch - 12V & 24V [4202-7]

Product form

Float SwitchPart #: 4202-7Converts bilge pumps to fully automatic operation. Maximum amp draw is 12 amps (at 12-volt D.C.) or... Read more

13 in stock

$37.50 $30.99

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Float Switch
    Part #: 4202-7

    Converts bilge pumps to fully automatic operation. Maximum amp draw is 12 amps (at 12-volt D.C.) or 6-amps (at 24-Volts D.C.). Features a compact, low profile design that mounts on any surface from a horizontal up to a 24x angle. Incorporates a reliable and affordable mechanical switch that actuates pump motor at 2" water level. Wire leads do not flex or hinge with the float as on some competitive models. Integral cover dampens bilge sloshing to reduce pump cycling, and prevents debris interference. Sealed switch mechanism resists moisture, fume-ignition, and electrical shock. Contains no mercury, which is listed as a health hazard and "Persistent Toxic Substance" in over 26 states.

    Float switch installs directly onto the rear slots of the V-Series pump bracket. Features a convenient test knob to test pump operation.

    Features:

    • 36" Wire
    • 12V & 24V
    • CE Rated

    WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

    Specifications:

    • Volts: 12/24v
    • Type: Switches
    • Box Dimensions: 3"H x 6"W x 9"L WT: 0.4 lbs
    • UPC: 022697420275

    Quick Guide (pdf)
