Z-Lock™ 6" Set Back Manual Single Adjust Jack PlateZ-Lock Jack Plate Revolutionary Design Adds Strength and Stability. The excellence of T-H Marine's HI-JACKER™ jack plate series continues with the Z-Lock Manual Jack Plate design upgrade.Features:
Z-Lock™ Jack Plate Design Eliminates Side Slippage
Matching slotted extrusions LOCK side plates in place
Strong Aircraft Grade Aluminum
Full ½” Material For Strength
Handles All V6 and V8 Outboards up to 300 hp
Easy to Adjust From Top of Jack
Available in 4", 6", 8", 10" and 12" setbacks
5" of Vertical Adjustment
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

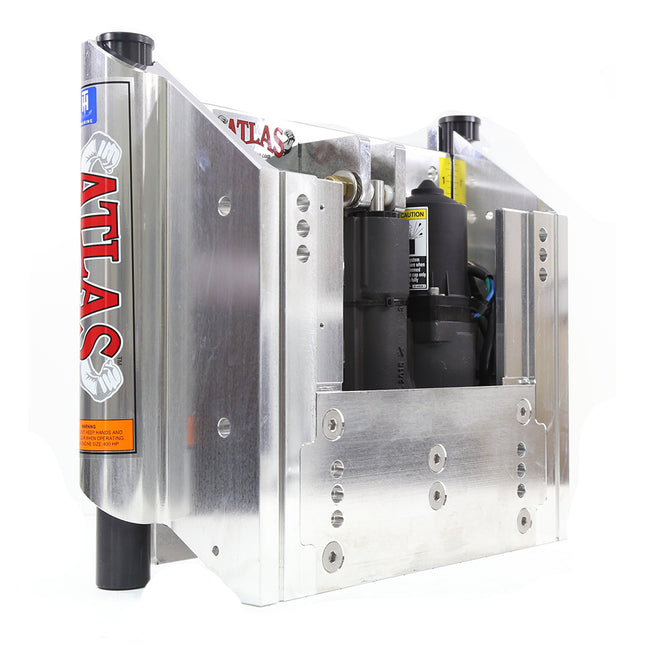

ATLAS™ 10" Set Back Hydraulic Jack Plate PolishedRated for engines up to 300hp or up to 625 pounds dry weight. 5 REASONS YOU SHOULD CHOOSE THE ATLAS™ HYDRAULIC JACK PLATE
ATLAS™ is truly the best hydraulic jack plate in the world
ATLAS™ is factory installed by more boat manufacturers than any other plate
ATLAS™ is used by more professional fisherman than any other hydraulic jack plate
ATLAS™ is the #1 selling hydraulic plate in the world – sold & serviced by more outlets
ATLAS™ hydraulic actuator is made in the U.S.A. vs. our competitors being from China
6 WAYS THE ATLAS™ CHANGED HYDRAULIC JACK PLATES FOREVER
ATLAS™ is made by T-H Marine/CMC, who were the FIRST to offer an actuator inside the jack plate – the competition copied
ATLAS™ was the first plate to offer predrilling for shallow water anchors – the competition copied
ATLAS™ was the first and only plate that did not require regular grease lubrication – the competition design cannot do that
ATLAS™ was the first plate to include a heavy duty safety cable to protect boaters from engine entering cockpit upon failure
ATLAS™ was the first plate to offer a very simple actuator replacement in the field
ATLAS™ was the first major development in hydraulic jack plates in over a decade – spurring hydraulic jack plate improvement
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
ATLAS™ 8" Set Back Hydraulic Jack Plate - Heavy DutyT-H Marine’s ATLAS™ Hydraulic Jack Plate is now available in a “HEAVY DUTY” upgrade.T-H Marine’s ATLAS™ Hydraulic Jack Plate is the #1 selling jack plate in the world and the #1 Choice by fishing professionals and boat manufacturers. With the new ATLAS™ HEAVY DUTY, the product is available for applications on even larger outboards, rated for engines up to 400 hp. 5 REASONS YOU SHOULD CHOOSE THE ATLAS™ HYDRAULIC JACK PLATE
ATLAS™ is truly the best hydraulic jack plate in the world
ATLAS™ is factory installed by more boat manufacturers than any other plate
ATLAS™ is used by more professional fisherman than any other hydraulic jack plate
ATLAS™ is the #1 selling hydraulic plate in the world – sold & serviced by more outlets
ATLAS™ hydraulic actuator is made in the U.S.A. vs. our competitors being from China
6 WAYS THE ATLAS™ CHANGED HYDRAULIC JACK PLATES FOREVER
ATLAS™ is made by T-H Marine/CMC, who were the FIRST to offer an actuator inside the jack plate – the competition copied
ATLAS™ was the first plate to offer predrilling for shallow water anchors – the competition copied
ATLAS™ was the first and only plate that did not require regular grease lubrication – the competition design cannot do that
ATLAS™ was the first plate to include a heavy duty safety cable to protect boaters from engine entering cockpit upon failure
ATLAS™ was the first plate to offer a very simple actuator replacement in the field
ATLAS™ was the first major development in hydraulic jack plates in over a decade – spurring hydraulic jack plate improvement
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
ATLAS™ EDGE 12" Set Back Hydraulic Jack Plate - Classic - Silver
HYDRAULIC RISE: 5.75”
TOTAL RISE: 8.25” - 9.75”
WEIGHT LIMIT: 625 lbs
HP: 300 max
ATLAS™ EDGE Jack Plate Lifted by Power-Pole®, the next generation of the best-selling ATLAS™ line. Built for anglers who demand more from their equipment, the ATLAS™ EDGE delivers an all-new level of precision, performance, and control – with smarter features designed to make every second on the water count.Smarter Controls, Seamless ExperienceAt the heart of the new ATLAS™ EDGE system is One-Touch Height Control, allowing users to instantly switch between three customizable presets for takeoff, running, and fishing / trailering. With just a single press, boaters can recall their ideal height positions, eliminate guesswork, and maximize efficiency. The Adjustable Speed Settings (Slow, Medium, Fast) offer tailored performance for varying water conditions and preferences, while the Auto Height Mode enables effortless operation — simply tap once to move to one of three custom saved heights; double-tap to get there at full speed.Visibility Meets VersatilityDay or night, the ATLAS™ EDGE stays clear and easy to use thanks to Auto Display Brightness, which adjusts the screen’s visibility based on ambient light. Whether under direct sun or pre-dawn launches, the system delivers information without distraction.Powered by InnovationDesigned in collaboration with Power-Pole®, the ATLAS™ EDGE now features a high performance brushless motor, offering quiet operation, ultra-fast lift speeds, and zero maintenance reliability.Product advantage: Smarter. Faster. SmootherWith its innovative blend of intelligent presets and adaptive speed, the ATLAS™ EDGE sets a new standard for performance on the water. Whether you’re launching, cruising, or dialing in the perfect fishing position, it’s all just one touch away. Brochure (pdf)
ATLAS™ EDGE 6" Set Back Hydraulic Jack Plate - Classic - Black
HYDRAULIC RISE: 5.75”
TOTAL RISE: 8.25” - 9.75”
WEIGHT LIMIT: 625 lbs
HP: 300 max
ATLAS™ EDGE Jack Plate Lifted by Power-Pole®, the next generation of the best-selling ATLAS™ line. Built for anglers who demand more from their equipment, the ATLAS™ EDGE delivers an all-new level of precision, performance, and control – with smarter features designed to make every second on the water count.Smarter Controls, Seamless ExperienceAt the heart of the new ATLAS™ EDGE system is One-Touch Height Control, allowing users to instantly switch between three customizable presets for takeoff, running, and fishing / trailering. With just a single press, boaters can recall their ideal height positions, eliminate guesswork, and maximize efficiency. The Adjustable Speed Settings (Slow, Medium, Fast) offer tailored performance for varying water conditions and preferences, while the Auto Height Mode enables effortless operation — simply tap once to move to one of three custom saved heights; double-tap to get there at full speed.Visibility Meets VersatilityDay or night, the ATLAS™ EDGE stays clear and easy to use thanks to Auto Display Brightness, which adjusts the screen’s visibility based on ambient light. Whether under direct sun or pre-dawn launches, the system delivers information without distraction.Powered by InnovationDesigned in collaboration with Power-Pole®, the ATLAS™ EDGE now features a high performance brushless motor, offering quiet operation, ultra-fast lift speeds, and zero maintenance reliability.Product advantage: Smarter. Faster. SmootherWith its innovative blend of intelligent presets and adaptive speed, the ATLAS™ EDGE sets a new standard for performance on the water. Whether you’re launching, cruising, or dialing in the perfect fishing position, it’s all just one touch away. Brochure (pdf)
ATLAS™ EDGE 8" Set Back Hydraulic Jack Plate - Classic - Black
HYDRAULIC RISE: 5.75”
TOTAL RISE: 8.25” - 9.75”
WEIGHT LIMIT: 625 lbs
HP: 300 max
ATLAS™ EDGE Jack Plate Lifted by Power-Pole®, the next generation of the best-selling ATLAS™ line. Built for anglers who demand more from their equipment, the ATLAS™ EDGE delivers an all-new level of precision, performance, and control – with smarter features designed to make every second on the water count.Smarter Controls, Seamless ExperienceAt the heart of the new ATLAS™ EDGE system is One-Touch Height Control, allowing users to instantly switch between three customizable presets for takeoff, running, and fishing / trailering. With just a single press, boaters can recall their ideal height positions, eliminate guesswork, and maximize efficiency. The Adjustable Speed Settings (Slow, Medium, Fast) offer tailored performance for varying water conditions and preferences, while the Auto Height Mode enables effortless operation — simply tap once to move to one of three custom saved heights; double-tap to get there at full speed.Visibility Meets VersatilityDay or night, the ATLAS™ EDGE stays clear and easy to use thanks to Auto Display Brightness, which adjusts the screen’s visibility based on ambient light. Whether under direct sun or pre-dawn launches, the system delivers information without distraction.Powered by InnovationDesigned in collaboration with Power-Pole®, the ATLAS™ EDGE now features a high performance brushless motor, offering quiet operation, ultra-fast lift speeds, and zero maintenance reliability.Product advantage: Smarter. Faster. SmootherWith its innovative blend of intelligent presets and adaptive speed, the ATLAS™ EDGE sets a new standard for performance on the water. Whether you’re launching, cruising, or dialing in the perfect fishing position, it’s all just one touch away. Brochure (pdf)
ATLAS™ EDGE 4" Set Back Hydraulic Jack Plate - Classic - Black
HYDRAULIC RISE: 5.75”
TOTAL RISE: 8.25” - 9.75”
WEIGHT LIMIT: 625 lbs
HP: 300 max
ATLAS™ EDGE Jack Plate Lifted by Power-Pole®, the next generation of the best-selling ATLAS™ line. Built for anglers who demand more from their equipment, the ATLAS™ EDGE delivers an all-new level of precision, performance, and control – with smarter features designed to make every second on the water count.Smarter Controls, Seamless ExperienceAt the heart of the new ATLAS™ EDGE system is One-Touch Height Control, allowing users to instantly switch between three customizable presets for takeoff, running, and fishing / trailering. With just a single press, boaters can recall their ideal height positions, eliminate guesswork, and maximize efficiency. The Adjustable Speed Settings (Slow, Medium, Fast) offer tailored performance for varying water conditions and preferences, while the Auto Height Mode enables effortless operation — simply tap once to move to one of three custom saved heights; double-tap to get there at full speed.Visibility Meets VersatilityDay or night, the ATLAS™ EDGE stays clear and easy to use thanks to Auto Display Brightness, which adjusts the screen’s visibility based on ambient light. Whether under direct sun or pre-dawn launches, the system delivers information without distraction.Powered by InnovationDesigned in collaboration with Power-Pole®, the ATLAS™ EDGE now features a high performance brushless motor, offering quiet operation, ultra-fast lift speeds, and zero maintenance reliability.Product advantage: Smarter. Faster. SmootherWith its innovative blend of intelligent presets and adaptive speed, the ATLAS™ EDGE sets a new standard for performance on the water. Whether you’re launching, cruising, or dialing in the perfect fishing position, it’s all just one touch away. Brochure (pdf)
ATLAS™ Hydraulic Gauge Kit for 6", 10", 12" & 14" ATLAS™ Jack Plates - Stainless Steel BezelDigital LED Position Gauge for Atlas™ Hydraulic Jack Plates.Features:
All Digital Readout
Black Face and Stainless Steel FaceGauges Available
Outer Bezel available in Stainless Steel or Black Polymer
Each Number Indicates 1/4” Rise
Numbered from 0 to 20
All AtlasTM Jacks are Pre-drilled to Fit
See pictures to the right to view both styles
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

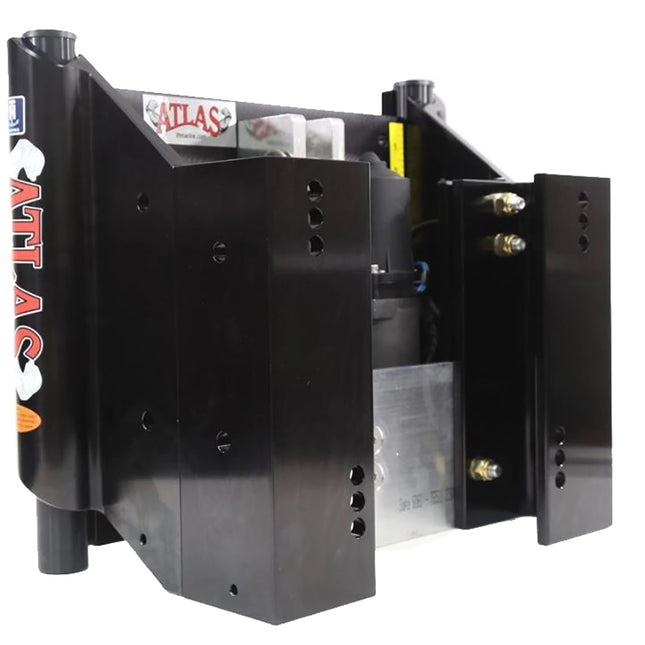

ATLAS™ 6" Set Back Hydraulic Jack Plate - Gloss Black AnodizedThe Atlas revolutionary design meets the demands of today's high performance outboards. The one piece design, featuring the innovative Rod and Slot lifting system, will handle the stresses from the heaviest and most powerful outboards, up to 300 HP or 625 pounds, on the market today. All of the hydraulics are built into the jack eliminating the necessity of installing pumps and reservoirs inside the transom. The all new hydraulic unit is fast too..lifting from bottom to top in 8 seconds!Comes with relay harness and rocker switch WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
ATLAS™ EDGE 10" Set Back Hydraulic Jack Plate - Classic - Silver
HYDRAULIC RISE: 5.75”
TOTAL RISE: 8.25” - 9.75”
WEIGHT LIMIT: 625 lbs
HP: 300 max
ATLAS™ EDGE Jack Plate Lifted by Power-Pole®, the next generation of the best-selling ATLAS™ line. Built for anglers who demand more from their equipment, the ATLAS™ EDGE delivers an all-new level of precision, performance, and control – with smarter features designed to make every second on the water count.Smarter Controls, Seamless ExperienceAt the heart of the new ATLAS™ EDGE system is One-Touch Height Control, allowing users to instantly switch between three customizable presets for takeoff, running, and fishing / trailering. With just a single press, boaters can recall their ideal height positions, eliminate guesswork, and maximize efficiency. The Adjustable Speed Settings (Slow, Medium, Fast) offer tailored performance for varying water conditions and preferences, while the Auto Height Mode enables effortless operation — simply tap once to move to one of three custom saved heights; double-tap to get there at full speed.Visibility Meets VersatilityDay or night, the ATLAS™ EDGE stays clear and easy to use thanks to Auto Display Brightness, which adjusts the screen’s visibility based on ambient light. Whether under direct sun or pre-dawn launches, the system delivers information without distraction.Powered by InnovationDesigned in collaboration with Power-Pole®, the ATLAS™ EDGE now features a high performance brushless motor, offering quiet operation, ultra-fast lift speeds, and zero maintenance reliability.Product advantage: Smarter. Faster. SmootherWith its innovative blend of intelligent presets and adaptive speed, the ATLAS™ EDGE sets a new standard for performance on the water. Whether you’re launching, cruising, or dialing in the perfect fishing position, it’s all just one touch away. Brochure (pdf)
ATLAS™ EDGE 14" Set Back Hydraulic Jack Plate - Classic - Silver
HYDRAULIC RISE: 5.75”
TOTAL RISE: 8.25” - 9.75”
WEIGHT LIMIT: 625 lbs
HP: 300 max
ATLAS™ EDGE Jack Plate Lifted by Power-Pole®, the next generation of the best-selling ATLAS™ line. Built for anglers who demand more from their equipment, the ATLAS™ EDGE delivers an all-new level of precision, performance, and control – with smarter features designed to make every second on the water count.Smarter Controls, Seamless ExperienceAt the heart of the new ATLAS™ EDGE system is One-Touch Height Control, allowing users to instantly switch between three customizable presets for takeoff, running, and fishing / trailering. With just a single press, boaters can recall their ideal height positions, eliminate guesswork, and maximize efficiency. The Adjustable Speed Settings (Slow, Medium, Fast) offer tailored performance for varying water conditions and preferences, while the Auto Height Mode enables effortless operation — simply tap once to move to one of three custom saved heights; double-tap to get there at full speed.Visibility Meets VersatilityDay or night, the ATLAS™ EDGE stays clear and easy to use thanks to Auto Display Brightness, which adjusts the screen’s visibility based on ambient light. Whether under direct sun or pre-dawn launches, the system delivers information without distraction.Powered by InnovationDesigned in collaboration with Power-Pole®, the ATLAS™ EDGE now features a high performance brushless motor, offering quiet operation, ultra-fast lift speeds, and zero maintenance reliability.Product advantage: Smarter. Faster. SmootherWith its innovative blend of intelligent presets and adaptive speed, the ATLAS™ EDGE sets a new standard for performance on the water. Whether you’re launching, cruising, or dialing in the perfect fishing position, it’s all just one touch away. Brochure (pdf)
ATLAS™ EDGE 8" Set Back Hydraulic Jack Plate - Heavy Duty - Silver
HYDRAULIC RISE: 5.75”
TOTAL RISE: 8.25” - 9.75”
WEIGHT LIMIT: 810 lbs
HP: 450 max
ATLAS™ EDGE Jack Plate Lifted by Power-Pole®, the next generation of the best-selling ATLAS™ line. Built for anglers who demand more from their equipment, the ATLAS™ EDGE delivers an all-new level of precision, performance, and control – with smarter features designed to make every second on the water count.Smarter Controls, Seamless ExperienceAt the heart of the new ATLAS™ EDGE system is One-Touch Height Control, allowing users to instantly switch between three customizable presets for takeoff, running, and fishing / trailering. With just a single press, boaters can recall their ideal height positions, eliminate guesswork, and maximize efficiency. The Adjustable Speed Settings (Slow, Medium, Fast) offer tailored performance for varying water conditions and preferences, while the Auto Height Mode enables effortless operation — simply tap once to move to one of three custom saved heights; double-tap to get there at full speed.Visibility Meets VersatilityDay or night, the ATLAS™ EDGE stays clear and easy to use thanks to Auto Display Brightness, which adjusts the screen’s visibility based on ambient light. Whether under direct sun or pre-dawn launches, the system delivers information without distraction.Powered by InnovationDesigned in collaboration with Power-Pole®, the ATLAS™ EDGE now features a high performance brushless motor, offering quiet operation, ultra-fast lift speeds, and zero maintenance reliability.Product advantage: Smarter. Faster. SmootherWith its innovative blend of intelligent presets and adaptive speed, the ATLAS™ EDGE sets a new standard for performance on the water. Whether you’re launching, cruising, or dialing in the perfect fishing position, it’s all just one touch away. Brochure (pdf)
ATLAS™ EDGE 4" Set Back Hydraulic Jack Plate - Heavy Duty - Black
HYDRAULIC RISE: 5.75”
TOTAL RISE: 8.25” - 9.75”
WEIGHT LIMIT: 810 lbs
HP: 450 max
ATLAS™ EDGE Jack Plate Lifted by Power-Pole®, the next generation of the best-selling ATLAS™ line. Built for anglers who demand more from their equipment, the ATLAS™ EDGE delivers an all-new level of precision, performance, and control – with smarter features designed to make every second on the water count.Smarter Controls, Seamless ExperienceAt the heart of the new ATLAS™ EDGE system is One-Touch Height Control, allowing users to instantly switch between three customizable presets for takeoff, running, and fishing / trailering. With just a single press, boaters can recall their ideal height positions, eliminate guesswork, and maximize efficiency. The Adjustable Speed Settings (Slow, Medium, Fast) offer tailored performance for varying water conditions and preferences, while the Auto Height Mode enables effortless operation — simply tap once to move to one of three custom saved heights; double-tap to get there at full speed.Visibility Meets VersatilityDay or night, the ATLAS™ EDGE stays clear and easy to use thanks to Auto Display Brightness, which adjusts the screen’s visibility based on ambient light. Whether under direct sun or pre-dawn launches, the system delivers information without distraction.Powered by InnovationDesigned in collaboration with Power-Pole®, the ATLAS™ EDGE now features a high performance brushless motor, offering quiet operation, ultra-fast lift speeds, and zero maintenance reliability.Product advantage: Smarter. Faster. SmootherWith its innovative blend of intelligent presets and adaptive speed, the ATLAS™ EDGE sets a new standard for performance on the water. Whether you’re launching, cruising, or dialing in the perfect fishing position, it’s all just one touch away. Brochure (pdf)
ATLAS™ EDGE 10" Set Back Hydraulic Jack Plate - Heavy Duty - Silver
HYDRAULIC RISE: 5.75”
TOTAL RISE: 8.25” - 9.75”
WEIGHT LIMIT: 810 lbs
HP: 450 max
ATLAS™ EDGE Jack Plate Lifted by Power-Pole®, the next generation of the best-selling ATLAS™ line. Built for anglers who demand more from their equipment, the ATLAS™ EDGE delivers an all-new level of precision, performance, and control – with smarter features designed to make every second on the water count.Smarter Controls, Seamless ExperienceAt the heart of the new ATLAS™ EDGE system is One-Touch Height Control, allowing users to instantly switch between three customizable presets for takeoff, running, and fishing / trailering. With just a single press, boaters can recall their ideal height positions, eliminate guesswork, and maximize efficiency. The Adjustable Speed Settings (Slow, Medium, Fast) offer tailored performance for varying water conditions and preferences, while the Auto Height Mode enables effortless operation — simply tap once to move to one of three custom saved heights; double-tap to get there at full speed.Visibility Meets VersatilityDay or night, the ATLAS™ EDGE stays clear and easy to use thanks to Auto Display Brightness, which adjusts the screen’s visibility based on ambient light. Whether under direct sun or pre-dawn launches, the system delivers information without distraction.Powered by InnovationDesigned in collaboration with Power-Pole®, the ATLAS™ EDGE now features a high performance brushless motor, offering quiet operation, ultra-fast lift speeds, and zero maintenance reliability.Product advantage: Smarter. Faster. SmootherWith its innovative blend of intelligent presets and adaptive speed, the ATLAS™ EDGE sets a new standard for performance on the water. Whether you’re launching, cruising, or dialing in the perfect fishing position, it’s all just one touch away. Brochure (pdf)
ATLAS™ EDGE 6" Set Back Hydraulic Jack Plate - Heavy Duty - Silver
HYDRAULIC RISE: 5.75”
TOTAL RISE: 8.25” - 9.75”
WEIGHT LIMIT: 810 lbs
HP: 450 max
ATLAS™ EDGE Jack Plate Lifted by Power-Pole®, the next generation of the best-selling ATLAS™ line. Built for anglers who demand more from their equipment, the ATLAS™ EDGE delivers an all-new level of precision, performance, and control – with smarter features designed to make every second on the water count.Smarter Controls, Seamless ExperienceAt the heart of the new ATLAS™ EDGE system is One-Touch Height Control, allowing users to instantly switch between three customizable presets for takeoff, running, and fishing / trailering. With just a single press, boaters can recall their ideal height positions, eliminate guesswork, and maximize efficiency. The Adjustable Speed Settings (Slow, Medium, Fast) offer tailored performance for varying water conditions and preferences, while the Auto Height Mode enables effortless operation — simply tap once to move to one of three custom saved heights; double-tap to get there at full speed.Visibility Meets VersatilityDay or night, the ATLAS™ EDGE stays clear and easy to use thanks to Auto Display Brightness, which adjusts the screen’s visibility based on ambient light. Whether under direct sun or pre-dawn launches, the system delivers information without distraction.Powered by InnovationDesigned in collaboration with Power-Pole®, the ATLAS™ EDGE now features a high performance brushless motor, offering quiet operation, ultra-fast lift speeds, and zero maintenance reliability.Product advantage: Smarter. Faster. SmootherWith its innovative blend of intelligent presets and adaptive speed, the ATLAS™ EDGE sets a new standard for performance on the water. Whether you’re launching, cruising, or dialing in the perfect fishing position, it’s all just one touch away. Brochure (pdf)
ATLAS™ 10" Hydraulic Jack Plate Standard - Black AnodizedThe Atlas revolutionary design meets the demands of today's high performance outboards. The one piece design, featuring the innovative Rod and Slot lifting system, will handle the stresses from the heaviest and most powerful outboards, up to 300 HP or 625 pounds, on the market today. All of the hydraulics are built into the jack eliminating the necessity of installing pumps and reservoirs inside the transom. The all new hydraulic unit is fast too..lifting from bottom to top in 8 seconds!WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
ATLAS™ EDGE 6" Set Back Hydraulic Jack Plate - Classic - Silver
HYDRAULIC RISE: 5.75”
TOTAL RISE: 8.25” - 9.75”
WEIGHT LIMIT: 625 lbs
HP: 300 max
ATLAS™ EDGE Jack Plate Lifted by Power-Pole®, the next generation of the best-selling ATLAS™ line. Built for anglers who demand more from their equipment, the ATLAS™ EDGE delivers an all-new level of precision, performance, and control – with smarter features designed to make every second on the water count.Smarter Controls, Seamless ExperienceAt the heart of the new ATLAS™ EDGE system is One-Touch Height Control, allowing users to instantly switch between three customizable presets for takeoff, running, and fishing / trailering. With just a single press, boaters can recall their ideal height positions, eliminate guesswork, and maximize efficiency. The Adjustable Speed Settings (Slow, Medium, Fast) offer tailored performance for varying water conditions and preferences, while the Auto Height Mode enables effortless operation — simply tap once to move to one of three custom saved heights; double-tap to get there at full speed.Visibility Meets VersatilityDay or night, the ATLAS™ EDGE stays clear and easy to use thanks to Auto Display Brightness, which adjusts the screen’s visibility based on ambient light. Whether under direct sun or pre-dawn launches, the system delivers information without distraction.Powered by InnovationDesigned in collaboration with Power-Pole®, the ATLAS™ EDGE now features a high performance brushless motor, offering quiet operation, ultra-fast lift speeds, and zero maintenance reliability.Product advantage: Smarter. Faster. SmootherWith its innovative blend of intelligent presets and adaptive speed, the ATLAS™ EDGE sets a new standard for performance on the water. Whether you’re launching, cruising, or dialing in the perfect fishing position, it’s all just one touch away. Brochure (pdf)
Bolt Kit for Jack PlatesFeatures:
For Mounting Outboard to Plate
Kit Contains: 4 each 1/2” x 3” stainless steel long bolts, 4 each 1/2” lock nuts – brass with nylon insert, 8 each 1/2” flat washers - stainless steel

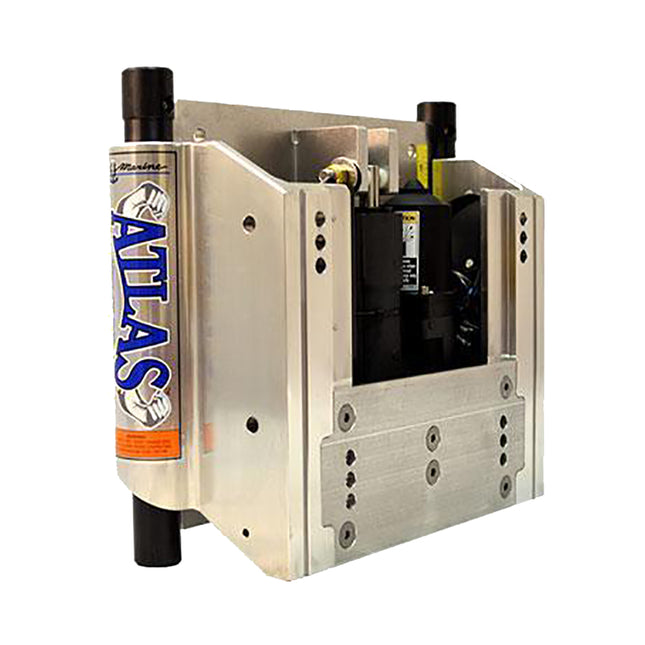

ATLAS™ 12" Set Back Hydraulic Jack Plate PolishedRated for engines up to 300hp or up to 625 pounds dry weight.5 REASONS YOU SHOULD CHOOSE THE ATLAS™ HYDRAULIC JACK PLATE
ATLAS™ is truly the best hydraulic jack plate in the world
ATLAS™ is factory installed by more boat manufacturers than any other plate
ATLAS™ is used by more professional fisherman than any other hydraulic jack plate
ATLAS™ is the #1 selling hydraulic plate in the world – sold & serviced by more outlets
ATLAS™ hydraulic actuator is made in the U.S.A. vs. our competitors being from China
6 WAYS THE ATLAS™ CHANGED HYDRAULIC JACK PLATES FOREVER
ATLAS™ is made by T-H Marine/CMC, who were the FIRST to offer an actuator inside the jack plate – the competition copied
ATLAS™ was the first plate to offer predrilling for shallow water anchors – the competition copied
ATLAS™ was the first and only plate that did not require regular grease lubrication – the competition design cannot do that
ATLAS™ was the first plate to include a heavy duty safety cable to protect boaters from engine entering cockpit upon failure
ATLAS™ was the first plate to offer a very simple actuator replacement in the field
ATLAS™ was the first major development in hydraulic jack plates in over a decade – spurring hydraulic jack plate improvement
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
ATLAS™ EDGE 6" Set Back Hydraulic Jack Plate - Heavy Duty - Black
HYDRAULIC RISE: 5.75”
TOTAL RISE: 8.25” - 9.75”
WEIGHT LIMIT: 810 lbs
HP: 450 max
ATLAS™ EDGE Jack Plate Lifted by Power-Pole®, the next generation of the best-selling ATLAS™ line. Built for anglers who demand more from their equipment, the ATLAS™ EDGE delivers an all-new level of precision, performance, and control – with smarter features designed to make every second on the water count.Smarter Controls, Seamless ExperienceAt the heart of the new ATLAS™ EDGE system is One-Touch Height Control, allowing users to instantly switch between three customizable presets for takeoff, running, and fishing / trailering. With just a single press, boaters can recall their ideal height positions, eliminate guesswork, and maximize efficiency. The Adjustable Speed Settings (Slow, Medium, Fast) offer tailored performance for varying water conditions and preferences, while the Auto Height Mode enables effortless operation — simply tap once to move to one of three custom saved heights; double-tap to get there at full speed.Visibility Meets VersatilityDay or night, the ATLAS™ EDGE stays clear and easy to use thanks to Auto Display Brightness, which adjusts the screen’s visibility based on ambient light. Whether under direct sun or pre-dawn launches, the system delivers information without distraction.Powered by InnovationDesigned in collaboration with Power-Pole®, the ATLAS™ EDGE now features a high performance brushless motor, offering quiet operation, ultra-fast lift speeds, and zero maintenance reliability.Product advantage: Smarter. Faster. SmootherWith its innovative blend of intelligent presets and adaptive speed, the ATLAS™ EDGE sets a new standard for performance on the water. Whether you’re launching, cruising, or dialing in the perfect fishing position, it’s all just one touch away. Brochure (pdf)
ATLAS™ EDGE 6" Set Back Hydraulic Jack Plate - Max - Silver
HYDRAULIC RISE: 5.75”
TOTAL RISE: 8.25” - 9.75”
WEIGHT LIMIT: 1,000 lbs
HP: 450 max
ATLAS™ EDGE Jack Plate Lifted by Power-Pole®, the next generation of the best-selling ATLAS™ line. Built for anglers who demand more from their equipment, the ATLAS™ EDGE delivers an all-new level of precision, performance, and control – with smarter features designed to make every second on the water count.Smarter Controls, Seamless ExperienceAt the heart of the new ATLAS™ EDGE system is One-Touch Height Control, allowing users to instantly switch between three customizable presets for takeoff, running, and fishing / trailering. With just a single press, boaters can recall their ideal height positions, eliminate guesswork, and maximize efficiency. The Adjustable Speed Settings (Slow, Medium, Fast) offer tailored performance for varying water conditions and preferences, while the Auto Height Mode enables effortless operation — simply tap once to move to one of three custom saved heights; double-tap to get there at full speed.Visibility Meets VersatilityDay or night, the ATLAS™ EDGE stays clear and easy to use thanks to Auto Display Brightness, which adjusts the screen’s visibility based on ambient light. Whether under direct sun or pre-dawn launches, the system delivers information without distraction.Powered by InnovationDesigned in collaboration with Power-Pole®, the ATLAS™ EDGE now features a high performance brushless motor, offering quiet operation, ultra-fast lift speeds, and zero maintenance reliability.Product advantage: Smarter. Faster. SmootherWith its innovative blend of intelligent presets and adaptive speed, the ATLAS™ EDGE sets a new standard for performance on the water. Whether you’re launching, cruising, or dialing in the perfect fishing position, it’s all just one touch away. Brochure (pdf)
ATLAS™ EDGE 8" Set Back Hydraulic Jack Plate - Classic - Silver
HYDRAULIC RISE: 5.75”
TOTAL RISE: 8.25” - 9.75”
WEIGHT LIMIT: 625 lbs
HP: 300 max
ATLAS™ EDGE Jack Plate Lifted by Power-Pole®, the next generation of the best-selling ATLAS™ line. Built for anglers who demand more from their equipment, the ATLAS™ EDGE delivers an all-new level of precision, performance, and control – with smarter features designed to make every second on the water count.Smarter Controls, Seamless ExperienceAt the heart of the new ATLAS™ EDGE system is One-Touch Height Control, allowing users to instantly switch between three customizable presets for takeoff, running, and fishing / trailering. With just a single press, boaters can recall their ideal height positions, eliminate guesswork, and maximize efficiency. The Adjustable Speed Settings (Slow, Medium, Fast) offer tailored performance for varying water conditions and preferences, while the Auto Height Mode enables effortless operation — simply tap once to move to one of three custom saved heights; double-tap to get there at full speed.Visibility Meets VersatilityDay or night, the ATLAS™ EDGE stays clear and easy to use thanks to Auto Display Brightness, which adjusts the screen’s visibility based on ambient light. Whether under direct sun or pre-dawn launches, the system delivers information without distraction.Powered by InnovationDesigned in collaboration with Power-Pole®, the ATLAS™ EDGE now features a high performance brushless motor, offering quiet operation, ultra-fast lift speeds, and zero maintenance reliability.Product advantage: Smarter. Faster. SmootherWith its innovative blend of intelligent presets and adaptive speed, the ATLAS™ EDGE sets a new standard for performance on the water. Whether you’re launching, cruising, or dialing in the perfect fishing position, it’s all just one touch away. Brochure (pdf)
ATLAS™ EDGE 4" Set Back Hydraulic Jack Plate - Heavy Duty - Silver
HYDRAULIC RISE: 5.75”
TOTAL RISE: 8.25” - 9.75”
WEIGHT LIMIT: 810 lbs
HP: 450 max
ATLAS™ EDGE Jack Plate Lifted by Power-Pole®, the next generation of the best-selling ATLAS™ line. Built for anglers who demand more from their equipment, the ATLAS™ EDGE delivers an all-new level of precision, performance, and control – with smarter features designed to make every second on the water count.Smarter Controls, Seamless ExperienceAt the heart of the new ATLAS™ EDGE system is One-Touch Height Control, allowing users to instantly switch between three customizable presets for takeoff, running, and fishing / trailering. With just a single press, boaters can recall their ideal height positions, eliminate guesswork, and maximize efficiency. The Adjustable Speed Settings (Slow, Medium, Fast) offer tailored performance for varying water conditions and preferences, while the Auto Height Mode enables effortless operation — simply tap once to move to one of three custom saved heights; double-tap to get there at full speed.Visibility Meets VersatilityDay or night, the ATLAS™ EDGE stays clear and easy to use thanks to Auto Display Brightness, which adjusts the screen’s visibility based on ambient light. Whether under direct sun or pre-dawn launches, the system delivers information without distraction.Powered by InnovationDesigned in collaboration with Power-Pole®, the ATLAS™ EDGE now features a high performance brushless motor, offering quiet operation, ultra-fast lift speeds, and zero maintenance reliability.Product advantage: Smarter. Faster. SmootherWith its innovative blend of intelligent presets and adaptive speed, the ATLAS™ EDGE sets a new standard for performance on the water. Whether you’re launching, cruising, or dialing in the perfect fishing position, it’s all just one touch away. Brochure (pdf)
ATLAS™ EDGE 4" Set Back Hydraulic Jack Plate - Classic - Silver
HYDRAULIC RISE: 5.75”
TOTAL RISE: 8.25” - 9.75”
WEIGHT LIMIT: 625 lbs
HP: 300 max
ATLAS™ EDGE Jack Plate Lifted by Power-Pole®, the next generation of the best-selling ATLAS™ line. Built for anglers who demand more from their equipment, the ATLAS™ EDGE delivers an all-new level of precision, performance, and control – with smarter features designed to make every second on the water count.Smarter Controls, Seamless ExperienceAt the heart of the new ATLAS™ EDGE system is One-Touch Height Control, allowing users to instantly switch between three customizable presets for takeoff, running, and fishing / trailering. With just a single press, boaters can recall their ideal height positions, eliminate guesswork, and maximize efficiency. The Adjustable Speed Settings (Slow, Medium, Fast) offer tailored performance for varying water conditions and preferences, while the Auto Height Mode enables effortless operation — simply tap once to move to one of three custom saved heights; double-tap to get there at full speed.Visibility Meets VersatilityDay or night, the ATLAS™ EDGE stays clear and easy to use thanks to Auto Display Brightness, which adjusts the screen’s visibility based on ambient light. Whether under direct sun or pre-dawn launches, the system delivers information without distraction.Powered by InnovationDesigned in collaboration with Power-Pole®, the ATLAS™ EDGE now features a high performance brushless motor, offering quiet operation, ultra-fast lift speeds, and zero maintenance reliability.Product advantage: Smarter. Faster. SmootherWith its innovative blend of intelligent presets and adaptive speed, the ATLAS™ EDGE sets a new standard for performance on the water. Whether you’re launching, cruising, or dialing in the perfect fishing position, it’s all just one touch away. Brochure (pdf)
